ns3::ChannelCoordinator Class Reference

ChannelCoordinator deals with channel coordination in data plane (see 1609.4 chapter 5.2) More...

#include <channel-coordinator.h>

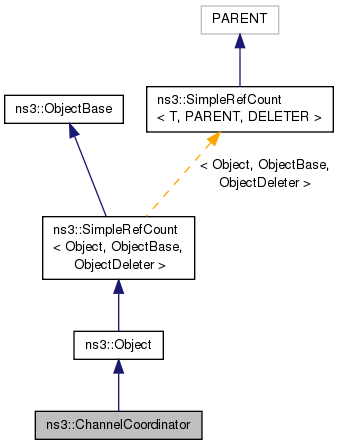

+ Inheritance diagram for ns3::ChannelCoordinator:

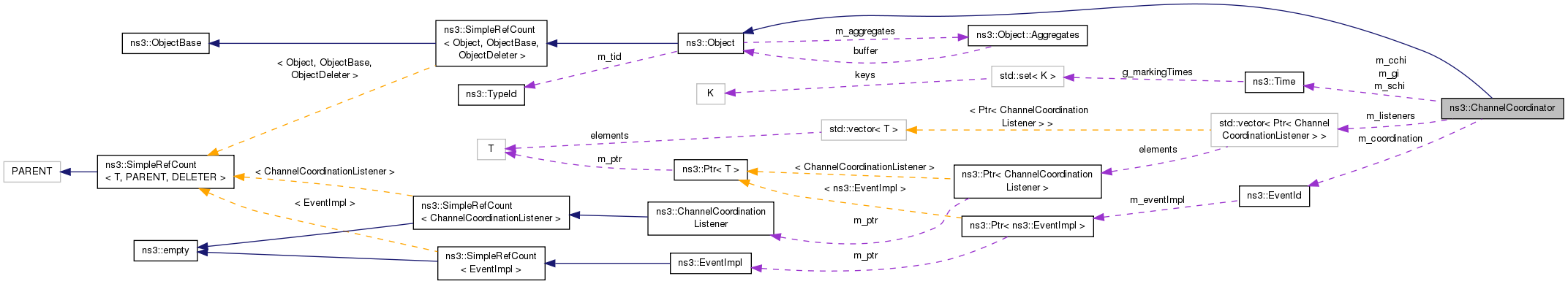

+ Collaboration diagram for ns3::ChannelCoordinator:

Public Member Functions

 ChannelCoordinator ()

virtual ~ChannelCoordinator ()

Time GetCchInterval (void) const

Time GetGuardInterval (void) const

Time GetIntervalTime (Time duration=Seconds(0.0)) const

Time GetRemainTime (Time duration=Seconds(0.0)) const

Time GetSchInterval (void) const

Time GetSyncInterval (void) const

bool IsCchInterval (Time duration=Seconds(0.0)) const

bool IsGuardInterval (Time duration=Seconds(0.0)) const

bool IsSchInterval (Time duration=Seconds(0.0)) const

bool IsValidConfig (void) const

Time NeedTimeToCchInterval (Time duration=Seconds(0.0)) const

Time NeedTimeToGuardInterval (Time duration=Seconds(0.0)) const

Time NeedTimeToSchInterval (Time duration=Seconds(0.0)) const

void RegisterListener (Ptr< ChannelCoordinationListener > listener)

void SetCchInterval (Time cchi)

void SetGuardInterval (Time guardi)

void SetSchInterval (Time schi)

void UnregisterAllListeners (void)
 Remove all listeners. More...

void UnregisterListener (Ptr< ChannelCoordinationListener > listener)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static Time GetDefaultCchInterval (void)

static Time GetDefaultGuardInterval (void)

static Time GetDefaultSchInterval (void)

static Time GetDefaultSyncInterval (void)

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

typedef std::vector< Ptr< ChannelCoordinationListener > > Listeners

typedef std::vector< Ptr< ChannelCoordinationListener > >::iterator ListenersI


Private Member Functions

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

Time GetCchSlot (void) const

Time GetSchSlot (void) const

void NotifyCchSlot (void)

void NotifyGuardSlot (void)

void NotifySchSlot (void)

void StartChannelCoordination (void)
 start to make channel coordination events More...

void StopChannelCoordination (void)
 stop channel coordination events More...


Private Attributes

Time m_cchi

EventId m_coordination

Time m_gi

uint32_t m_guardCount

Listeners m_listeners

Time m_schi


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

ChannelCoordinator deals with channel coordination in data plane (see 1609.4 chapter 5.2)

<---------— --—SYNCI--------------—> <----------------—SYNCI---------------—> CCHI SCHI CCHI SCHI |..************|..************|..************|..************| GI GI GI GI

The relation among CCHI(CCH Interval), SCHI(SCH Interval), GI(Guard Interval), SYNCI(Sync Interval):

  1. they are all time durations, gegerally default CCHI is 50ms, default SCHI is 50ms, default GI is 4ms, default SYNCI is 100ms.
  2. Every UTC second shall be an integer number of sync interval, and the beginning of a sync interval shall align with beginning of UTC second;
  3. SYNCI is the sum of CCHI and SCHI. GI is the sum of SyncTolerance and MaxSwitchTime defined for multi-channel synchronization (see 1609.4 chapter 6.2). And since all devices the in simulation could be supposed to synchronize by "perfect GPS", here the synchronization mechanism defined in the standard will be not implemented.
  4. Although the real channel switch time of wifi PHY layer is very fast, and the "ChannelSwitchDelay" of YansWifiPhy is 250 microseconds, here in 4ms guard interval WAVE devices cannot transmit packets while may receive packets.

Config Paths

ns3::ChannelCoordinator is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/ChannelCoordinator"

Attributes

  • CchInterval: CCH Interval, default value is 50ms.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +50000000.0ns
    • Flags: construct write read
  • SchInterval: SCH Interval, default value is 50ms.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +50000000.0ns
    • Flags: construct write read
  • GuardInterval: Guard Interval, default value is 4ms.
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +4000000.0ns
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 70 of file channel-coordinator.h.

Member Typedef Documentation

typedef std::vector<Ptr<ChannelCoordinationListener> > ns3::ChannelCoordinator::Listeners
private

Definition at line 230 of file channel-coordinator.h.

typedef std::vector<Ptr<ChannelCoordinationListener> >::iterator ns3::ChannelCoordinator::ListenersI
private

Definition at line 231 of file channel-coordinator.h.

Constructor & Destructor Documentation

ns3::ChannelCoordinator::ChannelCoordinator ( )

Definition at line 60 of file channel-coordinator.cc.

References NS_LOG_FUNCTION.

ns3::ChannelCoordinator::~ChannelCoordinator ( )
virtual

Definition at line 66 of file channel-coordinator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::ChannelCoordinator::DoDispose ( void  )
privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 79 of file channel-coordinator.cc.

References NS_LOG_FUNCTION, StopChannelCoordination(), and UnregisterAllListeners().

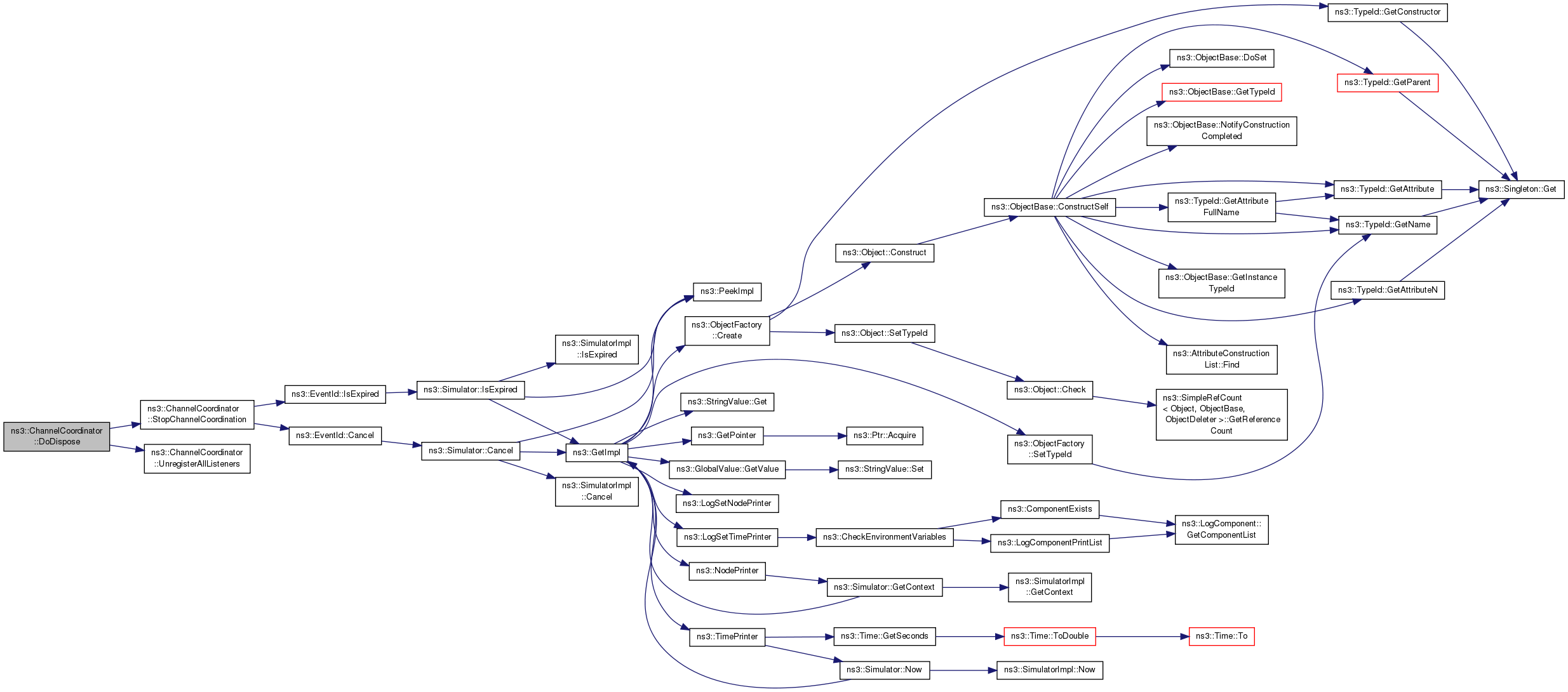

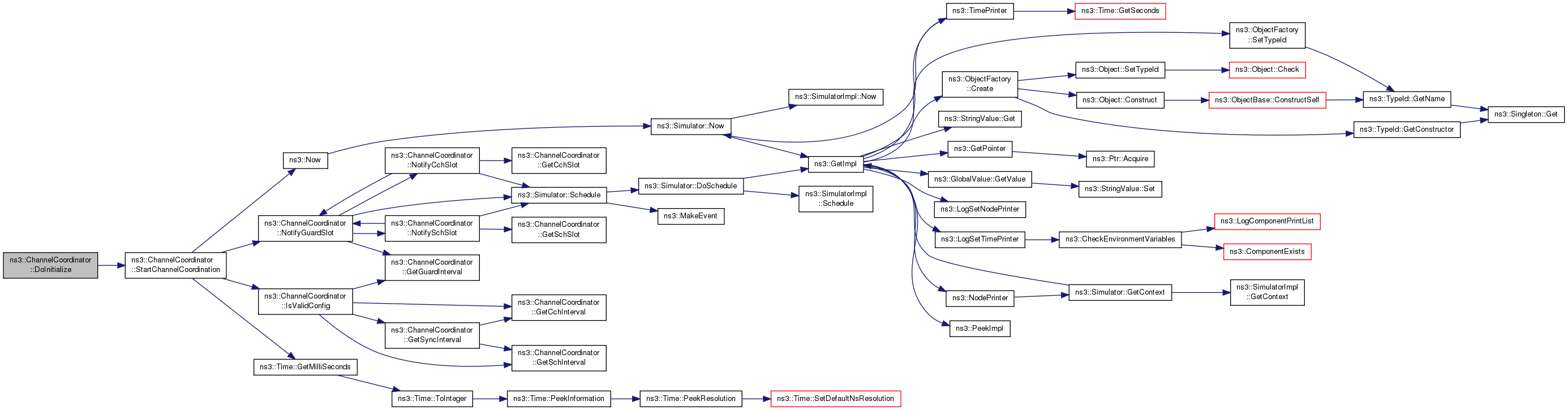

+ Here is the call graph for this function:

void ns3::ChannelCoordinator::DoInitialize ( void  )
privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 72 of file channel-coordinator.cc.

References NS_LOG_FUNCTION, and StartChannelCoordination().

+ Here is the call graph for this function:

Time ns3::ChannelCoordinator::GetCchInterval ( void  ) const
Returns
the CCH interval for multi-channel operation.

Definition at line 130 of file channel-coordinator.cc.

References m_cchi, and NS_LOG_FUNCTION.

Referenced by ChannelCoordinationTestCase::DoRun(), GetSyncInterval(), IsValidConfig(), NeedTimeToGuardInterval(), NeedTimeToSchInterval(), ChannelCoordinationTestCase::NotifyCchStartNow(), ChannelCoordinationTestCase::NotifyGuardStartNow(), and ChannelCoordinationTestCase::NotifySchStartNow().

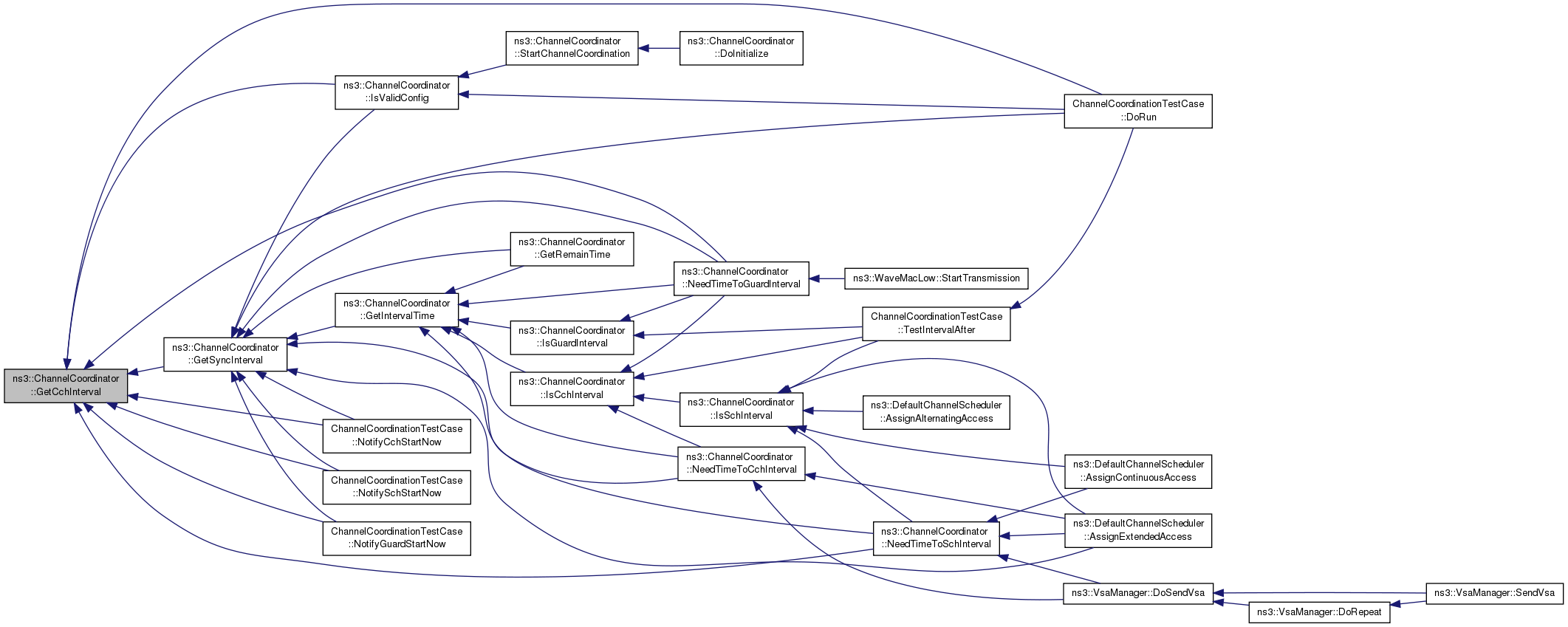

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetCchSlot ( void  ) const
private
Returns
CCH channel access time which is SchInterval - GuardInterval, default 46ms

Definition at line 179 of file channel-coordinator.cc.

References m_cchi, m_gi, and NS_LOG_FUNCTION.

Referenced by NotifyCchSlot().

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetDefaultCchInterval ( void  )
static
Returns
the default control channel interval for multi-channel operation (50 milliseconds).

Definition at line 87 of file channel-coordinator.cc.

References ns3::MilliSeconds(), and NS_LOG_FUNCTION_NOARGS.

Referenced by GetDefaultSyncInterval(), and GetTypeId().

+ Here is the call graph for this function:

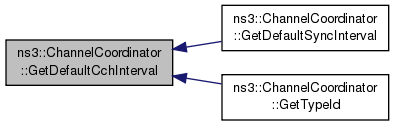

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetDefaultGuardInterval ( void  )
static
Returns
the default guard channel interval for multi-channel operation (4 milliseconds).

Definition at line 112 of file channel-coordinator.cc.

References ns3::MilliSeconds(), and NS_LOG_FUNCTION_NOARGS.

Referenced by GetTypeId().

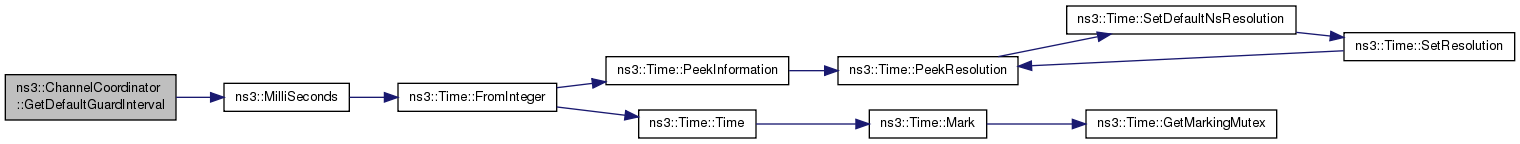

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

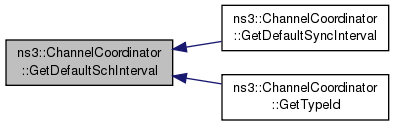

Time ns3::ChannelCoordinator::GetDefaultSchInterval ( void  )
static
Returns
the default service channel interval for multi-channel operation (50 milliseconds).

Definition at line 96 of file channel-coordinator.cc.

References ns3::MilliSeconds(), and NS_LOG_FUNCTION_NOARGS.

Referenced by GetDefaultSyncInterval(), and GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

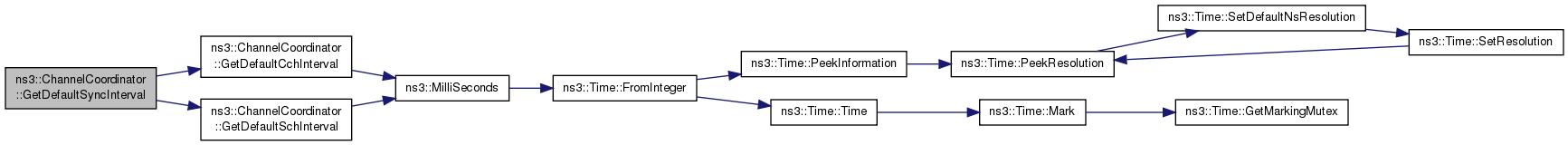

Time ns3::ChannelCoordinator::GetDefaultSyncInterval ( void  )
static
Returns
the default sync interval for multi-channel operation (100 milliseconds).

Definition at line 105 of file channel-coordinator.cc.

References GetDefaultCchInterval(), GetDefaultSchInterval(), and NS_LOG_FUNCTION_NOARGS.

+ Here is the call graph for this function:

Time ns3::ChannelCoordinator::GetGuardInterval ( void  ) const
Returns
the guard interval for multi-channel operation.

Definition at line 165 of file channel-coordinator.cc.

References m_gi, and NS_LOG_FUNCTION.

Referenced by ChannelCoordinationTestCase::DoRun(), IsValidConfig(), ChannelCoordinationTestCase::NotifyCchStartNow(), NotifyGuardSlot(), ChannelCoordinationTestCase::NotifyGuardStartNow(), and ChannelCoordinationTestCase::NotifySchStartNow().

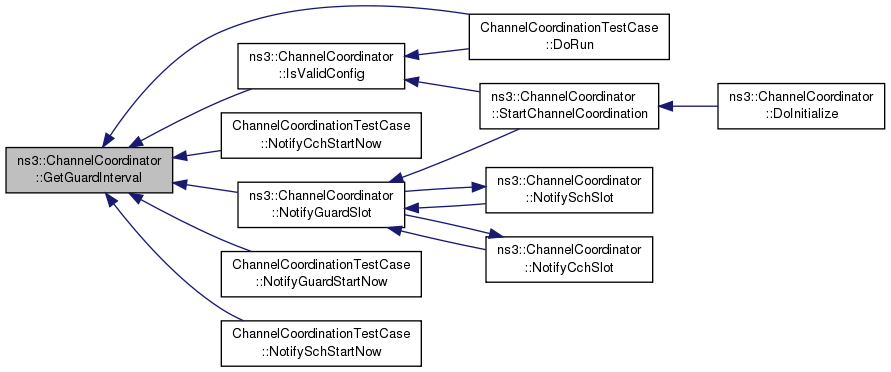

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetIntervalTime ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
the time in a Sync Interval of future time for example: SyncInterval = 100ms; Now = 5s20ms; duration = 50ms; then GetIntervalTime (duration) = 70ms.

Definition at line 281 of file channel-coordinator.cc.

References ns3::Time::GetMilliSeconds(), GetSyncInterval(), ns3::MilliSeconds(), ns3::Now(), and NS_LOG_FUNCTION.

Referenced by GetRemainTime(), IsCchInterval(), IsGuardInterval(), NeedTimeToCchInterval(), NeedTimeToGuardInterval(), and NeedTimeToSchInterval().

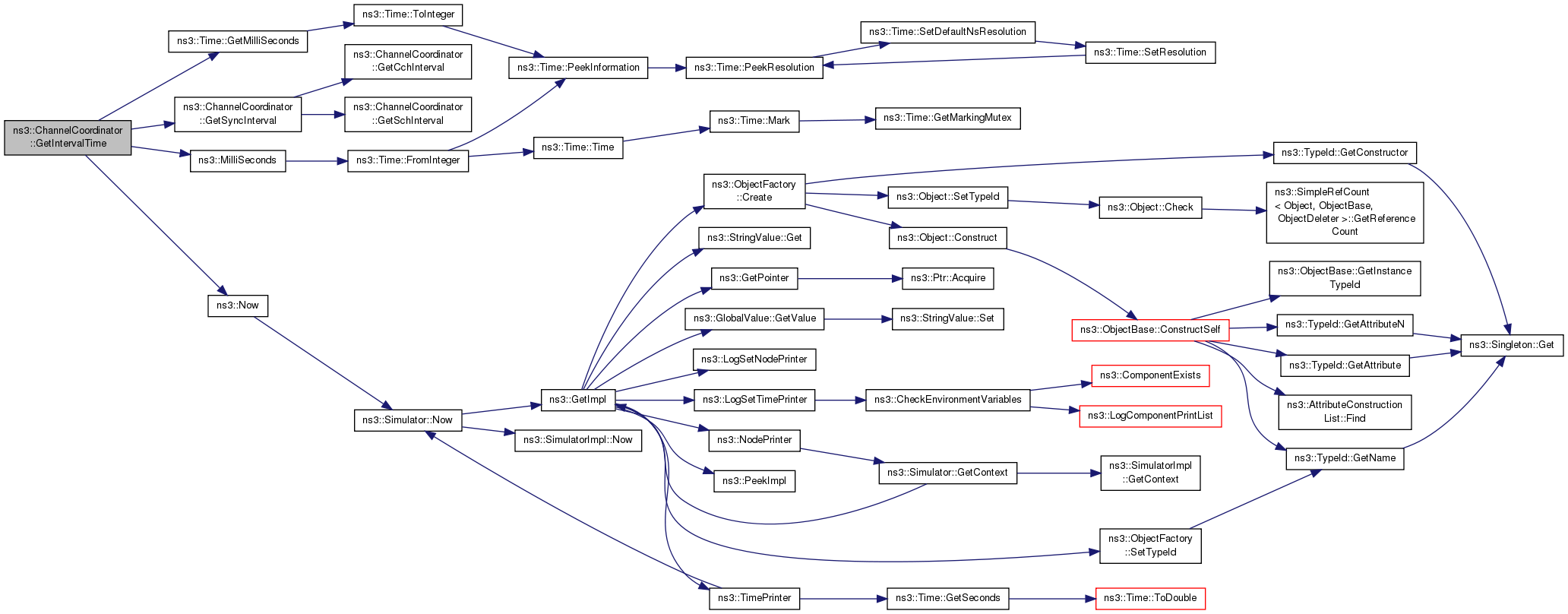

+ Here is the call graph for this function:

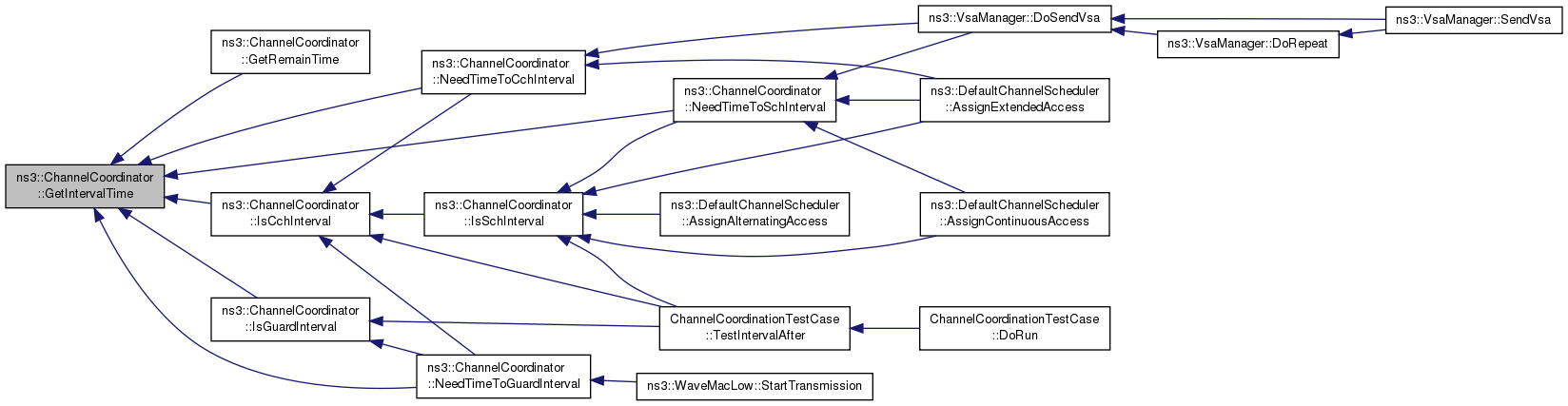

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetRemainTime ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
the remain time in a Sync Interval of future time for example: SyncInterval = 100ms; Now = 5s20ms; duration = 50ms; then GetRemainTime (duration) = 30ms.

Definition at line 291 of file channel-coordinator.cc.

References GetIntervalTime(), GetSyncInterval(), and NS_LOG_FUNCTION.

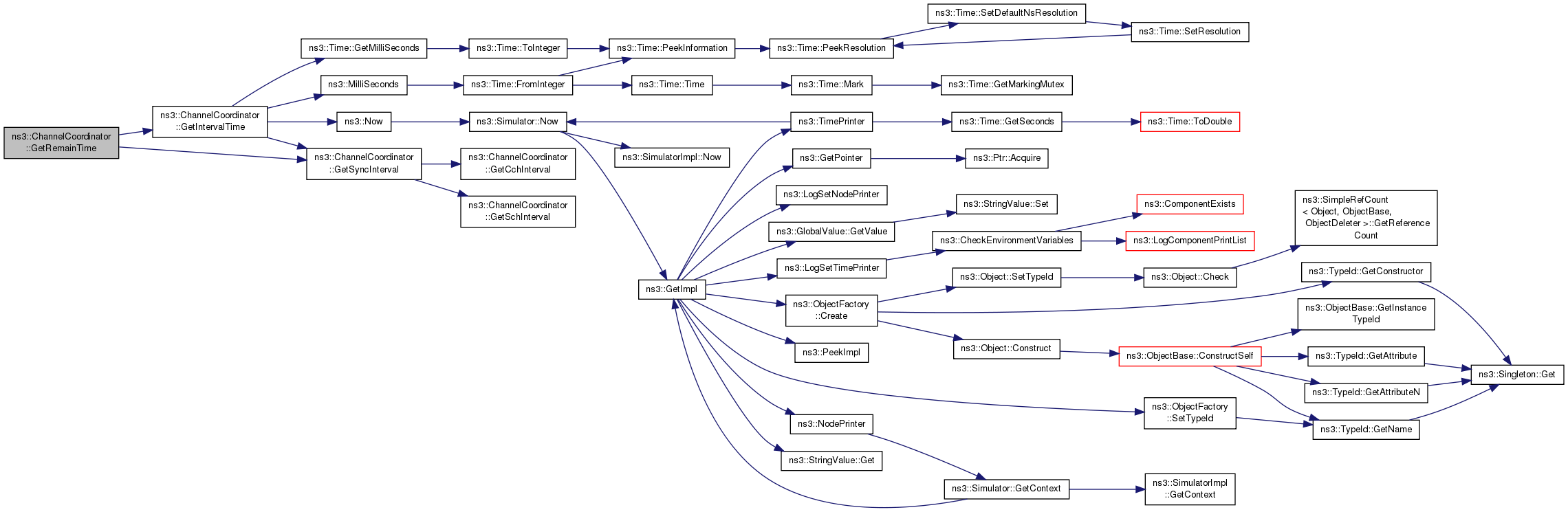

+ Here is the call graph for this function:

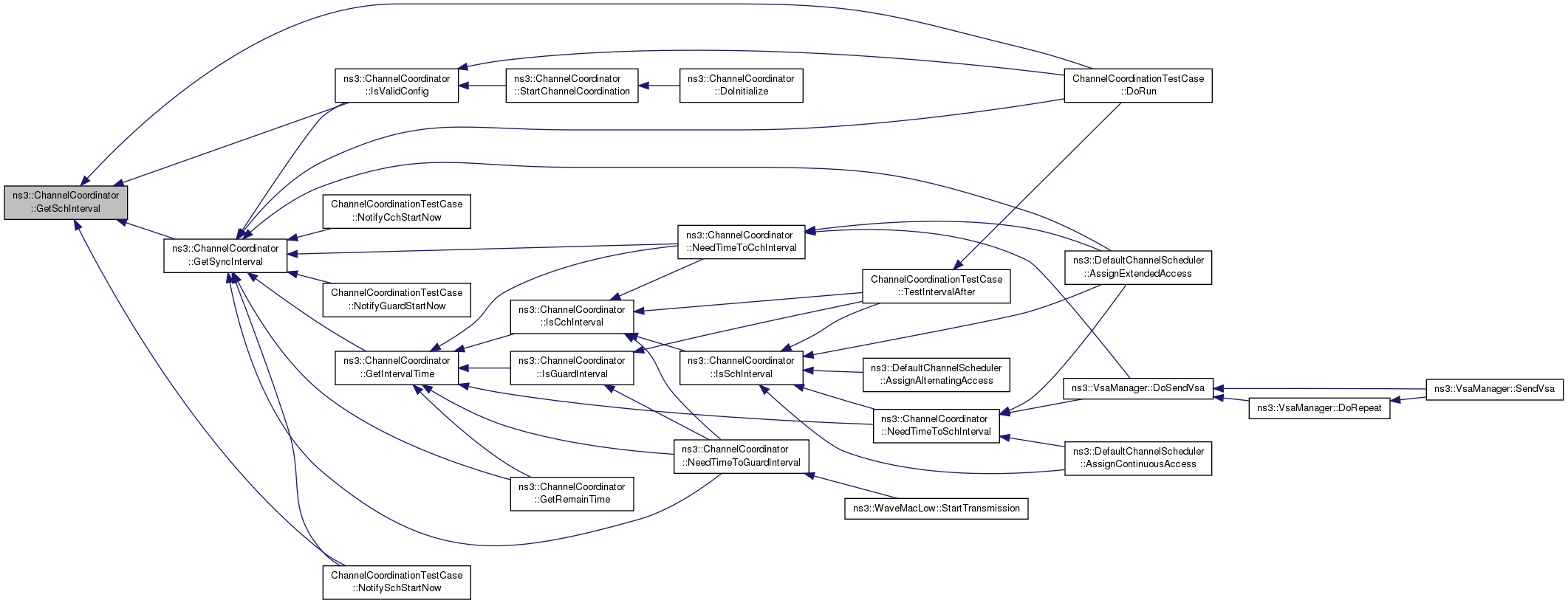

Time ns3::ChannelCoordinator::GetSchInterval ( void  ) const
Returns
the SCH interval for multi-channel operation.

Definition at line 144 of file channel-coordinator.cc.

References m_schi, and NS_LOG_FUNCTION.

Referenced by ChannelCoordinationTestCase::DoRun(), GetSyncInterval(), IsValidConfig(), and ChannelCoordinationTestCase::NotifySchStartNow().

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetSchSlot ( void  ) const
private
Returns
SCH channel access time which is SchInterval - GuardInterval, default 46ms

Definition at line 172 of file channel-coordinator.cc.

References m_gi, m_schi, and NS_LOG_FUNCTION.

Referenced by NotifySchSlot().

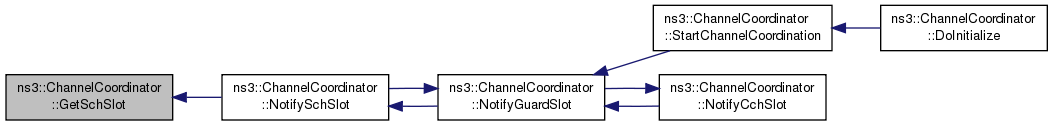

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::GetSyncInterval ( void  ) const
Returns
the Sync interval for multi-channel operation.

Definition at line 151 of file channel-coordinator.cc.

References GetCchInterval(), GetSchInterval(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignExtendedAccess(), ChannelCoordinationTestCase::DoRun(), GetIntervalTime(), GetRemainTime(), IsValidConfig(), NeedTimeToCchInterval(), NeedTimeToGuardInterval(), ChannelCoordinationTestCase::NotifyCchStartNow(), ChannelCoordinationTestCase::NotifyGuardStartNow(), and ChannelCoordinationTestCase::NotifySchStartNow().

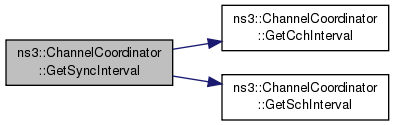

+ Here is the call graph for this function:

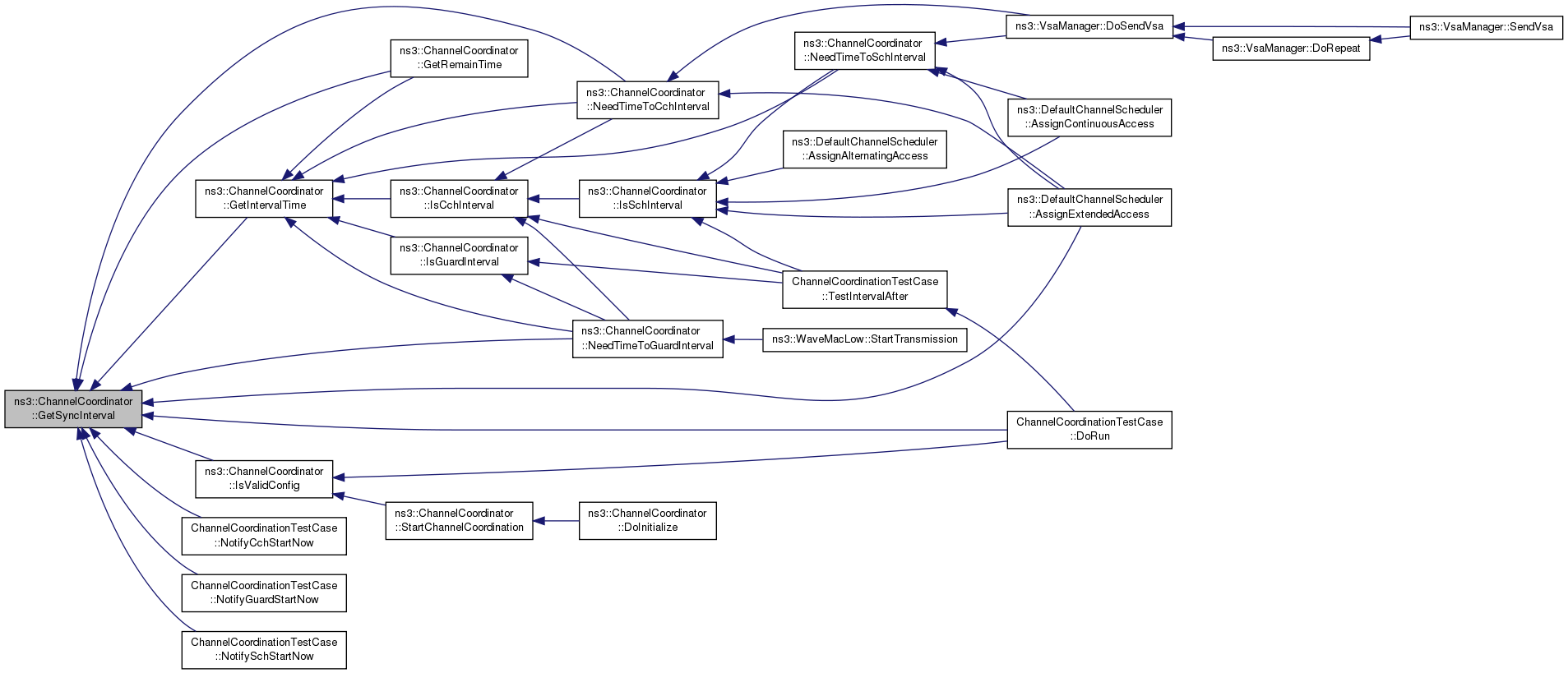

+ Here is the caller graph for this function:

TypeId ns3::ChannelCoordinator::GetTypeId ( void  )
static

Definition at line 39 of file channel-coordinator.cc.

References GetDefaultCchInterval(), GetDefaultGuardInterval(), GetDefaultSchInterval(), m_cchi, m_gi, m_schi, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

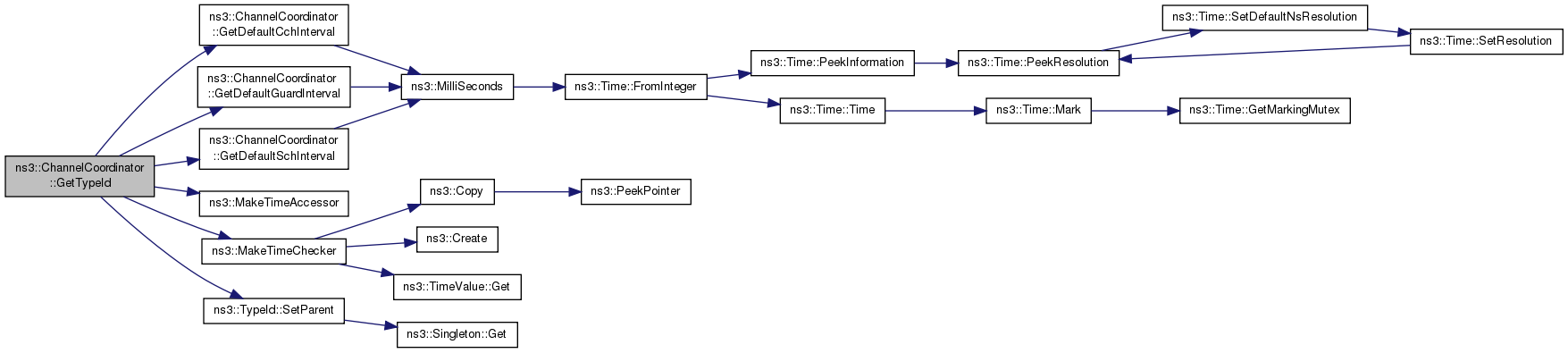

+ Here is the call graph for this function:

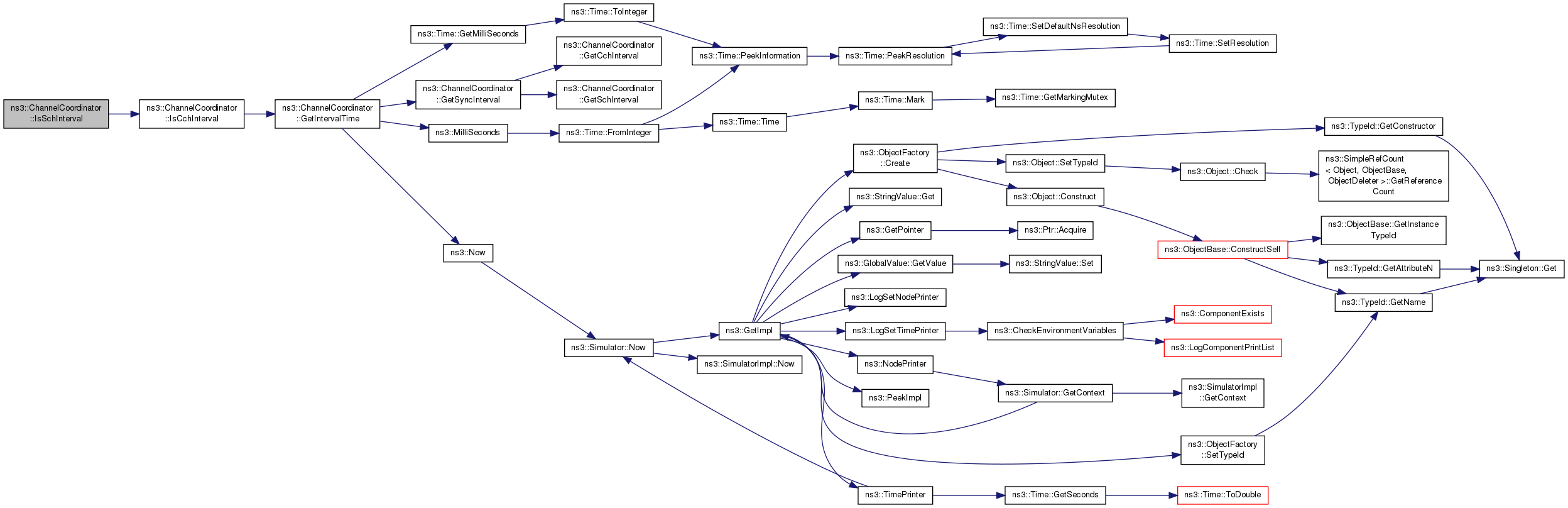

bool ns3::ChannelCoordinator::IsCchInterval ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
whether future time is in CCH Interval

Definition at line 186 of file channel-coordinator.cc.

References GetIntervalTime(), m_cchi, and NS_LOG_FUNCTION.

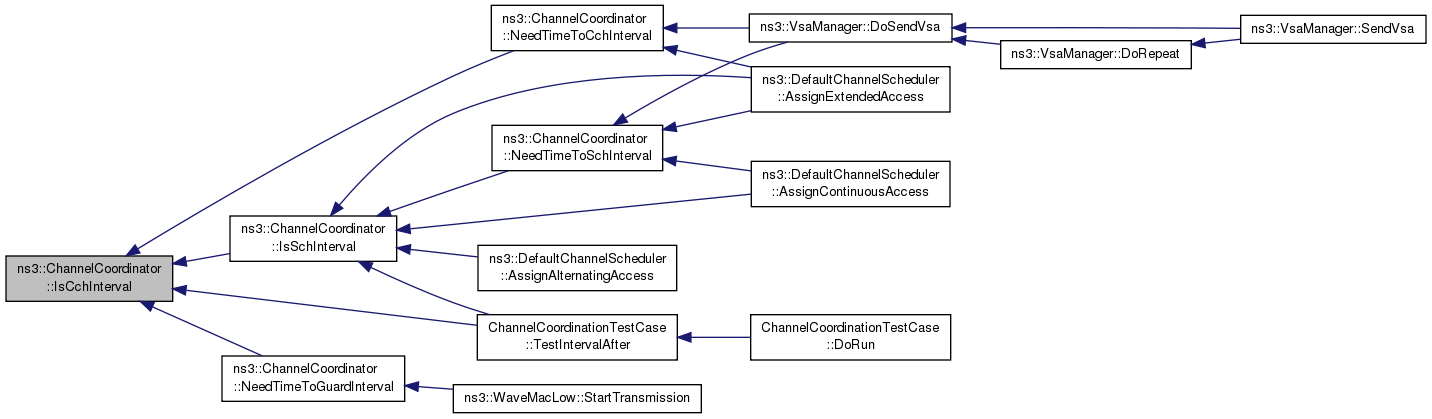

Referenced by IsSchInterval(), NeedTimeToCchInterval(), NeedTimeToGuardInterval(), and ChannelCoordinationTestCase::TestIntervalAfter().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

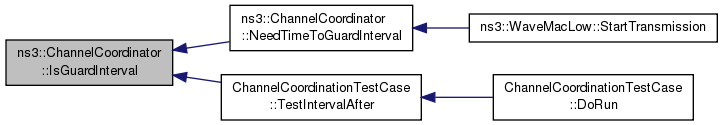

bool ns3::ChannelCoordinator::IsGuardInterval ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
whether future time is in Guard Interval

Definition at line 201 of file channel-coordinator.cc.

References GetIntervalTime(), m_cchi, m_gi, and NS_LOG_FUNCTION.

Referenced by NeedTimeToGuardInterval(), and ChannelCoordinationTestCase::TestIntervalAfter().

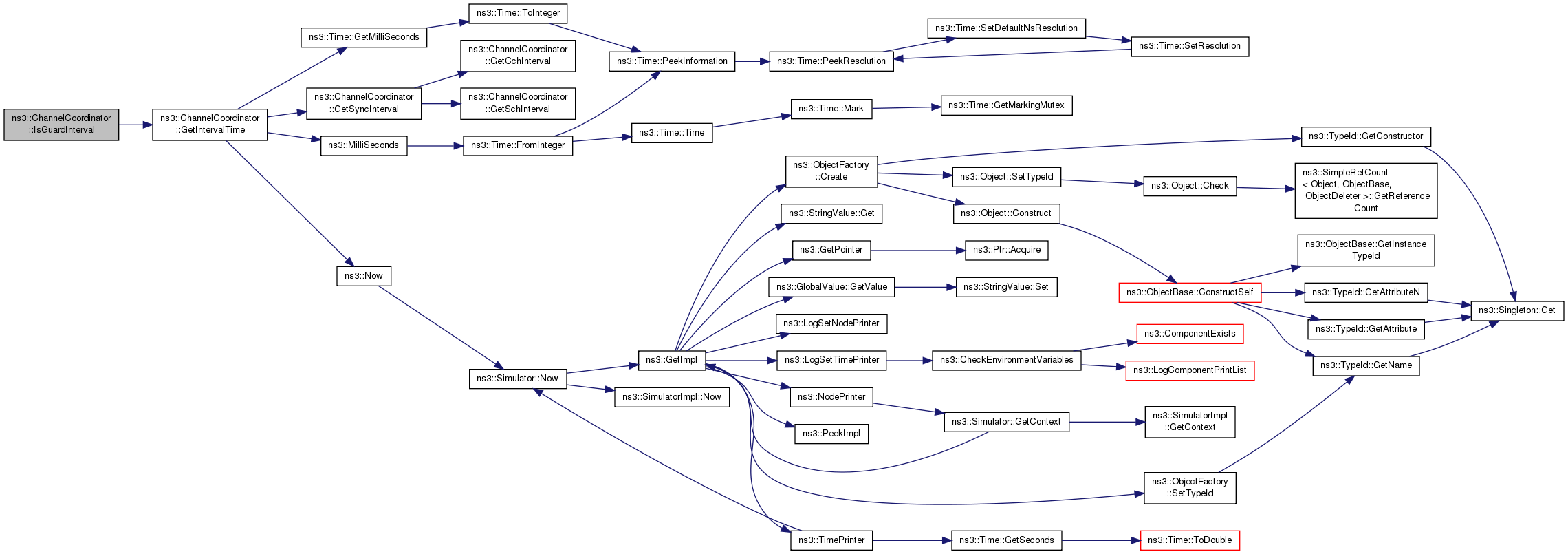

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::ChannelCoordinator::IsSchInterval ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
whether future time is in SCH Interval

Definition at line 194 of file channel-coordinator.cc.

References IsCchInterval(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignAlternatingAccess(), ns3::DefaultChannelScheduler::AssignContinuousAccess(), ns3::DefaultChannelScheduler::AssignExtendedAccess(), NeedTimeToSchInterval(), and ChannelCoordinationTestCase::TestIntervalAfter().

+ Here is the call graph for this function:

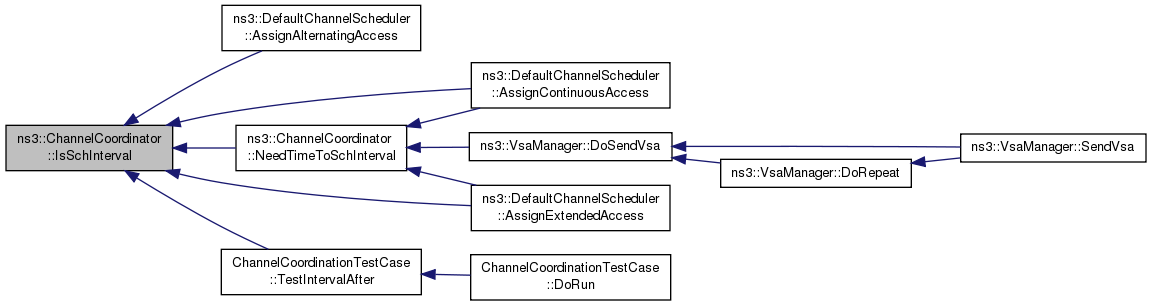

+ Here is the caller graph for this function:

bool ns3::ChannelCoordinator::IsValidConfig ( void  ) const
Returns
whether current channel interval configuration is valid.

If users set the channel intervals different from default values here, it should be better to test whether the configuration is valid.

Definition at line 211 of file channel-coordinator.cc.

References GetCchInterval(), GetGuardInterval(), GetSchInterval(), GetSyncInterval(), NS_LOG_FUNCTION, and NS_LOG_WARN.

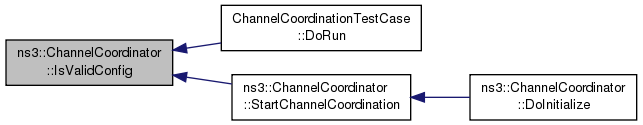

Referenced by ChannelCoordinationTestCase::DoRun(), and StartChannelCoordination().

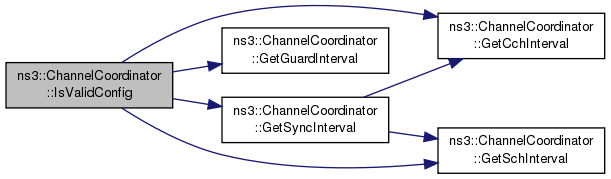

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::NeedTimeToCchInterval ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
the time to the next CCH interval. If current time is already in CCH interval, return 0;

Definition at line 242 of file channel-coordinator.cc.

References GetIntervalTime(), GetSyncInterval(), IsCchInterval(), ns3::MilliSeconds(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignExtendedAccess(), and ns3::VsaManager::DoSendVsa().

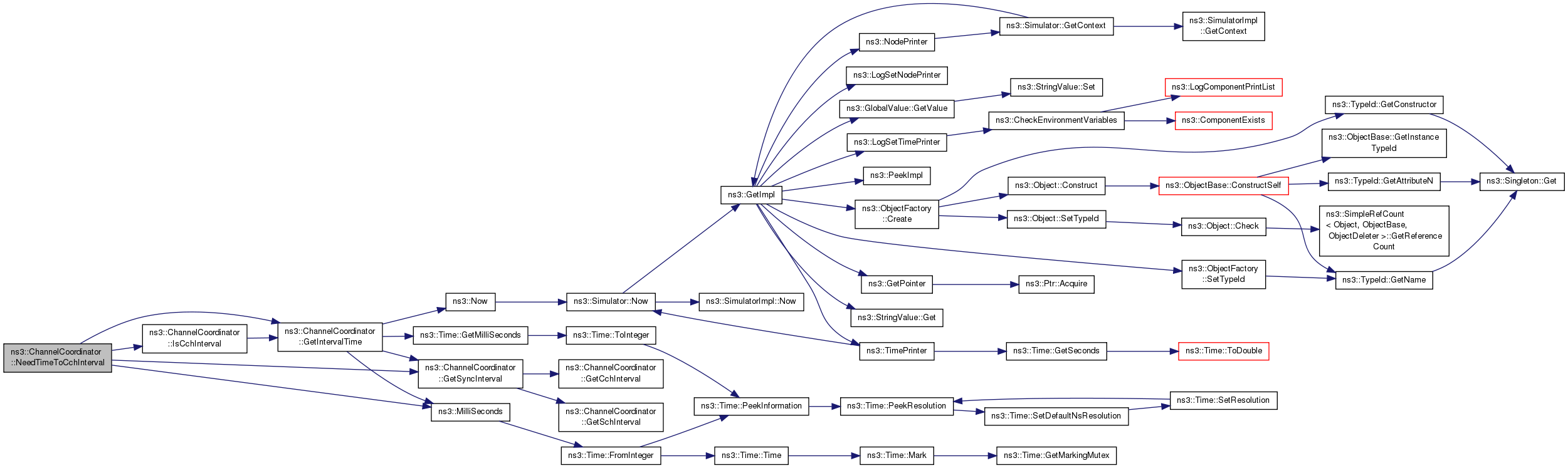

+ Here is the call graph for this function:

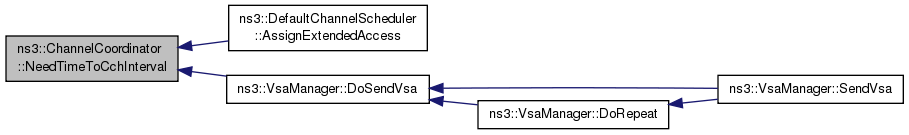

+ Here is the caller graph for this function:

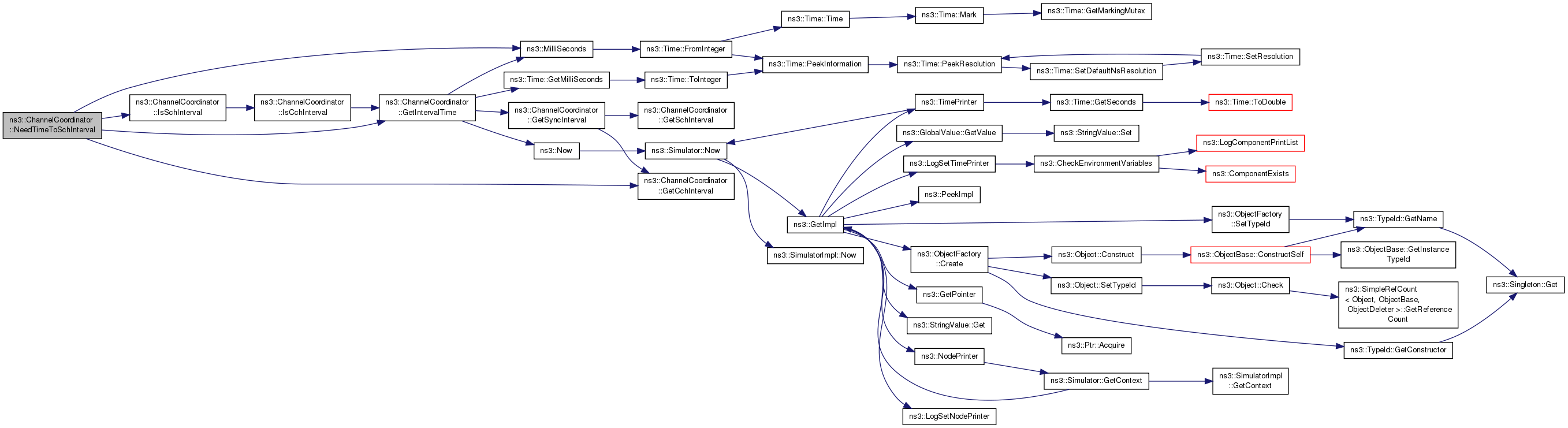

Time ns3::ChannelCoordinator::NeedTimeToGuardInterval ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
the duration time to next Guard Interval; return 0 if current time is already in Guard Interval, ;

Definition at line 264 of file channel-coordinator.cc.

References GetCchInterval(), GetIntervalTime(), GetSyncInterval(), IsCchInterval(), IsGuardInterval(), ns3::MilliSeconds(), and NS_LOG_FUNCTION.

Referenced by ns3::WaveMacLow::StartTransmission().

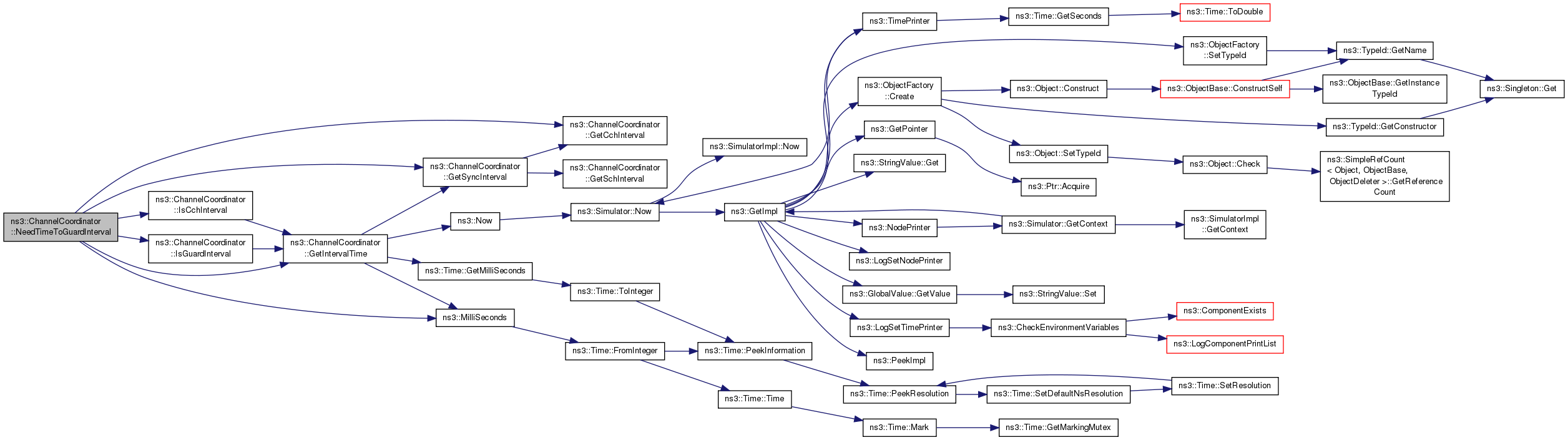

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::ChannelCoordinator::NeedTimeToSchInterval ( Time  duration = Seconds (0.0)) const
Parameters
durationthe future time after duration
Returns
the duration time to the next SCH interval. If current time is already in SCH interval, return 0;

Definition at line 253 of file channel-coordinator.cc.

References GetCchInterval(), GetIntervalTime(), IsSchInterval(), ns3::MilliSeconds(), and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignContinuousAccess(), ns3::DefaultChannelScheduler::AssignExtendedAccess(), and ns3::VsaManager::DoSendVsa().

+ Here is the call graph for this function:

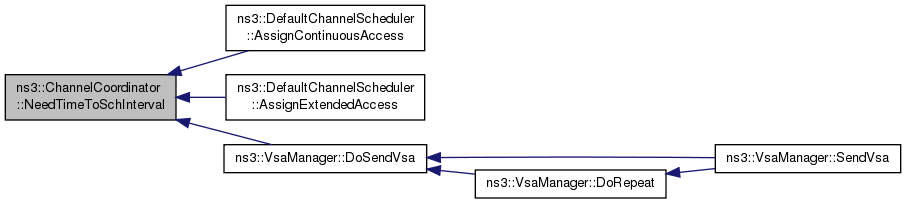

+ Here is the caller graph for this function:

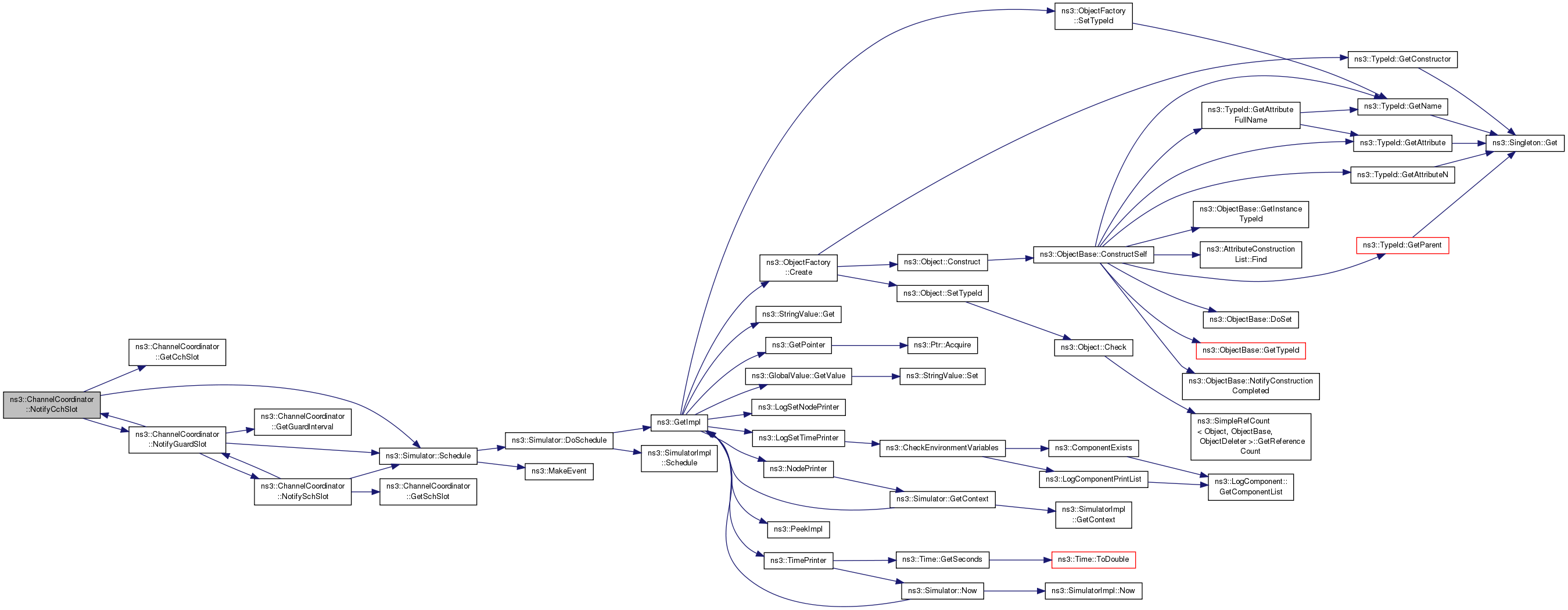

void ns3::ChannelCoordinator::NotifyCchSlot ( void  )
private

Definition at line 367 of file channel-coordinator.cc.

References GetCchSlot(), m_coordination, m_listeners, NotifyGuardSlot(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by NotifyGuardSlot().

+ Here is the call graph for this function:

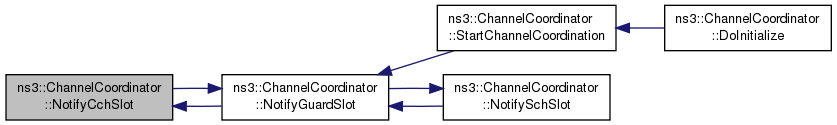

+ Here is the caller graph for this function:

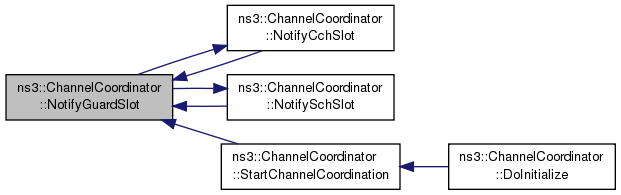

void ns3::ChannelCoordinator::NotifyGuardSlot ( void  )
private

Definition at line 378 of file channel-coordinator.cc.

References GetGuardInterval(), m_coordination, m_guardCount, m_listeners, NotifyCchSlot(), NotifySchSlot(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by NotifyCchSlot(), NotifySchSlot(), and StartChannelCoordination().

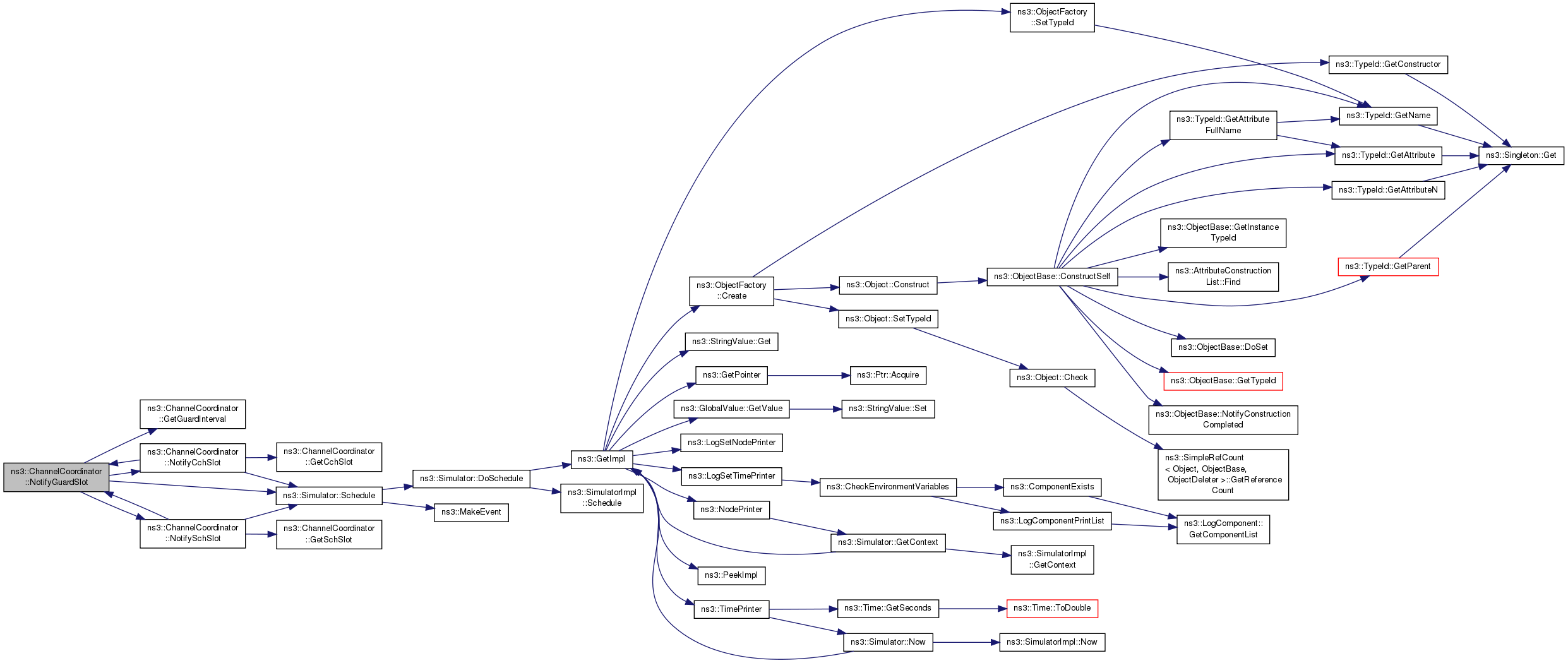

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

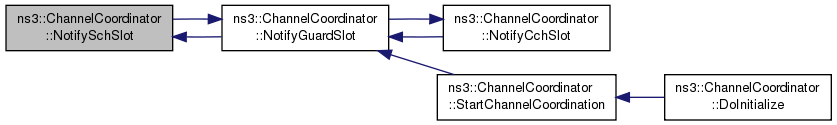

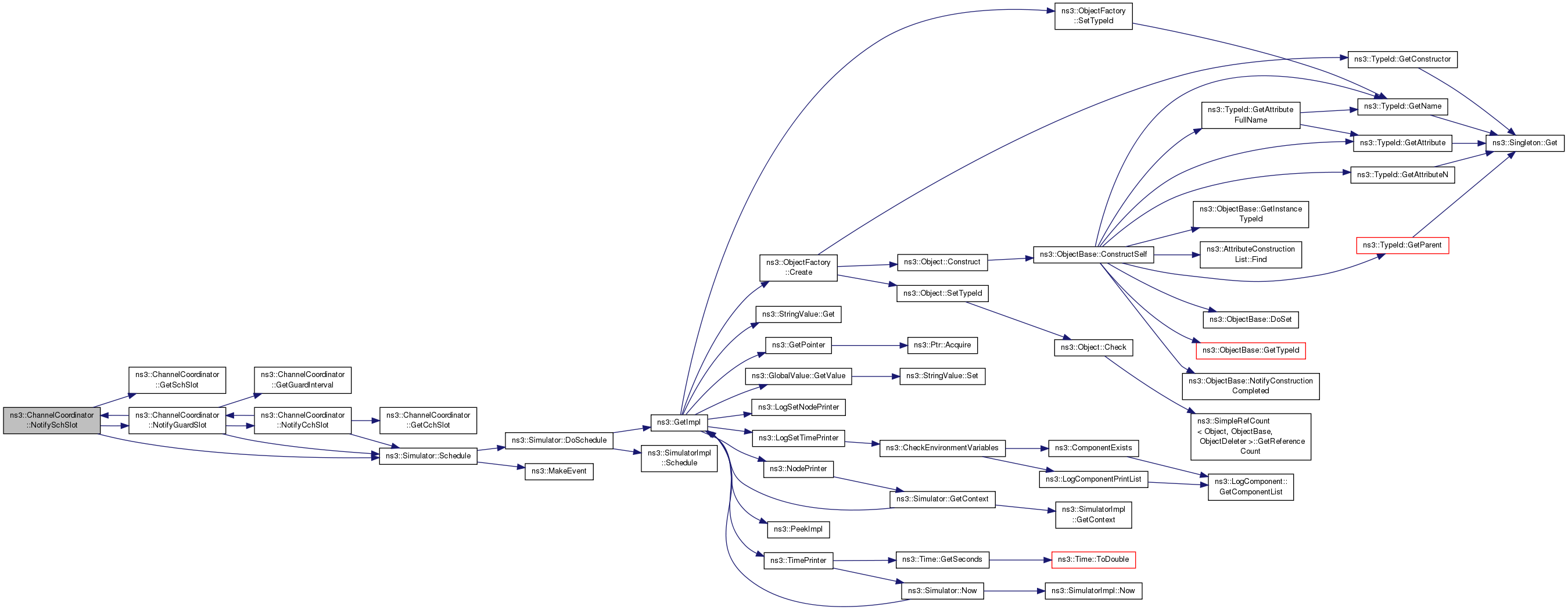

void ns3::ChannelCoordinator::NotifySchSlot ( void  )
private

Definition at line 356 of file channel-coordinator.cc.

References GetSchSlot(), m_coordination, m_listeners, NotifyGuardSlot(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by NotifyGuardSlot().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::RegisterListener ( Ptr< ChannelCoordinationListener >  listener)
Parameters
listenerthe new listener for channel coordination events.

Add the input listener to the list of objects to be notified of channel coordination events.

Definition at line 298 of file channel-coordinator.cc.

References m_listeners, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::SetWaveNetDevice().

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::SetCchInterval ( Time  cchi)
Parameters
cchithe CCH interval for multi-channel operation.

Definition at line 123 of file channel-coordinator.cc.

References m_cchi, and NS_LOG_FUNCTION.

Referenced by ChannelCoordinationTestCase::DoRun().

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::SetGuardInterval ( Time  guardi)
Parameters
guardithe guard interval for multi-channel operation.

Definition at line 158 of file channel-coordinator.cc.

References m_gi, and NS_LOG_FUNCTION.

Referenced by ChannelCoordinationTestCase::DoRun().

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::SetSchInterval ( Time  schi)
Parameters
schithe SCH interval for multi-channel operation.

Definition at line 137 of file channel-coordinator.cc.

References m_schi, and NS_LOG_FUNCTION.

Referenced by ChannelCoordinationTestCase::DoRun().

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::StartChannelCoordination ( void  )
private

start to make channel coordination events

Definition at line 328 of file channel-coordinator.cc.

References ns3::Time::GetMilliSeconds(), IsValidConfig(), m_guardCount, NotifyGuardSlot(), ns3::Now(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoInitialize().

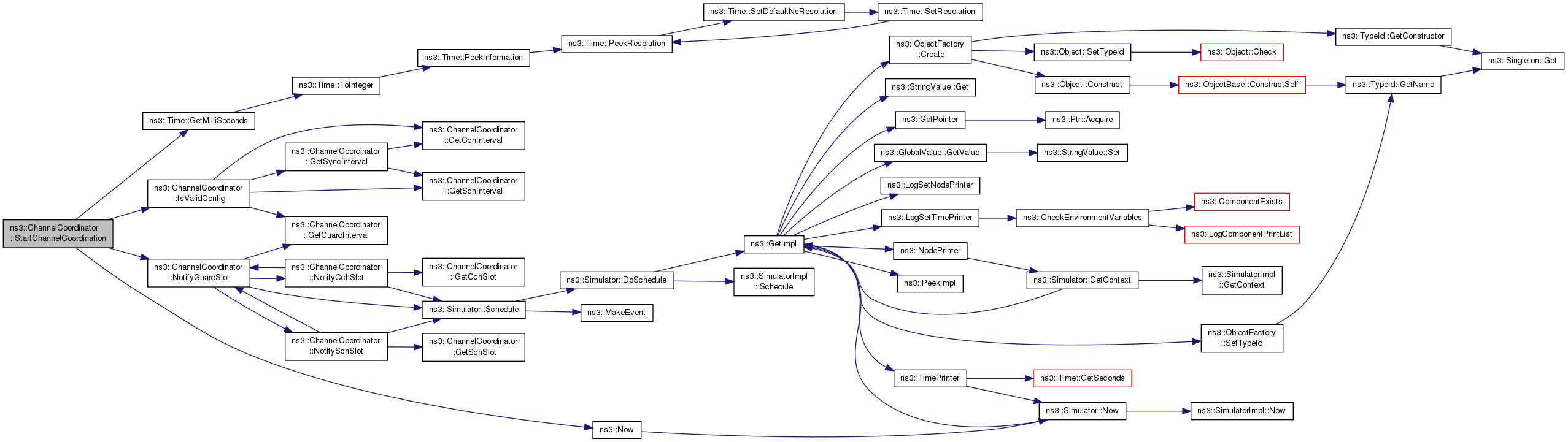

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::StopChannelCoordination ( void  )
private

stop channel coordination events

Definition at line 346 of file channel-coordinator.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsExpired(), m_coordination, and m_guardCount.

Referenced by DoDispose().

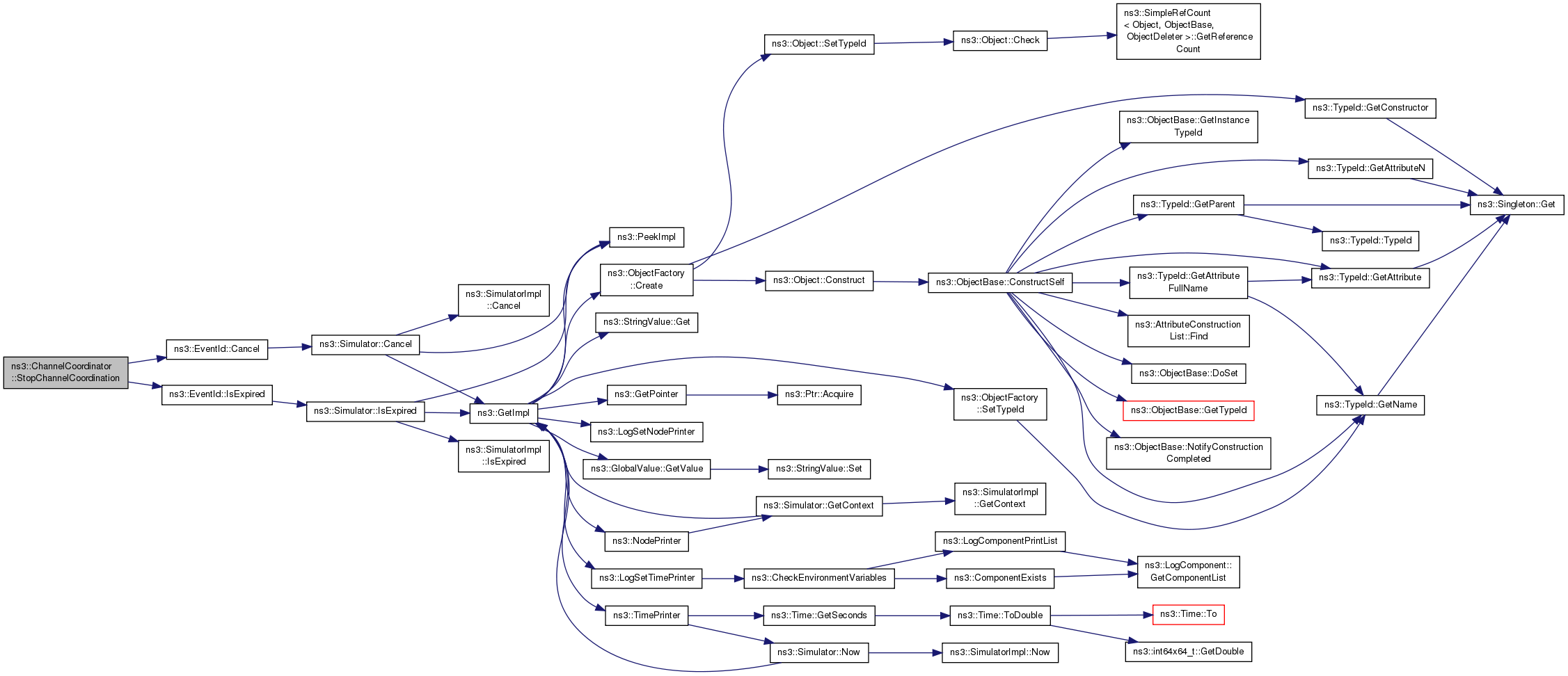

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::UnregisterAllListeners ( void  )

Remove all listeners.

Definition at line 321 of file channel-coordinator.cc.

References m_listeners, and NS_LOG_FUNCTION.

Referenced by DoDispose().

+ Here is the caller graph for this function:

void ns3::ChannelCoordinator::UnregisterListener ( Ptr< ChannelCoordinationListener >  listener)
Parameters
listenerthe current attached listener

Remove the specified listener.

Definition at line 306 of file channel-coordinator.cc.

References m_listeners, NS_ASSERT, and NS_LOG_FUNCTION.

Member Data Documentation

Time ns3::ChannelCoordinator::m_cchi
private

Definition at line 226 of file channel-coordinator.h.

Referenced by GetCchInterval(), GetCchSlot(), GetTypeId(), IsCchInterval(), IsGuardInterval(), and SetCchInterval().

EventId ns3::ChannelCoordinator::m_coordination
private

Definition at line 235 of file channel-coordinator.h.

Referenced by NotifyCchSlot(), NotifyGuardSlot(), NotifySchSlot(), and StopChannelCoordination().

Time ns3::ChannelCoordinator::m_gi
private

Definition at line 228 of file channel-coordinator.h.

Referenced by GetCchSlot(), GetGuardInterval(), GetSchSlot(), GetTypeId(), IsGuardInterval(), and SetGuardInterval().

uint32_t ns3::ChannelCoordinator::m_guardCount
private

Definition at line 234 of file channel-coordinator.h.

Referenced by NotifyGuardSlot(), StartChannelCoordination(), and StopChannelCoordination().

Listeners ns3::ChannelCoordinator::m_listeners
private

Definition at line 232 of file channel-coordinator.h.

Referenced by NotifyCchSlot(), NotifyGuardSlot(), NotifySchSlot(), RegisterListener(), UnregisterAllListeners(), and UnregisterListener().

Time ns3::ChannelCoordinator::m_schi
private

Definition at line 227 of file channel-coordinator.h.

Referenced by GetSchInterval(), GetSchSlot(), GetTypeId(), and SetSchInterval().

The documentation for this class was generated from the following files:
