Introspection did not find any typical Config paths. More...
#include <ipv6-option-header.h>
Inheritance diagram for ns3::Ipv6OptionRouterAlertHeader: Collaboration diagram for ns3::Ipv6OptionRouterAlertHeader:Public Member Functions | |
| Ipv6OptionRouterAlertHeader () | |
| Constructor. More... | |
| virtual | ~Ipv6OptionRouterAlertHeader () |
| Destructor. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start) |
| Deserialize the packet. More... | |
| virtual Alignment | GetAlignment () const |
| Get the Alignment requirement of this option header. More... | |
| virtual TypeId | GetInstanceTypeId () const |
| Get the instance type ID. More... | |
| virtual uint32_t | GetSerializedSize () const |
| Get the serialized size of the packet. More... | |
| uint16_t | GetValue () const |
| Get the field "value". More... | |
| virtual void | Print (std::ostream &os) const |
| Print some informations about the packet. More... | |
| virtual void | Serialize (Buffer::Iterator start) const |
| Serialize the packet. More... | |
| void | SetValue (uint16_t value) |
| Set the field "value". More... | |
| Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| Ipv6OptionHeader () | |
| Constructor. More... | |
| virtual | ~Ipv6OptionHeader () |
| Destructor. More... | |
| uint8_t | GetLength () const |
| Get the option length. More... | |
| uint8_t | GetType () const |
| Get the type of the option. More... | |
| void | SetLength (uint8_t length) |
| Set the option length. More... | |
| void | SetType (uint8_t type) |
| Set the type of the option. More... | |
| Public Member Functions inherited from ns3::Header | |
| virtual | ~Header () |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| uint16_t | m_value |
| The value. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Introspection did not find any typical Config paths.
Header of IPv6 Option Router Alert.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).
Definition at line 347 of file ipv6-option-header.h.
| ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader | ( | ) |
Constructor.
Definition at line 317 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

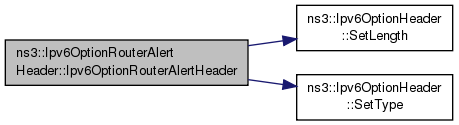

Here is the call graph for this function:
|
virtual |
Destructor.
Definition at line 324 of file ipv6-option-header.cc.
|
virtual |
Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 357 of file ipv6-option-header.cc.
References GetSerializedSize(), m_value, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

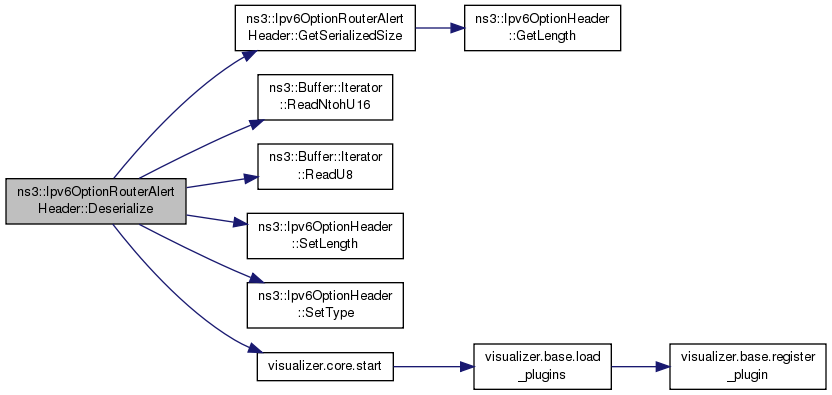

Here is the call graph for this function:
|
virtual |
Get the Alignment requirement of this option header.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 368 of file ipv6-option-header.cc.
|
virtual |
Get the instance type ID.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 312 of file ipv6-option-header.cc.
References GetTypeId().

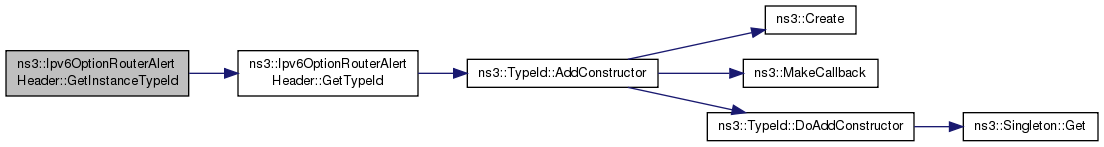

Here is the call graph for this function:
|
virtual |
Get the serialized size of the packet.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 343 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength().
Referenced by Deserialize(), and ns3::Ipv6OptionRouterAlert::Process().

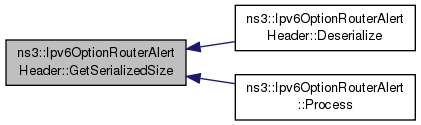

Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Get the type identificator.
Definition at line 303 of file ipv6-option-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().

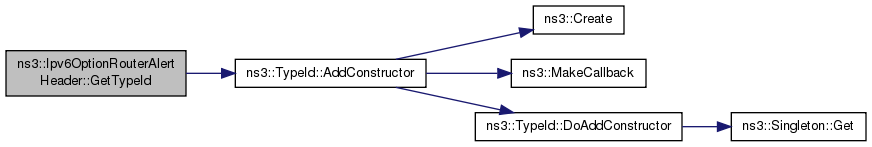

Here is the call graph for this function: Here is the caller graph for this function:| uint16_t ns3::Ipv6OptionRouterAlertHeader::GetValue | ( | void | ) | const |
Get the field "value".
Definition at line 333 of file ipv6-option-header.cc.
References m_value.
|
virtual |
Print some informations about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 338 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), and m_value.
Here is the call graph for this function:
|
virtual |
Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 348 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), m_value, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

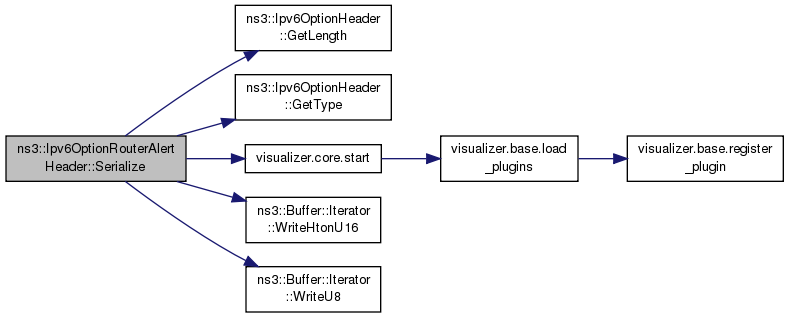

Here is the call graph for this function:| void ns3::Ipv6OptionRouterAlertHeader::SetValue | ( | uint16_t | value | ) |
|
private |
The value.
Definition at line 419 of file ipv6-option-header.h.
Referenced by Deserialize(), GetValue(), Print(), Serialize(), and SetValue().
