LTE RLC Unacknowledged Mode (UM), see 3GPP TS 36.322. More...

#include <lte-rlc-um.h>

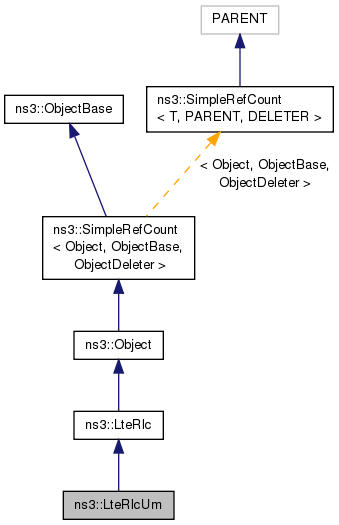

Inheritance diagram for ns3::LteRlcUm:

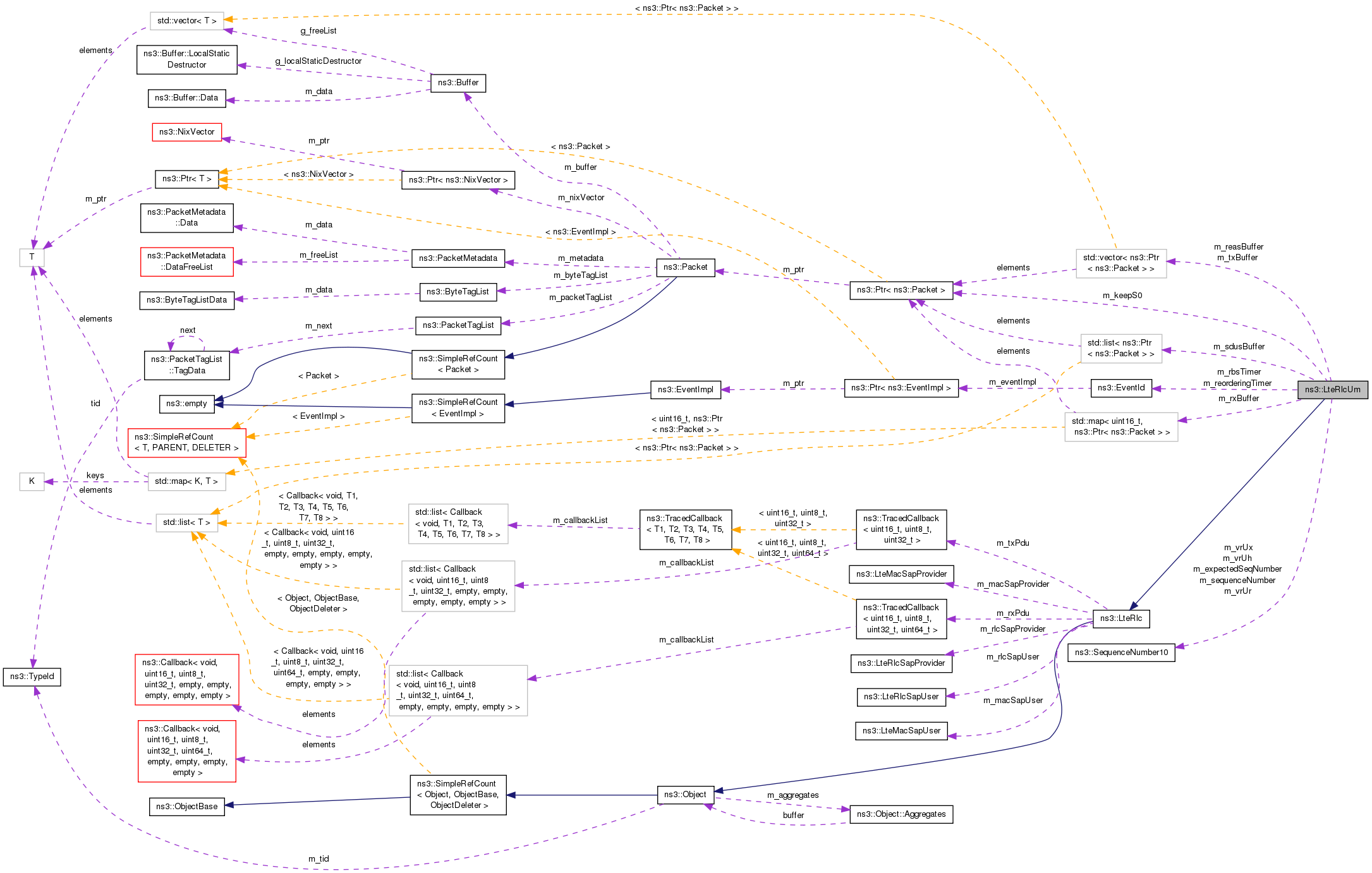

Collaboration diagram for ns3::LteRlcUm:

Public Member Functions
	LteRlcUm ()

virtual	~LteRlcUm ()

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoNotifyHarqDeliveryFailure ()

virtual void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId)
	MAC SAP. More...

virtual void	DoReceivePdu (Ptr< Packet > p)

virtual void	DoTransmitPdcpPdu (Ptr< Packet > p)
	RLC SAP. More...

Public Member Functions inherited from ns3::LteRlc
	LteRlc ()

virtual	~LteRlc ()

LteMacSapUser *	GetLteMacSapUser ()

LteRlcSapProvider *	GetLteRlcSapProvider ()

void	SetLcId (uint8_t lcId)

void	SetLteMacSapProvider (LteMacSapProvider *s)

void	SetLteRlcSapUser (LteRlcSapUser *s)

void	SetRnti (uint16_t rnti)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LteRlc
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
enum	ReassemblingState_t { NONE = 0, WAITING_S0_FULL = 1, WAITING_SI_SF = 2 }
	Reassembling state. More...

Private Member Functions
void	DoReportBufferStatus ()

void	ExpireRbsTimer (void)

void	ExpireReorderingTimer (void)

bool	IsInsideReorderingWindow (SequenceNumber10 seqNumber)

void	ReassembleAndDeliver (Ptr< Packet > packet)

void	ReassembleOutsideWindow (void)

void	ReassembleSnInterval (SequenceNumber10 lowSeqNumber, SequenceNumber10 highSeqNumber)

Private Attributes
SequenceNumber10	m_expectedSeqNumber
	Expected Sequence Number. More...

Ptr< Packet >	m_keepS0

uint32_t	m_maxTxBufferSize

EventId	m_rbsTimer

std::vector< Ptr< Packet > >	m_reasBuffer

ReassemblingState_t	m_reassemblingState

EventId	m_reorderingTimer
	Timers. More...

std::map< uint16_t, Ptr< Packet > >	m_rxBuffer

std::list< Ptr< Packet > >	m_sdusBuffer

SequenceNumber10	m_sequenceNumber
	State variables. More...

std::vector< Ptr< Packet > >	m_txBuffer

uint32_t	m_txBufferSize

SequenceNumber10	m_vrUh

SequenceNumber10	m_vrUr

SequenceNumber10	m_vrUx

uint16_t	m_windowSize
	Constants. More...

Additional Inherited Members
Public Types inherited from ns3::LteRlc
typedef void(*	NotifyTxTracedCallback) (const uint16_t rnti, const uint8_t lcid, const uint32_t bytes)
	TracedCallback signature for NotifyTxOpportunity events. More...

typedef void(*	ReceiveTracedCallback) (const uint16_t rnti, const uint8_t lcid, const uint32_t bytes, const uint64_t delay)
	TracedCallback signature for. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::LteRlc
uint8_t	m_lcid

LteMacSapProvider *	m_macSapProvider

LteMacSapUser *	m_macSapUser

LteRlcSapProvider *	m_rlcSapProvider

LteRlcSapUser *	m_rlcSapUser

uint16_t	m_rnti

TracedCallback< uint16_t, uint8_t, uint32_t, uint64_t >	m_rxPdu
	Used to inform of a PDU reception from the MAC SAP user. More...

TracedCallback< uint16_t, uint8_t, uint32_t >	m_txPdu
	Used to inform of a PDU delivery to the MAC SAP provider. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

LTE RLC Unacknowledged Mode (UM), see 3GPP TS 36.322.

Config Paths

ns3::LteRlcUm is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcUm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcUm"

Attributes

MaxTxBufferSize: Maximum Size of the Transmission Buffer (in Bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10240
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

TxPDU: PDU transmission notified to the MAC.
Callback signature: ns3::LteRlc::NotifyTxTracedCallback
RxPDU: PDU received.
Callback signature: ns3::LteRlc::ReceiveTracedCallback

Size of this type is 320 bytes (on a 64-bit architecture).

Definition at line 35 of file lte-rlc-um.h.

Member Enumeration Documentation

enum ns3::LteRlcUm::ReassemblingState_t

private

Reassembling state.

Enumerator
NONE
WAITING_S0_FULL
WAITING_SI_SF

Definition at line 100 of file lte-rlc-um.h.

Constructor & Destructor Documentation

ns3::LteRlcUm::LteRlcUm ( )

Definition at line 35 of file lte-rlc-um.cc.

References m_reassemblingState, NS_LOG_FUNCTION, and WAITING_S0_FULL.

ns3::LteRlcUm::~LteRlcUm ( )

virtual

Definition at line 49 of file lte-rlc-um.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteRlcUm::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteRlc.

Definition at line 70 of file lte-rlc-um.cc.

References ns3::EventId::Cancel(), ns3::LteRlc::DoDispose(), m_rbsTimer, m_reorderingTimer, and NS_LOG_FUNCTION.

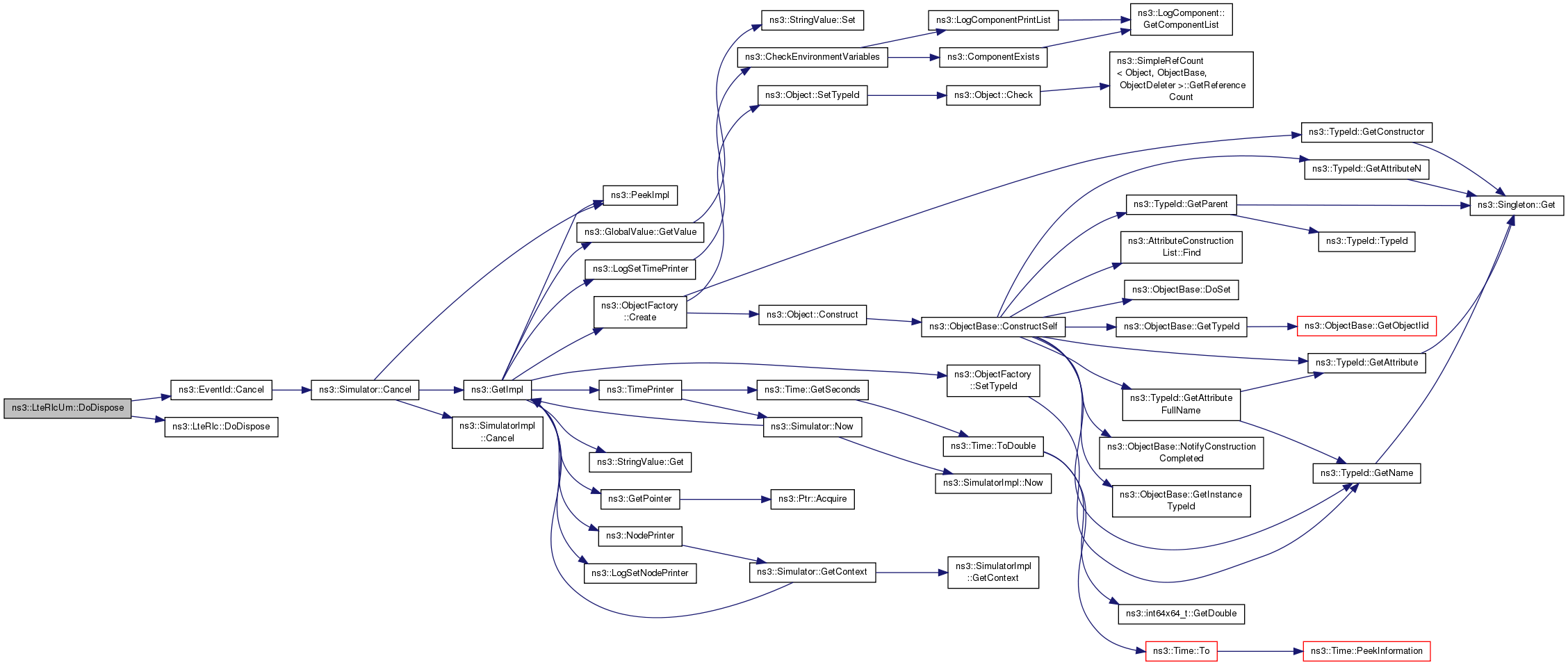

Here is the call graph for this function:

void ns3::LteRlcUm::DoNotifyHarqDeliveryFailure ( )

virtual

Implements ns3::LteRlc.

Definition at line 395 of file lte-rlc-um.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcUm::DoNotifyTxOpportunity	(	uint32_t	bytes,
		uint8_t	layer,
		uint8_t	harqId
	)

virtual

MAC SAP.

Implements ns3::LteRlc.

Definition at line 126 of file lte-rlc-um.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddByteTag(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::LteRlcHeader::DATA_FIELD_FOLLOWS, ns3::LteRlcHeader::E_LI_FIELDS_FOLLOWS, ExpireRbsTimer(), ns3::LteRlcHeader::FIRST_BYTE, ns3::LteRlcSduStatusTag::FIRST_SEGMENT, ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlcSduStatusTag::GetStatus(), ns3::LteRlcHeader::LAST_BYTE, ns3::LteRlcSduStatusTag::LAST_SEGMENT, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, m_rbsTimer, ns3::LteRlc::m_rnti, m_sequenceNumber, m_txBuffer, m_txBufferSize, ns3::LteRlc::m_txPdu, ns3::LteRlcSduStatusTag::MIDDLE_SEGMENT, ns3::MilliSeconds(), ns3::LteRlcHeader::NO_FIRST_BYTE, ns3::LteRlcHeader::NO_LAST_BYTE, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::Packet::RemoveAtStart(), ns3::Packet::RemovePacketTag(), ns3::Simulator::Schedule(), and ns3::LteMacSapProvider::TransmitPdu().

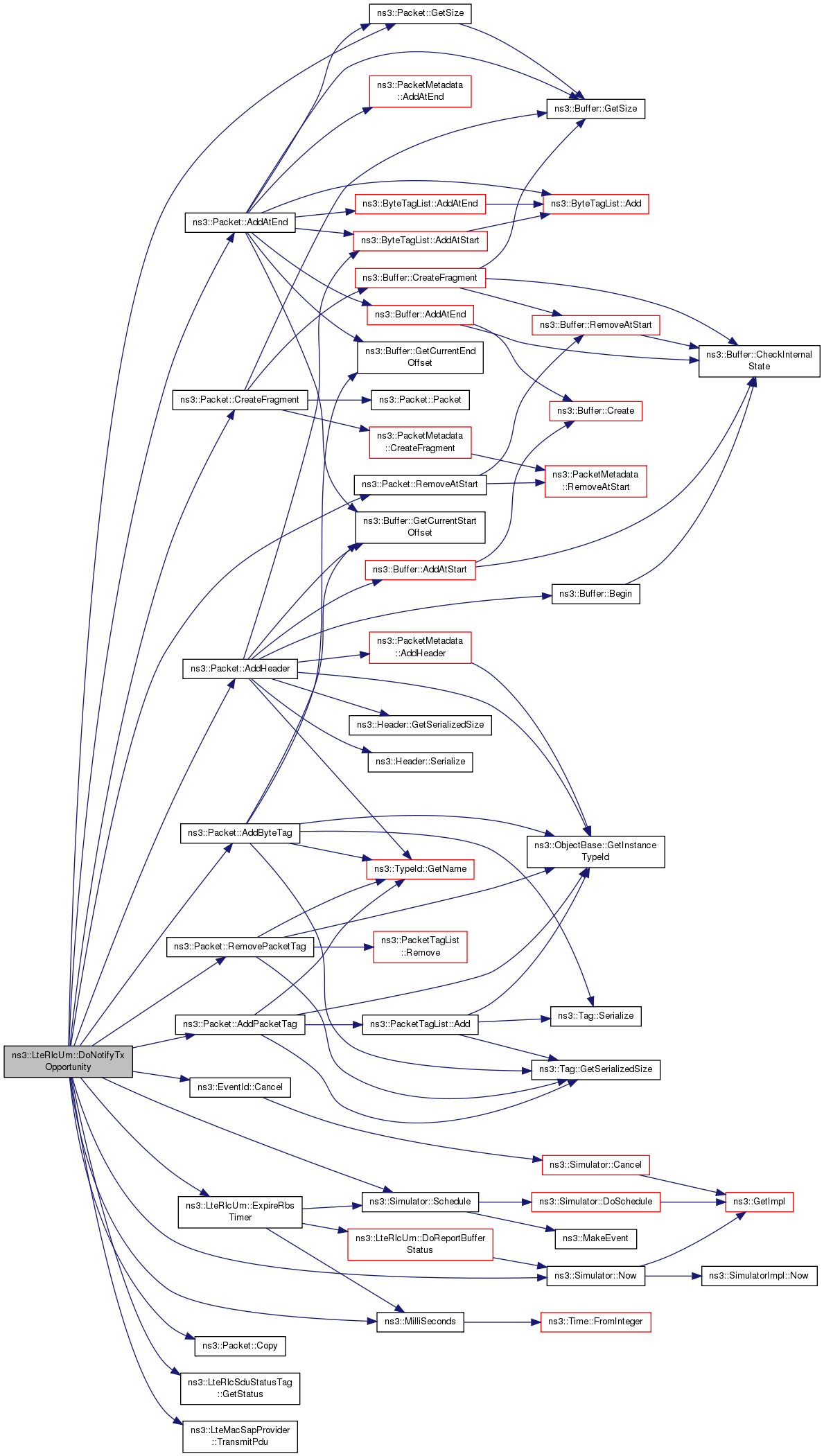

Here is the call graph for this function:

void ns3::LteRlcUm::DoReceivePdu ( Ptr< Packet > p )

virtual

Implements ns3::LteRlc.

Definition at line 401 of file lte-rlc-um.cc.

References ns3::EventId::Cancel(), ExpireReorderingTimer(), ns3::Packet::FindFirstMatchingByteTag(), ns3::Time::GetNanoSeconds(), ns3::Packet::GetSize(), ns3::SequenceNumber10::GetValue(), IsInsideReorderingWindow(), ns3::EventId::IsRunning(), ns3::LteRlc::m_lcid, m_reorderingTimer, ns3::LteRlc::m_rnti, m_rxBuffer, ns3::LteRlc::m_rxPdu, m_vrUh, m_vrUr, m_vrUx, m_windowSize, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekHeader(), ReassembleOutsideWindow(), ReassembleSnInterval(), ns3::Simulator::Schedule(), and ns3::SequenceNumber10::SetModulusBase().

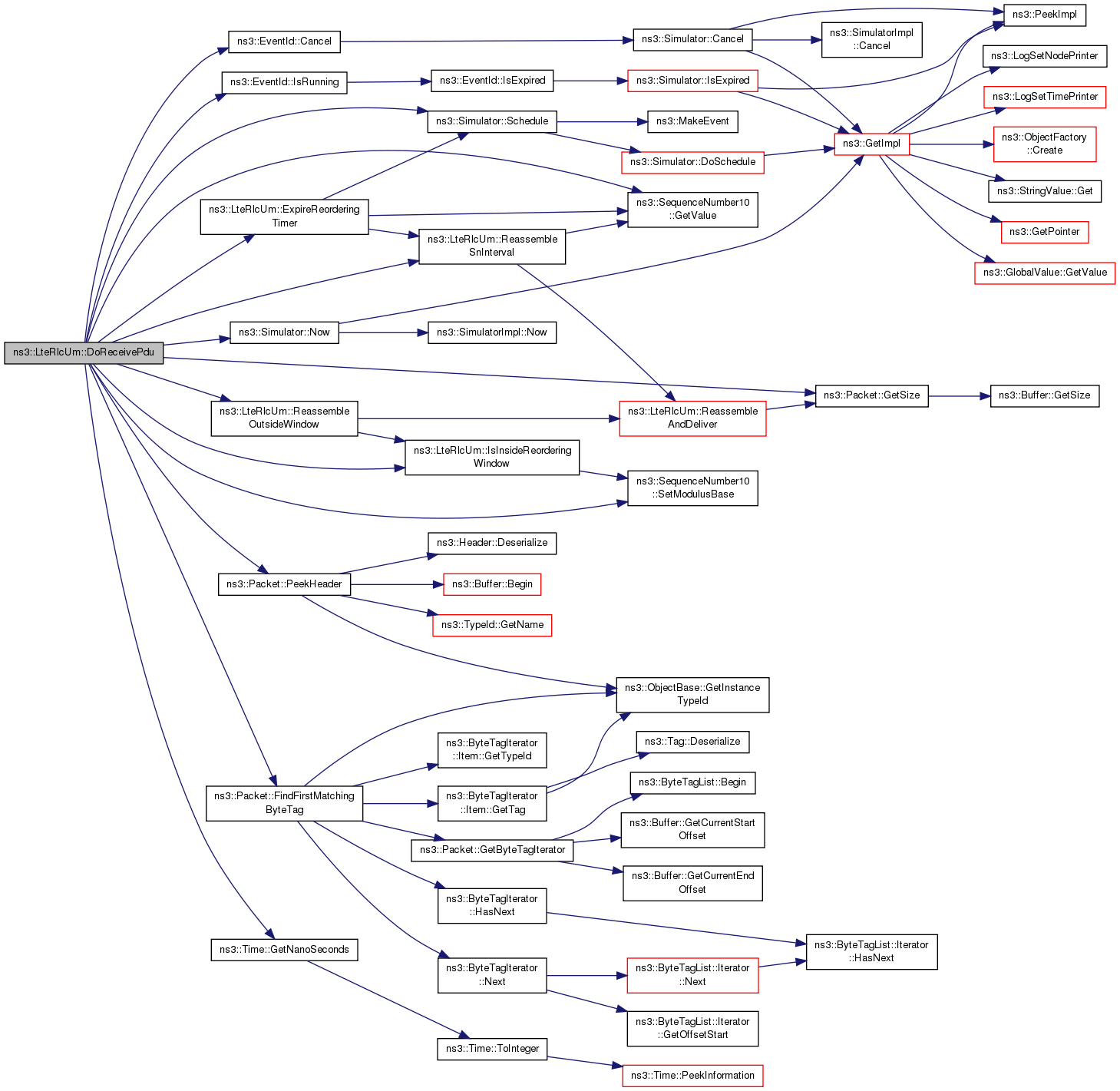

Here is the call graph for this function:

void ns3::LteRlcUm::DoReportBufferStatus ( void )

private

Definition at line 1111 of file lte-rlc-um.cc.

Referenced by DoTransmitPdcpPdu(), and ExpireRbsTimer().

Here is the call graph for this function:

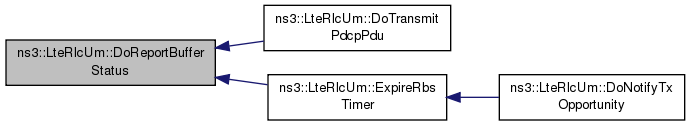

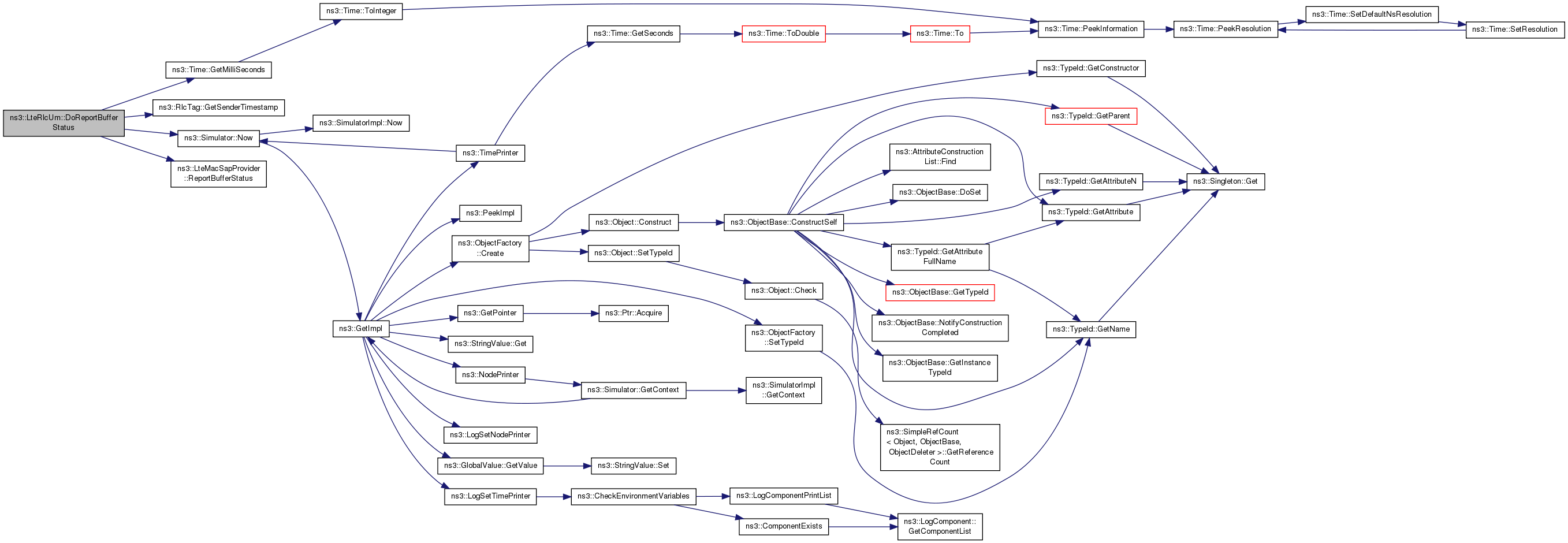

Here is the caller graph for this function:

void ns3::LteRlcUm::DoTransmitPdcpPdu ( Ptr< Packet > p )

virtual

RLC SAP.

Store arrival time

Store PDCP PDU

Report Buffer Status

Implements ns3::LteRlc.

Definition at line 84 of file lte-rlc-um.cc.

References ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), DoReportBufferStatus(), ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, m_maxTxBufferSize, m_rbsTimer, ns3::LteRlc::m_rnti, m_txBuffer, m_txBufferSize, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LteRlcSduStatusTag::SetStatus().

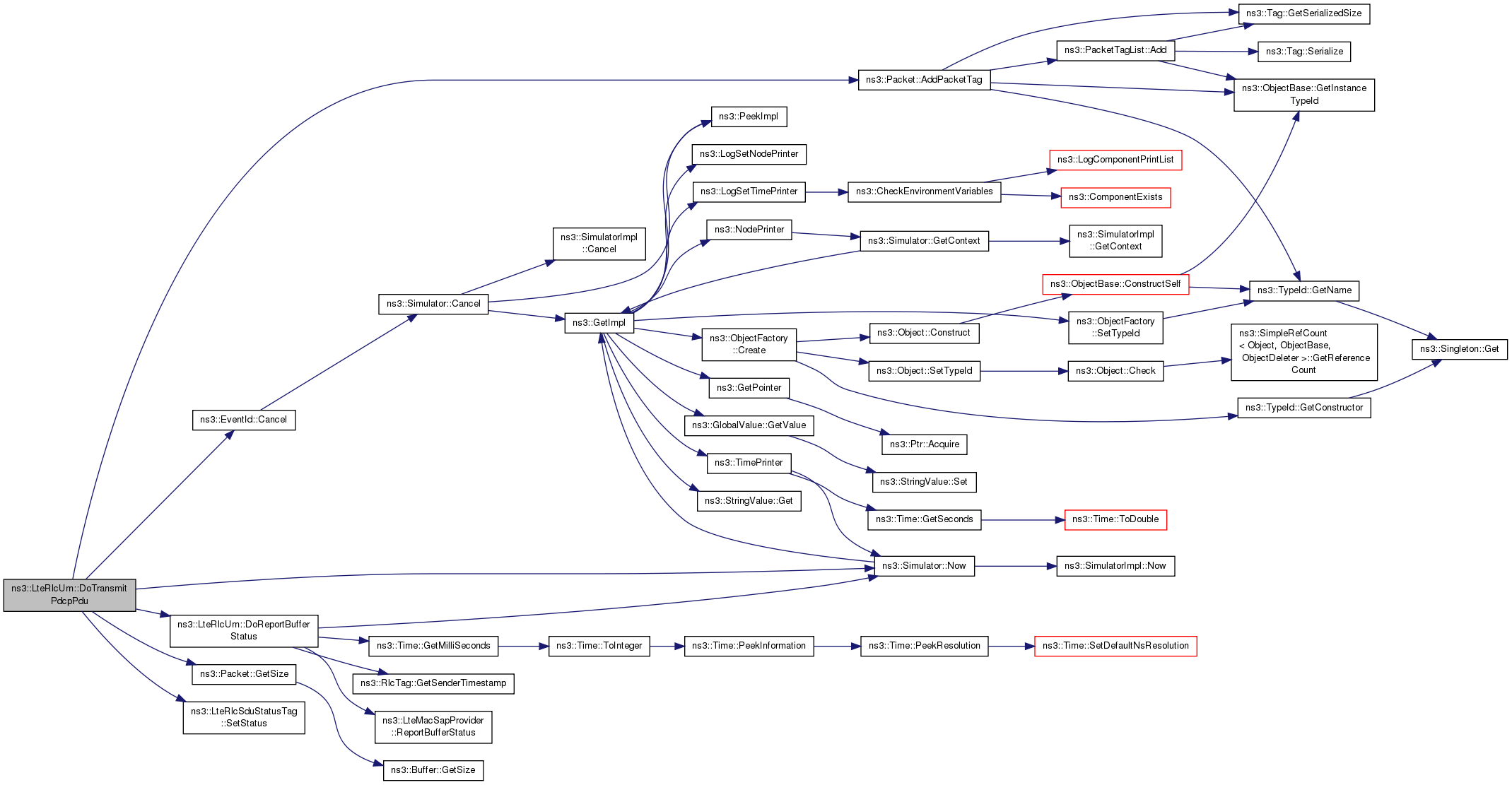

Here is the call graph for this function:

void ns3::LteRlcUm::ExpireRbsTimer ( void )

private

Definition at line 1179 of file lte-rlc-um.cc.

References DoReportBufferStatus(), m_rbsTimer, m_txBuffer, ns3::MilliSeconds(), NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoNotifyTxOpportunity().

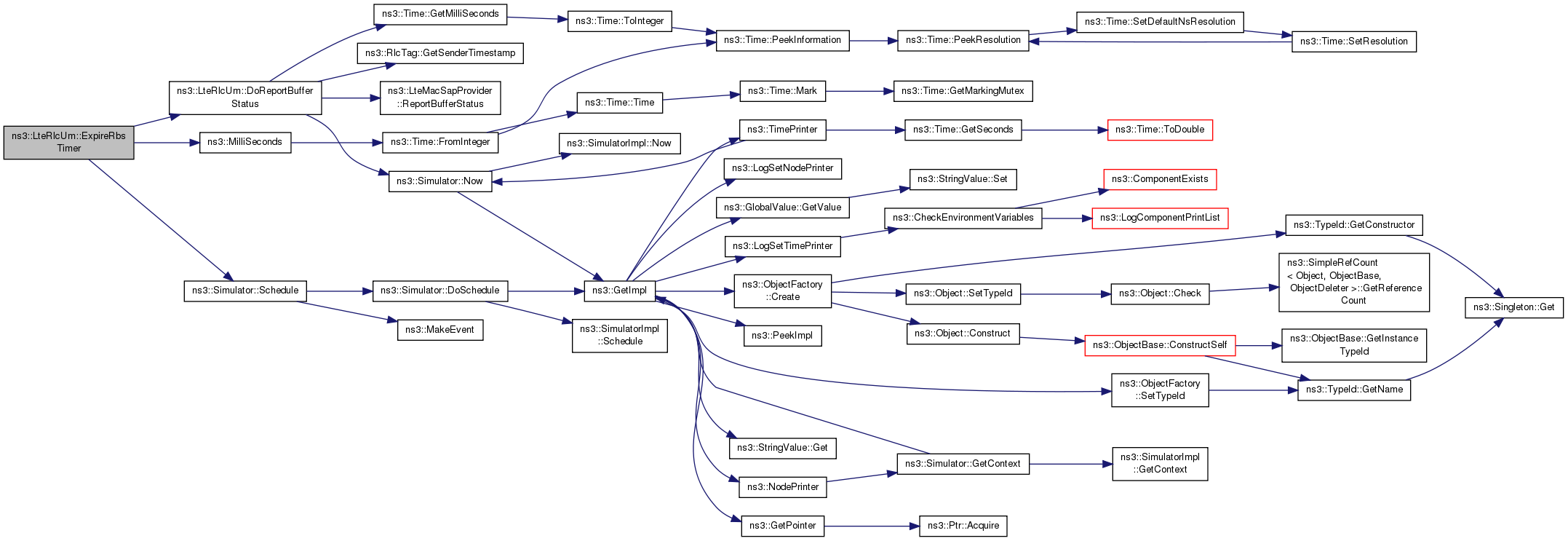

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcUm::ExpireReorderingTimer ( void )

private

Definition at line 1140 of file lte-rlc-um.cc.

References ns3::SequenceNumber10::GetValue(), ns3::LteRlc::m_lcid, m_reorderingTimer, ns3::LteRlc::m_rnti, m_rxBuffer, m_vrUh, m_vrUr, m_vrUx, NS_LOG_FUNCTION, NS_LOG_LOGIC, ReassembleSnInterval(), and ns3::Simulator::Schedule().

Referenced by DoReceivePdu().

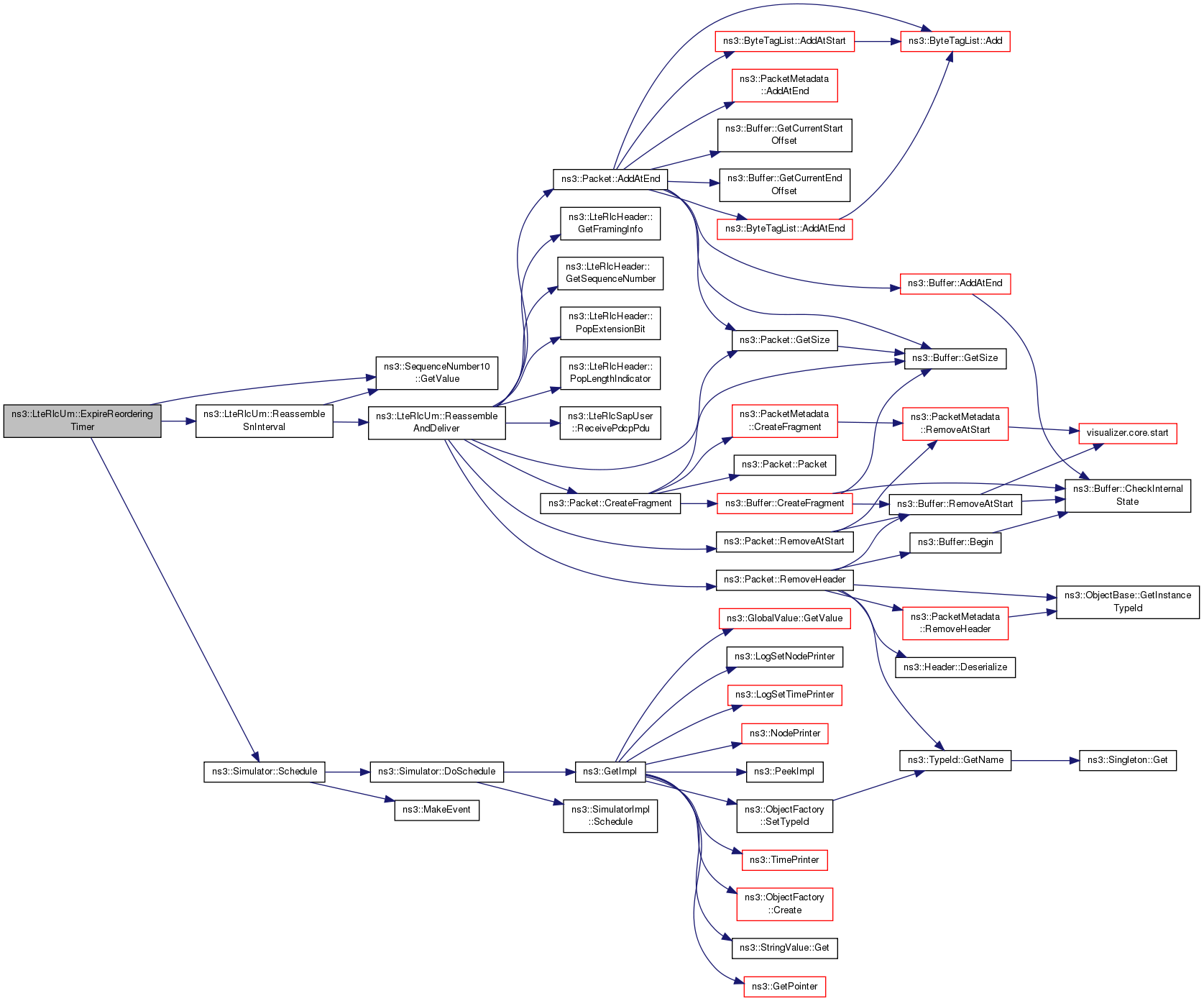

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::LteRlcUm::GetTypeId ( void )

static

Definition at line 55 of file lte-rlc-um.cc.

References m_maxTxBufferSize, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), and ns3::LteEnbRrc::GetRlcType().

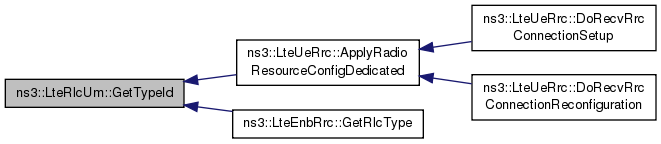

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteRlcUm::IsInsideReorderingWindow ( SequenceNumber10 seqNumber )

private

Definition at line 564 of file lte-rlc-um.cc.

References m_vrUh, m_windowSize, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SequenceNumber10::SetModulusBase().

Referenced by DoReceivePdu(), and ReassembleOutsideWindow().

Here is the call graph for this function:

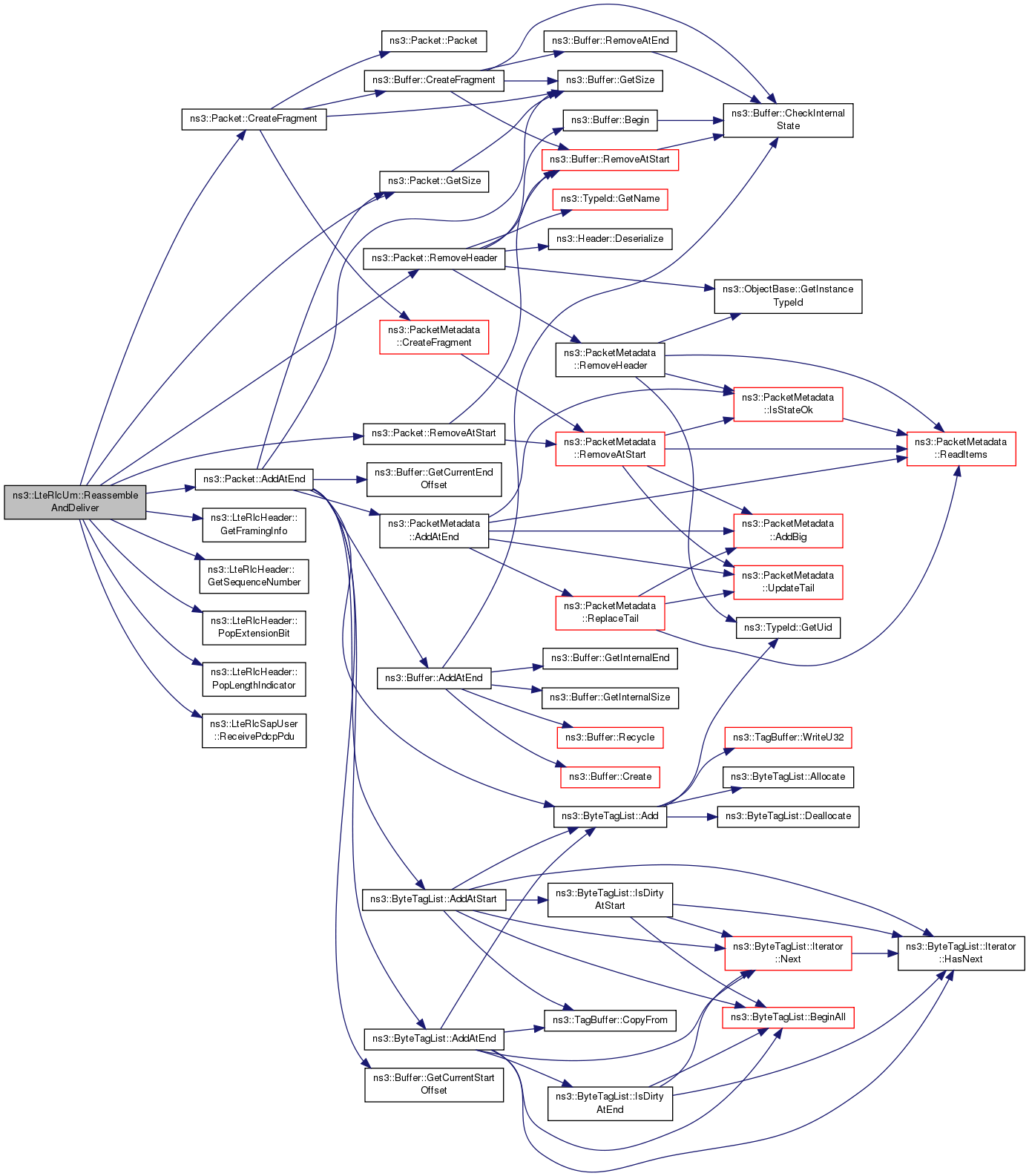

Here is the caller graph for this function:

void ns3::LteRlcUm::ReassembleAndDeliver ( Ptr< Packet > packet )

private

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep SI

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Discard S0

Deliver one or multiple PDUs

Discard S0

Deliver zero, one or multiple PDUs

Keep S0

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Definition at line 587 of file lte-rlc-um.cc.

Referenced by ReassembleOutsideWindow(), and ReassembleSnInterval().

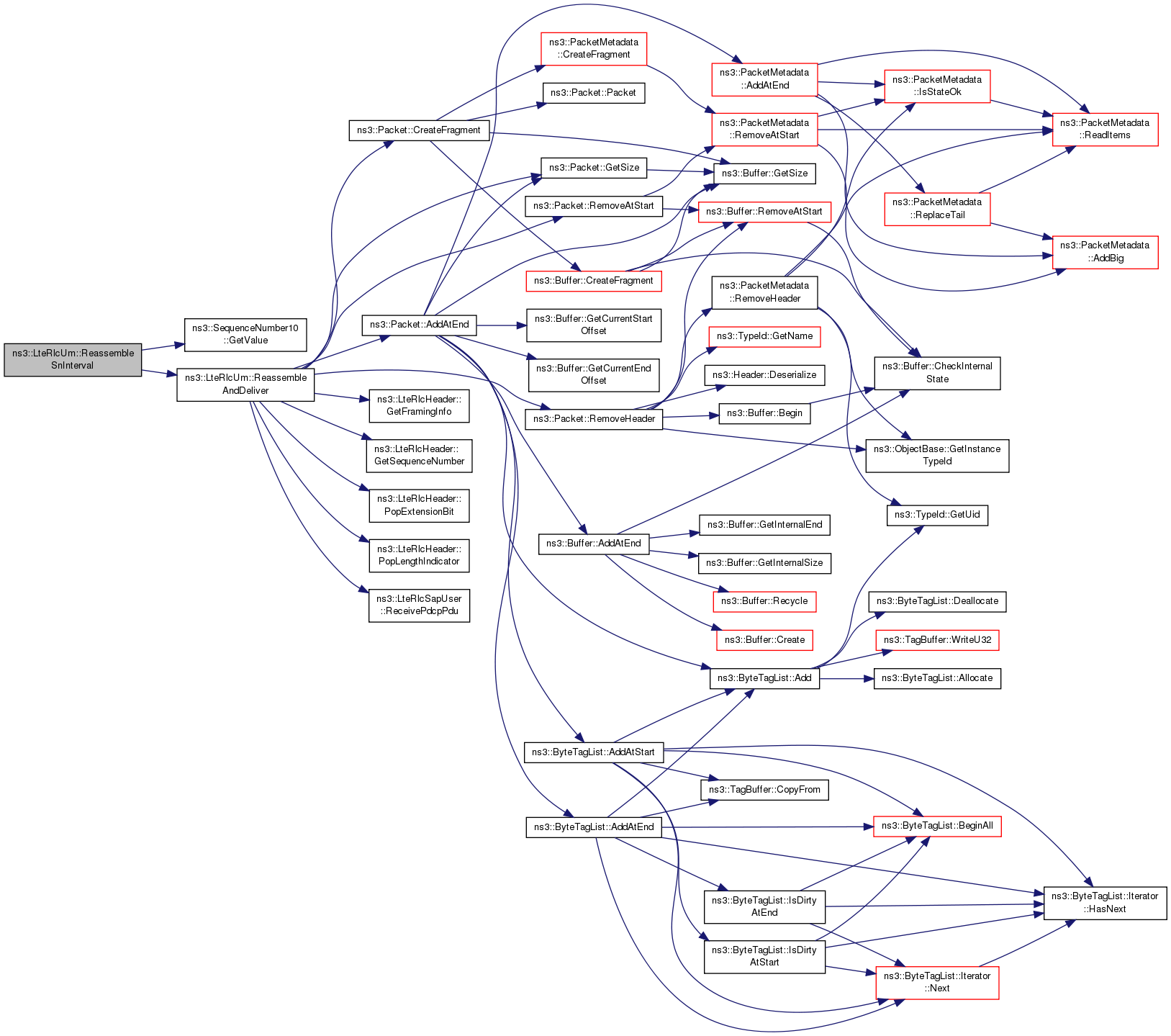

Here is the call graph for this function:

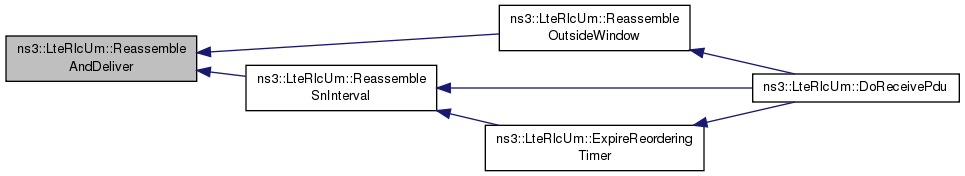

Here is the caller graph for this function:

void ns3::LteRlcUm::ReassembleOutsideWindow ( void )

private

Definition at line 1054 of file lte-rlc-um.cc.

References IsInsideReorderingWindow(), m_rxBuffer, NS_LOG_LOGIC, and ReassembleAndDeliver().

Referenced by DoReceivePdu().

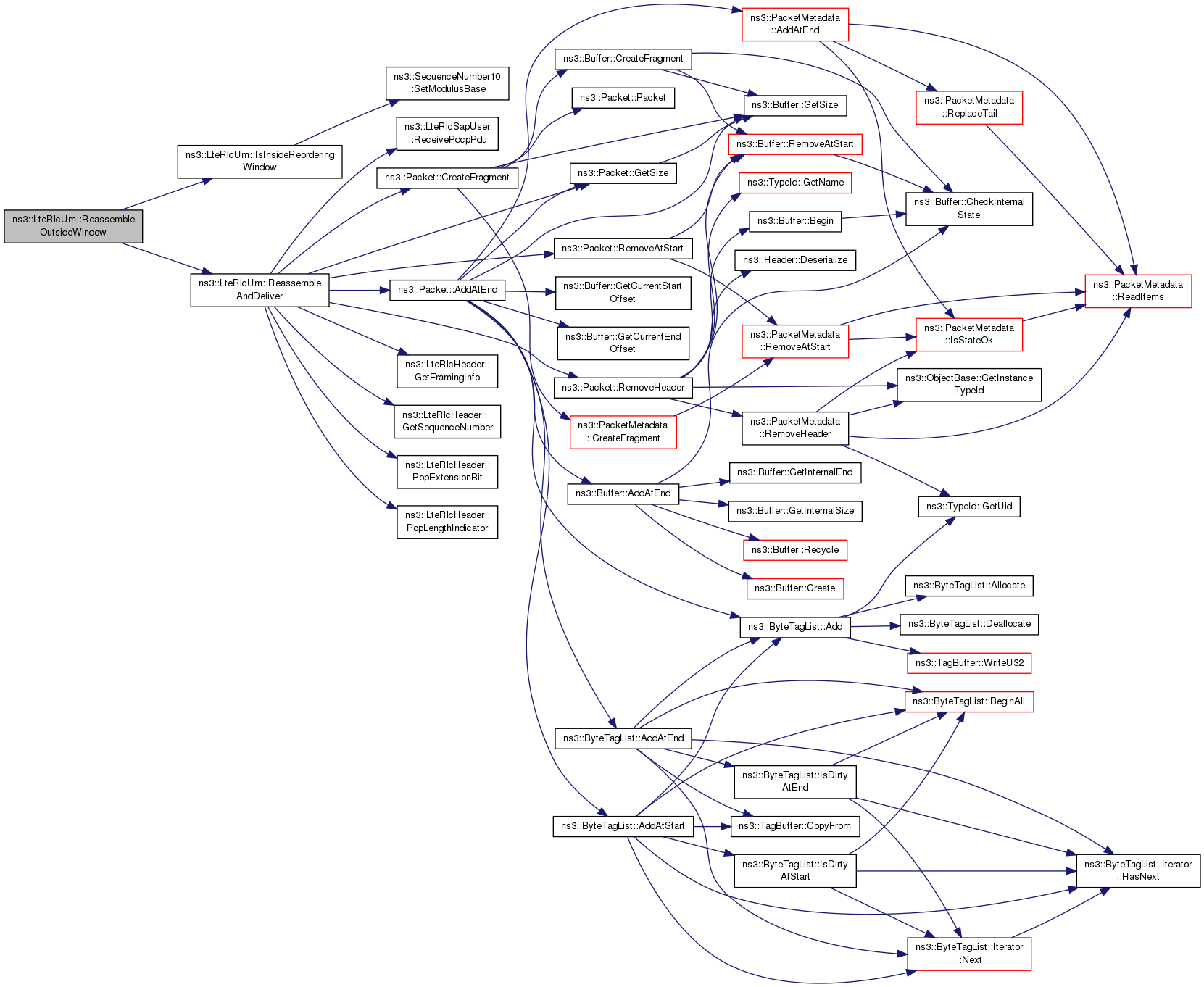

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcUm::ReassembleSnInterval	(	SequenceNumber10	lowSeqNumber,
		SequenceNumber10	highSeqNumber
	)

private

Definition at line 1080 of file lte-rlc-um.cc.

References ns3::SequenceNumber10::GetValue(), m_rxBuffer, NS_LOG_LOGIC, and ReassembleAndDeliver().

Referenced by DoReceivePdu(), and ExpireReorderingTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

SequenceNumber10 ns3::LteRlcUm::m_expectedSeqNumber

private

Expected Sequence Number.

Definition at line 109 of file lte-rlc-um.h.

Referenced by ReassembleAndDeliver().

Ptr<Packet> ns3::LteRlcUm::m_keepS0

private

Definition at line 104 of file lte-rlc-um.h.

Referenced by ReassembleAndDeliver().

uint32_t ns3::LteRlcUm::m_maxTxBufferSize

private

Definition at line 69 of file lte-rlc-um.h.

Referenced by DoTransmitPdcpPdu(), and GetTypeId().

EventId ns3::LteRlcUm::m_rbsTimer

private

Definition at line 95 of file lte-rlc-um.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoTransmitPdcpPdu(), and ExpireRbsTimer().

std::vector< Ptr<Packet> > ns3::LteRlcUm::m_reasBuffer

private

Definition at line 73 of file lte-rlc-um.h.

ReassemblingState_t ns3::LteRlcUm::m_reassemblingState

private

Definition at line 103 of file lte-rlc-um.h.

Referenced by LteRlcUm(), and ReassembleAndDeliver().

EventId ns3::LteRlcUm::m_reorderingTimer

private

Timers.

See section 7.3 in TS 36.322

Definition at line 94 of file lte-rlc-um.h.

Referenced by DoDispose(), DoReceivePdu(), and ExpireReorderingTimer().

std::map<uint16_t, Ptr<Packet> > ns3::LteRlcUm::m_rxBuffer

private

Definition at line 72 of file lte-rlc-um.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), ReassembleOutsideWindow(), and ReassembleSnInterval().

std::list< Ptr<Packet> > ns3::LteRlcUm::m_sdusBuffer

private

Definition at line 75 of file lte-rlc-um.h.

Referenced by ReassembleAndDeliver().

SequenceNumber10 ns3::LteRlcUm::m_sequenceNumber

private

State variables.

See section 7.1 in TS 36.322

Definition at line 80 of file lte-rlc-um.h.

Referenced by DoNotifyTxOpportunity().

std::vector< Ptr<Packet> > ns3::LteRlcUm::m_txBuffer

private

Definition at line 71 of file lte-rlc-um.h.

Referenced by DoNotifyTxOpportunity(), DoReportBufferStatus(), DoTransmitPdcpPdu(), and ExpireRbsTimer().

uint32_t ns3::LteRlcUm::m_txBufferSize

private

Definition at line 70 of file lte-rlc-um.h.

Referenced by DoNotifyTxOpportunity(), DoReportBufferStatus(), and DoTransmitPdcpPdu().

SequenceNumber10 ns3::LteRlcUm::m_vrUh

private

Definition at line 84 of file lte-rlc-um.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and IsInsideReorderingWindow().

SequenceNumber10 ns3::LteRlcUm::m_vrUr

private

Definition at line 82 of file lte-rlc-um.h.

Referenced by DoReceivePdu(), and ExpireReorderingTimer().

SequenceNumber10 ns3::LteRlcUm::m_vrUx

private

Definition at line 83 of file lte-rlc-um.h.

Referenced by DoReceivePdu(), and ExpireReorderingTimer().

uint16_t ns3::LteRlcUm::m_windowSize

private

Constants.

See section 7.2 in TS 36.322

Definition at line 89 of file lte-rlc-um.h.

Referenced by DoReceivePdu(), and IsInsideReorderingWindow().

The documentation for this class was generated from the following files:

src/lte/model/lte-rlc-um.h
src/lte/model/lte-rlc-um.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources defined in parent class ns3::LteRlc

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
