base class for all MAC-level wifi objects. More...

#include <regular-wifi-mac.h>

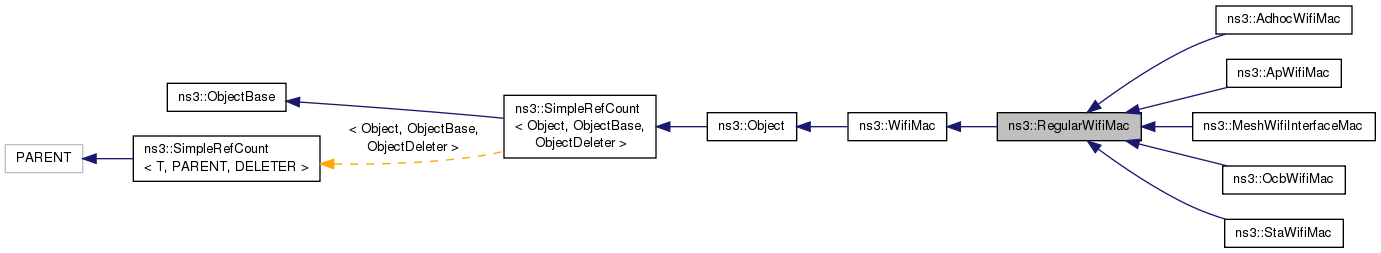

Inheritance diagram for ns3::RegularWifiMac:

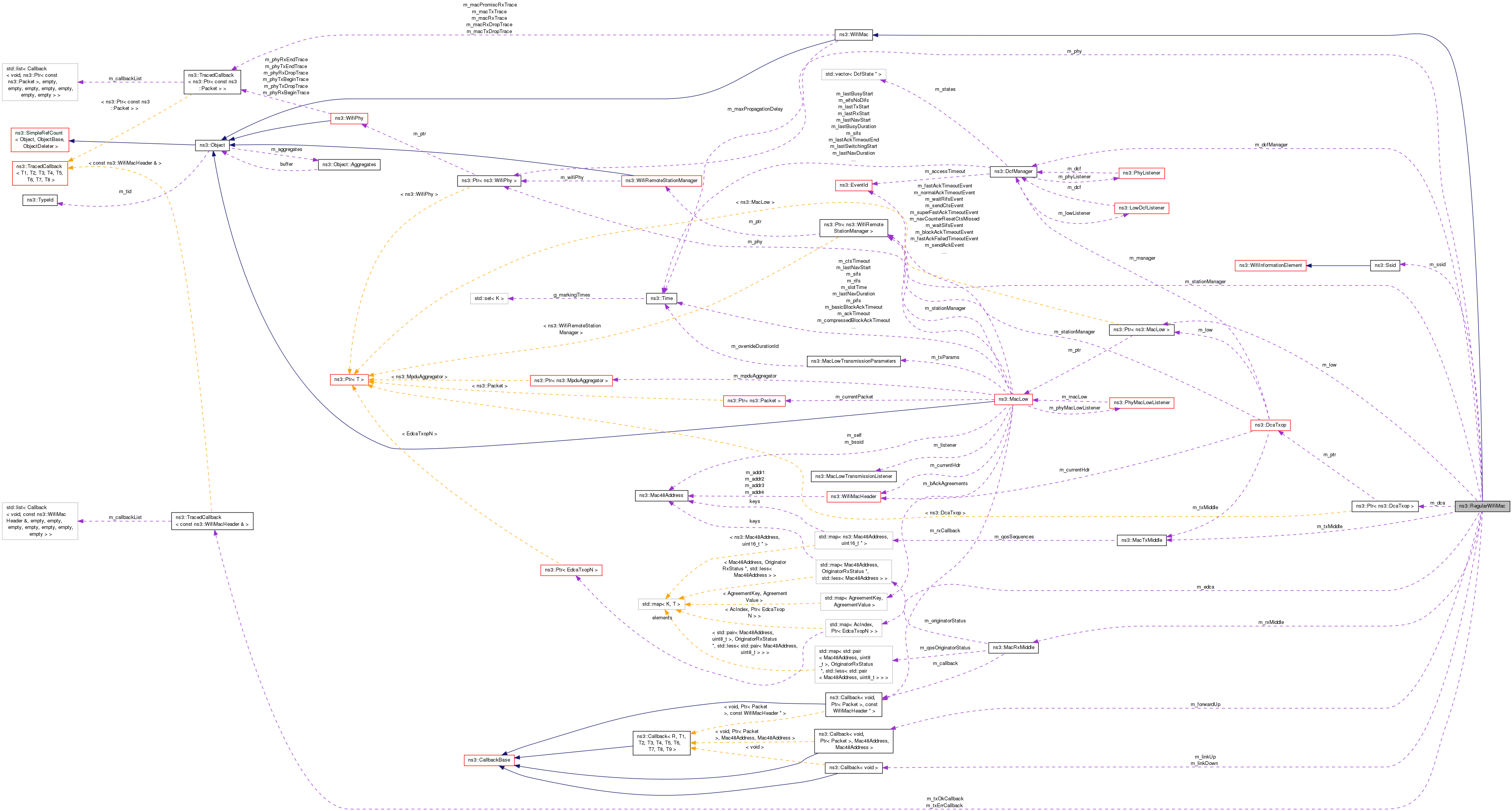

Collaboration diagram for ns3::RegularWifiMac:

Public Types
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Public Member Functions

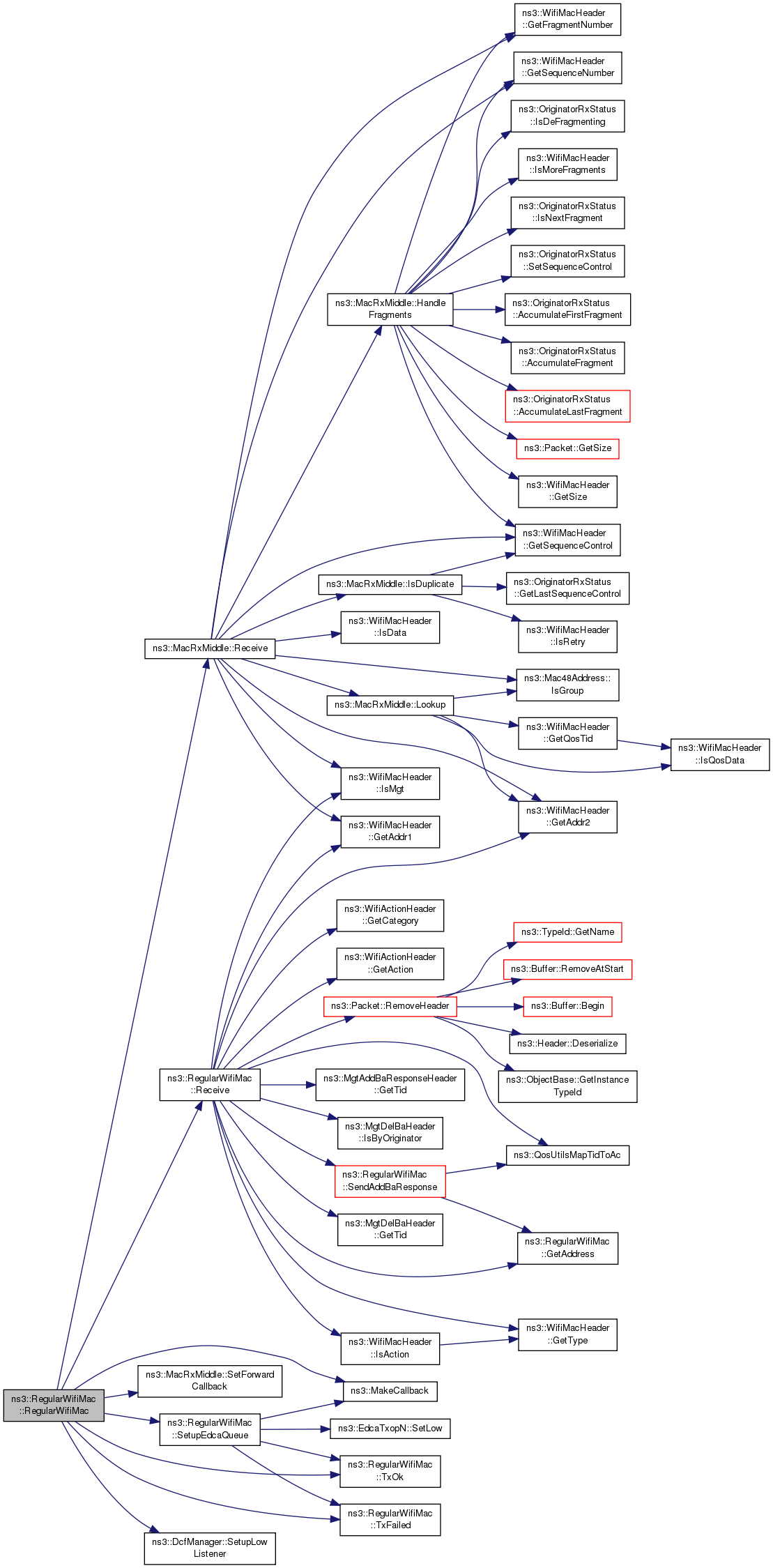

	RegularWifiMac ()

virtual	~RegularWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0

Time	GetAckTimeout (void) const

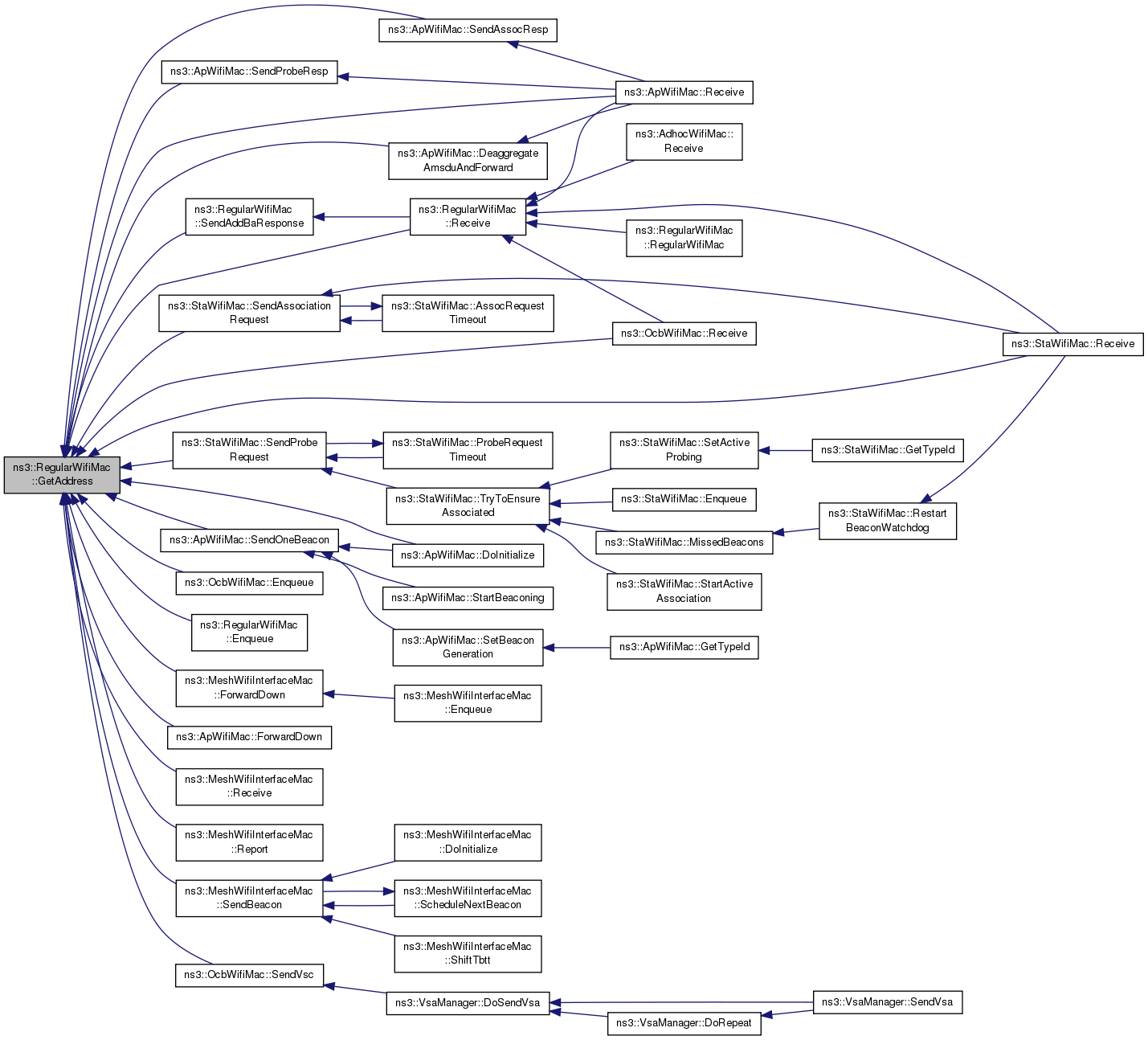

virtual Mac48Address	GetAddress (void) const

virtual Time	GetBasicBlockAckTimeout (void) const

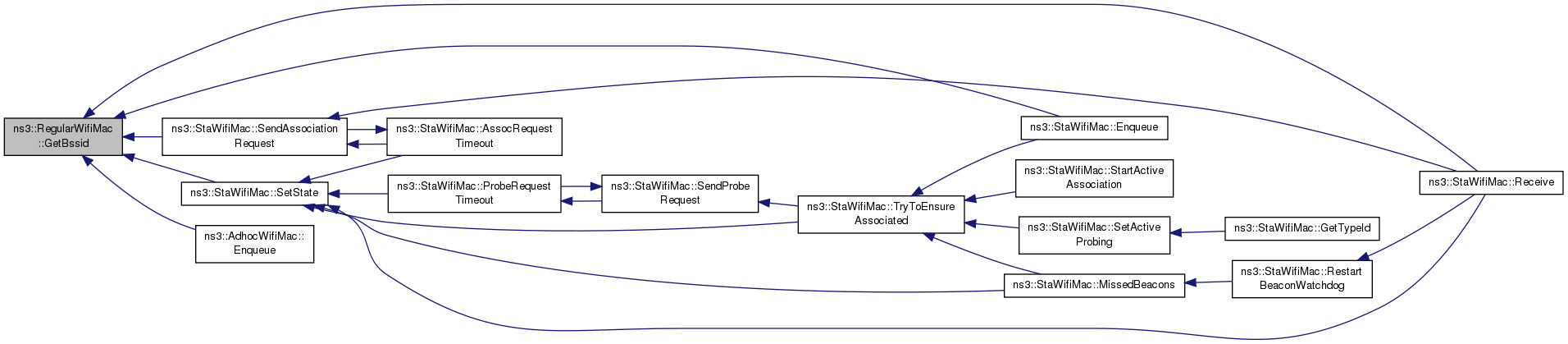

virtual Mac48Address	GetBssid (void) const

virtual Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

bool	GetCtsToSelfSupported () const
	Return whether the device supports CTS-to-self capability. More...

Time	GetEifsNoDifs (void) const

Time	GetPifs (void) const

Time	GetRifs (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

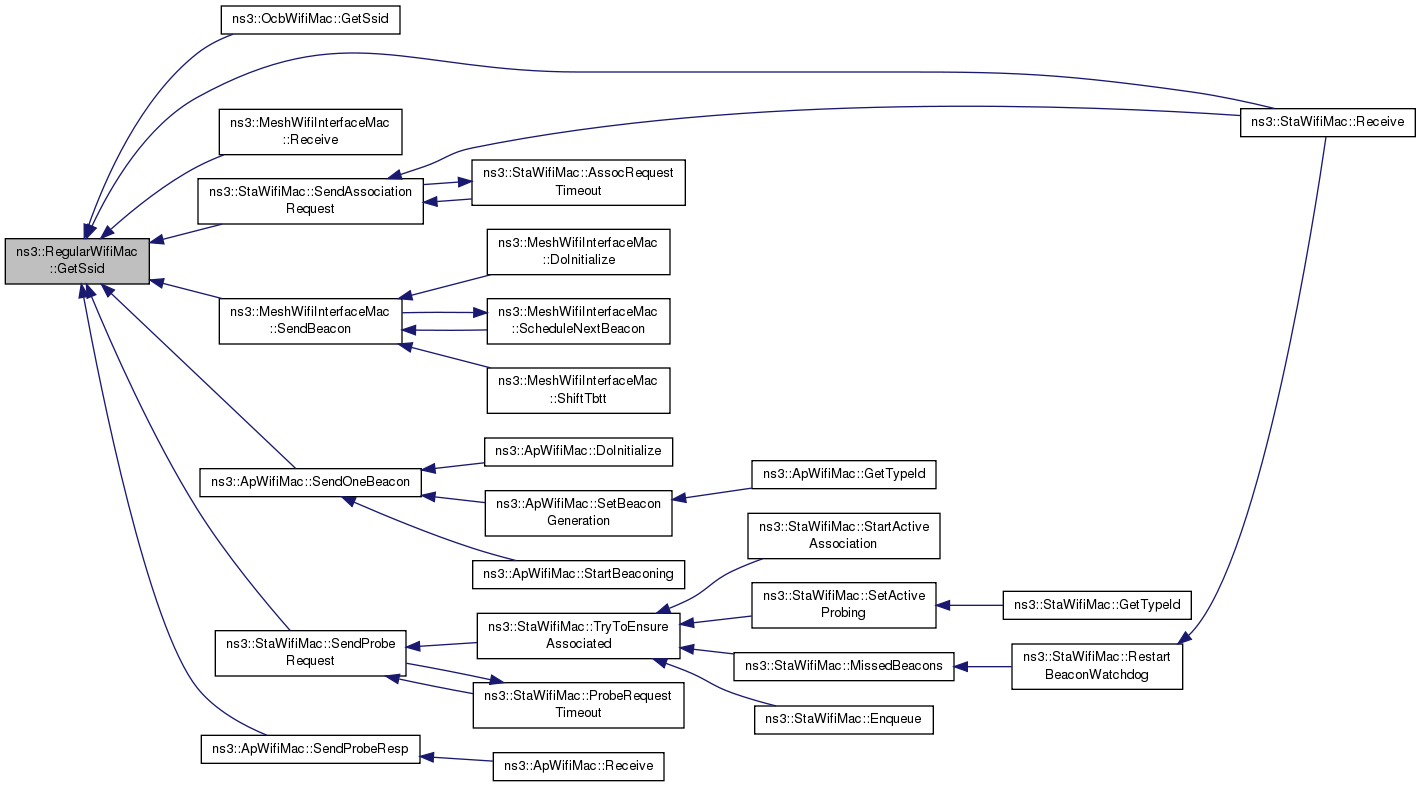

virtual Ssid	GetSsid (void) const

virtual Ptr< WifiPhy >	GetWifiPhy (void) const

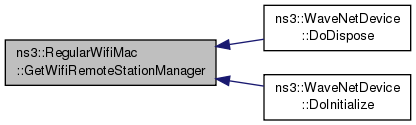

virtual Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

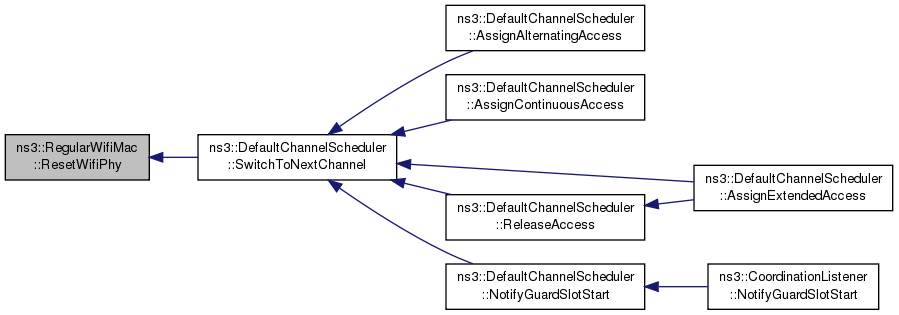

virtual void	ResetWifiPhy (void)
	removes attached WifiPhy device from this MAC. More...

void	SetAckTimeout (Time ackTimeout)

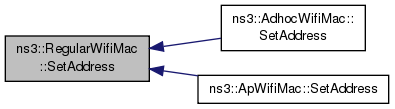

virtual void	SetAddress (Mac48Address address)

virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)

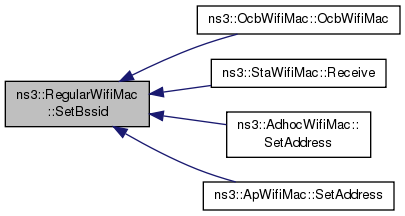

virtual void	SetBssid (Mac48Address bssid)

virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetEifsNoDifs (Time eifsNoDifs)

virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)

virtual void	SetLinkDownCallback (Callback< void > linkDown)

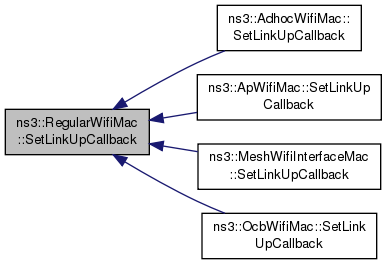

virtual void	SetLinkUpCallback (Callback< void > linkUp)

void	SetPifs (Time pifs)

virtual void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

virtual void	SetSsid (Ssid ssid)

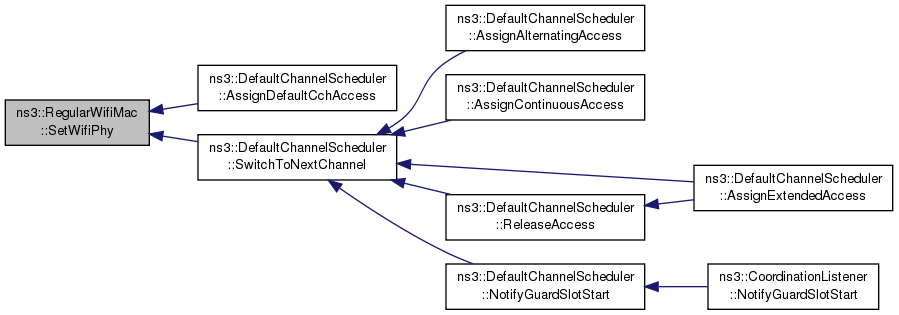

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)

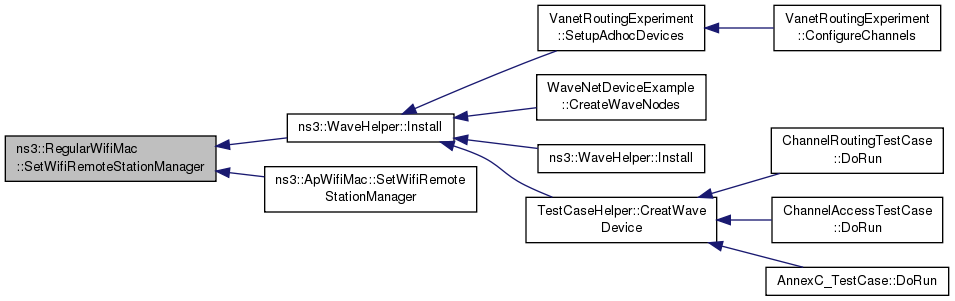

virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (enum WifiPhyStandard standard)

Time	GetMaxPropagationDelay (void) const

Time	GetMsduLifetime (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

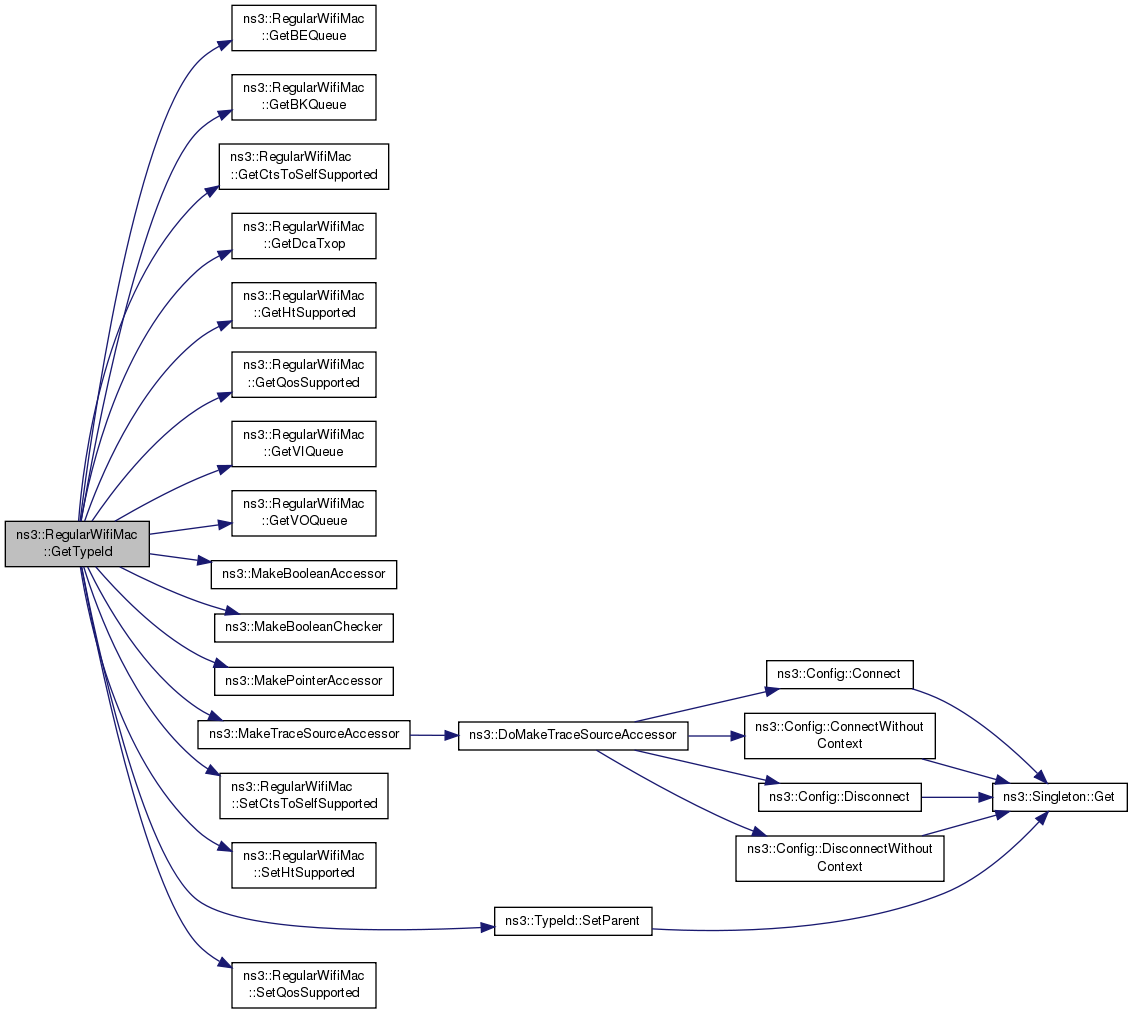

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Types
typedef std::map< AcIndex, Ptr< EdcaTxopN > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions

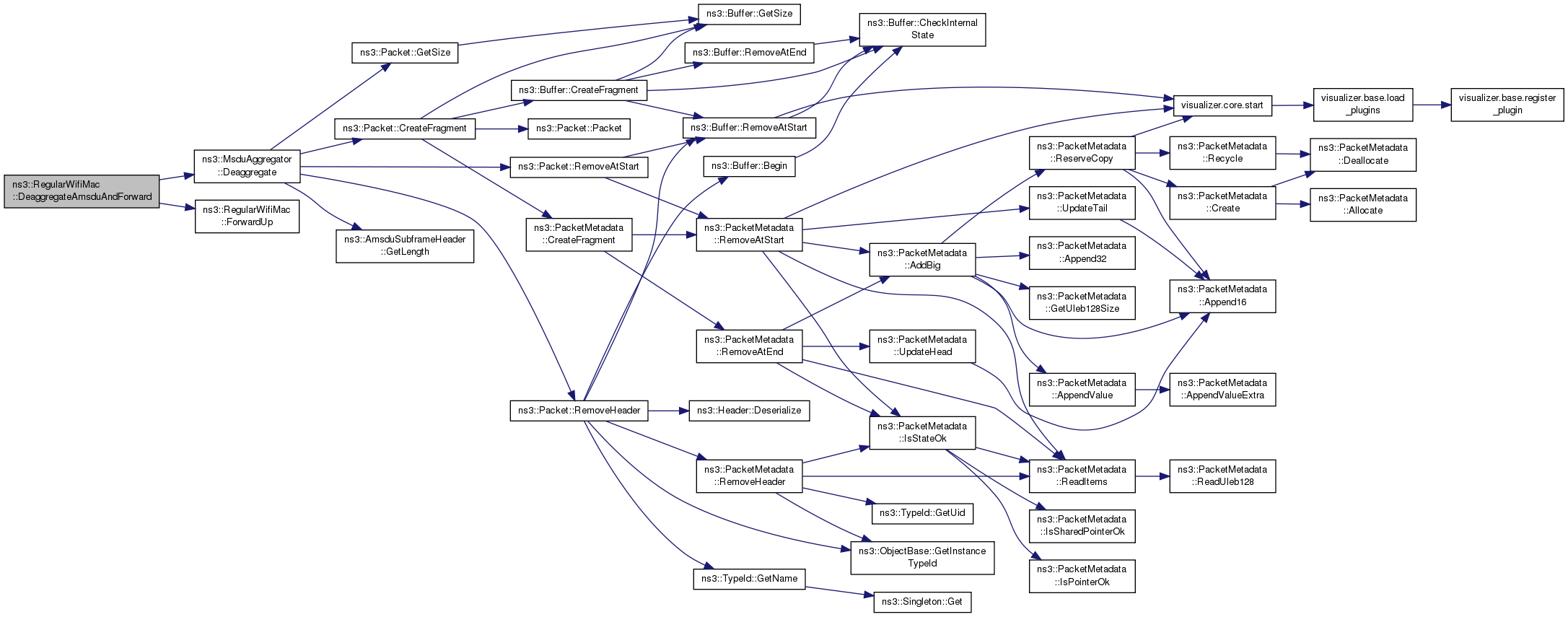

virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

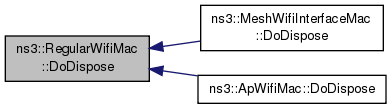

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)

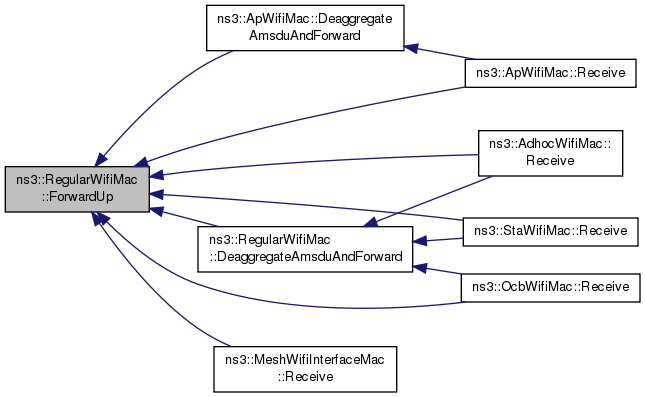

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< EdcaTxopN >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< EdcaTxopN >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

Ptr< DcaTxop >	GetDcaTxop (void) const
	Accessor for the DCF object. More...

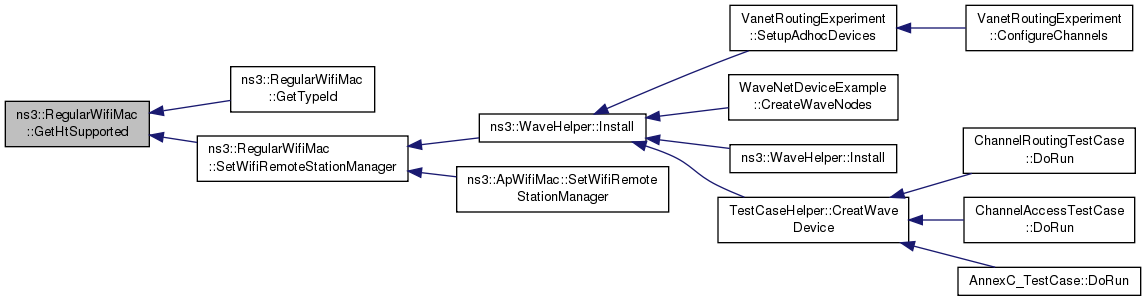

bool	GetHtSupported () const
	Return whether the device supports QoS. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< EdcaTxopN >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

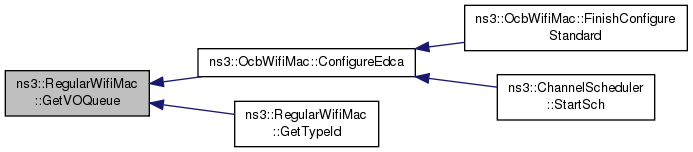

Ptr< EdcaTxopN >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

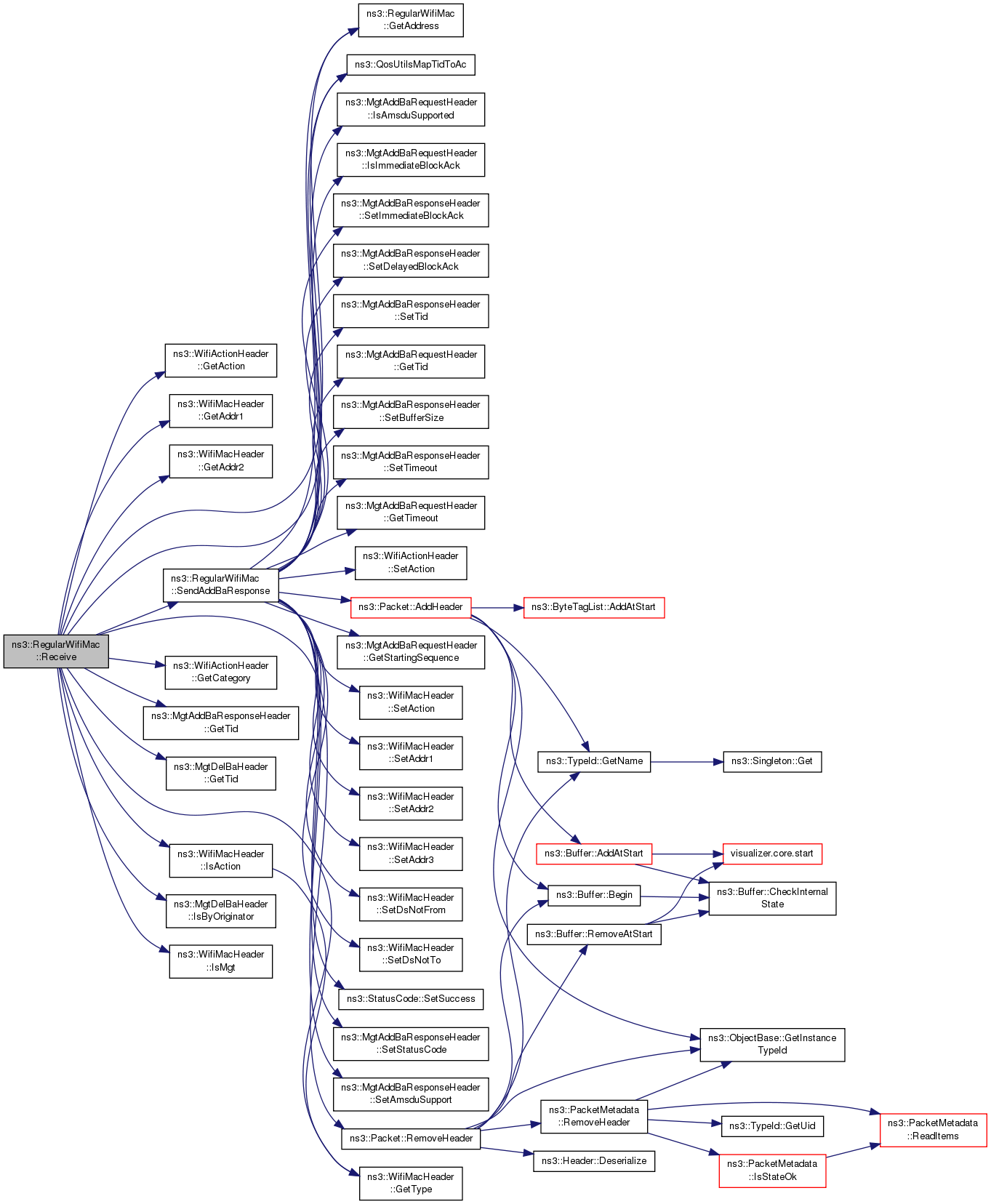

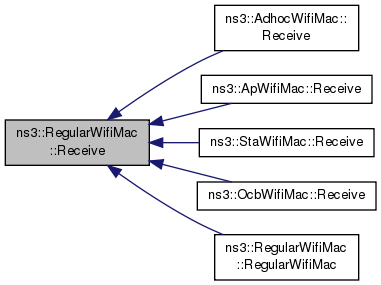

virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

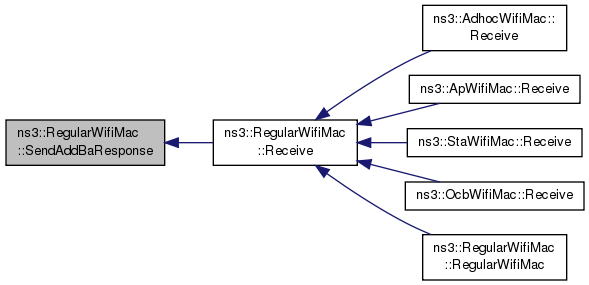

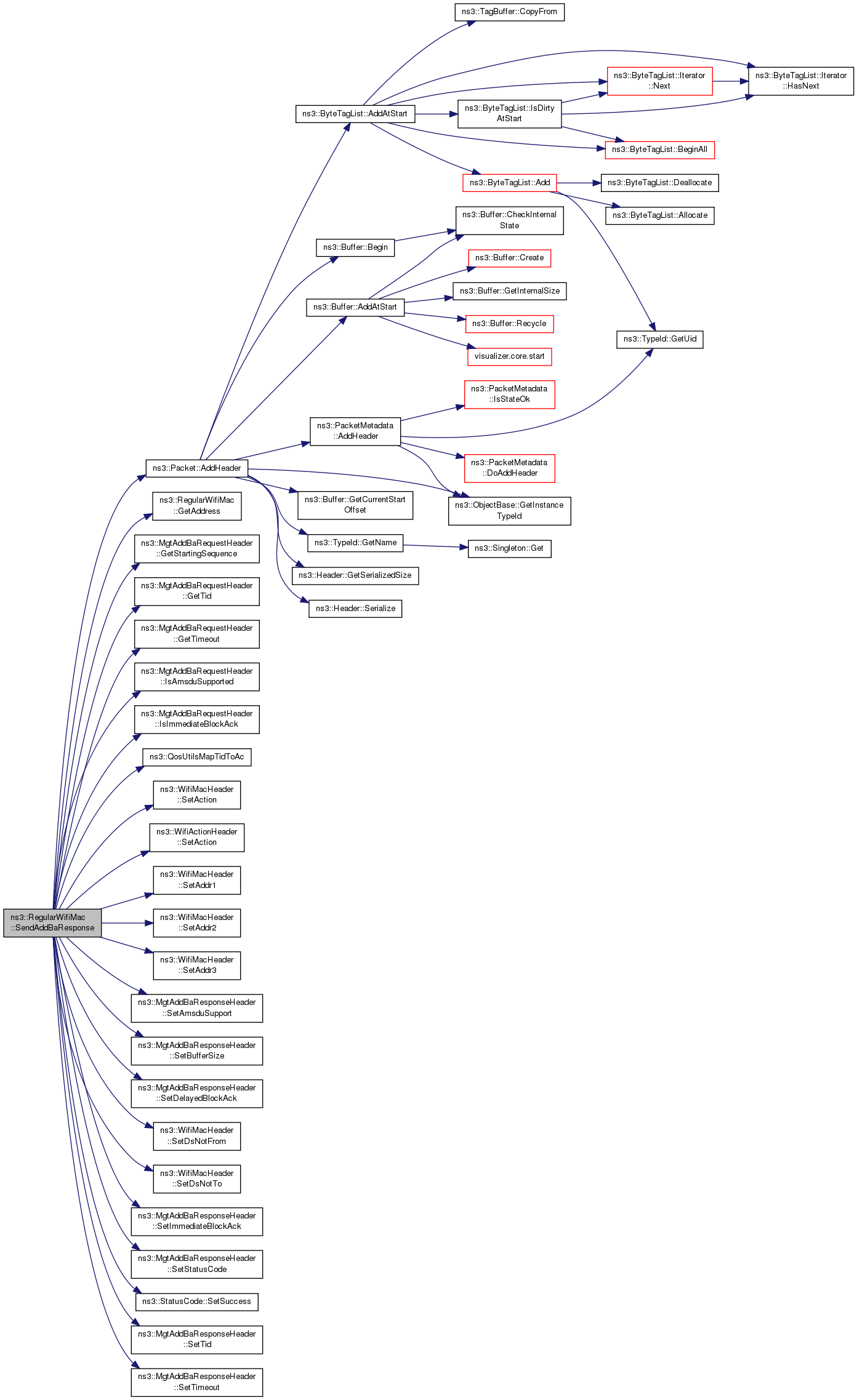

virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

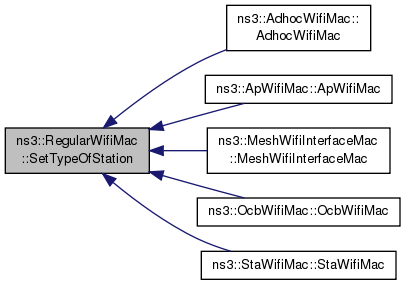

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

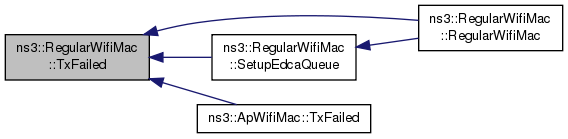

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

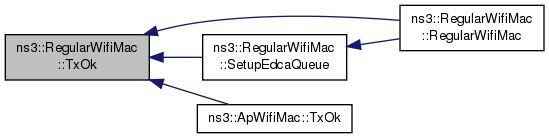

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< DcaTxop >	m_dca
	This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

DcfManager *	m_dcfManager
	DCF manager (access to channel) More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

bool	m_htSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11n. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

bool	m_qosSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

MacRxMiddle *	m_rxMiddle
	RX middle (de-fragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

MacTxMiddle *	m_txMiddle
	TX middle (aggregation etc.) More...

Private Member Functions
	RegularWifiMac (const RegularWifiMac &)

RegularWifiMac &	operator= (const RegularWifiMac &)

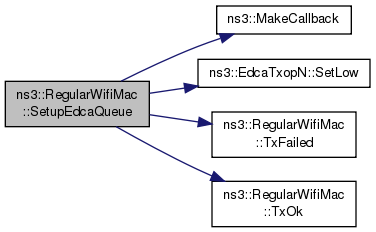

void	SetupEdcaQueue (enum AcIndex ac)
	This method is a private utility invoked to configure the channel access function for the specified Access Category. More...

Private Attributes
TracedCallback< const WifiMacHeader & >	m_txErrCallback

TracedCallback< const WifiMacHeader & >	m_txOkCallback

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Config Paths

ns3::RegularWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac"

Attributes

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HtSupported: This Boolean attribute is set to enable 802.11n support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic set rate
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
DcaTxop: The DcaTxop object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::DcaTxop>
- Flags: read
VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read
BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN>
- Flags: read

Attributes defined in parent class ns3::WifiMac

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +107000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000.0ns
- Flags: construct write read
Rifs: The value of the RIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3333.0ns
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

TxOkHeader: The header of successfully transmitted packet
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet
Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 336 bytes (on a 64-bit architecture).

Definition at line 50 of file regular-wifi-mac.h.

Member Typedef Documentation

typedef std::map<AcIndex, Ptr<EdcaTxopN> > ns3::RegularWifiMac::EdcaQueues

protected

This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function.

Definition at line 261 of file regular-wifi-mac.h.

typedef Callback<void, Ptr<Packet>, Mac48Address, Mac48Address> ns3::RegularWifiMac::ForwardUpCallback

This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

Parameters

packet	the packet that has been received.
from	the MAC address of the device that sent the packet.
to	the MAC address ot the device that the packet is destined for.

Definition at line 215 of file regular-wifi-mac.h.

Constructor & Destructor Documentation

ns3::RegularWifiMac::RegularWifiMac ( )

Definition at line 43 of file regular-wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, m_dca, m_dcfManager, m_low, m_rxMiddle, m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::MacRxMiddle::Receive(), Receive(), ns3::MacRxMiddle::SetForwardCallback(), SetupEdcaQueue(), ns3::DcfManager::SetupLowListener(), TxFailed(), and TxOk().

Here is the call graph for this function:

ns3::RegularWifiMac::~RegularWifiMac ( )

virtual

Definition at line 73 of file regular-wifi-mac.cc.

References NS_LOG_FUNCTION.

ns3::RegularWifiMac::RegularWifiMac ( const RegularWifiMac & )

private

Member Function Documentation

void ns3::RegularWifiMac::DeaggregateAmsduAndForward	(	Ptr< Packet >	aggregatedPacket,
		const WifiMacHeader *	hdr
	)

protectedvirtual

This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

Parameters

aggregatedPacket	the Packet containing the A-MSDU.
hdr	a pointer to the MAC header for `aggregatedPacket`.

Reimplemented in ns3::ApWifiMac.

Definition at line 576 of file regular-wifi-mac.cc.

References ns3::MsduAggregator::Deaggregate(), and ForwardUp().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 92 of file regular-wifi-mac.cc.

References m_dca, m_dcfManager, m_edca, m_low, m_phy, m_rxMiddle, m_stationManager, m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::DoDispose(), and ns3::ApWifiMac::DoDispose().

Here is the caller graph for this function:

void ns3::RegularWifiMac::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 79 of file regular-wifi-mac.cc.

References m_dca, m_edca, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DoInitialize().

Here is the caller graph for this function:

void ns3::RegularWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 448 of file regular-wifi-mac.cc.

References GetAddress(), and NS_FATAL_ERROR.

Here is the call graph for this function:

virtual void ns3::RegularWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::WifiMac.

Implemented in ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::StaWifiMac.

void ns3::RegularWifiMac::FinishConfigureStandard ( enum WifiPhyStandard standard )

protectedvirtual

Parameters

standard the phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard.

This method may be overriden by a derived class (e.g., in order to apply DCF or EDCA parameters specific to the usage model it is dealing with), in which case the reimplementation may choose to deal with certain values in the WifiPhyStandard enumeration, and chain up to this implementation to deal with the remainder.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 710 of file regular-wifi-mac.cc.

References ns3::AC_BE_NQOS, ns3::WifiMac::ConfigureDcf(), m_dca, m_edca, NS_FATAL_ERROR, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, and ns3::WIFI_PHY_STANDARD_holland.

Referenced by ns3::MeshWifiInterfaceMac::FinishConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::ForwardUp	(	Ptr< Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

protected

Forward the packet up to the device.

Parameters

packet	the packet that we are forwarding up to the device
from	the address of the source
to	the address of the destination

Definition at line 466 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), DeaggregateAmsduAndForward(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::OcbWifiMac::Receive().

Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetAckTimeout ( void ) const

virtual

Returns: the current ACK timeout duration.

Implements ns3::WifiMac.

Definition at line 358 of file regular-wifi-mac.cc.

References m_low.

Mac48Address ns3::RegularWifiMac::GetAddress ( void ) const

virtual

Returns: the MAC address associated to this MAC layer.

Implements ns3::WifiMac.

Definition at line 410 of file regular-wifi-mac.cc.

References m_low.

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), ns3::ApWifiMac::DoInitialize(), ns3::OcbWifiMac::Enqueue(), Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), Receive(), ns3::MeshWifiInterfaceMac::Report(), SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetBasicBlockAckTimeout ( void ) const

virtual

Returns: the current basic block ACK timeout duration.

Reimplemented from ns3::WifiMac.

Definition at line 384 of file regular-wifi-mac.cc.

References m_low.

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetBEQueue ( void ) const

protected

Accessor for the AC_BE channel access function.

Returns: a smart pointer to EdcaTxopN

Definition at line 190 of file regular-wifi-mac.cc.

References ns3::AC_BE, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetBKQueue ( void ) const

protected

Accessor for the AC_BK channel access function.

Returns: a smart pointer to EdcaTxopN

Definition at line 196 of file regular-wifi-mac.cc.

References ns3::AC_BK, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

Mac48Address ns3::RegularWifiMac::GetBssid ( void ) const

virtual

Returns: the bssid of the network this device belongs to.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 436 of file regular-wifi-mac.cc.

References m_low.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), and ns3::StaWifiMac::SetState().

Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetCompressedBlockAckTimeout ( void ) const

virtual

Returns: the current compressed block ACK timeout duration.

Reimplemented from ns3::WifiMac.

Definition at line 397 of file regular-wifi-mac.cc.

References m_low.

Time ns3::RegularWifiMac::GetCtsTimeout ( void ) const

virtual

Returns: the current CTS timeout duration.

Implements ns3::WifiMac.

Definition at line 371 of file regular-wifi-mac.cc.

References m_low.

bool ns3::RegularWifiMac::GetCtsToSelfSupported ( ) const

Return whether the device supports CTS-to-self capability.

Returns: true if CTS-to-self is supported, false otherwise.

Definition at line 279 of file regular-wifi-mac.cc.

References m_low.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< DcaTxop > ns3::RegularWifiMac::GetDcaTxop ( void ) const

protected

Accessor for the DCF object.

Returns: a smart pointer to DcaTxop

Definition at line 172 of file regular-wifi-mac.cc.

References m_dca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetEifsNoDifs ( void ) const

virtual

Returns: the current EIFS minus DIFS duration

Implements ns3::WifiMac.

Definition at line 320 of file regular-wifi-mac.cc.

References ns3::DcfManager::GetEifsNoDifs(), and m_dcfManager.

Here is the call graph for this function:

bool ns3::RegularWifiMac::GetHtSupported ( ) const

protected

Return whether the device supports QoS.

Returns: true if HT is supported, false otherwise

Definition at line 267 of file regular-wifi-mac.cc.

References m_htSupported.

Referenced by GetTypeId(), and SetWifiRemoteStationManager().

Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetPifs ( void ) const

virtual

Returns: the current PIFS duration.

Implements ns3::WifiMac.

Definition at line 345 of file regular-wifi-mac.cc.

References m_low.

bool ns3::RegularWifiMac::GetQosSupported ( ) const

protected

Return whether the device supports QoS.

Returns: true if QoS is supported, false otherwise

Definition at line 255 of file regular-wifi-mac.cc.

References m_qosSupported.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::RegularWifiMac::GetRifs ( void ) const

virtual

Returns: the current RIFS duration.

Implements ns3::WifiMac.

Definition at line 332 of file regular-wifi-mac.cc.

References m_low.

Time ns3::RegularWifiMac::GetSifs ( void ) const

virtual

Returns: the current SIFS duration.

Implements ns3::WifiMac.

Definition at line 307 of file regular-wifi-mac.cc.

References m_low.

Time ns3::RegularWifiMac::GetSlot ( void ) const

virtual

Returns: the current slot duration.

Implements ns3::WifiMac.

Definition at line 293 of file regular-wifi-mac.cc.

References m_low.

Ssid ns3::RegularWifiMac::GetSsid ( void ) const

virtual

Returns: the ssid which this MAC layer is going to try to stay in.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 423 of file regular-wifi-mac.cc.

References m_ssid.

Referenced by ns3::OcbWifiMac::GetSsid(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

TypeId ns3::RegularWifiMac::GetTypeId ( void )

static

Definition at line 650 of file regular-wifi-mac.cc.

References GetBEQueue(), GetBKQueue(), GetCtsToSelfSupported(), GetDcaTxop(), GetHtSupported(), GetQosSupported(), GetVIQueue(), GetVOQueue(), m_txErrCallback, m_txOkCallback, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), SetCtsToSelfSupported(), SetHtSupported(), ns3::TypeId::SetParent(), and SetQosSupported().

Here is the call graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetVIQueue ( void ) const

protected

Accessor for the AC_VI channel access function.

Returns: a smart pointer to EdcaTxopN

Definition at line 184 of file regular-wifi-mac.cc.

References ns3::AC_VI, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

Ptr< EdcaTxopN > ns3::RegularWifiMac::GetVOQueue ( void ) const

protected

Accessor for the AC_VO channel access function.

Returns: a smart pointer to EdcaTxopN

Definition at line 178 of file regular-wifi-mac.cc.

References ns3::AC_VO, and m_edca.

Referenced by ns3::OcbWifiMac::ConfigureEdca(), and GetTypeId().

Here is the caller graph for this function:

Ptr< WifiPhy > ns3::RegularWifiMac::GetWifiPhy ( void ) const

virtual

Returns: the physical layer attached to this MAC.

Implements ns3::WifiMac.

Definition at line 211 of file regular-wifi-mac.cc.

References m_phy, and NS_LOG_FUNCTION.

Ptr< WifiRemoteStationManager > ns3::RegularWifiMac::GetWifiRemoteStationManager ( void ) const

virtual

Returns: the station manager attached to this MAC.

Implements ns3::WifiMac.

Definition at line 136 of file regular-wifi-mac.cc.

References m_stationManager.

Referenced by ns3::WaveNetDevice::DoDispose(), and ns3::WaveNetDevice::DoInitialize().

Here is the caller graph for this function:

RegularWifiMac& ns3::RegularWifiMac::operator= ( const RegularWifiMac & )

private

void ns3::RegularWifiMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)

protectedvirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters

packet	the packet that has been received.
hdr	a pointer to the MAC header of the received frame.

Reimplemented in ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::StaWifiMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 473 of file regular-wifi-mac.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), GetAddress(), ns3::WifiActionHeader::GetCategory(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::GetType(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), ns3::WifiMacHeader::IsMgt(), m_edca, m_low, m_qosSupported, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::Packet::RemoveHeader(), and SendAddBaResponse().

Referenced by ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::OcbWifiMac::Receive(), and RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::ResetWifiPhy ( void )

virtual

removes attached WifiPhy device from this MAC.

Implements ns3::WifiMac.

Definition at line 218 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, m_phy, NS_LOG_FUNCTION, and ns3::DcfManager::RemovePhyListener().

Referenced by ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::SendAddBaResponse	(	const MgtAddBaRequestHeader *	reqHdr,
		Mac48Address	originator
	)

protectedvirtual

This method can be called to accept a received ADDBA Request.

An ADDBA Response will be constructed and queued for transmission.

Parameters

reqHdr	a pointer to the received ADDBA Request header.
originator	the MAC address of the originator.

Definition at line 591 of file regular-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::ActionValue::blockAck, GetAddress(), ns3::MgtAddBaRequestHeader::GetStartingSequence(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaRequestHeader::GetTimeout(), ns3::MgtAddBaRequestHeader::IsAmsduSupported(), ns3::MgtAddBaRequestHeader::IsImmediateBlockAck(), m_edca, m_low, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaResponseHeader::SetAmsduSupport(), ns3::MgtAddBaResponseHeader::SetBufferSize(), ns3::MgtAddBaResponseHeader::SetDelayedBlockAck(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::MgtAddBaResponseHeader::SetImmediateBlockAck(), ns3::MgtAddBaResponseHeader::SetStatusCode(), ns3::StatusCode::SetSuccess(), ns3::MgtAddBaResponseHeader::SetTid(), and ns3::MgtAddBaResponseHeader::SetTimeout().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetAckTimeout ( Time ackTimeout )

virtual

Parameters

ackTimeout the duration of an ACK timeout.

Implements ns3::WifiMac.

Definition at line 351 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetAddress ( Mac48Address address )

virtual

Parameters

address the current address of this MAC layer.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 403 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::SetAddress(), and ns3::ApWifiMac::SetAddress().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetBasicBlockAckTimeout ( Time blockAckTimeout )

virtual

Parameters

blockAckTimeout the duration for basic block ACK timeout.

Sets the timeout for basic block ACK.

Reimplemented from ns3::WifiMac.

Definition at line 377 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetBssid ( Mac48Address bssid )

virtual

Parameters

bssid the BSSID of the network that this device belongs to.

Reimplemented in ns3::OcbWifiMac.

Definition at line 429 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::OcbWifiMac(), ns3::StaWifiMac::Receive(), ns3::AdhocWifiMac::SetAddress(), and ns3::ApWifiMac::SetAddress().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetCompressedBlockAckTimeout ( Time blockAckTimeout )

virtual

Parameters

blockAckTimeout Sets the timeout for compressed block ACK.

Reimplemented from ns3::WifiMac.

Definition at line 390 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetCtsTimeout ( Time ctsTimeout )

virtual

Parameters

ctsTimeout the duration of a CTS timeout.

Implements ns3::WifiMac.

Definition at line 364 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetCtsToSelfSupported ( bool enable )

Enable or disable CTS-to-self feature.

Parameters

enable true if CTS-to-self is to be supported, false otherwise

Definition at line 272 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetEifsNoDifs ( Time eifsNoDifs )

virtual

Parameters

eifsNoDifs the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implements ns3::WifiMac.

Definition at line 313 of file regular-wifi-mac.cc.

References m_dcfManager, NS_LOG_FUNCTION, and ns3::DcfManager::SetEifsNoDifs().

Here is the call graph for this function:

void ns3::RegularWifiMac::SetForwardUpCallback ( ForwardUpCallback upCallback )

virtual

Parameters

upCallback the callback to invoke when a packet must be forwarded up the stack.

Definition at line 227 of file regular-wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::WaveNetDevice::DoInitialize().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetHtSupported ( bool enable )

protected

Enable or disable HT support for the device.

Parameters

enable whether HT is supported

Definition at line 260 of file regular-wifi-mac.cc.

References m_htSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetLinkDownCallback ( Callback< void > linkDown )

virtual

Parameters

linkDown the callback to invoke when the link becomes down.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 241 of file regular-wifi-mac.cc.

References m_linkDown, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::SetLinkDownCallback().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac, ns3::MeshWifiInterfaceMac, ns3::ApWifiMac, and ns3::AdhocWifiMac.

Definition at line 234 of file regular-wifi-mac.cc.

References m_linkUp, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::SetLinkUpCallback(), ns3::ApWifiMac::SetLinkUpCallback(), ns3::MeshWifiInterfaceMac::SetLinkUpCallback(), and ns3::OcbWifiMac::SetLinkUpCallback().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetPifs ( Time pifs )

virtual

Parameters

pifs	the pifs duration.

Implements ns3::WifiMac.

Definition at line 338 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetPromisc ( void )

virtual

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Implements ns3::WifiMac.

Definition at line 442 of file regular-wifi-mac.cc.

References m_low.

void ns3::RegularWifiMac::SetQosSupported ( bool enable )

protected

Enable or disable QoS support for the device.

Parameters

enable whether QoS is supported

Definition at line 248 of file regular-wifi-mac.cc.

References m_qosSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetRifs ( Time rifs )

virtual

Parameters

rifs	the rifs duration.

Implements ns3::WifiMac.

Definition at line 325 of file regular-wifi-mac.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetSifs ( Time sifs )

virtual

Parameters

sifs	the sifs duration

Implements ns3::WifiMac.

Definition at line 299 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, NS_LOG_FUNCTION, and ns3::DcfManager::SetSifs().

Here is the call graph for this function:

void ns3::RegularWifiMac::SetSlot ( Time slotTime )

virtual

Parameters

slotTime the slot duration

Implements ns3::WifiMac.

Definition at line 285 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, NS_LOG_FUNCTION, and ns3::DcfManager::SetSlot().

Here is the call graph for this function:

void ns3::RegularWifiMac::SetSsid ( Ssid ssid )

virtual

Parameters

ssid	the current ssid of this MAC layer.

Implements ns3::WifiMac.

Reimplemented in ns3::OcbWifiMac.

Definition at line 416 of file regular-wifi-mac.cc.

References m_ssid, and NS_LOG_FUNCTION.

void ns3::RegularWifiMac::SetTypeOfStation ( TypeOfStation type )

protected

This method is invoked by a subclass to specify what type of station it is implementing.

This is something that the channel access functions (instantiated within this class as EdcaTxopN's) need to know.

Parameters

type	the type of station.

Definition at line 162 of file regular-wifi-mac.cc.

References m_edca, and NS_LOG_FUNCTION.

Referenced by ns3::AdhocWifiMac::AdhocWifiMac(), ns3::ApWifiMac::ApWifiMac(), ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac(), ns3::OcbWifiMac::OcbWifiMac(), and ns3::StaWifiMac::StaWifiMac().

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetupEdcaQueue ( enum AcIndex ac )

private

This method is a private utility invoked to configure the channel access function for the specified Access Category.

Parameters

ac	the Access Category index of the queue to initialise.

Definition at line 142 of file regular-wifi-mac.cc.

References m_dcfManager, m_edca, m_low, m_txMiddle, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ns3::EdcaTxopN::SetLow(), TxFailed(), and TxOk().

Referenced by RegularWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetWifiPhy ( Ptr< WifiPhy > phy )

virtual

Parameters

phy	the physical layer attached to this MAC.

Implements ns3::WifiMac.

Definition at line 202 of file regular-wifi-mac.cc.

References m_dcfManager, m_low, m_phy, NS_LOG_FUNCTION, and ns3::DcfManager::SetupPhyListener().

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RegularWifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > stationManager )

virtual

Parameters

stationManager the station manager attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac.

Definition at line 120 of file regular-wifi-mac.cc.

References GetHtSupported(), m_dca, m_edca, m_low, m_stationManager, and NS_LOG_FUNCTION.

Referenced by ns3::WaveHelper::Install(), and ns3::ApWifiMac::SetWifiRemoteStationManager().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::RegularWifiMac::SupportsSendFrom ( void ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 460 of file regular-wifi-mac.cc.

void ns3::RegularWifiMac::TxFailed ( const WifiMacHeader & hdr )

protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we did not receive an ACK from the receiver).

Parameters

hdr	the header of the packet that we failed to sent

Reimplemented in ns3::ApWifiMac.

Definition at line 756 of file regular-wifi-mac.cc.

References m_txErrCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxFailed().

Here is the caller graph for this function:

void ns3::RegularWifiMac::TxOk ( const WifiMacHeader & hdr )

protectedvirtual

The packet we sent was successfully received by the receiver (i.e.

we received an ACK from the receiver).

Parameters

hdr	the header of the packet that we successfully sent

Reimplemented in ns3::ApWifiMac.

Definition at line 749 of file regular-wifi-mac.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

Referenced by RegularWifiMac(), SetupEdcaQueue(), and ns3::ApWifiMac::TxOk().

Here is the caller graph for this function:

Member Data Documentation

Ptr<DcaTxop> ns3::RegularWifiMac::m_dca

protected

This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers.

Definition at line 257 of file regular-wifi-mac.h.

Referenced by DoDispose(), DoInitialize(), ns3::OcbWifiMac::EnableForWave(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::FinishConfigureStandard(), FinishConfigureStandard(), ns3::ApWifiMac::ForwardDown(), GetDcaTxop(), RegularWifiMac(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::OcbWifiMac::SendVsc(), and SetWifiRemoteStationManager().

DcfManager* ns3::RegularWifiMac::m_dcfManager

protected

DCF manager (access to channel)

Definition at line 244 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), ns3::OcbWifiMac::EnableForWave(), GetEifsNoDifs(), ns3::OcbWifiMac::MakeVirtualBusy(), RegularWifiMac(), ns3::OcbWifiMac::Reset(), ResetWifiPhy(), ns3::OcbWifiMac::Resume(), SetEifsNoDifs(), SetSifs(), SetSlot(), SetupEdcaQueue(), SetWifiPhy(), ns3::OcbWifiMac::Suspend(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

EdcaQueues ns3::RegularWifiMac::m_edca

protected

This is a map from Access Category index to the corresponding channel access function.

Definition at line 264 of file regular-wifi-mac.h.

Referenced by ns3::OcbWifiMac::CancleTx(), DoDispose(), DoInitialize(), ns3::OcbWifiMac::EnableForWave(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), FinishConfigureStandard(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), GetBEQueue(), GetBKQueue(), GetVIQueue(), GetVOQueue(), Receive(), SendAddBaResponse(), ns3::MeshWifiInterfaceMac::SendManagementFrame(), ns3::OcbWifiMac::SendVsc(), SetTypeOfStation(), SetupEdcaQueue(), and SetWifiRemoteStationManager().

ForwardUpCallback ns3::RegularWifiMac::m_forwardUp

protected

Callback to forward packet up the stack.

Definition at line 249 of file regular-wifi-mac.h.

Referenced by ForwardUp(), and SetForwardUpCallback().

bool ns3::RegularWifiMac::m_htSupported

protected

This Boolean is set true iff this WifiMac is to model 802.11n.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between HT and non-HT operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a HT-enabled STA to be able to fall back to non-HT operation with a non-HT peer. This'll require further intelligence - i.e., per-association HT state. Having a big switch seems like a good intermediate stage, however.

Definition at line 421 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetHtSupported(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and SetHtSupported().

Callback<void> ns3::RegularWifiMac::m_linkDown

protected

Callback when a link is down.

Definition at line 251 of file regular-wifi-mac.h.

Referenced by SetLinkDownCallback(), and ns3::StaWifiMac::TryToEnsureAssociated().

Callback<void> ns3::RegularWifiMac::m_linkUp

protected

Callback when a link is up.

Definition at line 250 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Receive(), and SetLinkUpCallback().

Ptr<MacLow> ns3::RegularWifiMac::m_low

protected

MacLow (RTS, CTS, DATA, ACK etc.)

Definition at line 243 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), ns3::OcbWifiMac::EnableForWave(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::Enqueue(), ns3::ApWifiMac::Enqueue(), GetAckTimeout(), GetAddress(), GetBasicBlockAckTimeout(), GetBssid(), GetCompressedBlockAckTimeout(), GetCtsTimeout(), GetCtsToSelfSupported(), GetPifs(), GetRifs(), GetSifs(), GetSlot(), Receive(), RegularWifiMac(), ns3::OcbWifiMac::Reset(), ResetWifiPhy(), SendAddBaResponse(), SetAckTimeout(), SetAddress(), SetBasicBlockAckTimeout(), SetBssid(), SetCompressedBlockAckTimeout(), SetCtsTimeout(), SetCtsToSelfSupported(), SetPifs(), SetPromisc(), SetRifs(), SetSifs(), SetSlot(), SetupEdcaQueue(), SetWifiPhy(), SetWifiRemoteStationManager(), and ns3::OcbWifiMac::Suspend().

Ptr<WifiPhy> ns3::RegularWifiMac::m_phy

protected

Wifi PHY.

Definition at line 245 of file regular-wifi-mac.h.

Referenced by DoDispose(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), GetWifiPhy(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ResetWifiPhy(), SetWifiPhy(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

bool ns3::RegularWifiMac::m_qosSupported

protected

This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between QoS and non-QoS operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a QoS-enabled STA to be able to fall back to non-QoS operation with a non-QoS peer. This'll require further intelligence - i.e., per-association QoS state. Having a big switch seems like a good intermediate stage, however.

Definition at line 394 of file regular-wifi-mac.h.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetQosSupported(), Receive(), ns3::OcbWifiMac::SendVsc(), and SetQosSupported().

MacRxMiddle* ns3::RegularWifiMac::m_rxMiddle

protected

RX middle (de-fragmentation etc.)

Definition at line 241 of file regular-wifi-mac.h.

Referenced by DoDispose(), ns3::OcbWifiMac::EnableForWave(), and RegularWifiMac().

Ssid ns3::RegularWifiMac::m_ssid

protected

Service Set ID (SSID)

Definition at line 253 of file regular-wifi-mac.h.

Referenced by GetSsid(), and SetSsid().

Ptr<WifiRemoteStationManager> ns3::RegularWifiMac::m_stationManager

protected

Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.)

Definition at line 247 of file regular-wifi-mac.h.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), DoDispose(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), GetWifiRemoteStationManager(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), SetWifiRemoteStationManager(), ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txErrCallback

private

Definition at line 448 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxFailed().

MacTxMiddle* ns3::RegularWifiMac::m_txMiddle

protected

TX middle (aggregation etc.)

Definition at line 242 of file regular-wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), DoDispose(), RegularWifiMac(), and SetupEdcaQueue().

TracedCallback<const WifiMacHeader &> ns3::RegularWifiMac::m_txOkCallback

private

Definition at line 447 of file regular-wifi-mac.h.

Referenced by GetTypeId(), and TxOk().

The documentation for this class was generated from the following files:

src/wifi/model/regular-wifi-mac.h
src/wifi/model/regular-wifi-mac.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WifiMac

TraceSources

TraceSources defined in parent class ns3::WifiMac

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
