ns3::RngRsp Class Reference

Introspection did not find any typical Config paths. More...

#include <mac-messages.h>

+ Inheritance diagram for ns3::RngRsp:

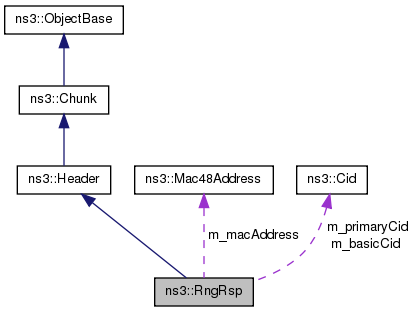

+ Collaboration diagram for ns3::RngRsp:

Public Member Functions

 RngRsp (void)
 This class implements the ranging response message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.6 Ranging response (RNG-RSP) message, page 50. More...

virtual ~RngRsp (void)

uint32_t Deserialize (Buffer::Iterator start)

uint8_t GetAasBdcastPermission (void) const

Cid GetBasicCid (void) const

uint32_t GetDlFreqOverride (void) const

uint16_t GetDlOperBurstProfile (void) const

uint32_t GetFrameNumber (void) const

uint8_t GetInitRangOppNumber (void) const

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

Mac48Address GetMacAddress (void) const

std::string GetName (void) const

uint32_t GetOffsetFreqAdjust (void) const

uint8_t GetPowerLevelAdjust (void) const

Cid GetPrimaryCid (void) const

uint8_t GetRangStatus (void) const

uint8_t GetRangSubchnl (void) const

uint32_t GetSerializedSize (void) const

uint32_t GetTimingAdjust (void) const

uint8_t GetUlChnlIdOverride (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetAasBdcastPermission (uint8_t aasBdcastPermission)

void SetBasicCid (Cid basicCid)

void SetDlFreqOverride (uint32_t dlFreqOverride)
 set the Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging. More...

void SetDlOperBurstProfile (uint16_t dlOperBurstProfile)

void SetFrameNumber (uint32_t frameNumber)

void SetInitRangOppNumber (uint8_t initRangOppNumber)

void SetMacAddress (Mac48Address macAddress)

void SetOffsetFreqAdjust (uint32_t offsetFreqAdjust)
 set the relative change in transmission frequency that the SS should take in order to better match the BS. More...

void SetPowerLevelAdjust (uint8_t powerLevelAdjust)
 set the relative change in transmission power level that the SS should make in order that transmissions arrive at the BS at the desired power. More...

void SetPrimaryCid (Cid primaryCid)

void SetRangStatus (uint8_t rangStatus)

void SetRangSubchnl (uint8_t rangSubchnl)

void SetTimingAdjust (uint32_t timingAdjust)
 set the Tx timing offset adjustment (signed 32-bit). More...

void SetUlChnlIdOverride (uint8_t ulChnlIdOverride)
 set the identifier of the uplink channel with which the SS is to redo initial ranging More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_aasBdcastPermission

Cid m_basicCid

uint32_t m_dlFreqOverride

uint16_t m_dlOperBurstProfile

uint32_t m_frameNumber

uint8_t m_initRangOppNumber

Mac48Address m_macAddress

uint32_t m_offsetFreqAdjust

uint8_t m_powerLevelAdjust

Cid m_primaryCid

uint8_t m_rangStatus

uint8_t m_rangSubchnl

uint8_t m_reserved

uint32_t m_timingAdjust

uint8_t m_ulChnlIdOverride


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 97 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::RngRsp::RngRsp ( void  )

This class implements the ranging response message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.6 Ranging response (RNG-RSP) message, page 50.

Definition at line 226 of file mac-messages.cc.

ns3::RngRsp::~RngRsp ( void  )
virtual

Definition at line 245 of file mac-messages.cc.

Member Function Documentation

uint32_t ns3::RngRsp::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 477 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_reserved, m_timingAdjust, m_ulChnlIdOverride, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

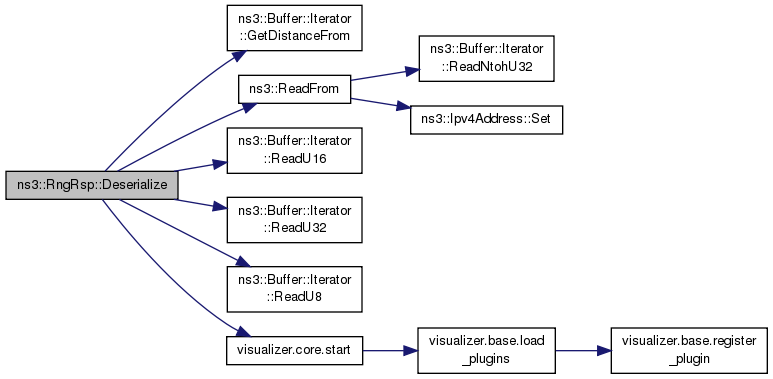

+ Here is the call graph for this function:

uint8_t ns3::RngRsp::GetAasBdcastPermission ( void  ) const

Definition at line 394 of file mac-messages.cc.

References m_aasBdcastPermission.

Cid ns3::RngRsp::GetBasicCid ( void  ) const

Definition at line 382 of file mac-messages.cc.

References m_basicCid.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

uint32_t ns3::RngRsp::GetDlFreqOverride ( void  ) const
Returns
Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Definition at line 358 of file mac-messages.cc.

References m_dlFreqOverride.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

uint16_t ns3::RngRsp::GetDlOperBurstProfile ( void  ) const
Returns
DlOperBurstProfile: This parameter is sent in response to the RNG-REQ Requested Downlink Burst Profile parameter

Definition at line 370 of file mac-messages.cc.

References m_dlOperBurstProfile.

uint32_t ns3::RngRsp::GetFrameNumber ( void  ) const

Definition at line 400 of file mac-messages.cc.

References m_frameNumber.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetInitRangOppNumber ( void  ) const

Definition at line 406 of file mac-messages.cc.

References m_initRangOppNumber.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

TypeId ns3::RngRsp::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 431 of file mac-messages.cc.

References GetTypeId().

+ Here is the call graph for this function:

Mac48Address ns3::RngRsp::GetMacAddress ( void  ) const

Definition at line 376 of file mac-messages.cc.

References m_macAddress.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

std::string ns3::RngRsp::GetName ( void  ) const

Definition at line 418 of file mac-messages.cc.

uint32_t ns3::RngRsp::GetOffsetFreqAdjust ( void  ) const
Returns
the relative change in transmission frequency that the SS should take in order to better match the BS. This is fine-frequency adjustment within a channel, not reassignment to a different channel.

Definition at line 346 of file mac-messages.cc.

References m_offsetFreqAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

+ Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetPowerLevelAdjust ( void  ) const
Returns
the relative change in transmission power level that the SS should take in order that transmissions arrive at the BS at the desired power. When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Definition at line 340 of file mac-messages.cc.

References m_powerLevelAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

+ Here is the caller graph for this function:

Cid ns3::RngRsp::GetPrimaryCid ( void  ) const

Definition at line 388 of file mac-messages.cc.

References m_primaryCid.

Referenced by ns3::SSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetRangStatus ( void  ) const

Definition at line 352 of file mac-messages.cc.

References m_rangStatus.

Referenced by ns3::SSLinkManager::PerformRanging(), and ns3::BSLinkManager::ScheduleRngRspMessage().

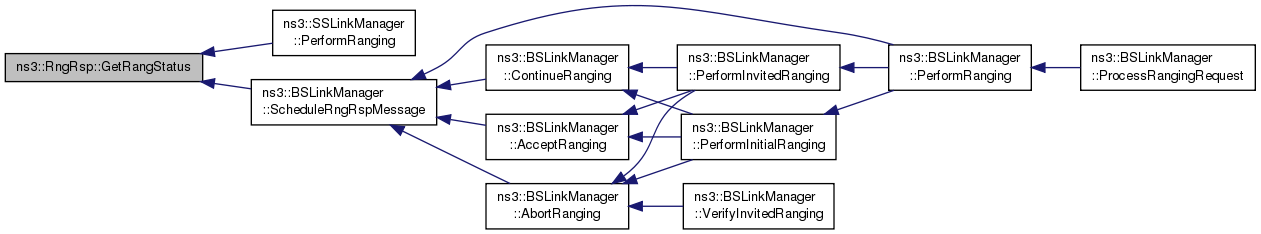

+ Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetRangSubchnl ( void  ) const

Definition at line 412 of file mac-messages.cc.

References m_rangSubchnl.

uint32_t ns3::RngRsp::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 450 of file mac-messages.cc.

uint32_t ns3::RngRsp::GetTimingAdjust ( void  ) const
Returns
Tx timing offset adjustment (signed 32-bit). The time required to advance SS transmission so frames arrive at the expected time instance at the BS.

Definition at line 334 of file mac-messages.cc.

References m_timingAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

+ Here is the caller graph for this function:

TypeId ns3::RngRsp::GetTypeId ( void  )
static

Definition at line 424 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetUlChnlIdOverride ( void  ) const
Returns
The identifier of the uplink channel with which the SS is to redo initial ranging

Definition at line 364 of file mac-messages.cc.

References m_ulChnlIdOverride.

void ns3::RngRsp::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 437 of file mac-messages.cc.

References m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_timingAdjust, and m_ulChnlIdOverride.

void ns3::RngRsp::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 456 of file mac-messages.cc.

References ns3::Cid::GetIdentifier(), m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_reserved, m_timingAdjust, m_ulChnlIdOverride, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

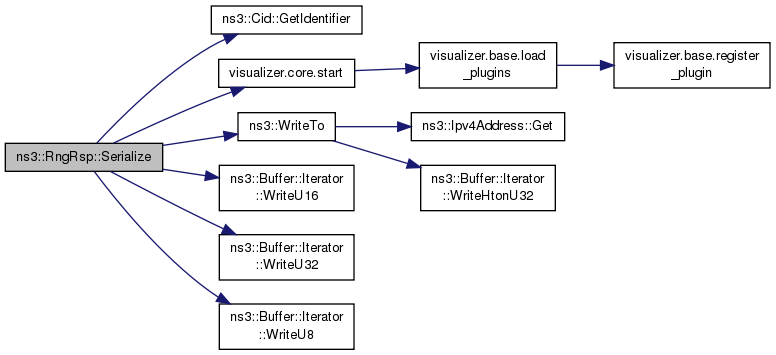

+ Here is the call graph for this function:

void ns3::RngRsp::SetAasBdcastPermission ( uint8_t  aasBdcastPermission)

Definition at line 310 of file mac-messages.cc.

References m_aasBdcastPermission.

void ns3::RngRsp::SetBasicCid ( Cid  basicCid)

Definition at line 298 of file mac-messages.cc.

References m_basicCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetDlFreqOverride ( uint32_t  dlFreqOverride)

set the Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Parameters
dlFreqOverridethe Center frequency in kHz

Definition at line 274 of file mac-messages.cc.

References m_dlFreqOverride.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetDlOperBurstProfile ( uint16_t  dlOperBurstProfile)

Definition at line 286 of file mac-messages.cc.

References m_dlOperBurstProfile.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetFrameNumber ( uint32_t  frameNumber)

Definition at line 316 of file mac-messages.cc.

References m_frameNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetInitRangOppNumber ( uint8_t  initRangOppNumber)

Definition at line 322 of file mac-messages.cc.

References m_initRangOppNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetMacAddress ( Mac48Address  macAddress)

Definition at line 292 of file mac-messages.cc.

References m_macAddress.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetOffsetFreqAdjust ( uint32_t  offsetFreqAdjust)

set the relative change in transmission frequency that the SS should take in order to better match the BS.

This is fine-frequency adjustment within a channel, not reassignment to a different channel

Parameters
offsetFreqAdjust

Definition at line 262 of file mac-messages.cc.

References m_offsetFreqAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

+ Here is the caller graph for this function:

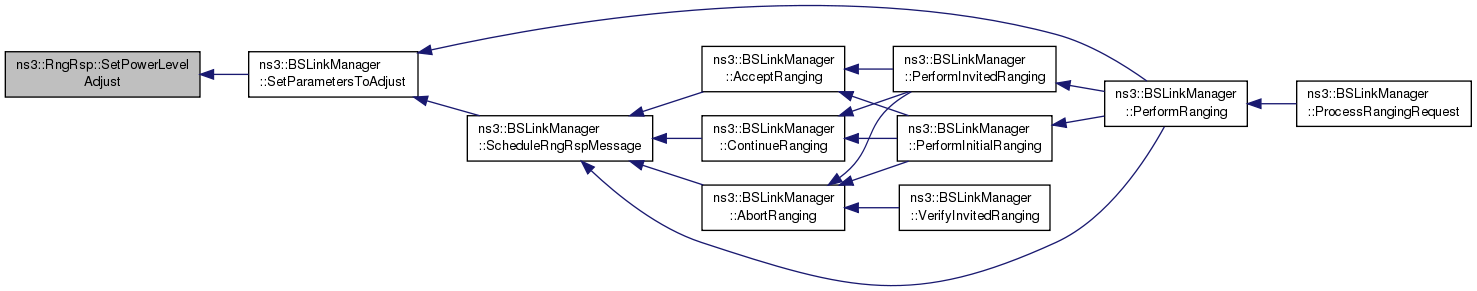

void ns3::RngRsp::SetPowerLevelAdjust ( uint8_t  powerLevelAdjust)

set the relative change in transmission power level that the SS should make in order that transmissions arrive at the BS at the desired power.

When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Parameters
powerLevelAdjustthe relative change in transmission power level

Definition at line 256 of file mac-messages.cc.

References m_powerLevelAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetPrimaryCid ( Cid  primaryCid)

Definition at line 304 of file mac-messages.cc.

References m_primaryCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

+ Here is the caller graph for this function:

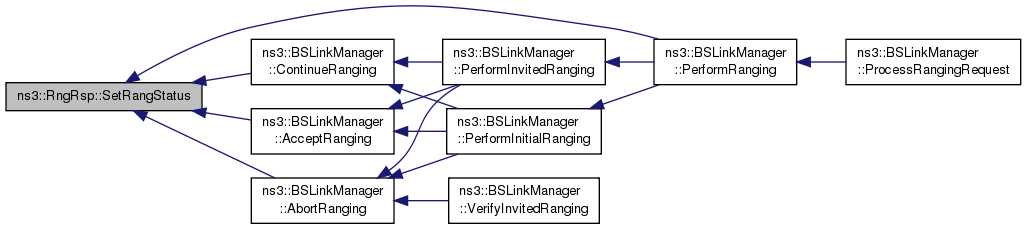

void ns3::RngRsp::SetRangStatus ( uint8_t  rangStatus)

Definition at line 268 of file mac-messages.cc.

References m_rangStatus.

Referenced by ns3::BSLinkManager::AbortRanging(), ns3::BSLinkManager::AcceptRanging(), ns3::BSLinkManager::ContinueRanging(), and ns3::BSLinkManager::PerformRanging().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetRangSubchnl ( uint8_t  rangSubchnl)

Definition at line 328 of file mac-messages.cc.

References m_rangSubchnl.

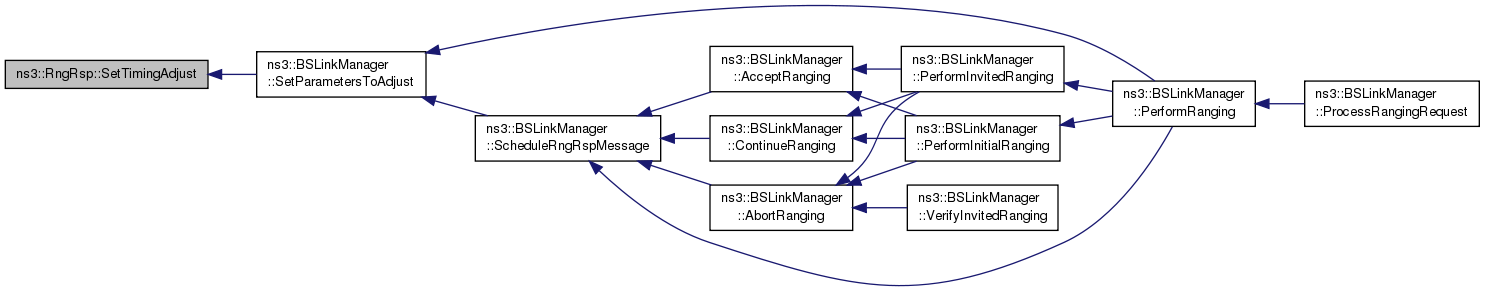

void ns3::RngRsp::SetTimingAdjust ( uint32_t  timingAdjust)

set the Tx timing offset adjustment (signed 32-bit).

Parameters
timingAdjustThe time required to advance SS transmission so frames arrive at the expected time instance at the BS.

Definition at line 250 of file mac-messages.cc.

References m_timingAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

+ Here is the caller graph for this function:

void ns3::RngRsp::SetUlChnlIdOverride ( uint8_t  ulChnlIdOverride)

set the identifier of the uplink channel with which the SS is to redo initial ranging

Parameters
ulChnlIdOverridethe uplink channel index

Definition at line 280 of file mac-messages.cc.

References m_ulChnlIdOverride.

Member Data Documentation

uint8_t ns3::RngRsp::m_aasBdcastPermission
private

Definition at line 230 of file mac-messages.h.

Referenced by Deserialize(), GetAasBdcastPermission(), Print(), Serialize(), and SetAasBdcastPermission().

Cid ns3::RngRsp::m_basicCid
private

Definition at line 228 of file mac-messages.h.

Referenced by Deserialize(), GetBasicCid(), Print(), Serialize(), and SetBasicCid().

uint32_t ns3::RngRsp::m_dlFreqOverride
private

Definition at line 216 of file mac-messages.h.

Referenced by Deserialize(), GetDlFreqOverride(), Print(), Serialize(), and SetDlFreqOverride().

uint16_t ns3::RngRsp::m_dlOperBurstProfile
private

Definition at line 225 of file mac-messages.h.

Referenced by Deserialize(), GetDlOperBurstProfile(), Print(), Serialize(), and SetDlOperBurstProfile().

uint32_t ns3::RngRsp::m_frameNumber
private

Definition at line 234 of file mac-messages.h.

Referenced by Deserialize(), GetFrameNumber(), Print(), Serialize(), and SetFrameNumber().

uint8_t ns3::RngRsp::m_initRangOppNumber
private

Definition at line 238 of file mac-messages.h.

Referenced by Deserialize(), GetInitRangOppNumber(), Print(), Serialize(), and SetInitRangOppNumber().

Mac48Address ns3::RngRsp::m_macAddress
private

Definition at line 227 of file mac-messages.h.

Referenced by Deserialize(), GetMacAddress(), Print(), Serialize(), and SetMacAddress().

uint32_t ns3::RngRsp::m_offsetFreqAdjust
private

Definition at line 212 of file mac-messages.h.

Referenced by Deserialize(), GetOffsetFreqAdjust(), Print(), Serialize(), and SetOffsetFreqAdjust().

uint8_t ns3::RngRsp::m_powerLevelAdjust
private

Definition at line 208 of file mac-messages.h.

Referenced by Deserialize(), GetPowerLevelAdjust(), Print(), Serialize(), and SetPowerLevelAdjust().

Cid ns3::RngRsp::m_primaryCid
private

Definition at line 229 of file mac-messages.h.

Referenced by Deserialize(), GetPrimaryCid(), Print(), Serialize(), and SetPrimaryCid().

uint8_t ns3::RngRsp::m_rangStatus
private

Definition at line 213 of file mac-messages.h.

Referenced by Deserialize(), GetRangStatus(), Print(), Serialize(), and SetRangStatus().

uint8_t ns3::RngRsp::m_rangSubchnl
private

Definition at line 242 of file mac-messages.h.

Referenced by Deserialize(), GetRangSubchnl(), Print(), Serialize(), and SetRangSubchnl().

uint8_t ns3::RngRsp::m_reserved
private

Definition at line 196 of file mac-messages.h.

Referenced by Deserialize(), and Serialize().

uint32_t ns3::RngRsp::m_timingAdjust
private

Definition at line 202 of file mac-messages.h.

Referenced by Deserialize(), GetTimingAdjust(), Print(), Serialize(), and SetTimingAdjust().

uint8_t ns3::RngRsp::m_ulChnlIdOverride
private

Definition at line 220 of file mac-messages.h.

Referenced by Deserialize(), GetUlChnlIdOverride(), Print(), Serialize(), and SetUlChnlIdOverride().

The documentation for this class was generated from the following files:
