A simple device energy model where current drain can be set by the user. More...

#include <simple-device-energy-model.h>

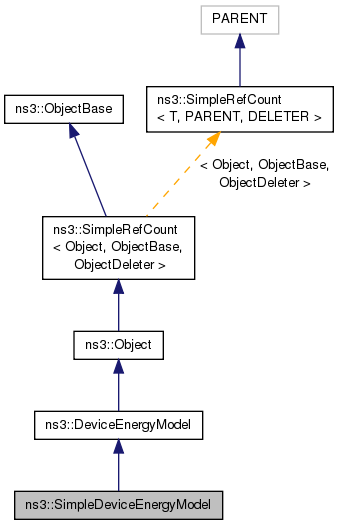

Inheritance diagram for ns3::SimpleDeviceEnergyModel:

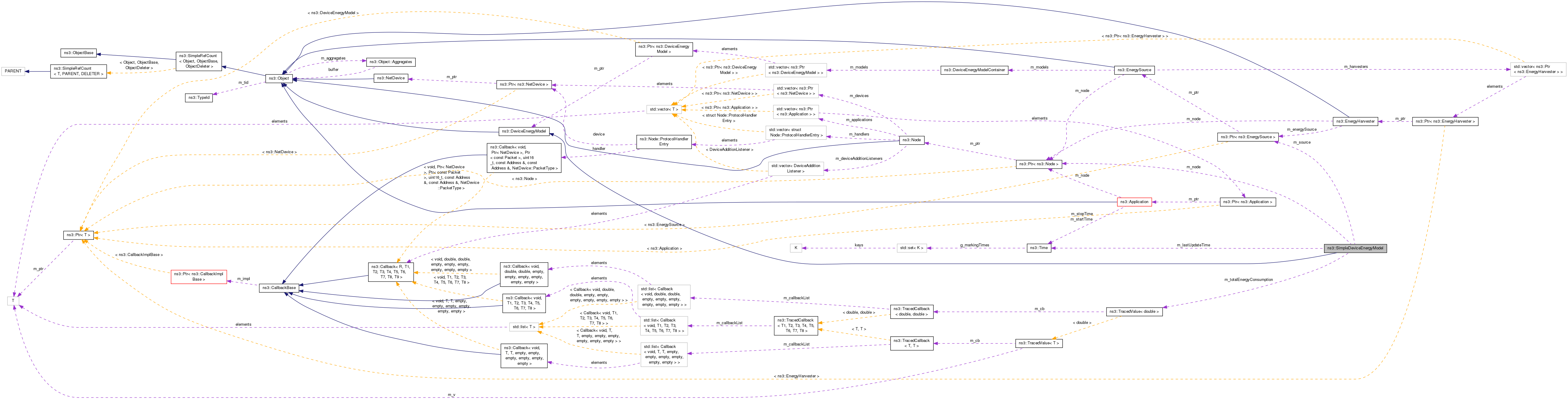

Collaboration diagram for ns3::SimpleDeviceEnergyModel:

Public Member Functions
	SimpleDeviceEnergyModel ()

virtual	~SimpleDeviceEnergyModel ()

virtual void	ChangeState (int newState)

virtual Ptr< Node >	GetNode (void) const
	Gets pointer to node. More...

virtual double	GetTotalEnergyConsumption (void) const

virtual void	HandleEnergyDepletion (void)
	Handles energy depletion. More...

virtual void	HandleEnergyRecharged (void)
	Handles energy recharged. More...

void	SetCurrentA (double current)

virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node. More...

virtual void	SetNode (Ptr< Node > node)
	Sets pointer to node. More...

Public Member Functions inherited from ns3::DeviceEnergyModel
	DeviceEnergyModel ()

virtual	~DeviceEnergyModel ()

double	GetCurrentA (void) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::DeviceEnergyModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoDispose (void)
	Destructor implementation. More...

virtual double	DoGetCurrentA (void) const

Private Attributes
double	m_actualCurrentA

Time	m_lastUpdateTime

Ptr< Node >	m_node

Ptr< EnergySource >	m_source

TracedValue< double >	m_totalEnergyConsumption

Additional Inherited Members
Public Types inherited from ns3::DeviceEnergyModel
typedef Callback< void, int >	ChangeStateCallback
	Callback type for ChangeState function. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A simple device energy model where current drain can be set by the user.

Introspection did not find any typical Config paths.

It is supposed to be used as a testing model for energy sources.

No Attributes are defined for this type.

TraceSources

TotalEnergyConsumption: Total energy consumption of the radio device.
Callback signature: ns3::TracedValue::DoubleCallback

Size of this type is 88 bytes (on a 64-bit architecture).

Definition at line 38 of file simple-device-energy-model.h.

Constructor & Destructor Documentation

ns3::SimpleDeviceEnergyModel::SimpleDeviceEnergyModel ( )

Definition at line 47 of file simple-device-energy-model.cc.

References m_actualCurrentA, m_lastUpdateTime, m_source, NS_LOG_FUNCTION, and ns3::Seconds().

Here is the call graph for this function:

ns3::SimpleDeviceEnergyModel::~SimpleDeviceEnergyModel ( )

virtual

Definition at line 55 of file simple-device-energy-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual void ns3::SimpleDeviceEnergyModel::ChangeState ( int newState )

inlinevirtual

Parameters

newState New state the device is in.

Not implemented

Implements ns3::DeviceEnergyModel.

Definition at line 84 of file simple-device-energy-model.h.

void ns3::SimpleDeviceEnergyModel::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 111 of file simple-device-energy-model.cc.

References m_source, and NS_LOG_FUNCTION.

double ns3::SimpleDeviceEnergyModel::DoGetCurrentA ( void ) const

privatevirtual
