#include <wimax-connection.h>

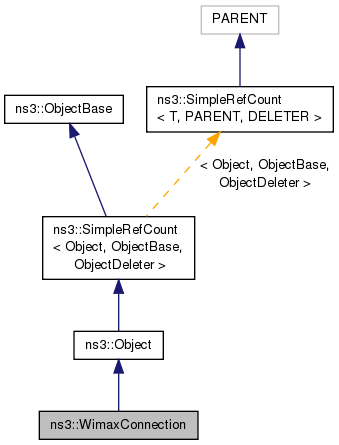

Inheritance diagram for ns3::WimaxConnection:

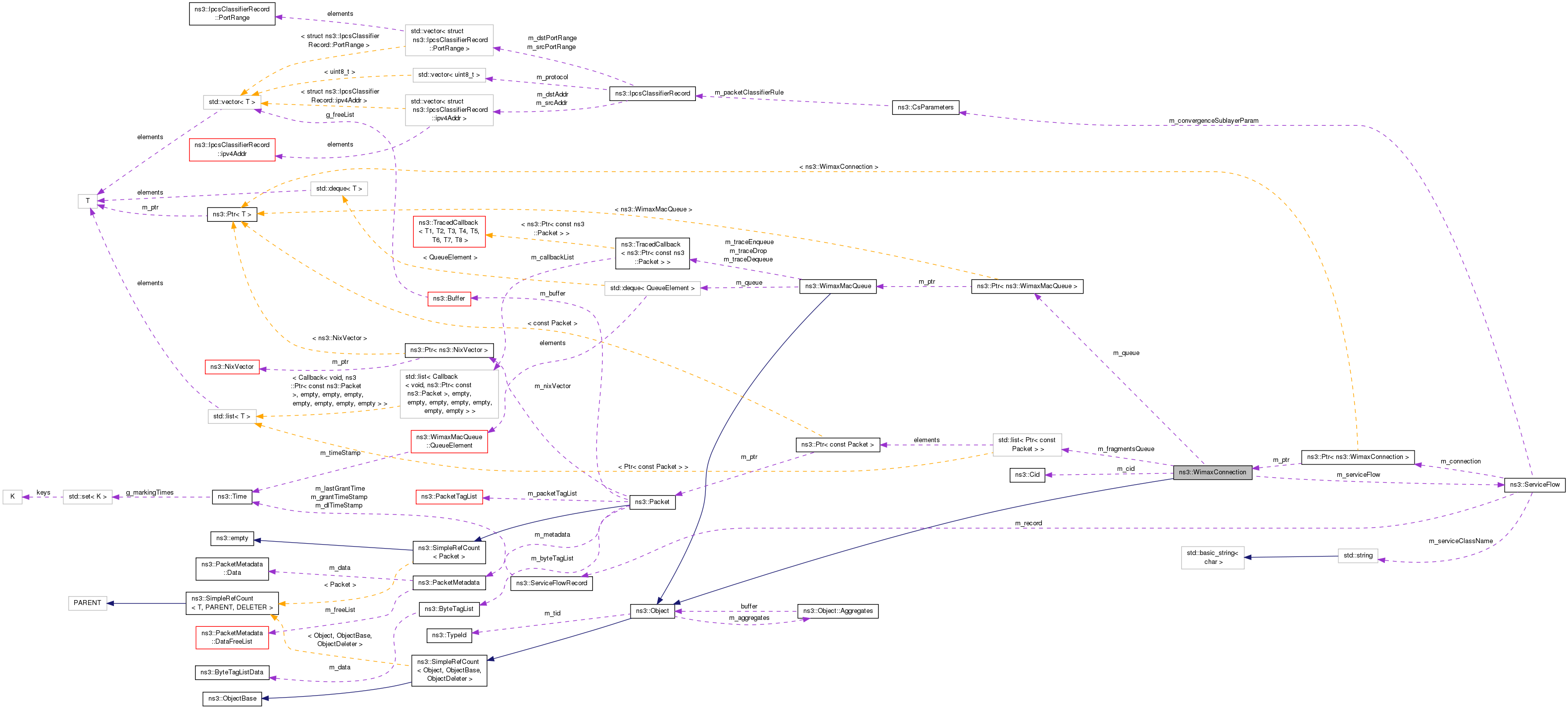

Collaboration diagram for ns3::WimaxConnection:

Public Types
typedef std::list< Ptr< const Packet > >	FragmentsQueue

Public Member Functions
	WimaxConnection (Cid cid, enum Cid::Type type)

	~WimaxConnection (void)

void	ClearFragmentsQueue (void)
	delete all enqueued fragments More...

Ptr< Packet >	Dequeue (MacHeaderType::HeaderType packetType=MacHeaderType::HEADER_TYPE_GENERIC)
	dequeue a packet from the queue of the connection More...

Ptr< Packet >	Dequeue (MacHeaderType::HeaderType packetType, uint32_t availableByte)

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr)
	enqueue a packet in the queue of the connection More...

void	FragmentEnqueue (Ptr< const Packet > fragment)
	enqueue a received packet (that is a fragment) into the fragments queue More...

Cid	GetCid (void) const

const FragmentsQueue	GetFragmentsQueue (void) const
	get a queue of received fragments More...

Ptr< WimaxMacQueue >	GetQueue (void) const

uint8_t	GetSchedulingType (void) const

ServiceFlow *	GetServiceFlow (void) const

enum Cid::Type	GetType (void) const

std::string	GetTypeStr (void) const

bool	HasPackets (void) const

bool	HasPackets (MacHeaderType::HeaderType packetType) const

void	SetServiceFlow (ServiceFlow *serviceFlow)
	set the service flow associated to this connection More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Private Attributes
Cid	m_cid

enum Cid::Type	m_cidType

FragmentsQueue	m_fragmentsQueue

Ptr< WimaxMacQueue >	m_queue

ServiceFlow *	m_serviceFlow

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::WimaxConnection is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/BasicConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/PrimaryConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/InitialRangingConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BroadcastConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection"

Attributes

Type: Connection type
- Set with class: ns3::EnumValue
- Underlying type:
- Flags: read
TxQueue: Transmit queue
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxMacQueue>
- Flags: read

No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 41 of file wimax-connection.h.

Member Typedef Documentation

typedef std::list<Ptr<const Packet> > ns3::WimaxConnection::FragmentsQueue

Definition at line 97 of file wimax-connection.h.

Constructor & Destructor Documentation

ns3::WimaxConnection::WimaxConnection	(	Cid	cid,
		enum Cid::Type	type
	)

Definition at line 65 of file wimax-connection.cc.

ns3::WimaxConnection::~WimaxConnection ( void )

Definition at line 73 of file wimax-connection.cc.

Member Function Documentation

void ns3::WimaxConnection::ClearFragmentsQueue ( void )

delete all enqueued fragments

Definition at line 195 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

Ptr< Packet > ns3::WimaxConnection::Dequeue ( MacHeaderType::HeaderType packetType = MacHeaderType::HEADER_TYPE_GENERIC )

dequeue a packet from the queue of the connection

Parameters

packetType the type of the packet to dequeue

Definition at line 128 of file wimax-connection.cc.

References m_queue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun().

Here is the caller graph for this function:

Ptr< Packet > ns3::WimaxConnection::Dequeue	(	MacHeaderType::HeaderType	packetType,
		uint32_t	availableByte
	)

Definition at line 134 of file wimax-connection.cc.

References m_queue.

void ns3::WimaxConnection::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 78 of file wimax-connection.cc.

References m_queue.
