ObjectMap Attribute

Attribute implementation for ObjectMap. More...

Collaboration diagram for ObjectMap Attribute:

Files
file	object-map.h
	ObjectMap attribute value declarations and template implementations.

Classes
class	ns3::ObjectMapChecker
	AttributeChecker implementation for ObjectMapValue. More...

Typedefs
typedef ObjectPtrContainerValue	ns3::ObjectMapValue
	ObjectVectorMap is an alias for ObjectPtrContainerValue. More...

Functions
template<typename T , typename U >
Ptr< const AttributeAccessor >	ns3::MakeObjectMapAccessor (U T::*memberVariable)
	MakeAccessorHelper implementation for ObjectVector. More...
template<typename T , typename U , typename INDEX >
Ptr< const AttributeAccessor >	ns3::MakeObjectMapAccessor (Ptr< U >(T::*get)(INDEX) const, INDEX(T::*getN)(void) const)
	Create an AttributeAccessor using a container class indexed get method. More...
template<typename T , typename U , typename INDEX >
Ptr< const AttributeAccessor >	ns3::MakeObjectMapAccessor (INDEX(T::*getN)(void) const, Ptr< U >(T::*get)(INDEX) const)
	Create an AttributeAccessor using a container class indexed get method. More...
template<typename T >
Ptr< const AttributeChecker >	ns3::MakeObjectMapChecker (void)

Detailed Description

Attribute implementation for ObjectMap.

Typedef Documentation

typedef ObjectPtrContainerValue ns3::ObjectMapValue

ObjectVectorMap is an alias for ObjectPtrContainerValue.

Definition at line 40 of file object-map.h.

Function Documentation

template<typename T , typename U >

Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor

(

U T::*

memberVariable

)

MakeAccessorHelper implementation for ObjectVector.

Template Parameters

V	The specific AttributeValue type to use to represent the Attribute.
T	The class holding the data member.
U	The type of the data member.

Parameters

memberVariable

The address of the data member.

Returns

The AttributeAccessor.

Definition at line 80 of file object-map.h.

References NS_ASSERT.

Referenced by AttributeObjectTest::GetTypeId(), ns3::UeManager::GetTypeId(), ns3::LteUeRrc::GetTypeId(), ns3::WaveNetDevice::GetTypeId(), and ns3::LteEnbRrc::GetTypeId().

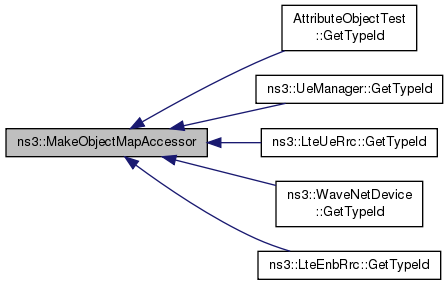

Here is the caller graph for this function:

template<typename T , typename U , typename INDEX >

Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor	(	Ptr< U >(T::*)(INDEX) const	get,
		INDEX(T::*)(void) const	getN
	)

Create an AttributeAccessor using a container class indexed get method.

The two versions of this function differ only in argument order.

Template Parameters

T	The container class type.
U	The type of object the get method returns.
INDEX	The type of the index variable.

Parameters

[in]	get	The class method to get a specific instance from the container.
[in]	getN	The class method to return the number of objects in the container.

Returns

The AttributeAccessor.

Definition at line 125 of file object-map.h.

template<typename T , typename U , typename INDEX >

Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor	(	INDEX(T::*)(void) const	getN,
		Ptr< U >(T::*)(INDEX) const	get
	)

Create an AttributeAccessor using a container class indexed get method.

The two versions of this function differ only in argument order.

Template Parameters

T	The container class type.
U	The type of object the get method returns.
INDEX	The type of the index variable.

Parameters

[in]	get	The class method to get a specific instance from the container.
[in]	getN	The class method to return the number of objects in the container.

Returns

The AttributeAccessor.

Definition at line 133 of file object-map.h.

template<typename T >

Ptr< const AttributeChecker > ns3::MakeObjectMapChecker

(

void

)

Returns

The AttributeChecker.

See also

AttributeChecker

Definition at line 118 of file object-map.h.
