Base classes which provide memory management and object aggregation. More...

Collaboration diagram for Object:

Files
file	attribute-construction-list.cc
	ns3::AttributeConstructionList implementation.

file	attribute-construction-list.h
	ns3::AttributeConstructionList declaration.

file	object-base.cc
	ns3::ObjectBase class implementation.

file	object-base.h
	ns3::ObjectBase class declaration and NS_OBJECT_ENSURE_REGISTERED() definition.

file	object-factory.h
	ns3::ObjectFactory class declaration.

file	object.cc
	ns3::Object class implementation.

file	object.h
	ns3::Object class declaration, which is the root of the Object hierarchy and Aggregation.

Classes
class	ns3::Object::AggregateIterator
	Iterate over the Objects aggregated to an ns3::Object. More...

struct	ns3::Object::Aggregates
	The list of Objects aggregated to this one. More...

class	ns3::AttributeConstructionList
	List of Attribute name, value and checker triples used to construct Objects. More...

struct	ns3::AttributeConstructionList::Item
	A single Attribute triple. More...

class	ns3::Object
	A base class which provides memory management and object aggregation. More...

class	ns3::ObjectBase
	Anchor the ns-3 type and attribute system. More...

struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...

class	ns3::ObjectFactory
	Instantiate subclasses of ns3::Object. More...

Macros
#define	NS_OBJECT_ENSURE_REGISTERED(type)
	Register an Object subclass with the TypeId system. More...

Functions
template<typename T >
Ptr< T >	ns3::CreateObjectWithAttributes (std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Allocate an Object on the heap and initialize with a set of attributes. More...

template<typename T >
Ptr< T >	ns3::CreateObject (void)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 >
Ptr< T >	ns3::CreateObject (T1 a1)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)
	Create an object by type, with varying number of constructor parameters. More...

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >
Ptr< T >	ns3::CreateObject (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6, T7 a7)
	Create an object by type, with varying number of constructor parameters. More...

Detailed Description

Base classes which provide memory management and object aggregation.

Macro Definition Documentation

#define NS_OBJECT_ENSURE_REGISTERED ( type )

Value:

static struct Object ## type ## RegistrationClass     \
  {                                                     \
    Object ## type ## RegistrationClass () {            \
      ns3::TypeId tid = type::GetTypeId ();             \
      tid.SetSize (sizeof (type));                      \
      tid.GetParent ();                                 \
    }                                                   \
  } Object ## type ## RegistrationVariable

Register an Object subclass with the TypeId system.

This macro should be invoked once for every class which defines a new GetTypeId method.

If the class is in a namespace, then the macro call should also be in the namespace.

Definition at line 44 of file object-base.h.

Function Documentation

template<typename T >

Ptr<T> ns3::CreateObject ( void )

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.

Returns: The derived object.

Definition at line 524 of file object.h.

References ns3::CompleteConstruct().

Referenced by ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4L3Protocol::AddInterface(), Ipv4L3ProtocolTestCase::DoRun(), Ipv6L3ProtocolTestCase::DoRun(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

Here is the call graph for this function:

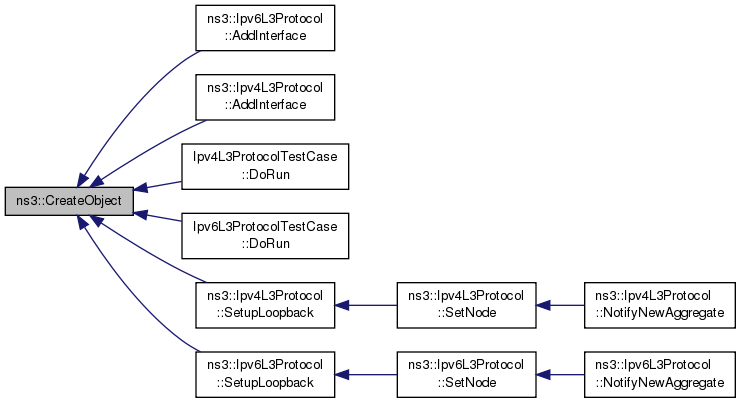

Here is the caller graph for this function:

template<typename T , typename T1 >

Ptr<T> ns3::CreateObject ( T1 a1 )

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the constructor argument.

Parameters

a1	The constructor argument

Returns: The derived object.

Definition at line 536 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T , typename T1 , typename T2 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the first constructor argument.
T2	The type of the second constructor argument.

Parameters

a1	The constructor first argument
a2	The constructor second argument

Returns: The derived object.

Definition at line 551 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T , typename T1 , typename T2 , typename T3 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the first constructor argument.
T2	The type of the second constructor argument.
T3	The type of the third constructor argument.

Parameters

a1	The constructor first argument
a2	The constructor second argument
a3	The constructor third argument

Returns: The derived object.

Definition at line 568 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the first constructor argument.
T2	The type of the second constructor argument.
T3	The type of the third constructor argument.
T4	The type of the fourth constructor argument.

Parameters

a1	The constructor first argument
a2	The constructor second argument
a3	The constructor third argument
a4	The constructor fourth argument

Returns: The derived object.

Definition at line 587 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the first constructor argument.
T2	The type of the second constructor argument.
T3	The type of the third constructor argument.
T4	The type of the fourth constructor argument.
T5	The type of the fifth constructor argument.

Parameters

a1	The constructor first argument
a2	The constructor second argument
a3	The constructor third argument
a4	The constructor fourth argument
a5	The constructor fifth argument

Returns: The derived object.

Definition at line 608 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the first constructor argument.
T2	The type of the second constructor argument.
T3	The type of the third constructor argument.
T4	The type of the fourth constructor argument.
T5	The type of the fifth constructor argument.
T6	The type of the sixth constructor argument.

Parameters

a1	The constructor first argument
a2	The constructor second argument
a3	The constructor third argument
a4	The constructor fourth argument
a5	The constructor fifth argument
a6	The constructor sixth argument

Returns: The derived object.

Definition at line 631 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 >

Ptr<T> ns3::CreateObject	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6,
		T7	a7
	)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	The type of the derived object to construct.
T1	The type of the first constructor argument.
T2	The type of the second constructor argument.
T3	The type of the third constructor argument.
T4	The type of the fourth constructor argument.
T5	The type of the fifth constructor argument.
T6	The type of the sixth constructor argument.
T7	The type of the seventh constructor argument.

Parameters

a1	The constructor first argument
a2	The constructor second argument
a3	The constructor third argument
a4	The constructor fourth argument
a5	The constructor fifth argument
a6	The constructor sixth argument
a7	The constructor seventh argument

Returns: The derived object.

Definition at line 656 of file object.h.

References ns3::CompleteConstruct().

Here is the call graph for this function:

template<typename T >

Ptr< T > ns3::CreateObjectWithAttributes	(	std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`
	)

Allocate an Object on the heap and initialize with a set of attributes.

Template Parameters

T	The requested Object type.

Parameters

n1	Name of attribute
v1	Value of attribute
n2	Name of attribute
v2	Value of attribute
n3	Name of attribute
v3	Value of attribute
n4	Name of attribute
v4	Value of attribute
n5	Name of attribute
v5	Value of attribute
n6	Name of attribute
v6	Value of attribute
n7	Name of attribute
v7	Value of attribute
n8	Name of attribute
v8	Value of attribute
n9	Name of attribute
v9	Value of attribute

Returns: A pointer to a newly allocated object.

Definition at line 204 of file object-factory.h.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

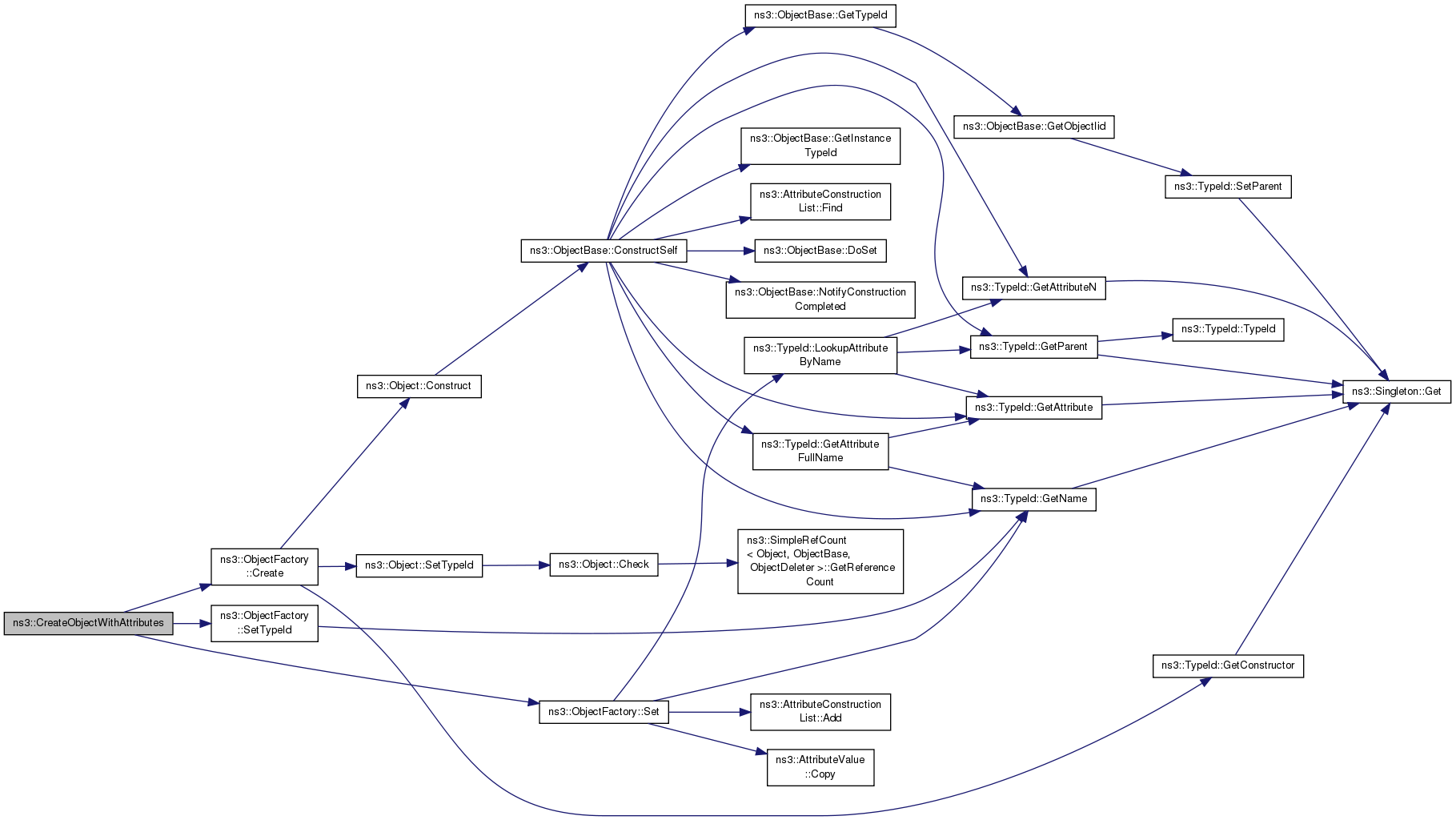

Here is the call graph for this function:

Files

Classes

Macros

Functions

Detailed Description

Macro Definition Documentation

Function Documentation
