Tcp

Transmission Control Protocol. More...

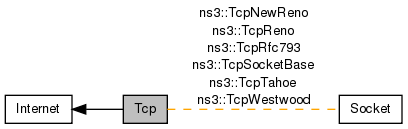

Collaboration diagram for Tcp:

Classes
class	ns3::PendingData
	class for managing I/O between applications and TCP More...
class	ns3::RttEstimator
	Base class for all RTT Estimators. More...
class	ns3::RttHistory
	Helper class to store RTT measurements. More...
class	ns3::RttMeanDeviation
	The "Mean--Deviation" RTT estimator, as discussed by Van Jacobson. More...
class	ns3::TcpHeader
	Header for the Transmission Control Protocol. More...
class	ns3::TcpL4Protocol
	A layer between the sockets interface and IP. More...
class	ns3::TcpNewReno
	An implementation of a stream socket using TCP. More...
class	ns3::TcpReno
	An implementation of a stream socket using TCP. More...
class	ns3::TcpRfc793
	An implementation of a stream socket using TCP. More...
class	ns3::TcpRxBuffer
	class for the reordering buffer that keeps the data from lower layer, i.e. More...
class	ns3::TcpSocketBase
	A base class for implementation of a stream socket using TCP. More...
class	ns3::TcpSocketFactoryImpl
	socket factory implementation for native ns-3 TCP More...
class	ns3::TcpTahoe
	An implementation of a stream socket using TCP. More...
class	ns3::TcpTxBuffer
	class for keeping the data sent by the application to the TCP socket, i.e. More...
class	ns3::TcpWestwood
	An implementation of a stream socket using TCP. More...

Typedefs
typedef void(*	ns3::TcpStatesTracedValueCallback) (const TcpStates_t oldValue, const TcpStates_t newValue)
	TracedValue Callback signature for TcpStates_t. More...

Enumerations
enum	ns3::TcpWestwood::FilterType { ns3::TcpWestwood::NONE, ns3::TcpWestwood::TUSTIN }
	Filter type (None or Tustin) More...
enum	ns3::TcpHeader::Flags_t {   ns3::TcpHeader::NONE = 0, ns3::TcpHeader::FIN = 1, ns3::TcpHeader::SYN = 2, ns3::TcpHeader::RST = 4,   ns3::TcpHeader::PSH = 8, ns3::TcpHeader::ACK = 16, ns3::TcpHeader::URG = 32, ns3::TcpHeader::ECE = 64,   ns3::TcpHeader::CWR = 128 }
	TCP flag field values. More...
enum	ns3::TcpWestwood::ProtocolType { ns3::TcpWestwood::WESTWOOD, ns3::TcpWestwood::WESTWOODPLUS }
	Protocol variant (Westwood or Westwood+) More...
enum	ns3::TcpStates_t {   ns3::CLOSED, ns3::LISTEN, ns3::SYN_SENT, ns3::SYN_RCVD,   ns3::ESTABLISHED, ns3::CLOSE_WAIT, ns3::LAST_ACK, ns3::FIN_WAIT_1,   ns3::FIN_WAIT_2, ns3::CLOSING, ns3::TIME_WAIT, ns3::LAST_STATE }
	Names of the 11 TCP states. More...

Detailed Description

Transmission Control Protocol.

See RFC 793 and others.

Typedef Documentation

typedef void(* ns3::TcpStatesTracedValueCallback) (const TcpStates_t oldValue, const TcpStates_t newValue)

TracedValue Callback signature for TcpStates_t.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 66 of file tcp-socket.h.

Enumeration Type Documentation

enum ns3::TcpWestwood::FilterType

Filter type (None or Tustin)

Enumerator
NONE
TUSTIN

Definition at line 91 of file tcp-westwood.h.

enum ns3::TcpHeader::Flags_t

TCP flag field values.

Enumerator
NONE	No flags.
FIN	FIN.
SYN	SYN.
RST	Reset.
PSH	Push.
ACK	Ack.
URG	Urgent.
ECE	ECE.
CWR	CWR.

Definition at line 233 of file tcp-header.h.

enum ns3::TcpWestwood::ProtocolType

Protocol variant (Westwood or Westwood+)

Enumerator
WESTWOOD
WESTWOODPLUS

Definition at line 82 of file tcp-westwood.h.

enum ns3::TcpStates_t

Names of the 11 TCP states.

Todo:

This should be a member of TcpSocket.

Enumerator
CLOSED
LISTEN
SYN_SENT
SYN_RCVD
ESTABLISHED
CLOSE_WAIT
LAST_ACK
FIN_WAIT_1
FIN_WAIT_2
CLOSING
TIME_WAIT
LAST_STATE

Definition at line 44 of file tcp-socket.h.
