ChainRegressionTest Class Reference
AODV Routing

AODV chain regression test. More...

#include <aodv-regression.h>

+ Inheritance diagram for ChainRegressionTest:
+ Collaboration diagram for ChainRegressionTest:

Public Member Functions

 ChainRegressionTest (const char *const prefix, Time time=Seconds(10), uint32_t size=5, Time arpAliveTimeout=Seconds(120))
 Create test case. More...

 ~ChainRegressionTest ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

void CheckResults ()
 Compare traces with reference ones. More...

void CreateDevices ()
 Create devices, install TCP/IP stack and applications. More...

void CreateNodes ()
 Create test topology. More...

void DoRun ()
 Go. More...


Private Attributes

const Time m_arpAliveTimeout
 ARP alive timeout. More...

NodeContainer * m_nodes

const std::string m_prefix
 PCAP file names prefix. More...

const uint32_t m_size
 Chain size. More...

const double m_step
 Chain step, meters. More...

const Time m_time
 Total simulation time. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

TestCase * GetParent () const

bool IsStatusFailure (void) const

bool IsStatusSuccess (void) const

void SetDataDir (std::string directory)

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const

bool MustContinueOnFailure (void) const

std::string CreateDataDirFilename (std::string filename)

std::string CreateTempDirFilename (std::string filename)


Detailed Description

AODV chain regression test.

This script creates 1-dimensional grid topology and then ping last node from the first one:

[10.1.1.1] <– step –> [10.1.1.2] <– step –> [10.1.1.3] <– step –> [10.1.1.4] <– step –> [10.1.1.5]

Each node can hear only his right and his left neighbor, if they exist. When one third of total time expired, central node moves away. After this, node 3 doesn't hear any packets from other nodes and nobody hears his packets. We want to demonstrate in this script 1) route establishing 2) broken link detection both from layer 2 information and hello messages.

 Expected packets time diagram.
           1       2       3       4       5
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=0, ID=1, org_seqno=1) src = 10.1.1.1
           |<------|------>|       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=1, ID=1, org_seqno=1) src = 10.1.1.2
           |       |<------|------>|       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=2, ID=1, org_seqno=1) src = 10.1.1.3
           |       |       |<------|------>|        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=3, ID=1, org_seqno=1) src = 10.1.1.4
           |       |       |       |<------|------> ARP request. Who has 10.1.1.4? Tell 10.1.1.5
           |       |       |       |======>|        ARP reply
           |       |       |       |<======|        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=0, dst_seqno=0) src=10.1.1.5
           |       |       |<------|------>|        ARP request. Who has 10.1.1.3? Tell 10.1.1.4
           |       |       |======>|       |        ARP reply
           |       |       |<======|       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=1, dst_seqno=0) src=10.1.1.4
           |       |<------|------>|       |        ARP request. Who has 10.1.1.2? Tell 10.1.1.3
           |       |======>|       |       |        ARP reply
           |       |<======|       |       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=2, dst_seqno=0) src=10.1.1.3
           |<------|------>|       |       |        ARP request. Who has 10.1.1.1? Tell 10.1.1.2
           |======>|       |       |       |        ARP reply
           |<======|       |       |       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=3, dst_seqno=0) src=10.1.1.2
   <-------|------>|       |       |       |        ARP request. Who has 10.1.1.2? Tell 10.1.1.1
           |<======|       |       |       |
           |======>|       |       |       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.1 next_hop=10.1.1.2
           |<------|------>|       |       |        ARP request. Who has 10.1.1.3? Tell 10.1.1.2
           |       |<======|       |       |        ARP reply
           |       |======>|       |       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.2 next_hop=10.1.1.3
           |       |<------|------>|       |        ARP request. Who has 10.1.1.4? Tell 10.1.1.3
           |       |       |<======|       |        ARP reply
           |       |       |======>|       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |<------|------>|        ARP request. Who has 10.1.1.5? Tell 10.1.1.4
           |       |       |       |<======|        ARP reply
           |       |       |       |======>|        ICMP (ping) request 0; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 0; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 0; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 0; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 0; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
           |<------|------>|       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |<------|------>|       |        Hello
           |======>|       |       |       |        ICMP (ping) request 1; src=10.1.1.1 next_hop=10.1.1.2
           |       |       |<------|------>|        Hello
           |       |======>|       |       |        ICMP (ping) request 1; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 1; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 1; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 1; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 1; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 11; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 1; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
           |<------|------>|       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |<------|------>|        Hello
           |       |<------|------>|       |        Hello
           |======>|       |       |       |        ICMP (ping) request 2; src=10.1.1.1 next_hop=10.1.1.2
           |       |======>|       |       |        ICMP (ping) request 2; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 2; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 2; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 2; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 2; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 2; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 2; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |       |<------|------>|       |        Hello
           |<------|------>|       |       |        Hello
           |       |       |<------|------>|        Hello
           |======>|       |       |       |        ICMP (ping) request 3; src=10.1.1.1 next_hop=10.1.1.2
           |       |======>|       |       |        ICMP (ping) request 3; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 3; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 3; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 3; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 3; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 3; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 3; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |<------|-->    |       |       |        Hello   |
           |       |    <--|-->    |       |        Hello   |Node 3 move away => nobody hear his packets and node 3 doesn't hear anything !
           |       |       |    <--|------>|        Hello   |
           |======>|       |       |       |        ICMP (ping) request 4; src=10.1.1.1 next_hop=10.1.1.2
           |       |==>    |       |       |        ICMP (ping) request 4; src=10.1.1.2 next_hop=10.1.1.3.   7 retries.
           |<======|       |       |       |        RERR (unreachable dst 10.1.1.3 & 10.1.1.5) src=10.1.1.2
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |<------|-->    |       |       |        Hello
           |       |    <--|-->    |       |        Hello
           |       |       |    <--|------>|        Hello
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=2, org_seqno=2) src = 10.1.1.1
           |<------|-->    |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=2, org_seqno=2) src = 10.1.1.2
           |       |       |       |<------|------> Hello
           |       |       |    <--|------>|        Hello
           |       |    <--|-->    |       |        Hello
           |<------|-->    |       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |       |======>|        RERR (unreachable dst 10.1.1.1 & 10.1.1.3) src=10.1.1.4
           |       |       |       |<------|------> Hello
           |       |       |    <--|------>|        Hello
           |       |    <--|-->    |       |        Hello
           |<------|-->    |       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=4, org_seqno=3) src = 10.1.1.1
           |<------|-->    |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=4, org_seqno=3) src = 10.1.1.2

..................................................................
 *

Definition at line 152 of file aodv-regression.h.

Constructor & Destructor Documentation

ChainRegressionTest::ChainRegressionTest ( const char *const  prefix,
Time  time = Seconds (10),
uint32_t  size = 5,
Time  arpAliveTimeout = Seconds (120)
)

Create test case.

Parameters
prefixUnique file names prefix
sizeNumber of nodes in the chain
timeSimulation time
arpAliveTimeoutARP alive timeout, this is used to check that ARP and routing do not interfere

Definition at line 77 of file aodv-regression.cc.

ChainRegressionTest::~ChainRegressionTest ( )

Definition at line 88 of file aodv-regression.cc.

References m_nodes.

Member Function Documentation

void ChainRegressionTest::CheckResults ( )
private

Compare traces with reference ones.

Definition at line 187 of file aodv-regression.cc.

References m_prefix, m_size, and NS_PCAP_TEST_EXPECT_EQ.

Referenced by DoRun().

+ Here is the caller graph for this function:

void ChainRegressionTest::CreateDevices ( )
private

Create devices, install TCP/IP stack and applications.

Definition at line 135 of file aodv-regression.cc.

References first::address, ns3::Ipv4AddressHelper::Assign(), ns3::AodvHelper::AssignStreams(), ns3::YansWifiChannelHelper::AssignStreams(), ns3::WifiHelper::AssignStreams(), ns3::InternetStackHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), first::devices, ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::NetDeviceContainer::GetN(), ns3::InternetStackHelper::Install(), ns3::WifiHelper::Install(), first::interfaces, m_nodes, m_prefix, m_size, m_time, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::V4PingHelper::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::YansWifiPhyHelper::SetErrorRateModel(), ns3::WifiHelper::SetRemoteStationManager(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::NqosWifiMacHelper::SetType(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

Referenced by DoRun().

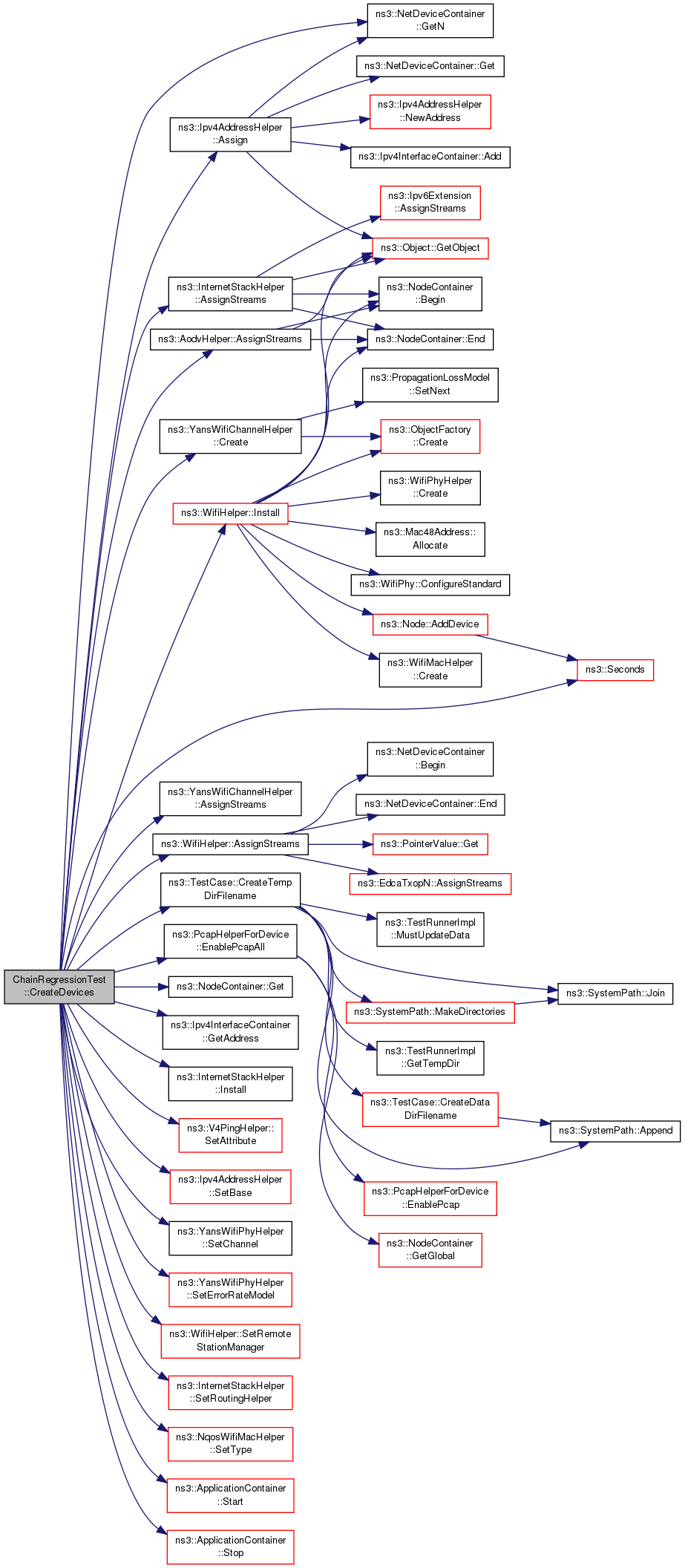

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

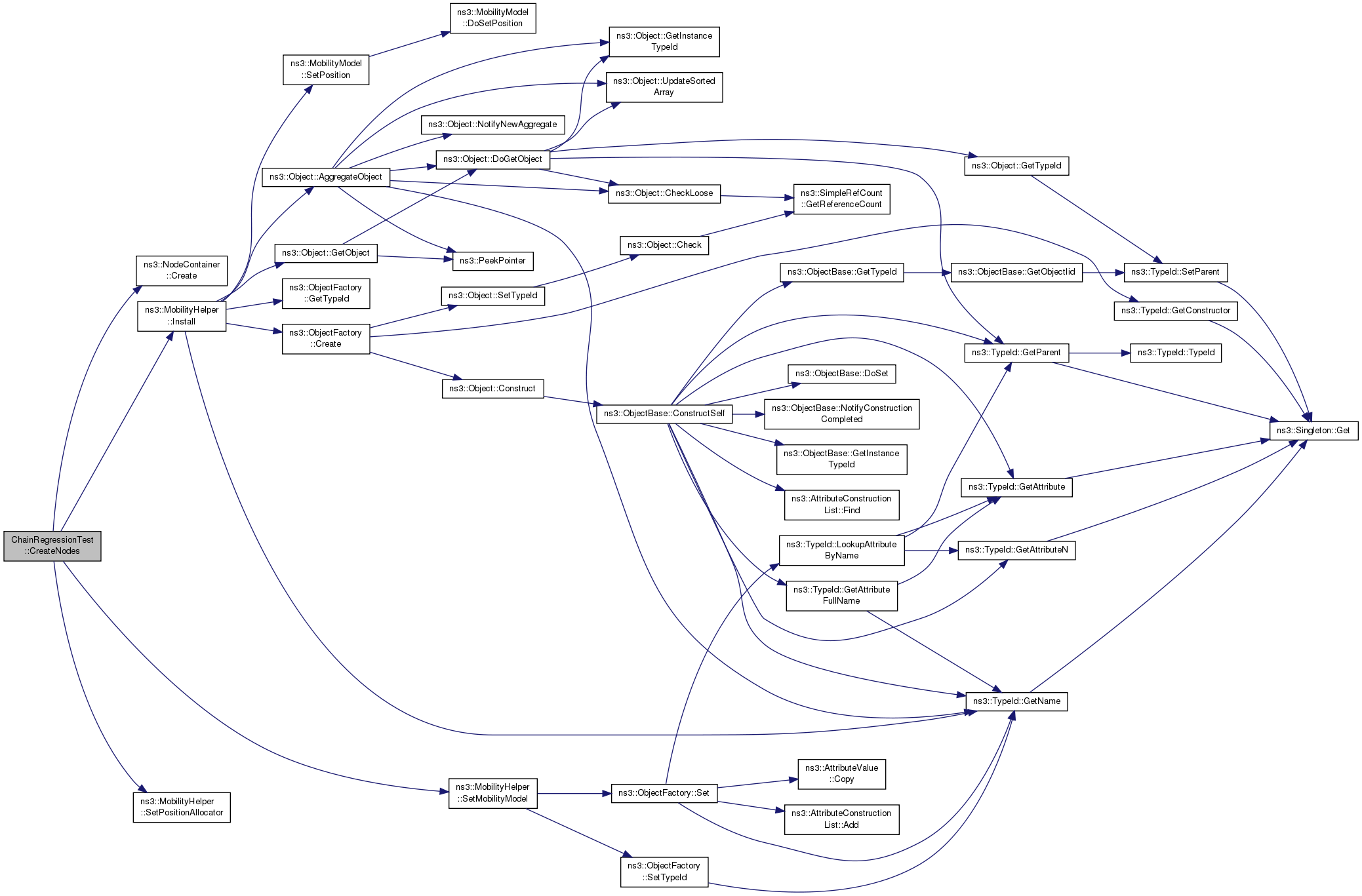

void ChainRegressionTest::CreateNodes ( )
private

Create test topology.

Definition at line 118 of file aodv-regression.cc.

References ns3::NodeContainer::Create(), ns3::MobilityHelper::Install(), m_nodes, m_size, m_step, ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ChainRegressionTest::DoRun ( void  )
privatevirtual

Go.

Implements ns3::TestCase.

Definition at line 94 of file aodv-regression.cc.

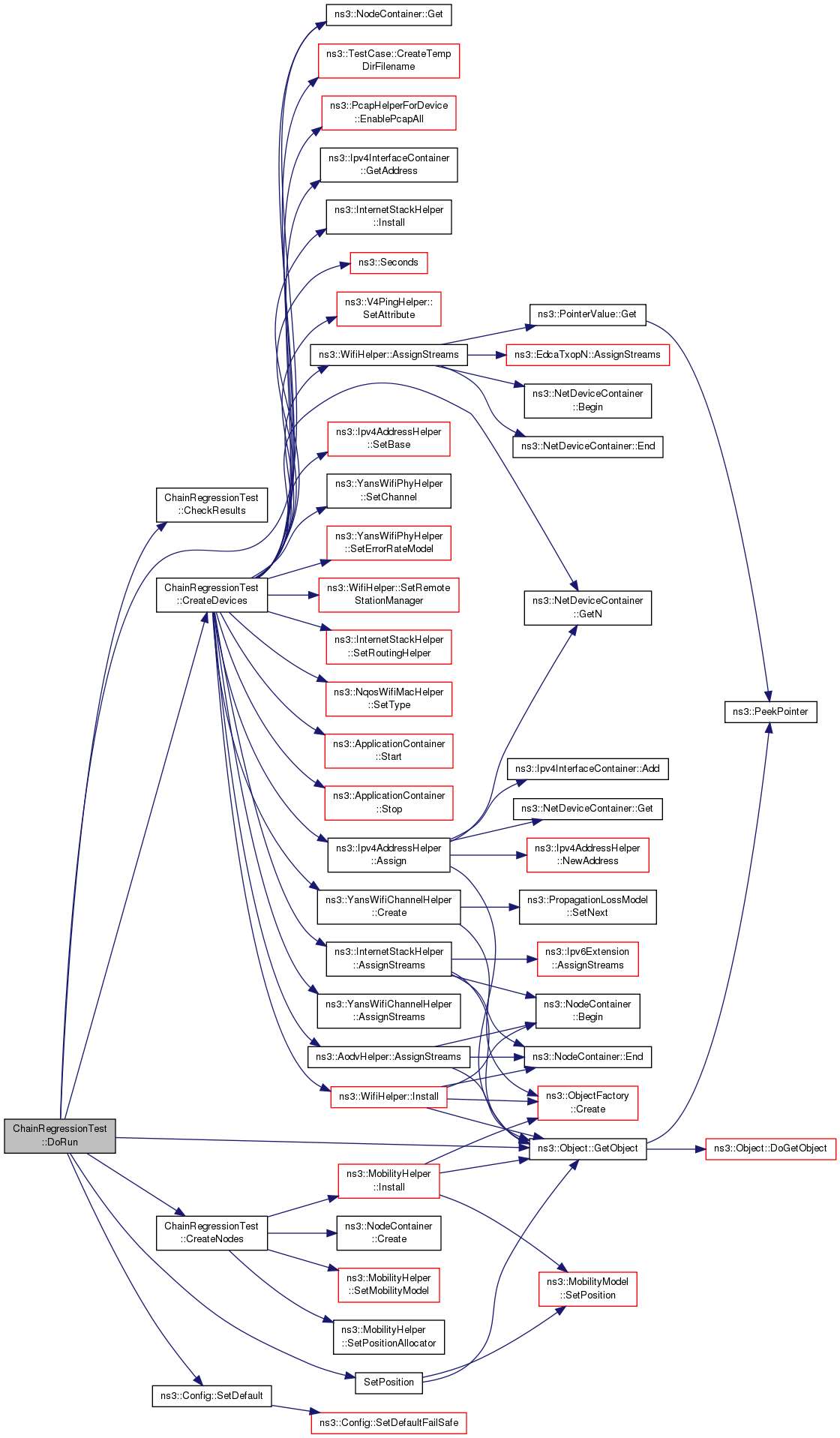

References CheckResults(), CreateDevices(), CreateNodes(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_arpAliveTimeout, m_nodes, m_size, m_time, ns3::Config::SetDefault(), and SetPosition().

+ Here is the call graph for this function:

Member Data Documentation

const Time ChainRegressionTest::m_arpAliveTimeout
private

ARP alive timeout.

Definition at line 179 of file aodv-regression.h.

Referenced by DoRun().

NodeContainer* ChainRegressionTest::m_nodes
private
Internal: It is important to have pointers here

Definition at line 168 of file aodv-regression.h.

Referenced by CreateDevices(), CreateNodes(), DoRun(), and ~ChainRegressionTest().

const std::string ChainRegressionTest::m_prefix
private

PCAP file names prefix.

Definition at line 171 of file aodv-regression.h.

Referenced by CheckResults(), and CreateDevices().

const uint32_t ChainRegressionTest::m_size
private

Chain size.

Definition at line 175 of file aodv-regression.h.

Referenced by CheckResults(), CreateDevices(), CreateNodes(), and DoRun().

const double ChainRegressionTest::m_step
private

Chain step, meters.

Definition at line 177 of file aodv-regression.h.

Referenced by CreateNodes().

const Time ChainRegressionTest::m_time
private

Total simulation time.

Definition at line 173 of file aodv-regression.h.

Referenced by CreateDevices(), and DoRun().

The documentation for this class was generated from the following files:
