This is a test for intermediate reply and saving routing information about neighbour. More...

#include <hwmp-target-flags-regression.h>

Inheritance diagram for HwmpDoRfRegressionTest:

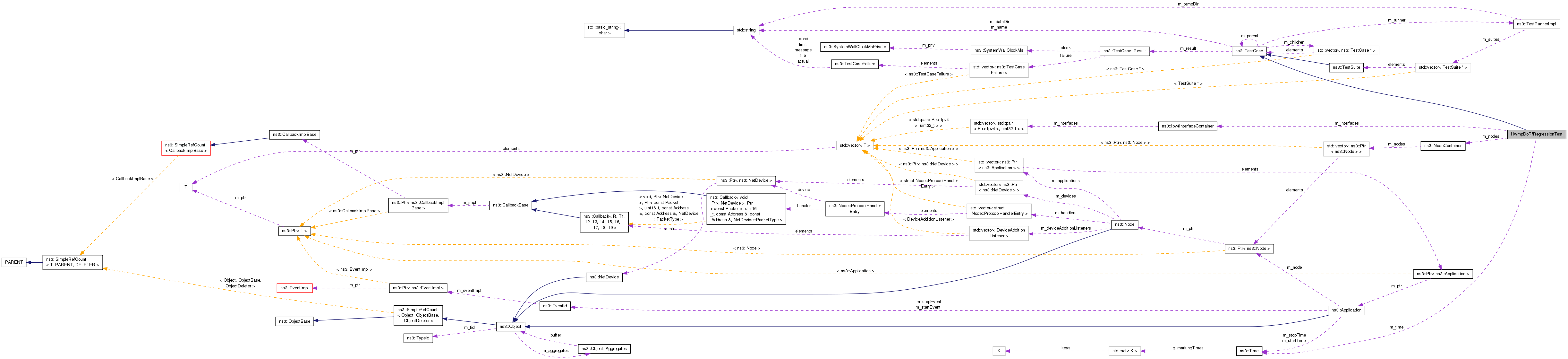

Collaboration diagram for HwmpDoRfRegressionTest:

Public Member Functions
	HwmpDoRfRegressionTest ()

virtual	~HwmpDoRfRegressionTest ()

void	CheckResults ()

virtual void	DoRun ()
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	CreateDevices ()

void	CreateNodes ()

void	InstallApplications ()

void	ResetPosition ()

Private Attributes
Ipv4InterfaceContainer	m_interfaces

NodeContainer *	m_nodes

Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const

bool	IsStatusFailure (void) const

bool	IsStatusSuccess (void) const

void	SetDataDir (std::string directory)

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const

bool	MustContinueOnFailure (void) const

std::string	CreateDataDirFilename (std::string filename)

std::string	CreateTempDirFilename (std::string filename)

Detailed Description

This is a test for intermediate reply and saving routing information about neighbour.

4 stations and 3 UDP ping streams are initiated.

*  <-----------|----------->   Broadcast frame
*              |----------->|  Unicast frame
*            10          11            12           13
*             |            |<-----------|----------->|             ARP request (12 asks who has 10)
*             |            |            |<-----------|-----------> ARP request
*             |<-----------|----------->|            |             ARP request
* <-----------|----------->|            |            |             PREQ
*             |<-----------|----------->|            |             PREQ
*             |            |<-----------|            |             PREP
*             |<-----------|            |            |             PREP
*             |----------->|            |            |             ARP reply
*             |            |----------->|            |             ARP REPLY
*             |            |<-----------|            |             Data
*             |............|............|............|
*             |<-----------|----------->|            |             ARP request (11 asks who has 10)
*             |............|............|............|
*             |----------->|            |            |             ARP reply
*                  ^ Note, that this arp reply goes without route
*                  discovery procedure, because route is known from
*                  previous PREQ/PREP exchange
*             |<-----------|            |            |             DATA
*             |............|............|............|
* <-----------|----------->|            |            |             ARP request (10 asks who has 13)
*             |............|............|............|
*             |            |            |<-----------|-----------> PREQ (13 asks about 10) DO=0 RF=1
*             |            |            |----------->|             PREP (intermediate reply - 12 knows about 10)
*             |            |<-----------|----------->|             PREQ DO=1 RF=0
*             |............|............|............|
*             |----------->|            |            |             PREP
*             |            |----------->|            |             PREP
*             |            |            |----------->|             PREP
*

Definition at line 67 of file hwmp-target-flags-regression.h.
