LteUeMeasurementsTestCase Class Reference

#include <lte-test-ue-measurements.h>

Inheritance diagram for LteUeMeasurementsTestCase:

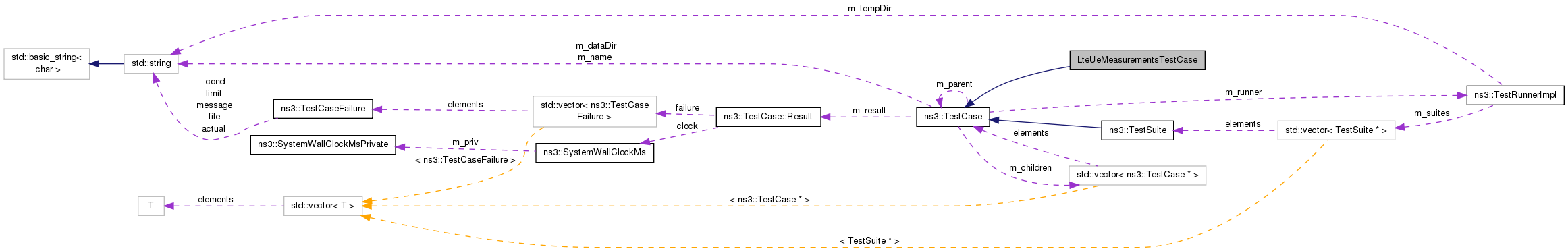

Collaboration diagram for LteUeMeasurementsTestCase:

Public Member Functions
	LteUeMeasurementsTestCase (std::string name, double d1, double d2, double rsrpDbmUe1, double rsrpDbmUe2, double rsrqDbUe1, double rsrqDbUe2)
virtual	~LteUeMeasurementsTestCase ()
void	RecvMeasurementReport (uint64_t imsi, uint16_t cellId, uint16_t rnti, LteRrcSap::MeasurementReport meas)
void	ReportUeMeasurements (uint16_t rnti, uint16_t cellId, double rsrp, double rsrq, bool servingCell)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
double	m_d1
double	m_d2
double	m_rsrpDbmUeNeighborCell
double	m_rsrpDbmUeServingCell
double	m_rsrqDbUeNeighborCell
double	m_rsrqDbUeServingCell

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 58 of file lte-test-ue-measurements.h.

Constructor & Destructor Documentation

LteUeMeasurementsTestCase::LteUeMeasurementsTestCase	(	std::string	name,
		double	d1,
		double	d2,
		double	rsrpDbmUe1,
		double	rsrpDbmUe2,
		double	rsrqDbUe1,
		double	rsrqDbUe2
	)

Definition at line 114 of file lte-test-ue-measurements.cc.

References NS_LOG_INFO.

LteUeMeasurementsTestCase::~LteUeMeasurementsTestCase ( )

virtual

Definition at line 131 of file lte-test-ue-measurements.cc.

Member Function Documentation

void LteUeMeasurementsTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 136 of file lte-test-ue-measurements.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::ListPositionAllocator::Add(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::TestCase::GetName(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_d1, m_d2, ns3::MakeBoundCallback(), NS_LOG_INFO, RecvMeasurementReportCallback(), ReportUeMeasurementsCallback(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

Here is the call graph for this function:

void LteUeMeasurementsTestCase::RecvMeasurementReport	(	uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti,
		LteRrcSap::MeasurementReport	meas
	)

Definition at line 243 of file lte-test-ue-measurements.cc.

References m_rsrpDbmUeNeighborCell, m_rsrpDbmUeServingCell, m_rsrqDbUeNeighborCell, m_rsrqDbUeServingCell, ns3::LteRrcSap::MeasurementReport::measResults, ns3::MilliSeconds(), ns3::Now(), NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ, ns3::LteRrcSap::MeasResults::rsrpResult, and ns3::LteRrcSap::MeasResults::rsrqResult.

Referenced by RecvMeasurementReportCallback().

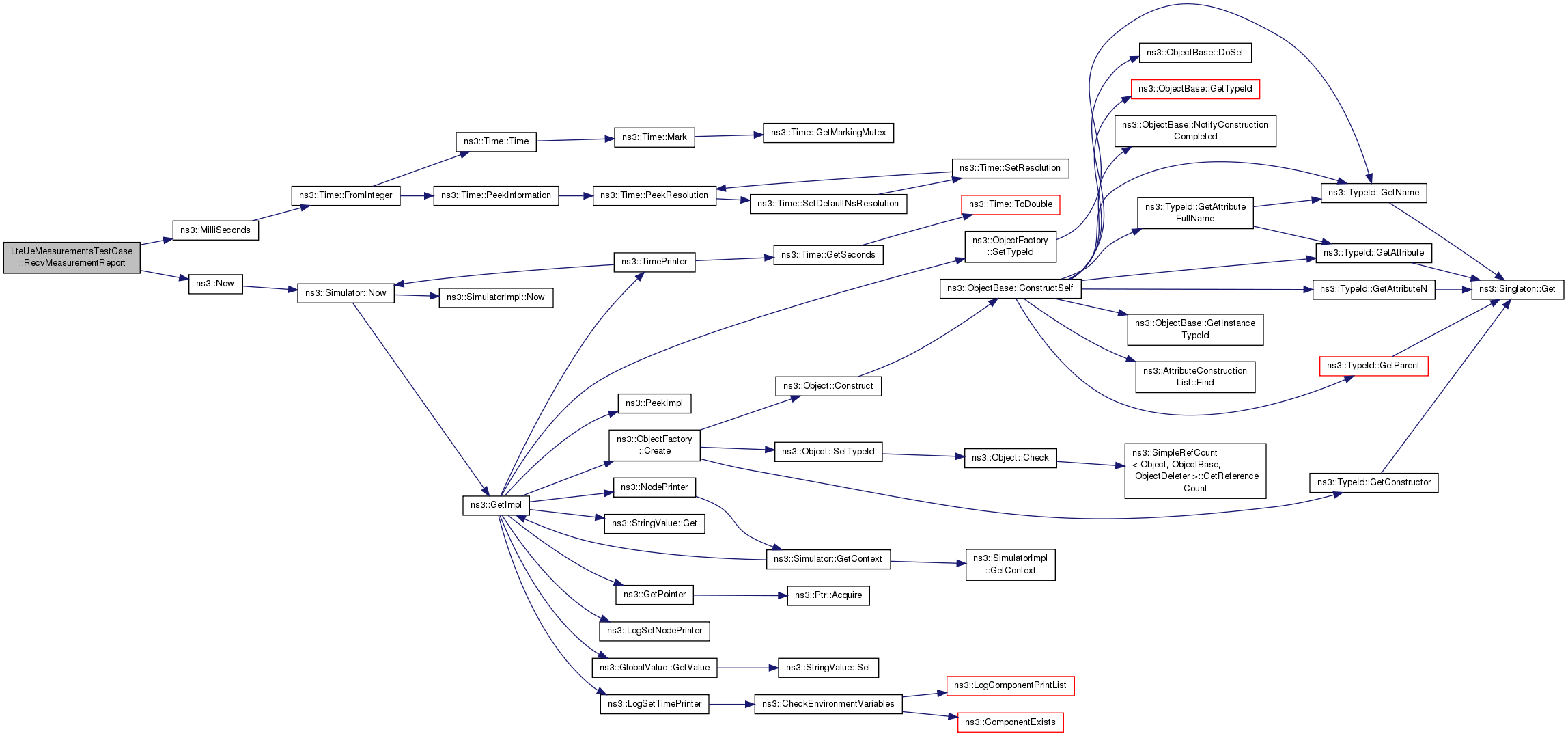

Here is the call graph for this function:

Here is the caller graph for this function:

void LteUeMeasurementsTestCase::ReportUeMeasurements	(	uint16_t	rnti,
		uint16_t	cellId,
		double	rsrp,
		double	rsrq,
		bool	servingCell
	)

Definition at line 220 of file lte-test-ue-measurements.cc.

References m_rsrpDbmUeNeighborCell, m_rsrpDbmUeServingCell, m_rsrqDbUeNeighborCell, m_rsrqDbUeServingCell, ns3::MilliSeconds(), ns3::Now(), NS_LOG_DEBUG, and NS_TEST_ASSERT_MSG_EQ_TOL.

Referenced by ReportUeMeasurementsCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

double LteUeMeasurementsTestCase::m_d1

private

Definition at line 71 of file lte-test-ue-measurements.h.

Referenced by DoRun().

double LteUeMeasurementsTestCase::m_d2

private

Definition at line 72 of file lte-test-ue-measurements.h.

Referenced by DoRun().

double LteUeMeasurementsTestCase::m_rsrpDbmUeNeighborCell

private

Definition at line 74 of file lte-test-ue-measurements.h.

Referenced by RecvMeasurementReport(), and ReportUeMeasurements().

double LteUeMeasurementsTestCase::m_rsrpDbmUeServingCell

private

Definition at line 73 of file lte-test-ue-measurements.h.

Referenced by RecvMeasurementReport(), and ReportUeMeasurements().

double LteUeMeasurementsTestCase::m_rsrqDbUeNeighborCell

private

Definition at line 76 of file lte-test-ue-measurements.h.

Referenced by RecvMeasurementReport(), and ReportUeMeasurements().

double LteUeMeasurementsTestCase::m_rsrqDbUeServingCell

private

Definition at line 75 of file lte-test-ue-measurements.h.

Referenced by RecvMeasurementReport(), and ReportUeMeasurements().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-ue-measurements.h
• src/lte/test/lte-test-ue-measurements.cc
