ThreadedSimulatorEventsTestCase Class Reference

Inheritance diagram for ThreadedSimulatorEventsTestCase:

Collaboration diagram for ThreadedSimulatorEventsTestCase:

Public Member Functions
	ThreadedSimulatorEventsTestCase (ObjectFactory schedulerFactory, const std::string &simulatorType, unsigned int threads)
void	DoNothing (unsigned int threadno)
void	End (void)
void	EventA (int a)
void	EventB (int b)
void	EventC (int c)
void	EventD (int d)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Static Public Member Functions
static void	SchedulingThread (std::pair< ThreadedSimulatorEventsTestCase *, unsigned int > context)

Public Attributes
uint64_t	m_a
uint64_t	m_b
uint64_t	m_c
uint64_t	m_d
std::string	m_error
ObjectFactory	m_schedulerFactory
std::string	m_simulatorType
bool	m_stop
std::list< Ptr< SystemThread > >	m_threadlist
unsigned int	m_threads
bool	m_threadWaiting [MAXTHREADS]

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
virtual void	DoSetup (void)
	Implementation to do any local setup required for this TestCase. More...
virtual void	DoTeardown (void)
	Implementation to do any local setup required for this TestCase. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 38 of file threaded-test-suite.cc.

Constructor & Destructor Documentation

ThreadedSimulatorEventsTestCase::ThreadedSimulatorEventsTestCase	(	ObjectFactory	schedulerFactory,
		const std::string &	simulatorType,
		unsigned int	threads
	)

Definition at line 67 of file threaded-test-suite.cc.

Member Function Documentation

void ThreadedSimulatorEventsTestCase::DoNothing

(

unsigned int

threadno

)

Definition at line 107 of file threaded-test-suite.cc.

References m_error, and m_threadWaiting.

Referenced by SchedulingThread().

Here is the caller graph for this function:

void ThreadedSimulatorEventsTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 205 of file threaded-test-suite.cc.

References End(), EventA(), list, m_a, m_b, m_c, m_d, m_error, m_schedulerFactory, m_stop, m_threadlist, ns3::MicroSeconds(), NS_TEST_EXPECT_MSG_EQ, and ns3::Seconds().

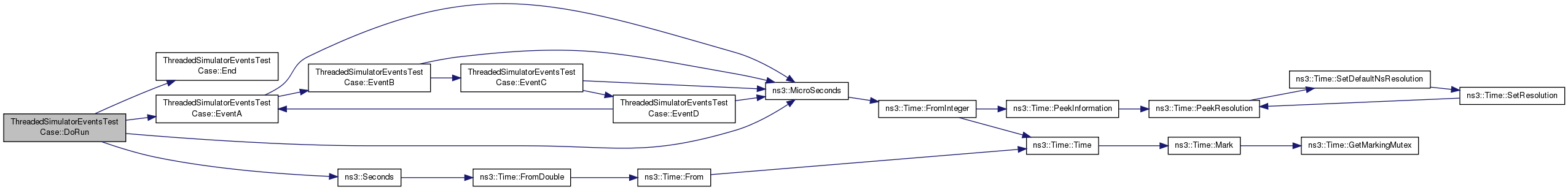

Here is the call graph for this function:

void ThreadedSimulatorEventsTestCase::DoSetup ( void  )

privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 175 of file threaded-test-suite.cc.

References m_a, m_b, m_c, m_d, m_error, m_simulatorType, m_threadlist, m_threads, ns3::MakeBoundCallback(), SchedulingThread(), and ns3::Config::SetGlobal().

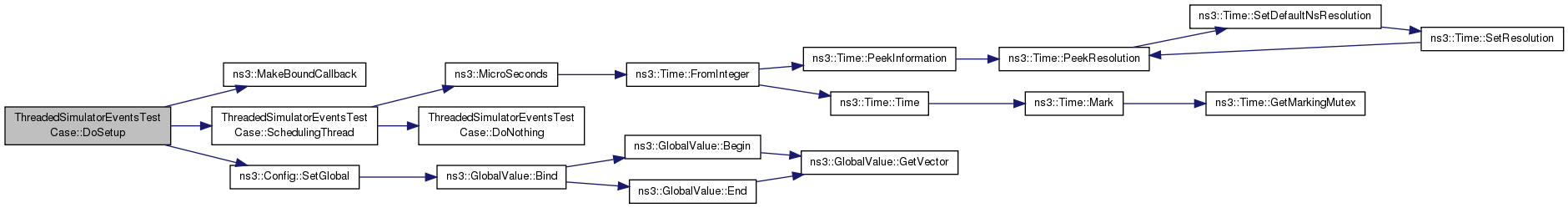

Here is the call graph for this function:

void ThreadedSimulatorEventsTestCase::DoTeardown ( void  )

privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 198 of file threaded-test-suite.cc.

References m_threadlist, and ns3::Config::SetGlobal().

Here is the call graph for this function:

void ThreadedSimulatorEventsTestCase::End

(

void

)

Definition at line 77 of file threaded-test-suite.cc.

References list, m_stop, and m_threadlist.

Referenced by DoRun().

Here is the caller graph for this function:

void ThreadedSimulatorEventsTestCase::EventA

(

int

a

)

Definition at line 116 of file threaded-test-suite.cc.

References EventB(), m_a, m_b, m_c, m_d, m_error, and ns3::MicroSeconds().

Referenced by DoRun(), and EventD().

Here is the call graph for this function:

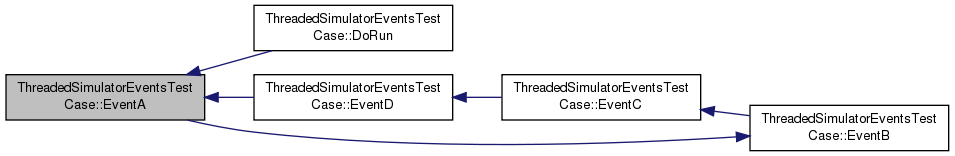

Here is the caller graph for this function:

void ThreadedSimulatorEventsTestCase::EventB

(

int

b

)

Definition at line 129 of file threaded-test-suite.cc.

References EventC(), m_a, m_b, m_c, m_d, m_error, and ns3::MicroSeconds().

Referenced by EventA().

Here is the call graph for this function:

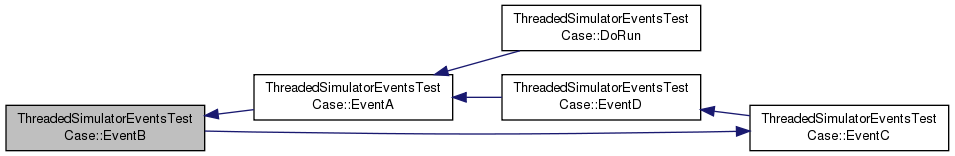

Here is the caller graph for this function:

void ThreadedSimulatorEventsTestCase::EventC

(

int

c

)

Definition at line 142 of file threaded-test-suite.cc.

References EventD(), m_a, m_b, m_c, m_d, m_error, and ns3::MicroSeconds().

Referenced by EventB().

Here is the call graph for this function:

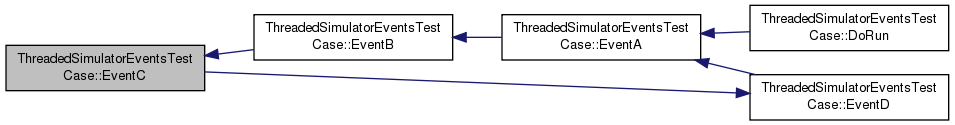

Here is the caller graph for this function:

void ThreadedSimulatorEventsTestCase::EventD

(

int

d

)

Definition at line 155 of file threaded-test-suite.cc.

References EventA(), m_a, m_b, m_c, m_d, m_error, m_stop, and ns3::MicroSeconds().

Referenced by EventC().

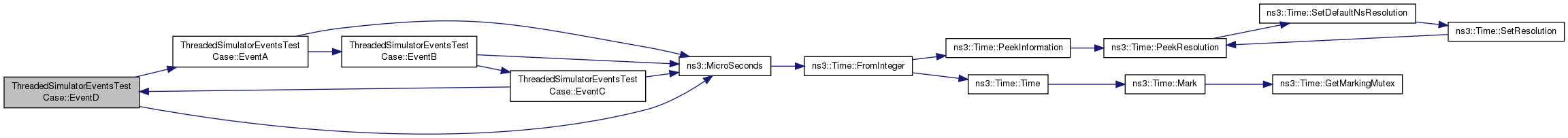

Here is the call graph for this function:

Here is the caller graph for this function:

void ThreadedSimulatorEventsTestCase::SchedulingThread ( std::pair< ThreadedSimulatorEventsTestCase *, unsigned int >  context )

static

Definition at line 86 of file threaded-test-suite.cc.

References DoNothing(), m_stop, m_threadWaiting, and ns3::MicroSeconds().

Referenced by DoSetup().

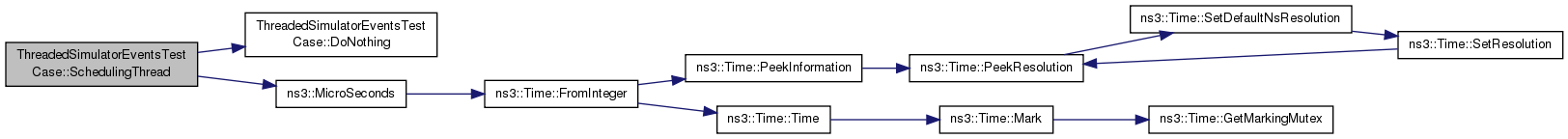

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint64_t ThreadedSimulatorEventsTestCase::m_a

Definition at line 50 of file threaded-test-suite.cc.

Referenced by DoRun(), DoSetup(), EventA(), EventB(), EventC(), and EventD().

uint64_t ThreadedSimulatorEventsTestCase::m_b

Definition at line 49 of file threaded-test-suite.cc.

Referenced by DoRun(), DoSetup(), EventA(), EventB(), EventC(), and EventD().

uint64_t ThreadedSimulatorEventsTestCase::m_c

Definition at line 51 of file threaded-test-suite.cc.

Referenced by DoRun(), DoSetup(), EventA(), EventB(), EventC(), and EventD().

uint64_t ThreadedSimulatorEventsTestCase::m_d

Definition at line 52 of file threaded-test-suite.cc.

Referenced by DoRun(), DoSetup(), EventA(), EventB(), EventC(), and EventD().

std::string ThreadedSimulatorEventsTestCase::m_error

Definition at line 58 of file threaded-test-suite.cc.

Referenced by DoNothing(), DoRun(), DoSetup(), EventA(), EventB(), EventC(), and EventD().

ObjectFactory ThreadedSimulatorEventsTestCase::m_schedulerFactory

Definition at line 56 of file threaded-test-suite.cc.

Referenced by DoRun().

std::string ThreadedSimulatorEventsTestCase::m_simulatorType

Definition at line 57 of file threaded-test-suite.cc.

Referenced by DoSetup().

bool ThreadedSimulatorEventsTestCase::m_stop

Definition at line 55 of file threaded-test-suite.cc.

Referenced by DoRun(), End(), EventD(), and SchedulingThread().

std::list<Ptr<SystemThread> > ThreadedSimulatorEventsTestCase::m_threadlist

Definition at line 59 of file threaded-test-suite.cc.

Referenced by DoRun(), DoSetup(), DoTeardown(), and End().

unsigned int ThreadedSimulatorEventsTestCase::m_threads

Definition at line 53 of file threaded-test-suite.cc.

Referenced by DoSetup().

bool ThreadedSimulatorEventsTestCase::m_threadWaiting[MAXTHREADS]

Definition at line 54 of file threaded-test-suite.cc.

Referenced by DoNothing(), and SchedulingThread().

---

The documentation for this class was generated from the following file:

• src/core/test/threaded-test-suite.cc
