Udp6SocketImplTest Class Reference

Inheritance diagram for Udp6SocketImplTest:

Collaboration diagram for Udp6SocketImplTest:

Public Member Functions
	Udp6SocketImplTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	ReceivePacket (Ptr< Socket > socket, Ptr< Packet > packet, const Address &from)
void	ReceivePacket2 (Ptr< Socket > socket, Ptr< Packet > packet, const Address &from)
void	ReceivePkt (Ptr< Socket > socket)
void	ReceivePkt2 (Ptr< Socket > socket)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DoSendData (Ptr< Socket > socket, std::string to)
void	SendData (Ptr< Socket > socket, std::string to)

Private Attributes
Ptr< Packet >	m_receivedPacket
Ptr< Packet >	m_receivedPacket2

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 329 of file udp-test.cc.

Constructor & Destructor Documentation

Udp6SocketImplTest::Udp6SocketImplTest

(

)

Definition at line 346 of file udp-test.cc.

Member Function Documentation

void Udp6SocketImplTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 402 of file udp-test.cc.

References ns3::Ipv6::AddAddress(), ns3::Socket::Bind(), ns3::SocketFactory::CreateSocket(), ns3::Socket::CreateSocket(), ns3::Object::Dispose(), ns3::NetDeviceContainer::Get(), ns3::Ipv6::GetInterfaceForDevice(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::InternetStackHelper::Install(), ns3::SimpleNetDeviceHelper::Install(), m_receivedPacket, m_receivedPacket2, ns3::MakeCallback(), first::nodes, NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), ReceivePkt2(), ns3::Packet::RemoveAllByteTags(), SendData(), ns3::Socket::SetAllowBroadcast(), ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode(), ns3::Socket::SetRecvCallback(), and ns3::Ipv6::SetUp().

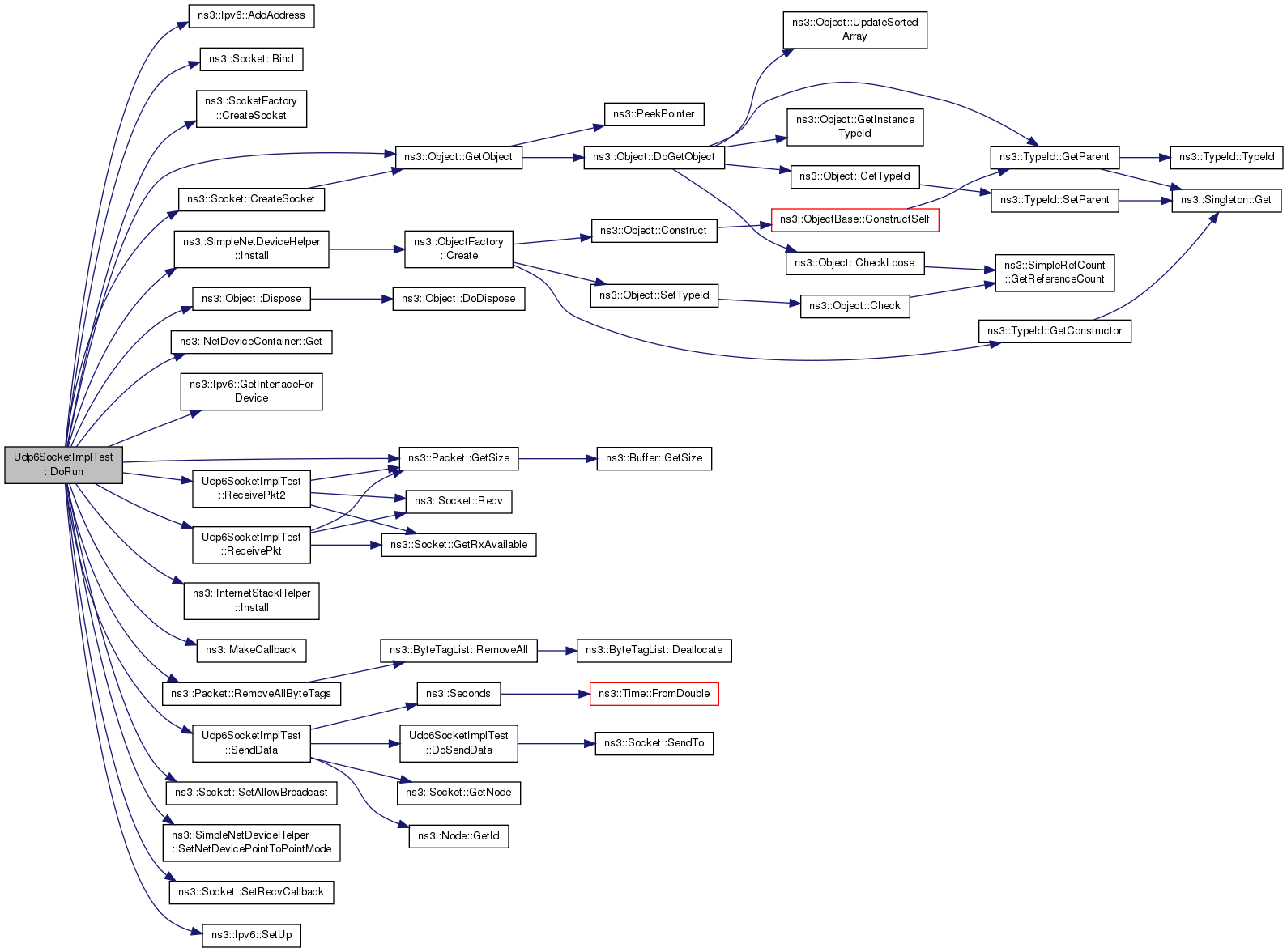

Here is the call graph for this function:

void Udp6SocketImplTest::DoSendData ( Ptr< Socket >  socket, std::string  to  )

private

Definition at line 384 of file udp-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::SendTo().

Referenced by SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

void Udp6SocketImplTest::ReceivePacket	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		const Address &	from
	)

Definition at line 351 of file udp-test.cc.

References m_receivedPacket.

void Udp6SocketImplTest::ReceivePacket2	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		const Address &	from
	)

Definition at line 356 of file udp-test.cc.

References m_receivedPacket2.

void Udp6SocketImplTest::ReceivePkt

(

Ptr< Socket >

socket

)

Definition at line 361 of file udp-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

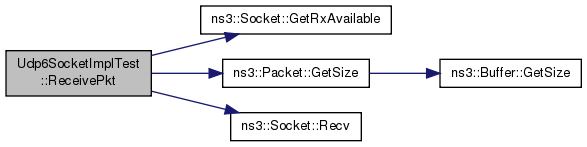

Here is the call graph for this function:

Here is the caller graph for this function:

void Udp6SocketImplTest::ReceivePkt2

(

Ptr< Socket >

socket

)

Definition at line 372 of file udp-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket2, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void Udp6SocketImplTest::SendData ( Ptr< Socket >  socket, std::string  to  )

private

Definition at line 392 of file udp-test.cc.

References DoSendData(), ns3::Node::GetId(), ns3::Socket::GetNode(), m_receivedPacket, m_receivedPacket2, and ns3::Seconds().

Referenced by DoRun().

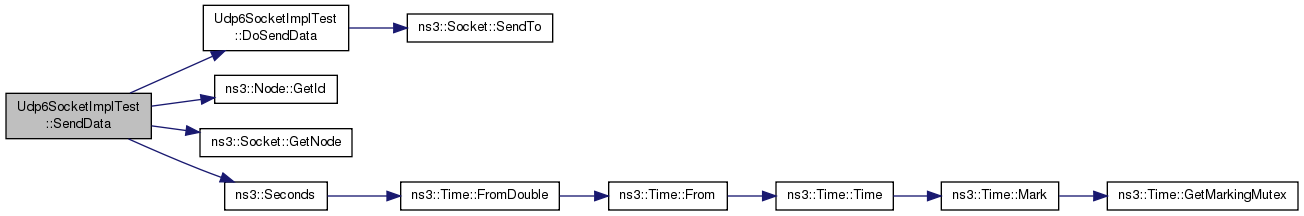

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> Udp6SocketImplTest::m_receivedPacket

private

Definition at line 331 of file udp-test.cc.

Referenced by DoRun(), ReceivePacket(), ReceivePkt(), and SendData().

Ptr<Packet> Udp6SocketImplTest::m_receivedPacket2

private

Definition at line 332 of file udp-test.cc.

Referenced by DoRun(), ReceivePacket2(), ReceivePkt2(), and SendData().

---

The documentation for this class was generated from the following file:

• src/internet/test/udp-test.cc
