ns3::AccessorHelper< T, U > Class Template Reference

Basic functionality for accessing class attributes via class data members, or get functor/set methods. More...

#include <attribute-accessor-helper.h>

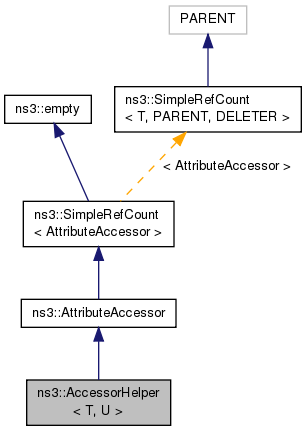

Inheritance diagram for ns3::AccessorHelper< T, U >:

Collaboration diagram for ns3::AccessorHelper< T, U >:

Public Member Functions
	AccessorHelper ()
	Constructor. More...
virtual bool	Get (const ObjectBase *object, AttributeValue &val) const
	Get the value of the underlying member into the AttributeValue. More...
virtual bool	Set (ObjectBase *object, const AttributeValue &val) const
	Set the underlying member to the argument AttributeValue. More...
Public Member Functions inherited from ns3::AttributeAccessor
	AttributeAccessor ()
virtual	~AttributeAccessor ()
virtual bool	HasGetter (void) const =0
virtual bool	HasSetter (void) const =0
Public Member Functions inherited from ns3::SimpleRefCount< AttributeAccessor >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
virtual bool	DoGet (const T *object, U *v) const =0
	Getter implementation. More...
virtual bool	DoSet (T *object, const U *v) const =0
	Setter implementation. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeAccessor >
static void	Cleanup (void)
	Noop. More...

Detailed Description

template<typename T, typename U>
class ns3::AccessorHelper< T, U >

Basic functionality for accessing class attributes via class data members, or get functor/set methods.

Template Parameters

T	Class of object holding the attribute.
U	AttributeValue type for the underlying class member which is an attribute.

Definition at line 158 of file attribute-accessor-helper.h.

Constructor & Destructor Documentation

template<typename T , typename U >

ns3::AccessorHelper< T, U >::AccessorHelper ( )

inline

Constructor.

Definition at line 162 of file attribute-accessor-helper.h.

Member Function Documentation

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::DoGet ( const T *  object, U *  v  ) const

privatepure virtual

Getter implementation.

See also

Get()

Parameters

object	The parent object holding the attribute.
v	The specific AttributeValue to set.

Returns

true if the member value could be retrieved successfully

Referenced by ns3::AccessorHelper< T, U >::Get().

Here is the caller graph for this function:

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::DoSet ( T *  object, const U *  v  ) const

privatepure virtual

Setter implementation.

See also

Set()

Parameters

object	The parent object holding the attribute.
v	The specific AttributeValue to set.

Returns

true if the member was set successfully.

Referenced by ns3::AccessorHelper< T, U >::Set().

Here is the caller graph for this function:

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::Get ( const ObjectBase *  object, AttributeValue &  val  ) const

inlinevirtual

Get the value of the underlying member into the AttributeValue.

Handle dynamic casting from generic ObjectBase and AttributeValue up to desired object class and specific AttributeValue.

Forwards to DoGet method.

Parameters

object	Generic object pointer, to upcast to T.
val	Generic AttributeValue, to upcast to U.

Returns

true if the member value could be retrieved successfully

Implements ns3::AttributeAccessor.

Definition at line 202 of file attribute-accessor-helper.h.

References ns3::AccessorHelper< T, U >::DoGet().

Here is the call graph for this function:

template<typename T , typename U >

virtual bool ns3::AccessorHelper< T, U >::Set ( ObjectBase *  object, const AttributeValue &  val  ) const

inlinevirtual

Set the underlying member to the argument AttributeValue.

Handle dynamic casting from generic ObjectBase and AttributeValue up to desired object class and specific AttributeValue.

Forwards to DoSet method.

Parameters

object	Generic object pointer, to upcast to T.
val	Generic AttributeValue, to upcast to U.

Returns

true if the member was set successfully.

Implements ns3::AttributeAccessor.

Definition at line 176 of file attribute-accessor-helper.h.

References ns3::AccessorHelper< T, U >::DoSet().

Referenced by ns3::DoMakeAccessorHelperOne(), and ns3::DoMakeAccessorHelperTwo().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/core/model/attribute-accessor-helper.h
