ns3::ArpCache::Entry Class Reference

A record that that holds information about an ArpCache entry. More...

#include <arp-cache.h>

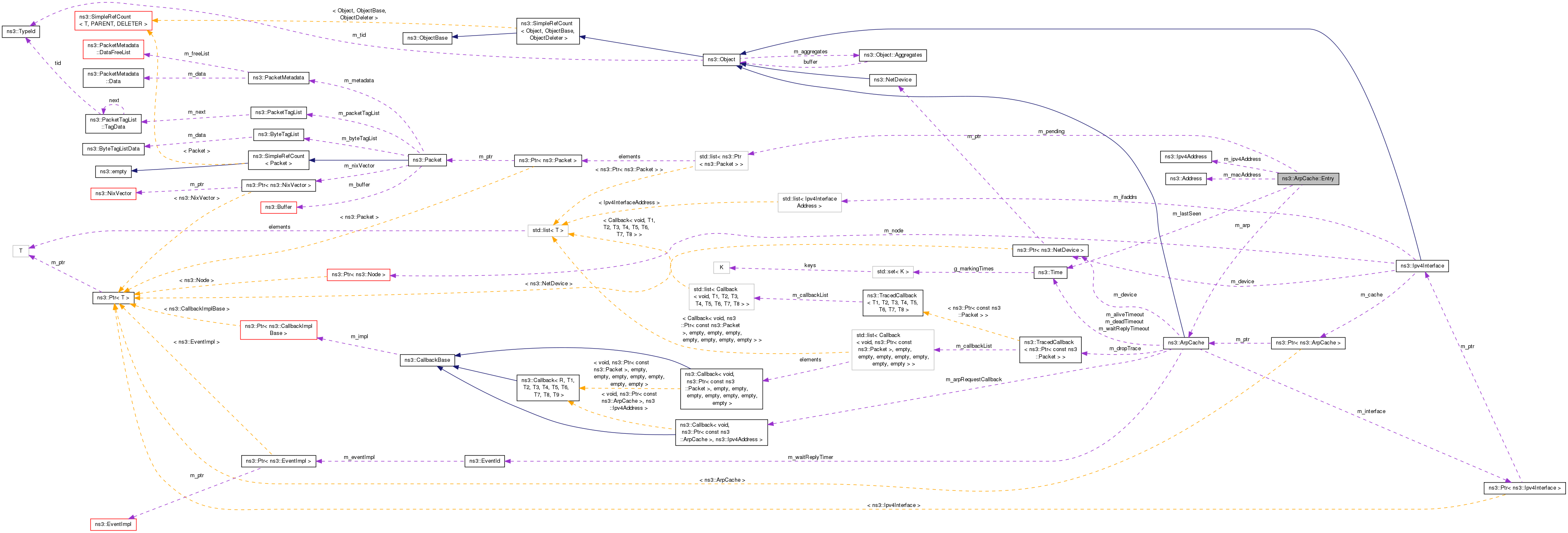

Collaboration diagram for ns3::ArpCache::Entry:

Public Member Functions
	Entry (ArpCache *arp)
	Constructor. More...
void	ClearRetries (void)
	Zero the counter of number of retries for an entry. More...
Ptr< Packet >	DequeuePending (void)
Ipv4Address	GetIpv4Address (void) const
Address	GetMacAddress (void) const
uint32_t	GetRetries (void) const
void	IncrementRetries (void)
	Increment the counter of number of retries for an entry. More...
bool	IsAlive (void)
bool	IsDead (void)
bool	IsExpired (void) const
bool	IsWaitReply (void)
void	MarkAlive (Address macAddress)
void	MarkDead (void)
	Changes the state of this entry to dead. More...
void	MarkWaitReply (Ptr< Packet > waiting)
void	SetIpv4Address (Ipv4Address destination)
bool	UpdateWaitReply (Ptr< Packet > waiting)

Private Types
enum	ArpCacheEntryState_e { ALIVE, WAIT_REPLY, DEAD }
	ARP cache entry states. More...

Private Member Functions
Time	GetTimeout (void) const
	Returns the entry timeout. More...
void	UpdateSeen (void)
	Update the entry when seeing a packet. More...

Private Attributes
ArpCache *	m_arp
	pointer to the ARP cache owning the entry More...
Ipv4Address	m_ipv4Address
	entry's IP address More...
Time	m_lastSeen
	last moment a packet from that address has been seen More...
Address	m_macAddress
	entry's MAC address More...
std::list< Ptr< Packet > >	m_pending
	list of pending packets for the entry's IP More...
uint32_t	m_retries
	rerty counter More...
ArpCacheEntryState_e	m_state
	state of the entry More...

Detailed Description

A record that that holds information about an ArpCache entry.

Definition at line 168 of file arp-cache.h.

Constructor & Destructor Documentation

ns3::ArpCache::Entry::Entry

(

ArpCache *

arp

)

Constructor.

Parameters

arp	The ArpCache this entry belongs to

Definition at line 316 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::ArpCache::Entry::ClearRetries

(

void

)

Zero the counter of number of retries for an entry.

Definition at line 475 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

Ptr< Packet > ns3::ArpCache::Entry::DequeuePending

(

void

)

Returns

0 is no packet is pending, the next packet to send if packets are pending.

Definition at line 441 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), and ns3::ArpL3Protocol::Receive().

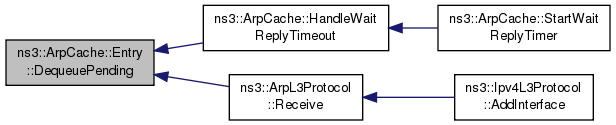

Here is the caller graph for this function:

Ipv4Address ns3::ArpCache::Entry::GetIpv4Address

(

void

)

const

Returns

The Ipv4Address for this entry

Definition at line 399 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

Address ns3::ArpCache::Entry::GetMacAddress

(

void

)

const

Returns

The MacAddress of this entry

Definition at line 393 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::RouteCache::LookupMacAddress().

Here is the caller graph for this function:

uint32_t ns3::ArpCache::Entry::GetRetries

(

void

)

const

Returns

number of retries that have been sent for an ArpRequest in WaitReply state.

Definition at line 462 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

Time ns3::ArpCache::Entry::GetTimeout ( void  ) const

private

Returns the entry timeout.

Returns

the entry timeout

Definition at line 411 of file arp-cache.cc.

References ALIVE, DEAD, NS_ASSERT, NS_LOG_FUNCTION, ns3::Seconds(), and WAIT_REPLY.

Here is the call graph for this function:

void ns3::ArpCache::Entry::IncrementRetries

(

void

)

Increment the counter of number of retries for an entry.

Definition at line 468 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsAlive

(

void

)

Returns

True if the state of this entry is alive; false otherwise.

Definition at line 332 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::RouteCache::LookupMacAddress().

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsDead

(

void

)

Returns

True if the state of this entry is dead; false otherwise.

Definition at line 326 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsExpired

(

void

)

const

Returns

True if this entry has timed out; false otherwise.

This function returns true if the time elapsed strictly exceeds the timeout value (i.e., is not less than or equal to the timeout).

Definition at line 428 of file arp-cache.cc.

References ns3::Time::GetSeconds(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::RouteCache::LookupMacAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::ArpCache::Entry::IsWaitReply

(

void

)

Returns

True if the state of this entry is wait_reply; false otherwise.

Definition at line 338 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), ns3::ArpL3Protocol::Lookup(), and ns3::ArpL3Protocol::Receive().

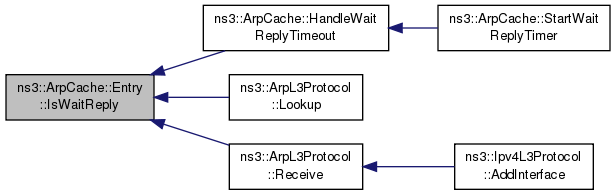

Here is the caller graph for this function:

void ns3::ArpCache::Entry::MarkAlive

(

Address

macAddress

)

Parameters

macAddress

Definition at line 354 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by EpcS1uUlTestCase::DoRun(), and ns3::ArpL3Protocol::Receive().

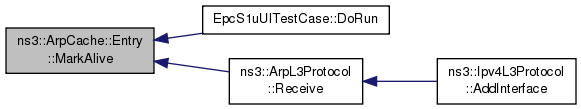

Here is the caller graph for this function:

void ns3::ArpCache::Entry::MarkDead

(

void

)

Changes the state of this entry to dead.

Definition at line 346 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

void ns3::ArpCache::Entry::MarkWaitReply

(

Ptr< Packet >

waiting

)

Parameters

waiting

Definition at line 381 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by EpcS1uUlTestCase::DoRun(), and ns3::ArpL3Protocol::Lookup().

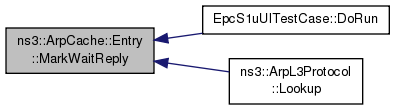

Here is the caller graph for this function:

void ns3::ArpCache::Entry::SetIpv4Address

(

Ipv4Address

destination

)

Parameters

destination

The Ipv4Address for this entry

Definition at line 405 of file arp-cache.cc.

References NS_LOG_FUNCTION.

void ns3::ArpCache::Entry::UpdateSeen ( void  )

private

Update the entry when seeing a packet.

Definition at line 456 of file arp-cache.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

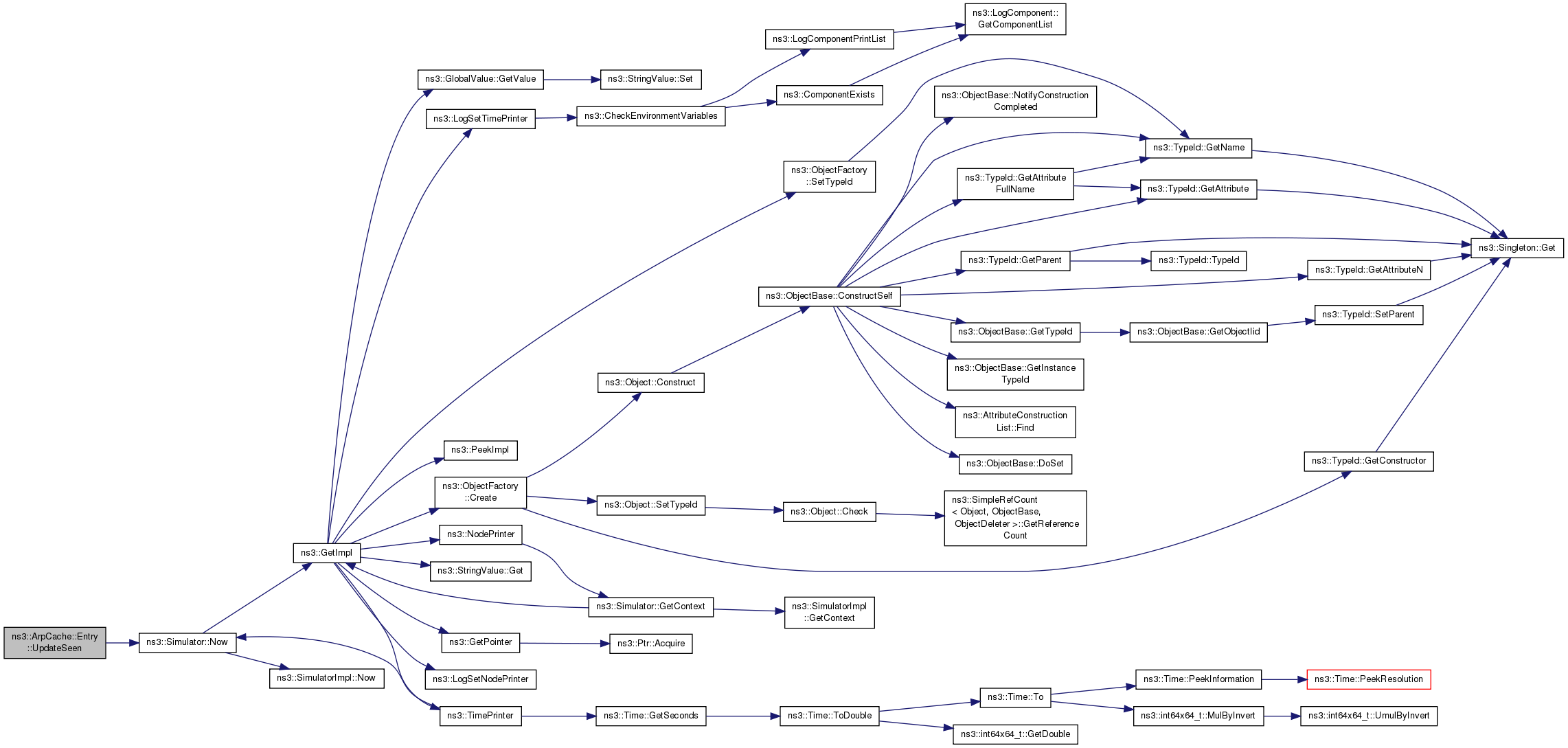

Here is the call graph for this function:

bool ns3::ArpCache::Entry::UpdateWaitReply

(

Ptr< Packet >

waiting

)

Parameters

waiting

Returns

Definition at line 365 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

Member Data Documentation

ArpCache* ns3::ArpCache::Entry::m_arp

private

pointer to the ARP cache owning the entry

Definition at line 265 of file arp-cache.h.

Ipv4Address ns3::ArpCache::Entry::m_ipv4Address

private

entry's IP address

Definition at line 269 of file arp-cache.h.

Time ns3::ArpCache::Entry::m_lastSeen

private

last moment a packet from that address has been seen

Definition at line 267 of file arp-cache.h.

Address ns3::ArpCache::Entry::m_macAddress

private

entry's MAC address

Definition at line 268 of file arp-cache.h.

std::list<Ptr<Packet> > ns3::ArpCache::Entry::m_pending

private

list of pending packets for the entry's IP

Definition at line 270 of file arp-cache.h.

uint32_t ns3::ArpCache::Entry::m_retries

private

rerty counter

Definition at line 271 of file arp-cache.h.

ArpCacheEntryState_e ns3::ArpCache::Entry::m_state

private

state of the entry

Definition at line 266 of file arp-cache.h.

---

The documentation for this class was generated from the following files:

• src/internet/model/arp-cache.h
• src/internet/model/arp-cache.cc
