ns3::AttributeConstructionList Class Reference

List of Attribute name, value and checker triples used to construct Objects. More...

#include <attribute-construction-list.h>

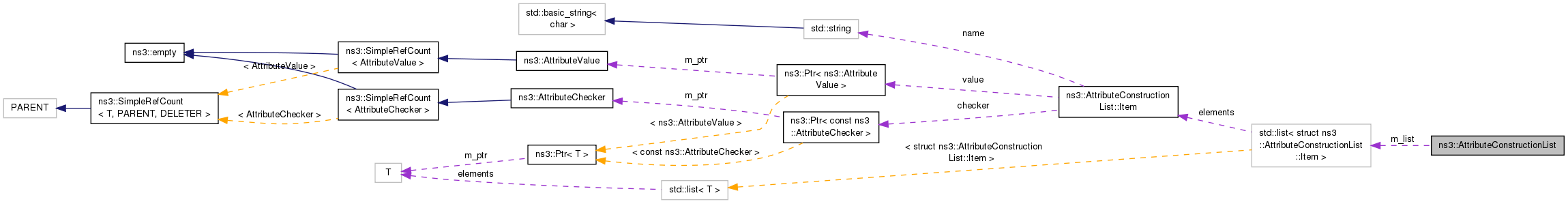

Collaboration diagram for ns3::AttributeConstructionList:

Classes
struct	Item
	A single Attribute triple. More...

Public Types
typedef std::list< struct Item >::const_iterator	CIterator
	Iterator type. More...

Public Member Functions
	AttributeConstructionList ()
	Constructor. More...
void	Add (std::string name, Ptr< const AttributeChecker > checker, Ptr< AttributeValue > value)
	Add an Attribute to the list. More...
CIterator	Begin (void) const
CIterator	End (void) const
Ptr< AttributeValue >	Find (Ptr< const AttributeChecker > checker) const
	Find an Attribute in the list from its AttributeChecker. More...

Private Attributes
std::list< struct Item >	m_list
	The list of Items. More...

Detailed Description

List of Attribute name, value and checker triples used to construct Objects.

Definition at line 39 of file attribute-construction-list.h.

Member Typedef Documentation

typedef std::list<struct Item>::const_iterator ns3::AttributeConstructionList::CIterator

Iterator type.

Definition at line 53 of file attribute-construction-list.h.

Constructor & Destructor Documentation

ns3::AttributeConstructionList::AttributeConstructionList

(

)

Constructor.

Definition at line 33 of file attribute-construction-list.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::AttributeConstructionList::Add	(	std::string	name,
		Ptr< const AttributeChecker >	checker,
		Ptr< AttributeValue >	value
	)

Add an Attribute to the list.

Parameters

[in]	name	The Attribute name.
[in]	checker	The checker to use for this Attribute.
[in]	value	The AttributeValue to add.

Definition at line 39 of file attribute-construction-list.cc.

References ns3::AttributeConstructionList::Item::checker, m_list, ns3::AttributeConstructionList::Item::name, NS_LOG_FUNCTION, and ns3::AttributeConstructionList::Item::value.

Referenced by ns3::operator>>(), and ns3::ObjectFactory::Set().

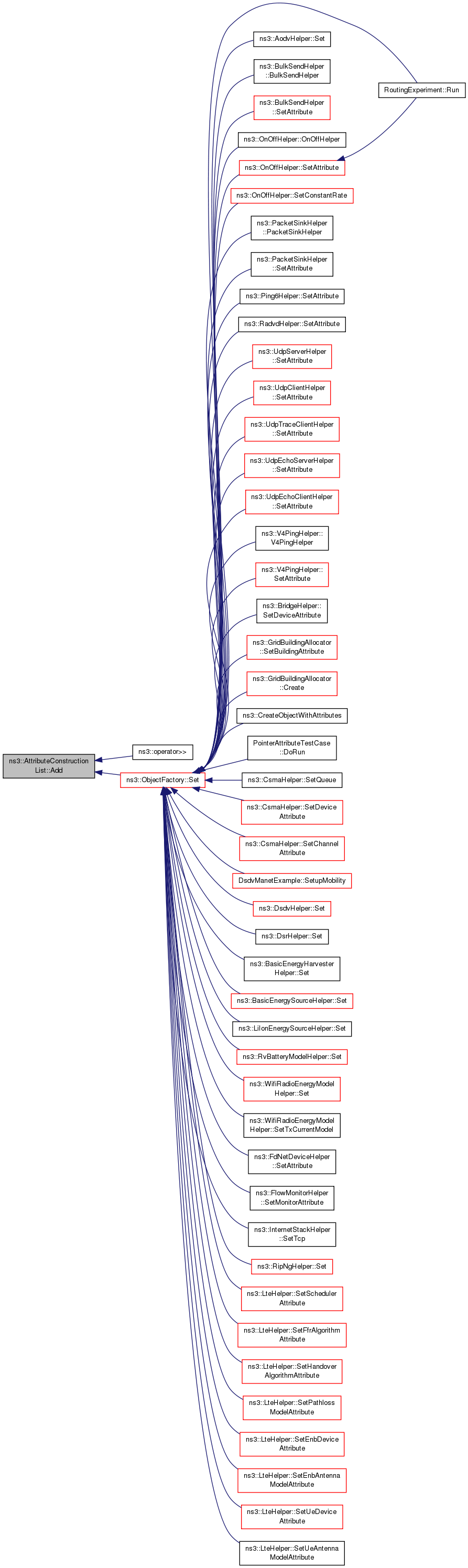

Here is the caller graph for this function:

AttributeConstructionList::CIterator ns3::AttributeConstructionList::Begin

(

void

)

const

Returns

The first item in the list

Definition at line 77 of file attribute-construction-list.cc.

References m_list, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

AttributeConstructionList::CIterator ns3::AttributeConstructionList::End

(

void

)

const

Returns

The end of the list (iterator to one past the last).

Definition at line 83 of file attribute-construction-list.cc.

References m_list, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ptr< AttributeValue > ns3::AttributeConstructionList::Find

(

Ptr< const AttributeChecker >

checker

)

const

Find an Attribute in the list from its AttributeChecker.

Parameters

[in]

checker

The AttributeChecker to find. Typically this is the AttributeChecker from TypeId::AttributeInformation.

Returns

The AttributeValue.

Definition at line 62 of file attribute-construction-list.cc.

References m_list, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::ObjectBase::ConstructSelf().

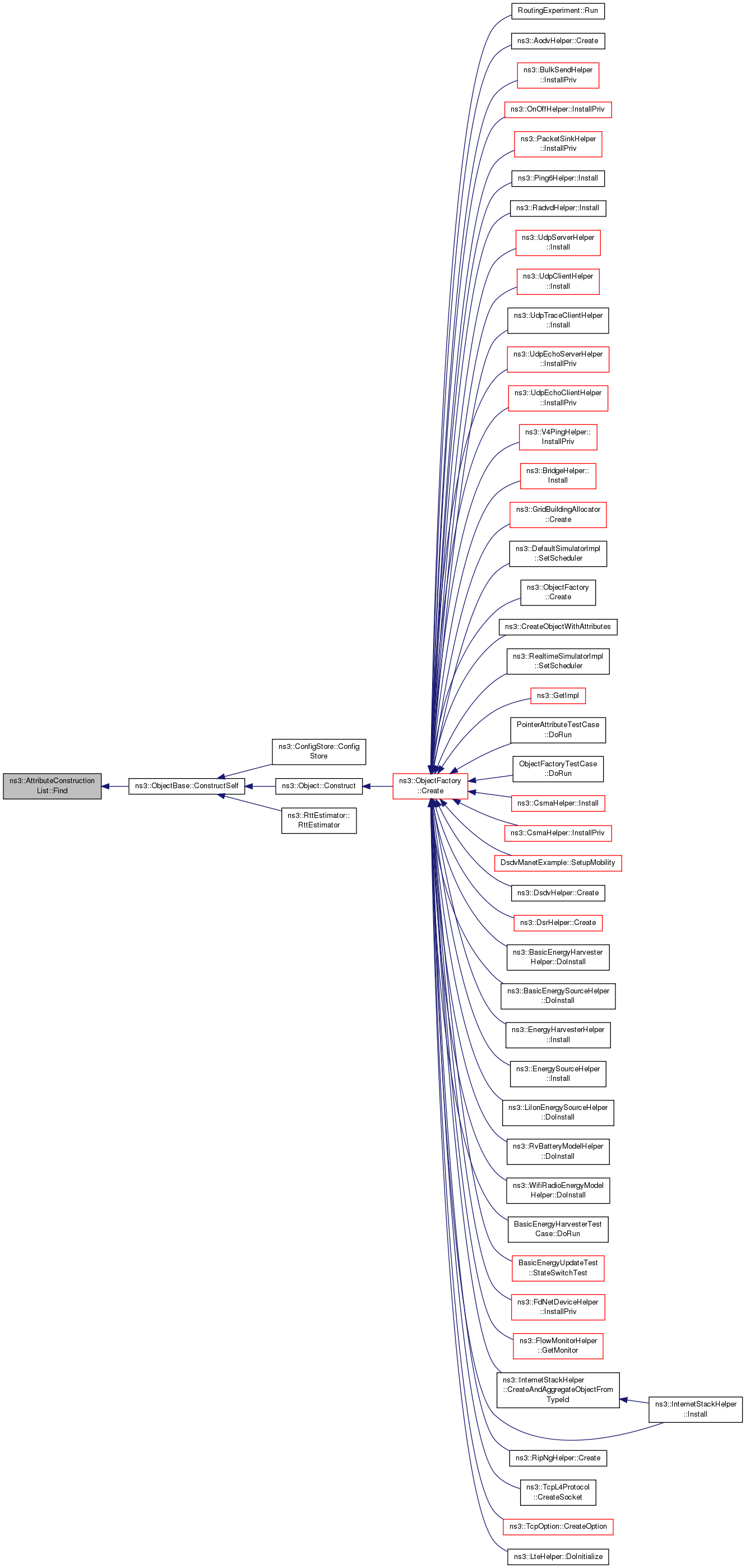

Here is the caller graph for this function:

Member Data Documentation

std::list<struct Item> ns3::AttributeConstructionList::m_list

private

The list of Items.

Definition at line 85 of file attribute-construction-list.h.

Referenced by Add(), Begin(), End(), and Find().

---

The documentation for this class was generated from the following files:

• src/core/model/attribute-construction-list.h
• src/core/model/attribute-construction-list.cc
