ns3::BridgeHelper Class Reference

Add capability to bridge multiple LAN segments (IEEE 802.1D bridging) More...

#include <bridge-helper.h>

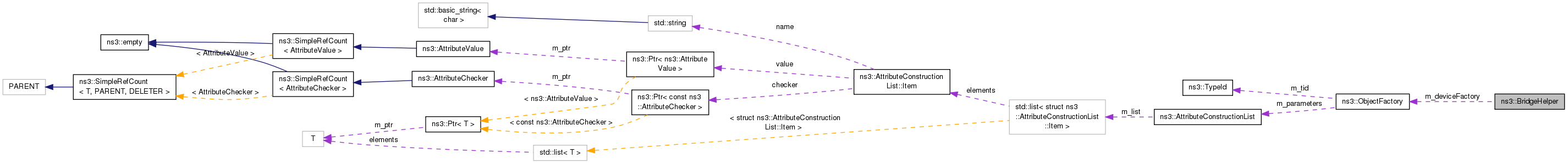

Collaboration diagram for ns3::BridgeHelper:

Public Member Functions
	BridgeHelper ()
NetDeviceContainer	Install (Ptr< Node > node, NetDeviceContainer c)
	This method creates an ns3::BridgeNetDevice with the attributes configured by BridgeHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the bridge. More...
NetDeviceContainer	Install (std::string nodeName, NetDeviceContainer c)
	This method creates an ns3::BridgeNetDevice with the attributes configured by BridgeHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the bridge. More...
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute on each ns3::BridgeNetDevice created by BridgeHelper::Install. More...

Private Attributes
ObjectFactory	m_deviceFactory
	Object factory. More...

Detailed Description

Add capability to bridge multiple LAN segments (IEEE 802.1D bridging)

Definition at line 36 of file bridge-helper.h.

Constructor & Destructor Documentation

ns3::BridgeHelper::BridgeHelper

(

)

Definition at line 29 of file bridge-helper.cc.

References m_deviceFactory, NS_LOG_FUNCTION_NOARGS, and ns3::ObjectFactory::SetTypeId().

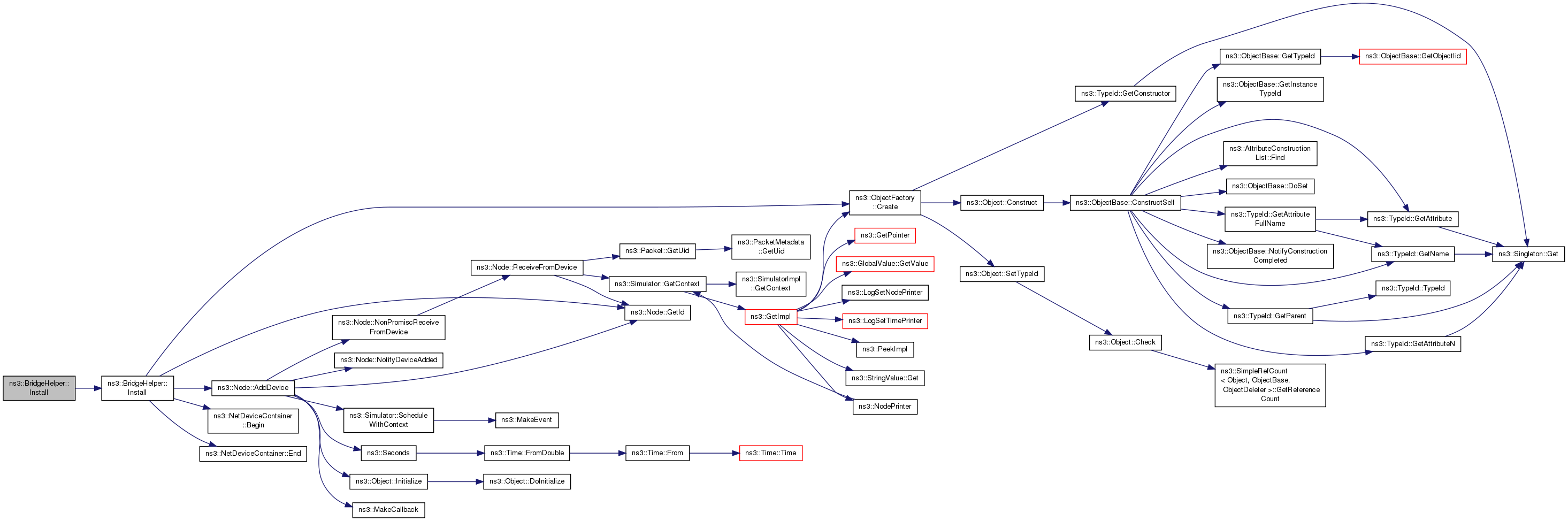

Here is the call graph for this function:

Member Function Documentation

NetDeviceContainer ns3::BridgeHelper::Install	(	Ptr< Node >	node,
		NetDeviceContainer	c
	)

This method creates an ns3::BridgeNetDevice with the attributes configured by BridgeHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the bridge.

Parameters

node	The node to install the device in
c	Container of NetDevices to add as bridge ports

Returns

A container holding the added net device.

Definition at line 43 of file bridge-helper.cc.

References ns3::Node::AddDevice(), ns3::NetDeviceContainer::Begin(), ns3::ObjectFactory::Create(), ns3::NetDeviceContainer::End(), ns3::Node::GetId(), m_deviceFactory, NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by CsmaBridgeTestCase::DoRun(), and Install().

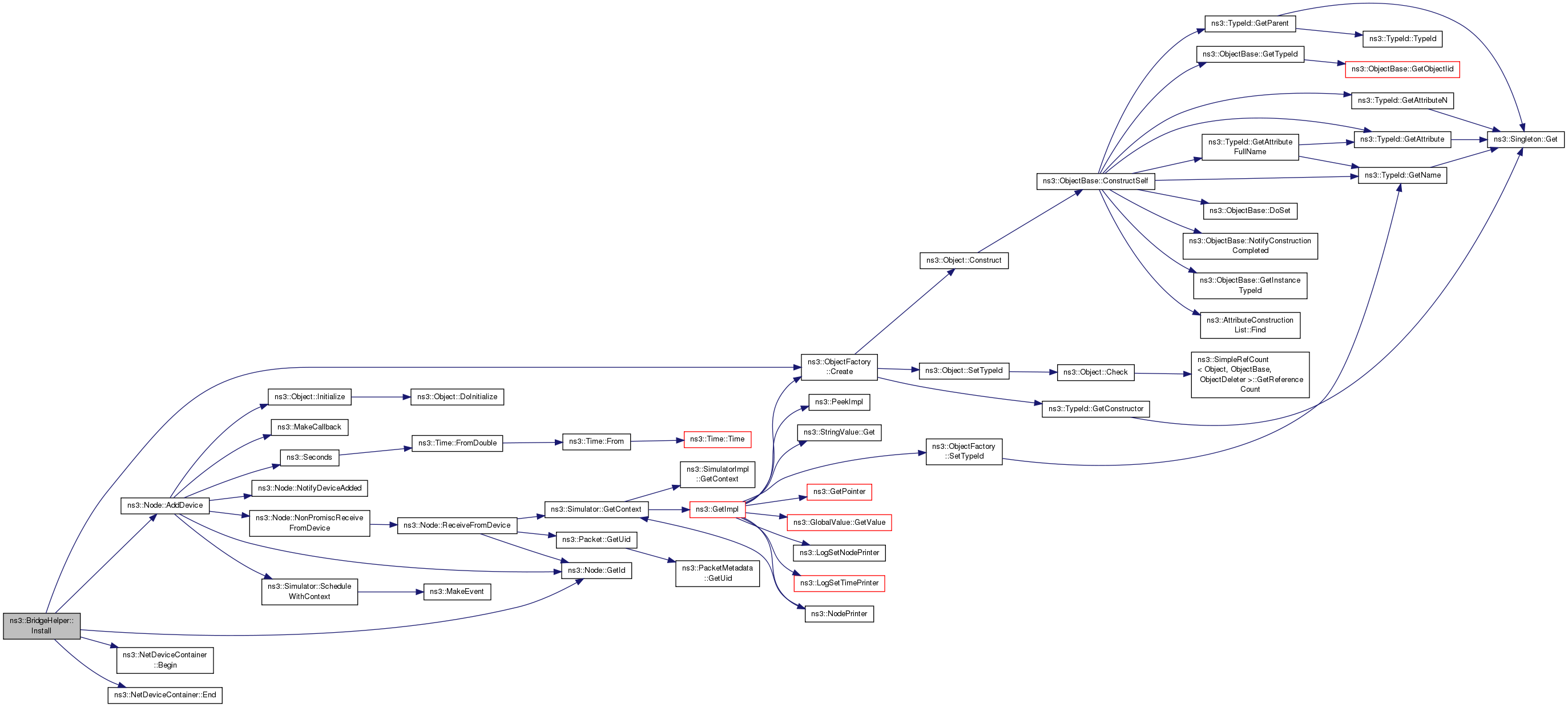

Here is the call graph for this function:

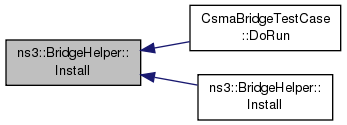

Here is the caller graph for this function:

NetDeviceContainer ns3::BridgeHelper::Install	(	std::string	nodeName,
		NetDeviceContainer	c
	)

This method creates an ns3::BridgeNetDevice with the attributes configured by BridgeHelper::SetDeviceAttribute, adds the device to the node, and attaches the given NetDevices as ports of the bridge.

Parameters

nodeName	The name of the node to install the device in
c	Container of NetDevices to add as bridge ports

Returns

A container holding the added net device.

Definition at line 62 of file bridge-helper.cc.

References Install(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::BridgeHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Set an attribute on each ns3::BridgeNetDevice created by BridgeHelper::Install.

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Definition at line 36 of file bridge-helper.cc.

References m_deviceFactory, NS_LOG_FUNCTION_NOARGS, and ns3::ObjectFactory::Set().

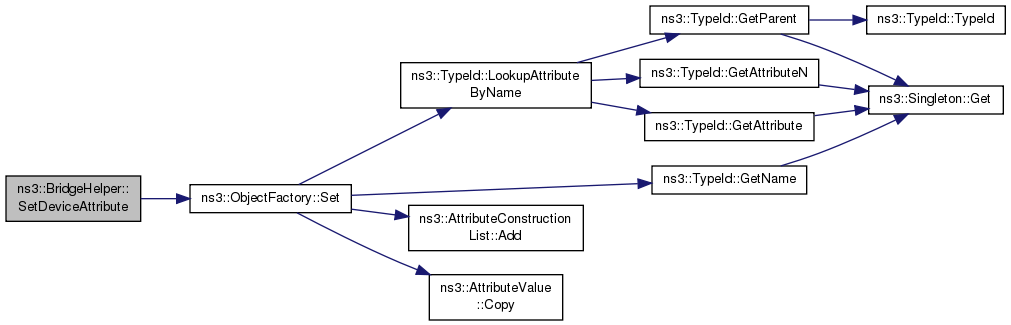

Here is the call graph for this function:

Member Data Documentation

ObjectFactory ns3::BridgeHelper::m_deviceFactory

private

Object factory.

Definition at line 74 of file bridge-helper.h.

Referenced by BridgeHelper(), Install(), and SetDeviceAttribute().

---

The documentation for this class was generated from the following files:

• src/bridge/helper/bridge-helper.h
• src/bridge/helper/bridge-helper.cc
