ns3::CallbackValue Class Reference

AttributeValue implementation for Callback. More...

#include <callback.h>

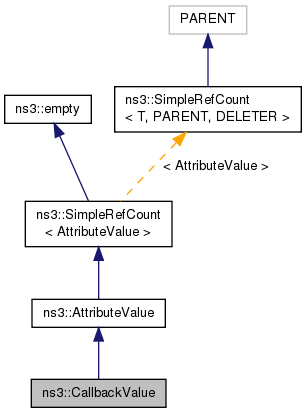

Inheritance diagram for ns3::CallbackValue:

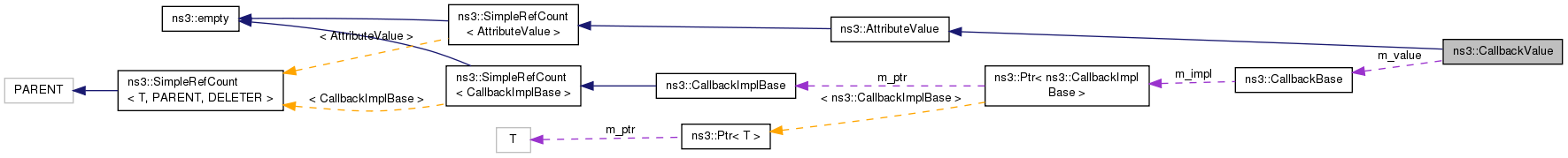

Collaboration diagram for ns3::CallbackValue:

Public Member Functions
	CallbackValue ()
	Constructor. More...
	CallbackValue (const CallbackBase &base)
	Copy constructor. More...
virtual	~CallbackValue ()
	Destructor. More...
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
	Deserialize from string (not implemented) More...
template<typename T >
bool	GetAccessor (T &value) const
	Give value my callback, if type compatible. More...
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
	Serialize to string. More...
void	Set (CallbackBase base)
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
CallbackBase	m_value
	the CallbackBase More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
static void	Cleanup (void)
	Noop. More...

Detailed Description

AttributeValue implementation for Callback.

See also

AttributeValue

Definition at line 1687 of file callback.h.

Constructor & Destructor Documentation

ns3::CallbackValue::CallbackValue

(

)

Constructor.

Definition at line 34 of file callback.cc.

References NS_LOG_FUNCTION.

ns3::CallbackValue::CallbackValue

(

const CallbackBase &

base

)

Copy constructor.

Parameters

base	Callback to copy

Definition at line 39 of file callback.cc.

ns3::CallbackValue::~CallbackValue ( )

virtual

Destructor.

Definition at line 43 of file callback.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< AttributeValue > ns3::CallbackValue::Copy ( void  ) const

virtual

Returns

a copy of this CallBack

Implements ns3::AttributeValue.

Definition at line 55 of file callback.cc.

References m_value, and NS_LOG_FUNCTION.

bool ns3::CallbackValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Deserialize from string (not implemented)

Parameters

value	source string
checker	checker to validate with

Returns

true if successful

Implements ns3::AttributeValue.

Definition at line 69 of file callback.cc.

References NS_LOG_FUNCTION.

template<typename T >

bool ns3::CallbackValue::GetAccessor

(

T &

value

)

const

Give value my callback, if type compatible.

Access the Callback value as type T.

Parameters

value

destination callback

Returns

true if successful

Parameters

[out]

value

The Callback value, as type T.

Returns

true.

Definition at line 1737 of file callback.h.

References m_value.

std::string ns3::CallbackValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Serialize to string.

Parameters

checker

the checker to validate with

Returns

serialize this pimpl

Implements ns3::AttributeValue.

Definition at line 61 of file callback.cc.

References ns3::CallbackBase::GetImpl(), m_value, NS_LOG_FUNCTION, and ns3::PeekPointer().

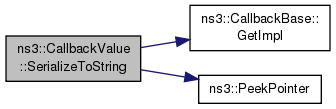

Here is the call graph for this function:

void ns3::CallbackValue::Set

(

CallbackBase

base

)

Parameters

base	The CallbackBase to use

Definition at line 48 of file callback.cc.

References m_value, and NS_LOG_FUNCTION.

Member Data Documentation

Callback ns3::CallbackValue::m_value

private

the CallbackBase

The stored Callback instance.

Definition at line 1726 of file callback.h.

Referenced by Copy(), GetAccessor(), SerializeToString(), and Set().

---

The documentation for this class was generated from the following files:

• src/core/model/callback.h
• doc/introspected-doxygen.h
• src/core/model/callback.cc
