The downlink CqiLteControlMessage defines an ideal list of feedback about the channel quality sent by the UE to the eNodeB. More...

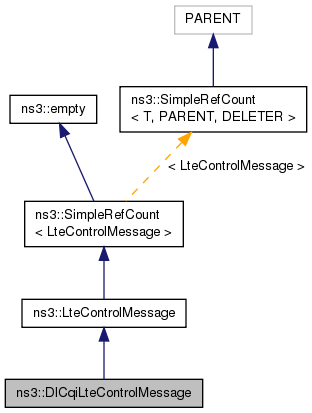

Inheritance diagram for ns3::DlCqiLteControlMessage:

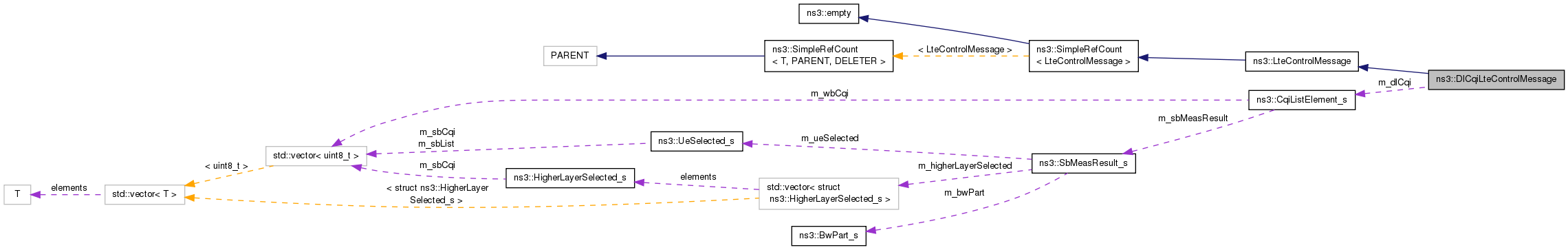

Collaboration diagram for ns3::DlCqiLteControlMessage:

Public Member Functions
	DlCqiLteControlMessage (void)

virtual	~DlCqiLteControlMessage (void)

CqiListElement_s	GetDlCqi (void)
	Get DL cqi informations. More...

void	SetDlCqi (CqiListElement_s dlcqi)
	add a DL-CQI feedback record into the message. More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR, DL_HARQ, RACH_PREAMBLE, RAR, MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)
	Noop. More...

Detailed Description

The downlink CqiLteControlMessage defines an ideal list of feedback about the channel quality sent by the UE to the eNodeB.

Definition at line 152 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::DlCqiLteControlMessage::DlCqiLteControlMessage ( void )

Definition at line 118 of file lte-control-messages.cc.

Here is the call graph for this function:

ns3::DlCqiLteControlMessage::~DlCqiLteControlMessage ( void )

virtual

Definition at line 124 of file lte-control-messages.cc.

CqiListElement_s ns3::DlCqiLteControlMessage::GetDlCqi ( void )

Get DL cqi informations.

Definition at line 138 of file lte-control-messages.cc.

References m_dlCqi.

void ns3::DlCqiLteControlMessage::SetDlCqi ( CqiListElement_s dlcqi )

add a DL-CQI feedback record into the message.

Parameters

dlcqi the DL cqi feedback

Definition at line 130 of file lte-control-messages.cc.

References m_dlCqi.

CqiListElement_s ns3::DlCqiLteControlMessage::m_dlCqi

private

Definition at line 171 of file lte-control-messages.h.

Referenced by GetDlCqi(), and SetDlCqi().

The documentation for this class was generated from the following files:
