ns3::DlFramePrefixIe Class Reference

This class implements the DL Frame Prefix IE as described by IEEE-802.16 standard. More...

#include <ofdm-downlink-frame-prefix.h>

Public Member Functions
	DlFramePrefixIe ()
	~DlFramePrefixIe ()
uint8_t	GetDiuc (void) const
uint16_t	GetLength (void) const
uint8_t	GetPreamblePresent (void) const
uint8_t	GetRateId (void) const
uint16_t	GetSize (void) const
uint16_t	GetStartTime (void) const
Buffer::Iterator	Read (Buffer::Iterator start)
void	SetDiuc (uint8_t diuc)
void	SetLength (uint16_t length)
void	SetPreamblePresent (uint8_t preamblePresent)
void	SetRateId (uint8_t rateId)
void	SetStartTime (uint16_t startTime)
Buffer::Iterator	Write (Buffer::Iterator start) const

Private Attributes
uint8_t	m_diuc
uint16_t	m_length
uint8_t	m_preamblePresent
uint8_t	m_rateId
uint16_t	m_startTime

Detailed Description

This class implements the DL Frame Prefix IE as described by IEEE-802.16 standard.

The DL Frame Prefix IE is contained in DLFP (Downlink Frame Prefix) in OFDM PHY

Definition at line 34 of file ofdm-downlink-frame-prefix.h.

Constructor & Destructor Documentation

ns3::DlFramePrefixIe::DlFramePrefixIe

(

)

Definition at line 28 of file ofdm-downlink-frame-prefix.cc.

ns3::DlFramePrefixIe::~DlFramePrefixIe

(

)

Definition at line 37 of file ofdm-downlink-frame-prefix.cc.

Member Function Documentation

uint8_t ns3::DlFramePrefixIe::GetDiuc

(

void

)

const

Definition at line 78 of file ofdm-downlink-frame-prefix.cc.

References m_diuc.

Referenced by ns3::OfdmDownlinkFramePrefix::Deserialize().

Here is the caller graph for this function:

uint16_t ns3::DlFramePrefixIe::GetLength

(

void

)

const

Definition at line 90 of file ofdm-downlink-frame-prefix.cc.

References m_length.

uint8_t ns3::DlFramePrefixIe::GetPreamblePresent

(

void

)

const

Definition at line 84 of file ofdm-downlink-frame-prefix.cc.

References m_preamblePresent.

uint8_t ns3::DlFramePrefixIe::GetRateId

(

void

)

const

Definition at line 72 of file ofdm-downlink-frame-prefix.cc.

References m_rateId.

uint16_t ns3::DlFramePrefixIe::GetSize

(

void

)

const

Definition at line 102 of file ofdm-downlink-frame-prefix.cc.

Referenced by ns3::OfdmDownlinkFramePrefix::GetSerializedSize().

Here is the caller graph for this function:

uint16_t ns3::DlFramePrefixIe::GetStartTime

(

void

)

const

Definition at line 96 of file ofdm-downlink-frame-prefix.cc.

References m_startTime.

Buffer::Iterator ns3::DlFramePrefixIe::Read

(

Buffer::Iterator

start

)

Definition at line 120 of file ofdm-downlink-frame-prefix.cc.

References m_diuc, m_length, m_preamblePresent, m_rateId, m_startTime, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::OfdmDownlinkFramePrefix::Deserialize().

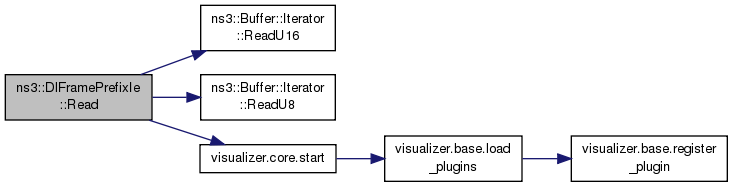

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DlFramePrefixIe::SetDiuc

(

uint8_t

diuc

)

Definition at line 48 of file ofdm-downlink-frame-prefix.cc.

References m_diuc.

void ns3::DlFramePrefixIe::SetLength

(

uint16_t

length

)

Definition at line 60 of file ofdm-downlink-frame-prefix.cc.

References m_length.

void ns3::DlFramePrefixIe::SetPreamblePresent

(

uint8_t

preamblePresent

)

Definition at line 54 of file ofdm-downlink-frame-prefix.cc.

References m_preamblePresent.

void ns3::DlFramePrefixIe::SetRateId

(

uint8_t

rateId

)

Definition at line 42 of file ofdm-downlink-frame-prefix.cc.

References m_rateId.

void ns3::DlFramePrefixIe::SetStartTime

(

uint16_t

startTime

)

Definition at line 66 of file ofdm-downlink-frame-prefix.cc.

References m_startTime, and startTime.

Buffer::Iterator ns3::DlFramePrefixIe::Write

(

Buffer::Iterator

start

)

const

Definition at line 108 of file ofdm-downlink-frame-prefix.cc.

References m_diuc, m_length, m_preamblePresent, m_rateId, m_startTime, visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::OfdmDownlinkFramePrefix::Serialize().

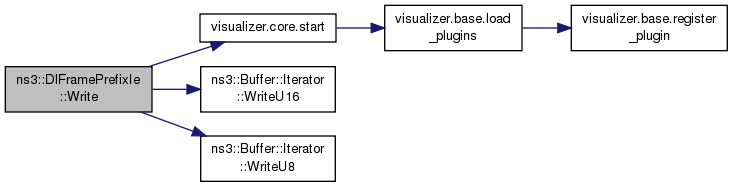

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::DlFramePrefixIe::m_diuc

private

Definition at line 58 of file ofdm-downlink-frame-prefix.h.

Referenced by GetDiuc(), Read(), SetDiuc(), and Write().

uint16_t ns3::DlFramePrefixIe::m_length

private

Definition at line 60 of file ofdm-downlink-frame-prefix.h.

Referenced by GetLength(), Read(), SetLength(), and Write().

uint8_t ns3::DlFramePrefixIe::m_preamblePresent

private

Definition at line 59 of file ofdm-downlink-frame-prefix.h.

Referenced by GetPreamblePresent(), Read(), SetPreamblePresent(), and Write().

uint8_t ns3::DlFramePrefixIe::m_rateId

private

Definition at line 57 of file ofdm-downlink-frame-prefix.h.

Referenced by GetRateId(), Read(), SetRateId(), and Write().

uint16_t ns3::DlFramePrefixIe::m_startTime

private

Definition at line 61 of file ofdm-downlink-frame-prefix.h.

Referenced by GetStartTime(), Read(), SetStartTime(), and Write().

---

The documentation for this class was generated from the following files:

• src/wimax/model/ofdm-downlink-frame-prefix.h
• src/wimax/model/ofdm-downlink-frame-prefix.cc
