ns3::DownlinkLteGlobalPathlossDatabase Class Reference

Store the last pathloss value for each TX-RX pair for downlink. More...

#include <lte-global-pathloss-database.h>

Inheritance diagram for ns3::DownlinkLteGlobalPathlossDatabase:

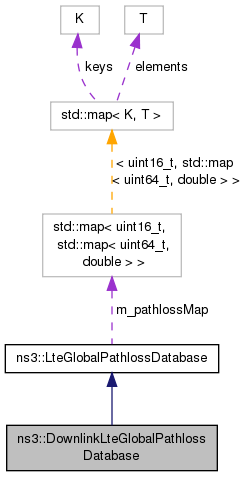

Collaboration diagram for ns3::DownlinkLteGlobalPathlossDatabase:

Public Member Functions
virtual void	UpdatePathloss (std::string context, Ptr< SpectrumPhy > txPhy, Ptr< SpectrumPhy > rxPhy, double lossDb)
	update the pathloss value More...
Public Member Functions inherited from ns3::LteGlobalPathlossDatabase
virtual	~LteGlobalPathlossDatabase (void)
double	GetPathloss (uint16_t cellId, uint64_t imsi)
void	Print ()
	print the stored pathloss values to standard output More...

Additional Inherited Members
Protected Attributes inherited from ns3::LteGlobalPathlossDatabase
std::map< uint16_t, std::map< uint64_t, double > >	m_pathlossMap
	List of the last pathloss value for each UE by CellId. More...

Detailed Description

Store the last pathloss value for each TX-RX pair for downlink.

Definition at line 86 of file lte-global-pathloss-database.h.

Member Function Documentation

void ns3::DownlinkLteGlobalPathlossDatabase::UpdatePathloss ( std::string  context, Ptr< SpectrumPhy >  txPhy, Ptr< SpectrumPhy >  rxPhy, double  lossDb  )

virtual

update the pathloss value

Parameters

context
txPhy	the transmitting PHY
rxPhy	the receiving PHY
lossDb	the loss in dB

Implements ns3::LteGlobalPathlossDatabase.

Definition at line 74 of file lte-global-pathloss-database.cc.

References ns3::SpectrumPhy::GetDevice(), ns3::LteGlobalPathlossDatabase::m_pathlossMap, and NS_LOG_FUNCTION.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/helper/lte-global-pathloss-database.h
• src/lte/helper/lte-global-pathloss-database.cc
