ns3::DsdvHelper Class Reference

Helper class that adds DSDV routing to nodes. More...

#include <dsdv-helper.h>

Inheritance diagram for ns3::DsdvHelper:

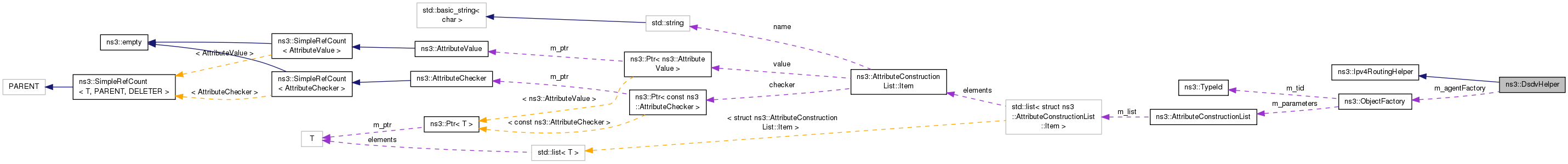

Collaboration diagram for ns3::DsdvHelper:

Public Member Functions
	DsdvHelper ()
	~DsdvHelper ()
DsdvHelper *	Copy (void) const
virtual Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const
void	Set (std::string name, const AttributeValue &value)
Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual	~Ipv4RoutingHelper ()

Private Attributes
ObjectFactory	m_agentFactory
	Object factory. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...
static void	PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of all nodes at a particular time. More...
static void	PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of all nodes at regular intervals specified by user. More...
static void	PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of a node at a particular time. More...
static void	PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of a node at regular intervals specified by user. More...
static void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of all nodes at a particular time. More...
static void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of all nodes at regular intervals specified by user. More...
static void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of a node at a particular time. More...
static void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of a node at regular intervals specified by user. More...

Detailed Description

Helper class that adds DSDV routing to nodes.

Definition at line 45 of file dsdv-helper.h.

Constructor & Destructor Documentation

ns3::DsdvHelper::DsdvHelper

(

)

Definition at line 42 of file dsdv-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

Here is the call graph for this function:

Here is the caller graph for this function:

ns3::DsdvHelper::~DsdvHelper

(

)

Definition at line 38 of file dsdv-helper.cc.

Member Function Documentation

DsdvHelper * ns3::DsdvHelper::Copy ( void  ) const

virtual

Returns

pointer to clone of this DsdvHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv4RoutingHelper.

Definition at line 48 of file dsdv-helper.cc.

References DsdvHelper().

Here is the call graph for this function:

Ptr< Ipv4RoutingProtocol > ns3::DsdvHelper::Create ( Ptr< Node >  node ) const

virtual

Parameters

node	the node on which the routing protocol will run

Returns

a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv4RoutingHelper.

Definition at line 54 of file dsdv-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and m_agentFactory.

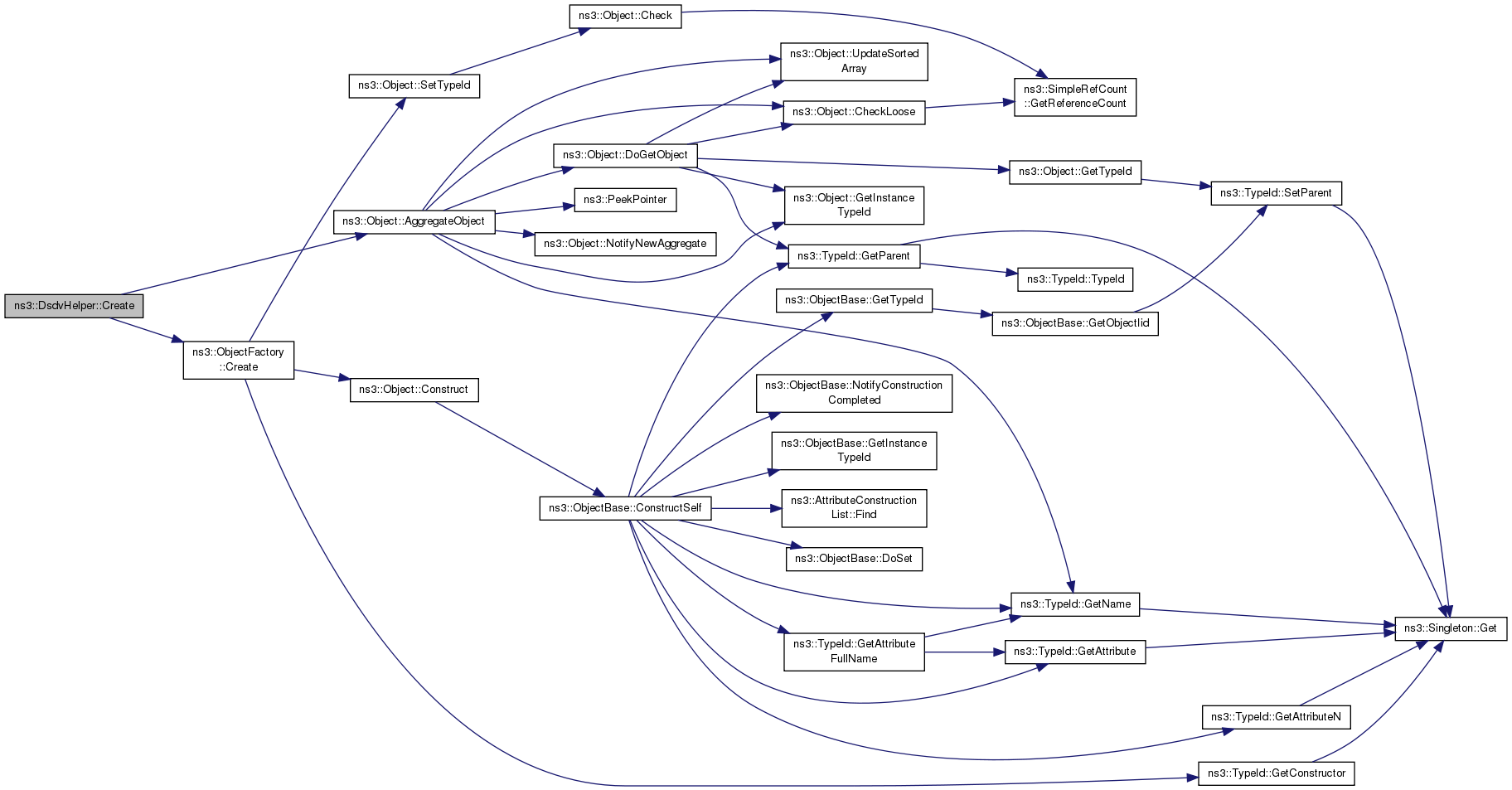

Here is the call graph for this function:

void ns3::DsdvHelper::Set	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the name of the attribute to set
value	the value of the attribute to set.

This method controls the attributes of ns3::dsdv::RoutingProtocol

Definition at line 62 of file dsdv-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::Set().

Referenced by DsdvManetExample::InstallInternetStack().

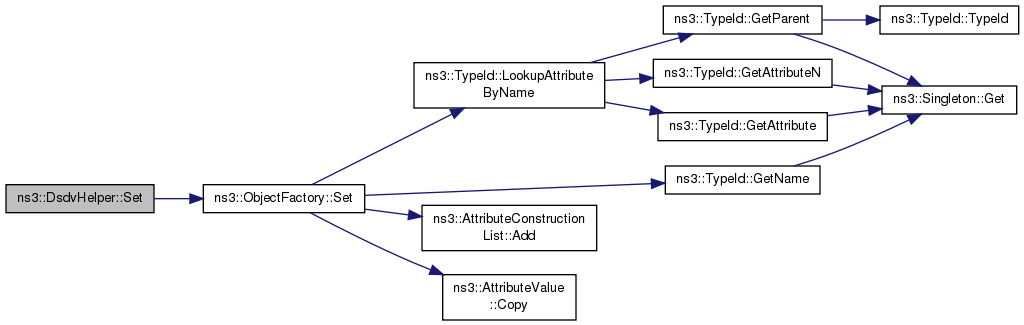

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::DsdvHelper::m_agentFactory

private

Object factory.

Definition at line 75 of file dsdv-helper.h.

Referenced by Create(), DsdvHelper(), and Set().

---

The documentation for this class was generated from the following files:

• src/dsdv/helper/dsdv-helper.h
• src/dsdv/helper/dsdv-helper.cc
