ns3::EnergySourceHelper Class Reference

Creates EnergySource objects. More...

#include <energy-model-helper.h>

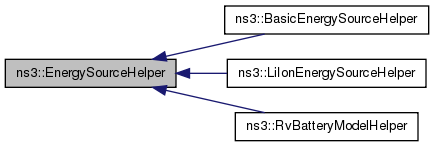

Inheritance diagram for ns3::EnergySourceHelper:

Public Member Functions
virtual	~EnergySourceHelper ()
EnergySourceContainer	Install (Ptr< Node > node) const
EnergySourceContainer	Install (NodeContainer c) const
EnergySourceContainer	Install (std::string nodeName) const
EnergySourceContainer	InstallAll (void) const
	This function installs an EnergySource on all nodes in simulation. More...
virtual void	Set (std::string name, const AttributeValue &v)=0

Private Member Functions
virtual Ptr< EnergySource >	DoInstall (Ptr< Node > node) const =0

Detailed Description

Creates EnergySource objects.

This class creates and installs an energy source onto network nodes. Multiple sources can exist on a network node.

Definition at line 45 of file energy-model-helper.h.

Constructor & Destructor Documentation

ns3::EnergySourceHelper::~EnergySourceHelper ( )

virtual

Definition at line 30 of file energy-model-helper.cc.

Member Function Documentation

virtual Ptr<EnergySource> ns3::EnergySourceHelper::DoInstall ( Ptr< Node >  node ) const

privatepure virtual

Parameters

node	Pointer to node where the energy source is to be installed.

Returns

Pointer to the created EnergySource.

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Implemented in ns3::LiIonEnergySourceHelper, ns3::BasicEnergySourceHelper, and ns3::RvBatteryModelHelper.

Referenced by Install().

Here is the caller graph for this function:

EnergySourceContainer ns3::EnergySourceHelper::Install

(

Ptr< Node >

node

)

const

Parameters

node	Pointer to the node where EnergySource will be installed.

Returns

An EnergySourceContainer which contains all the EnergySources.

This function installs an EnergySource onto a node.

Definition at line 35 of file energy-model-helper.cc.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), AcousticModemEnergyTestCase::DoRun(), AcousticModemEnergyDepletionTestCase::DoRun(), Install(), InstallAll(), and BatteryLifetimeTest::VariableLoadTest().

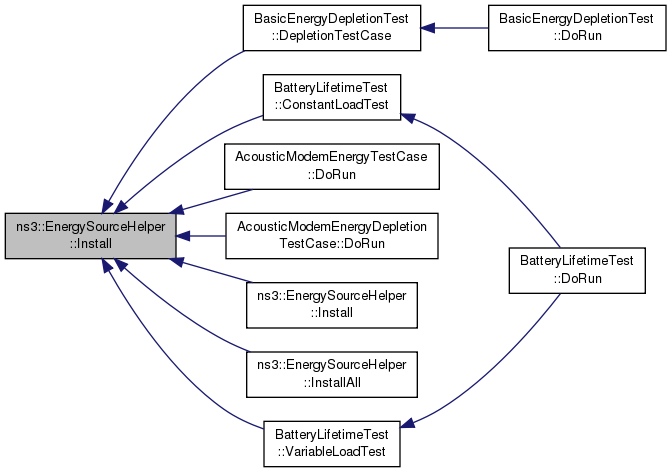

Here is the caller graph for this function:

EnergySourceContainer ns3::EnergySourceHelper::Install

(

NodeContainer

c

)

const

Parameters

c	List of nodes where EnergySource will be installed.

Returns

An EnergySourceContainer which contains all the EnergySources.

This function installs an EnergySource onto a list of nodes.

Definition at line 41 of file energy-model-helper.cc.

References ns3::EnergySourceContainer::Add(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), DoInstall(), ns3::NodeContainer::End(), and ns3::ObjectFactory::SetTypeId().

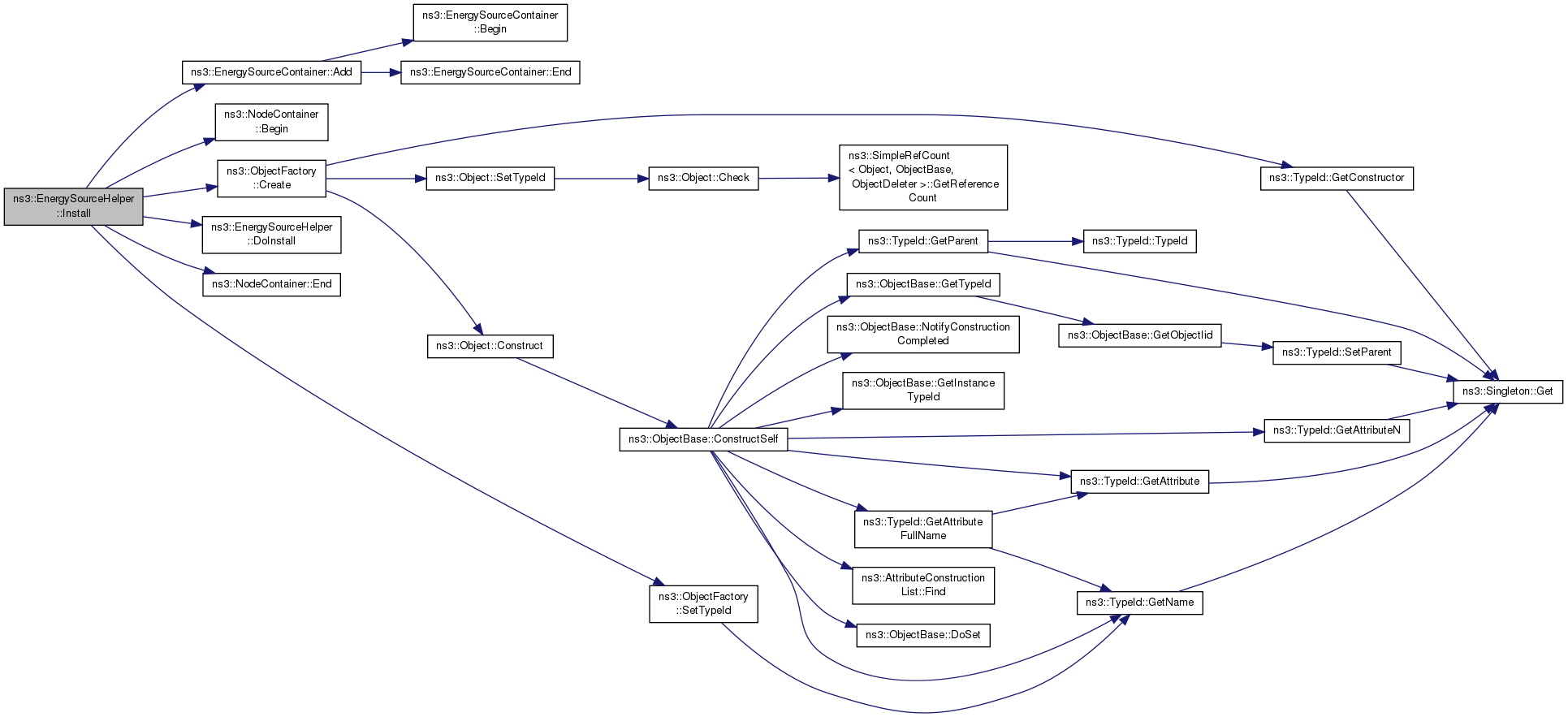

Here is the call graph for this function:

EnergySourceContainer ns3::EnergySourceHelper::Install

(

std::string

nodeName

)

const

Parameters

nodeName

Name of node where EnergySource will be installed.

Returns

An EnergySourceContainer which contains all the EnergySources.

This function installs an EnergySource onto a node.

Definition at line 71 of file energy-model-helper.cc.

References Install().

Here is the call graph for this function:

EnergySourceContainer ns3::EnergySourceHelper::InstallAll

(

void

)

const

This function installs an EnergySource on all nodes in simulation.

Returns

An EnergySourceContainer which contains all the EnergySources.

Definition at line 78 of file energy-model-helper.cc.

References ns3::NodeContainer::GetGlobal(), and Install().

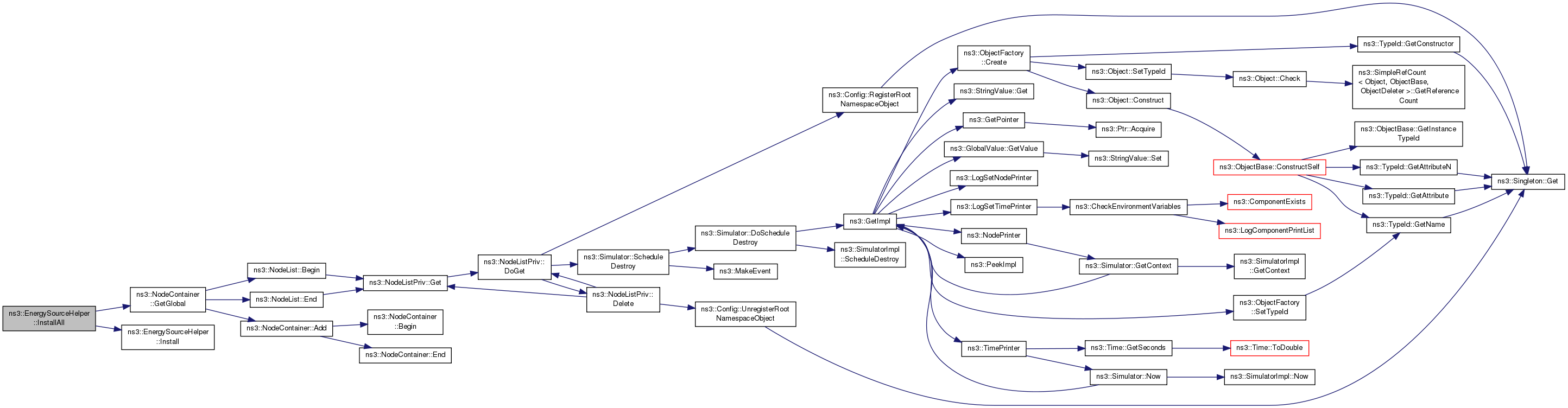

Here is the call graph for this function:

virtual void ns3::EnergySourceHelper::Set ( std::string  name, const AttributeValue &  v  )

pure virtual

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Sets one of the attributes of underlying EnergySource.

Implemented in ns3::LiIonEnergySourceHelper, ns3::BasicEnergySourceHelper, and ns3::RvBatteryModelHelper.

---

The documentation for this class was generated from the following files:

• src/energy/helper/energy-model-helper.h
• src/energy/helper/energy-model-helper.cc
