Hold variables of type enum. More...

#include <enum.h>

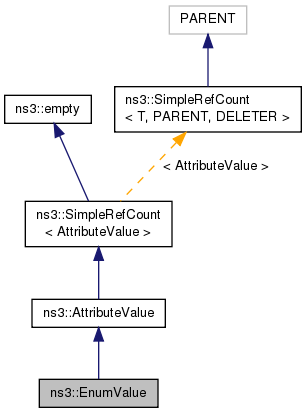

Inheritance diagram for ns3::EnumValue:

Collaboration diagram for ns3::EnumValue:

Public Member Functions
	EnumValue ()

	EnumValue (int value)
	Construct from an explicit value. More...

virtual Ptr< AttributeValue >	Copy (void) const

virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)

int	Get (void) const

template<typename T >
bool	GetAccessor (T &value) const
	Access the Enum value as type `T`. More...

virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const

void	Set (int value)
	Set the value. More...

Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()

virtual	~AttributeValue ()

Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
int	m_value
	The stored integer value. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Hold variables of type enum.

AttributeValue implementation for Enum.

This class can be used to hold variables of any kind of enum.

This is often used with ObjectFactory and Config to bind the value of a particular enum to an Attribute or Config name. For example,

Ptr<RateErrorModel> model = CreateObjectWithAttributes<RateErrorModel> (
  "ErrorRate", DoubleValue (0.05),
  "ErrorUnit", EnumValue (RateErrorModel::ERROR_UNIT_PACKET));
Config::SetDefault ("ns3::RipNg::SplitHorizon",
                    EnumValue (RipNg::NO_SPLIT_HORIZON));

See also: AttributeValue

Definition at line 54 of file enum.h.

Constructor & Destructor Documentation

ns3::EnumValue::EnumValue ( )

Definition at line 35 of file enum.cc.

References NS_LOG_FUNCTION.

ns3::EnumValue::EnumValue ( int value )

Construct from an explicit value.

Parameters

[in] value The value to begin with.

Definition at line 40 of file enum.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< AttributeValue > ns3::EnumValue::Copy ( void ) const

virtual

Returns: a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 58 of file enum.cc.

References NS_LOG_FUNCTION.

bool ns3::EnumValue::DeserializeFromString	(	std::string	value,
		Ptr< const AttributeChecker >	checker
	)

virtual

Parameters

value	a string representation of the value
checker	a pointer to the checker associated to the attribute.

Returns: true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 82 of file enum.cc.

References m_value, ns3::EnumChecker::m_valueSet, NS_ASSERT, NS_LOG_FUNCTION, and ns3::PeekPointer().

Here is the call graph for this function:

int ns3::EnumValue::Get ( void ) const

Returns: The Enum value.

Definition at line 52 of file enum.cc.

References m_value, and NS_LOG_FUNCTION.

Referenced by ns3::EnumChecker::Check(), and ns3::LteHelper::InstallSingleEnbDevice().

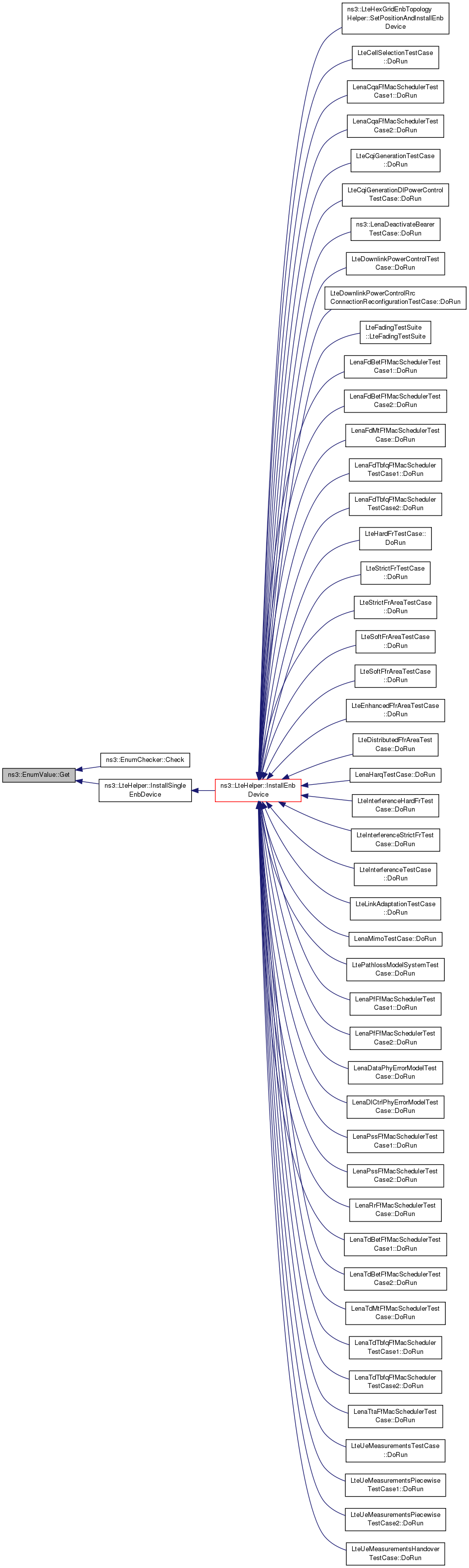

Here is the caller graph for this function:

template<typename T >

bool ns3::EnumValue::GetAccessor ( T & value ) const

Access the Enum value as type T.

Parameters

[out] value The Enum value, as type T.

Returns: true.

Definition at line 79 of file enum.h.

References m_value.

std::string ns3::EnumValue::SerializeToString ( Ptr< const AttributeChecker > checker ) const

virtual

Parameters

checker the checker associated to the attribute

Returns: a string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 64 of file enum.cc.

References m_value, ns3::EnumChecker::m_valueSet, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::PeekPointer().

Here is the call graph for this function:
