Helper to enable IP flow monitoring on a set of Nodes. More...

#include <flow-monitor-helper.h>

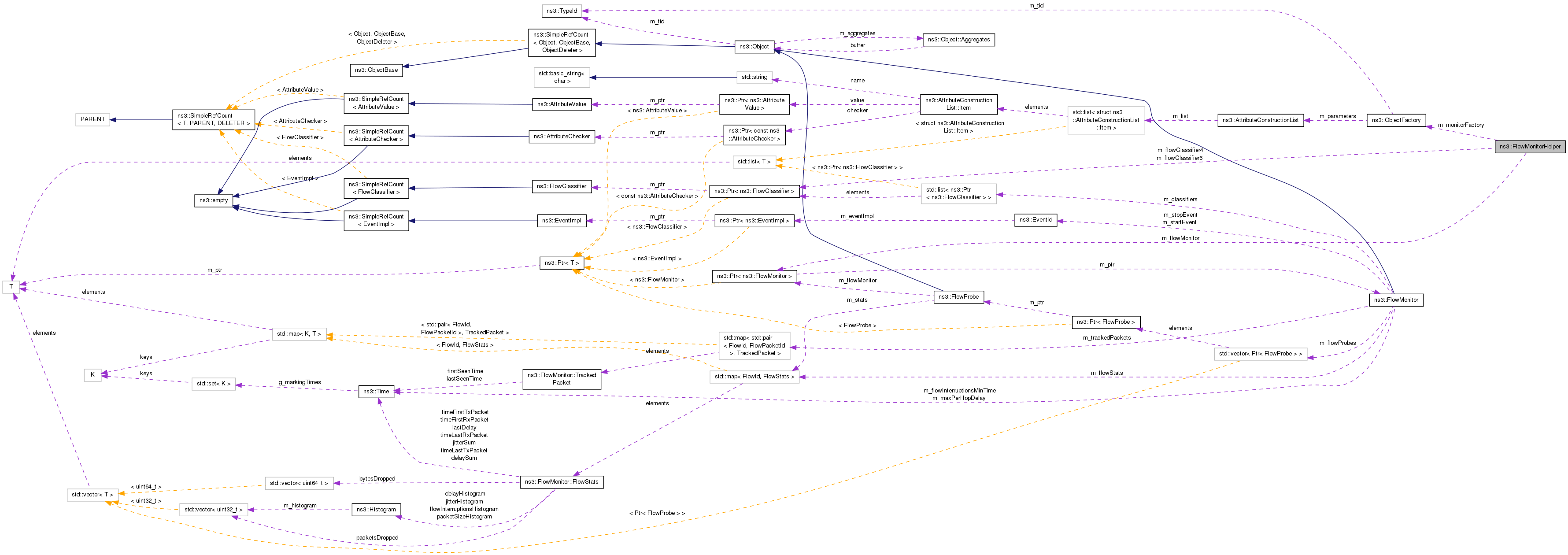

Collaboration diagram for ns3::FlowMonitorHelper:

Public Member Functions
	FlowMonitorHelper ()

	~FlowMonitorHelper ()

Ptr< FlowClassifier >	GetClassifier ()
	Retrieve the FlowClassifier object for IPv4 created by the Install* methods. More...

Ptr< FlowClassifier >	GetClassifier6 ()
	Retrieve the FlowClassifier object for IPv6 created by the Install* methods. More...

Ptr< FlowMonitor >	GetMonitor ()
	Retrieve the FlowMonitor object created by the Install* methods. More...

Ptr< FlowMonitor >	Install (NodeContainer nodes)
	Enable flow monitoring on a set of nodes. More...

Ptr< FlowMonitor >	Install (Ptr< Node > node)
	Enable flow monitoring on a single node. More...

Ptr< FlowMonitor >	InstallAll ()
	Enable flow monitoring on all nodes. More...

void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but writes to a file instead. More...

void	SerializeToXmlStream (std::ostream &os, int indent, bool enableHistograms, bool enableProbes)
	Serializes the results to an std::ostream in XML format. More...

std::string	SerializeToXmlString (int indent, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but returns the output as a std::string. More...

void	SetMonitorAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute for the to-be-created FlowMonitor object. More...

Private Member Functions
	FlowMonitorHelper (const FlowMonitorHelper &)
	Copy constructor. More...

FlowMonitorHelper &	operator= (const FlowMonitorHelper &)
	Copy constructor. More...

Private Attributes
Ptr< FlowClassifier >	m_flowClassifier4
	the FlowClassifier object for IPv4 More...

Ptr< FlowClassifier >	m_flowClassifier6
	the FlowClassifier object for IPv6 More...

Ptr< FlowMonitor >	m_flowMonitor
	the FlowMonitor object More...

ObjectFactory	m_monitorFactory
	Object factory. More...

Detailed Description

Helper to enable IP flow monitoring on a set of Nodes.

Definition at line 39 of file flow-monitor-helper.h.

Constructor & Destructor Documentation

ns3::FlowMonitorHelper::FlowMonitorHelper ( )

Definition at line 36 of file flow-monitor-helper.cc.

References m_monitorFactory, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::FlowMonitorHelper::~FlowMonitorHelper ( )

Definition at line 41 of file flow-monitor-helper.cc.

References m_flowClassifier4, m_flowClassifier6, and m_flowMonitor.

ns3::FlowMonitorHelper::FlowMonitorHelper ( const FlowMonitorHelper & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

Ptr< FlowClassifier > ns3::FlowMonitorHelper::GetClassifier ( )

Retrieve the FlowClassifier object for IPv4 created by the Install* methods.

Returns: a pointer to the FlowClassifier object

Definition at line 75 of file flow-monitor-helper.cc.

References m_flowClassifier4.

Referenced by experiment(), and Install().

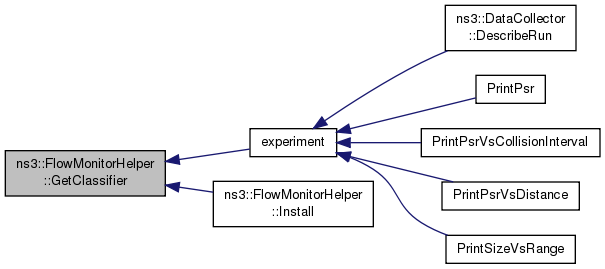

Here is the caller graph for this function:

Ptr< FlowClassifier > ns3::FlowMonitorHelper::GetClassifier6 ( )

Retrieve the FlowClassifier object for IPv6 created by the Install* methods.

Returns: a pointer to the FlowClassifier object

Definition at line 86 of file flow-monitor-helper.cc.

References m_flowClassifier6.

Referenced by Install().

Here is the caller graph for this function:

Ptr< FlowMonitor > ns3::FlowMonitorHelper::GetMonitor ( )

Retrieve the FlowMonitor object created by the Install* methods.

Returns: a pointer to the FlowMonitor object

Definition at line 60 of file flow-monitor-helper.cc.

References ns3::ObjectFactory::Create(), m_flowClassifier4, m_flowClassifier6, m_flowMonitor, and m_monitorFactory.

Referenced by Install().

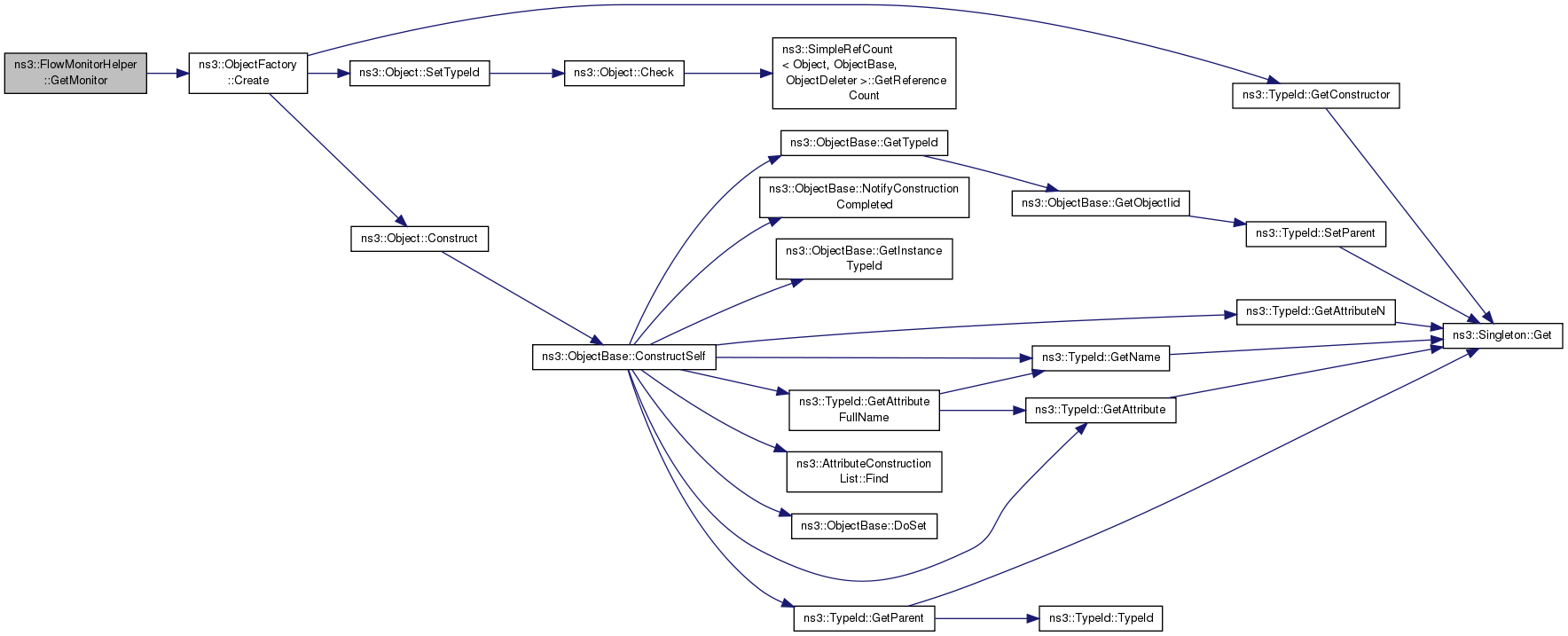

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< FlowMonitor > ns3::FlowMonitorHelper::Install ( NodeContainer nodes )

Enable flow monitoring on a set of nodes.

Parameters

nodes A NodeContainer holding the set of nodes to work with.

Returns: a pointer to the FlowMonitor object

Definition at line 121 of file flow-monitor-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), and m_flowMonitor.

Referenced by InstallAll().

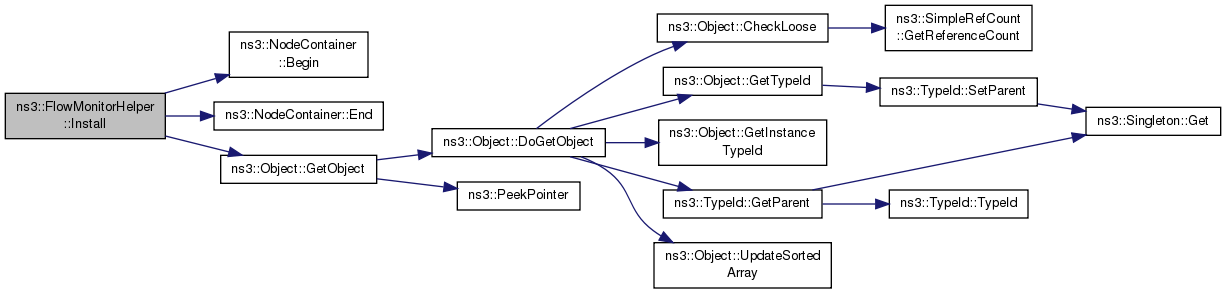

Here is the call graph for this function:

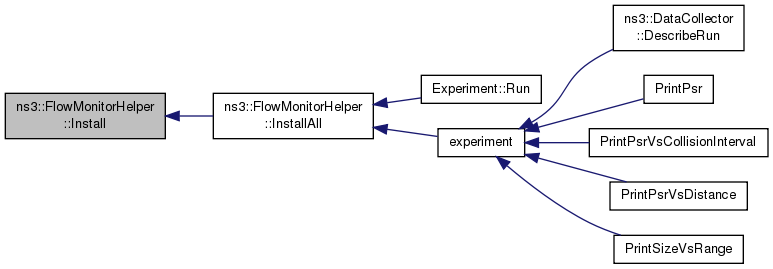

Here is the caller graph for this function:

Ptr< FlowMonitor > ns3::FlowMonitorHelper::Install ( Ptr< Node > node )

Enable flow monitoring on a single node.

Parameters

node	A Ptr<Node> to the node on which to enable flow monitoring.

Returns: a pointer to the FlowMonitor object

Definition at line 97 of file flow-monitor-helper.cc.

References GetClassifier(), GetClassifier6(), GetMonitor(), ns3::Object::GetObject(), and m_flowMonitor.

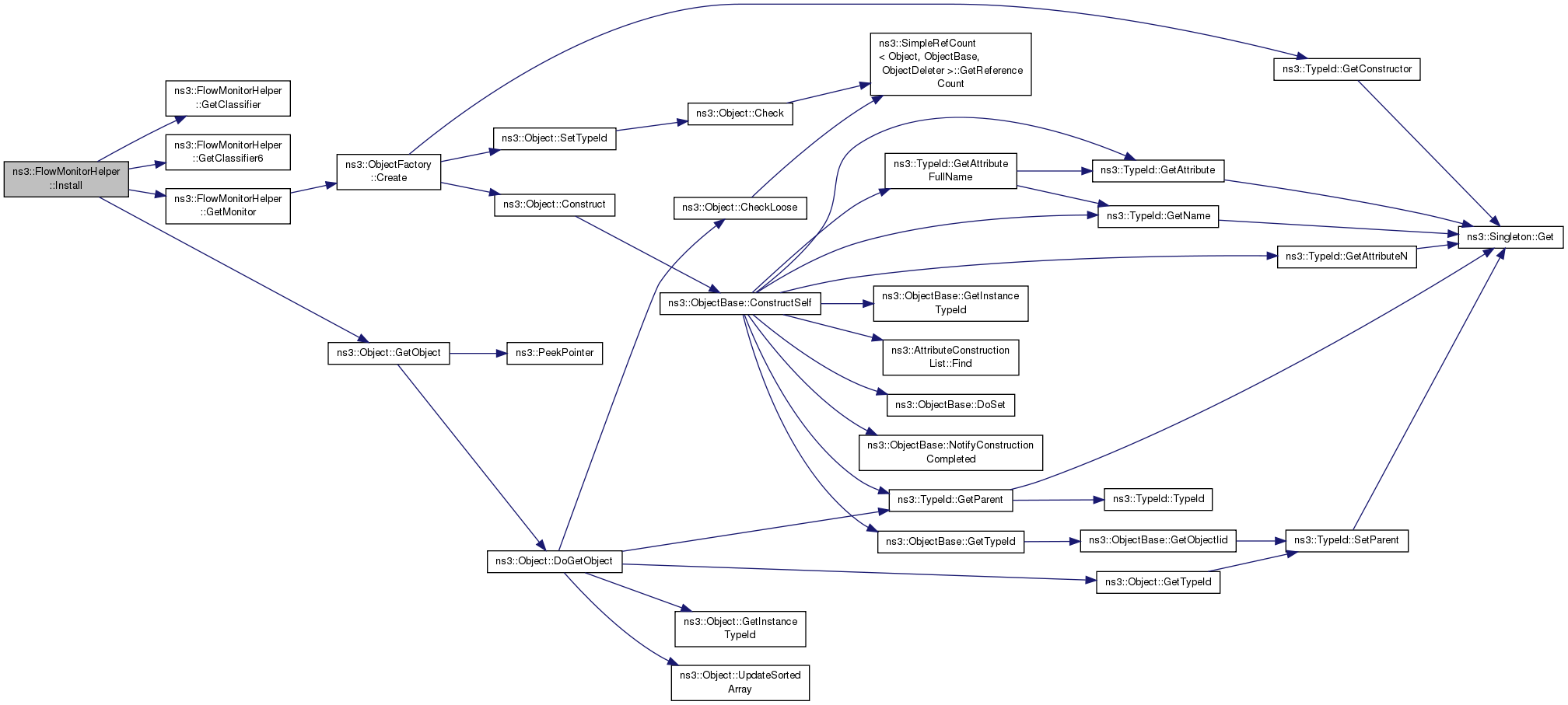

Here is the call graph for this function:

Ptr< FlowMonitor > ns3::FlowMonitorHelper::InstallAll ( void )

Enable flow monitoring on all nodes.

Returns: a pointer to the FlowMonitor object

Definition at line 135 of file flow-monitor-helper.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), Install(), and m_flowMonitor.

Referenced by experiment(), and Experiment::Run().

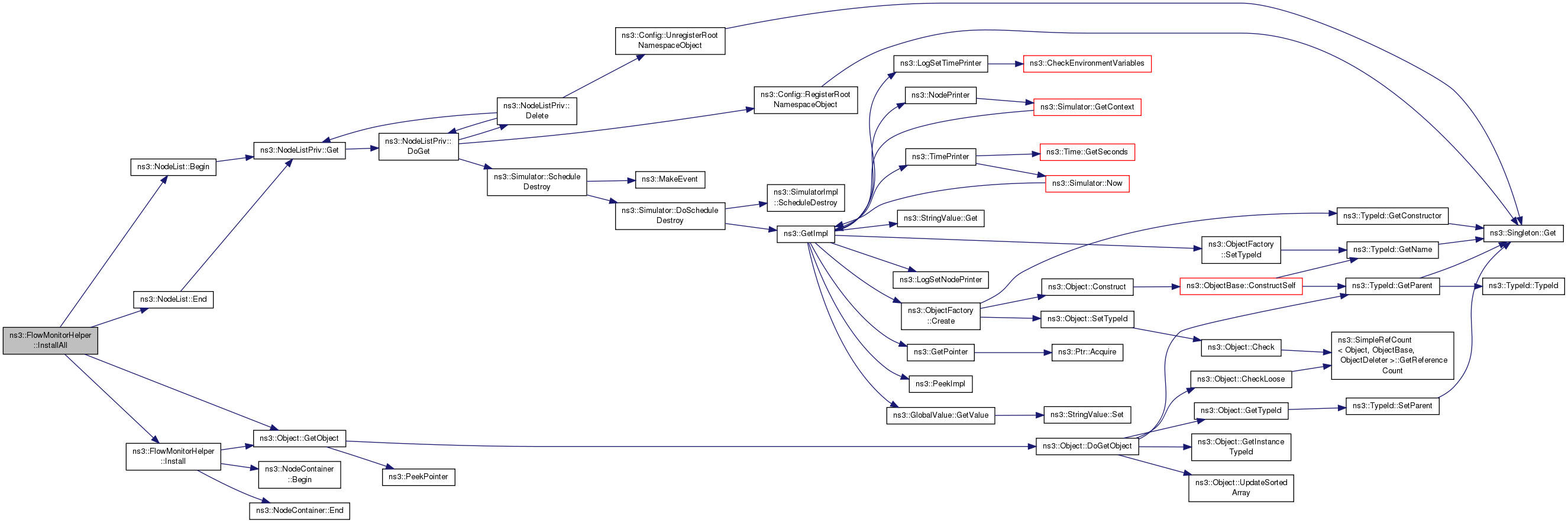

Here is the call graph for this function:

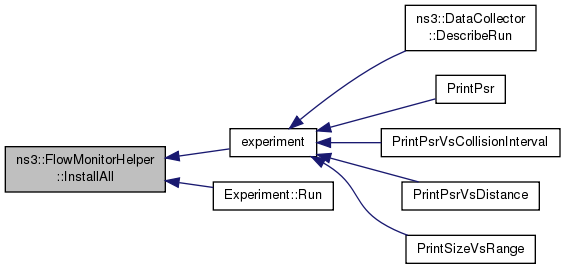

Here is the caller graph for this function:

FlowMonitorHelper& ns3::FlowMonitorHelper::operator= ( const FlowMonitorHelper & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Returns

void ns3::FlowMonitorHelper::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead.

Parameters

fileName	name or path of the output file that will be created
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 169 of file flow-monitor-helper.cc.

References m_flowMonitor.

Referenced by Experiment::Run().

Here is the caller graph for this function:

void ns3::FlowMonitorHelper::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format.

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 149 of file flow-monitor-helper.cc.

References m_flowMonitor.

std::string ns3::FlowMonitorHelper::SerializeToXmlString	(	int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string.

Parameters

indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output
