ns3::Ipv4MulticastRoutingTableEntry Class Reference

A record of an IPv4 multicast route for Ipv4GlobalRouting and Ipv4StaticRouting. More...

#include <ipv4-routing-table-entry.h>

Collaboration diagram for ns3::Ipv4MulticastRoutingTableEntry:

Public Member Functions
	Ipv4MulticastRoutingTableEntry ()
	This constructor does nothing. More...
	Ipv4MulticastRoutingTableEntry (Ipv4MulticastRoutingTableEntry const &route)
	Copy Constructor. More...
	Ipv4MulticastRoutingTableEntry (Ipv4MulticastRoutingTableEntry const *route)
	Copy Constructor. More...
Ipv4Address	GetGroup (void) const
uint32_t	GetInputInterface (void) const
uint32_t	GetNOutputInterfaces (void) const
Ipv4Address	GetOrigin (void) const
uint32_t	GetOutputInterface (uint32_t n) const
std::vector< uint32_t >	GetOutputInterfaces (void) const

Static Public Member Functions
static Ipv4MulticastRoutingTableEntry	CreateMulticastRoute (Ipv4Address origin, Ipv4Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)

Private Member Functions
	Ipv4MulticastRoutingTableEntry (Ipv4Address origin, Ipv4Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
	Constructor. More...

Private Attributes
Ipv4Address	m_group
	destination address More...
uint32_t	m_inputInterface
	input interface More...
Ipv4Address	m_origin
	source address More...
std::vector< uint32_t >	m_outputInterfaces
	output interfaces More...

Detailed Description

A record of an IPv4 multicast route for Ipv4GlobalRouting and Ipv4StaticRouting.

Definition at line 195 of file ipv4-routing-table-entry.h.

Constructor & Destructor Documentation

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry

(

)

This constructor does nothing.

Definition at line 262 of file ipv4-routing-table-entry.cc.

References NS_LOG_FUNCTION.

Referenced by CreateMulticastRoute().

Here is the caller graph for this function:

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry

(

Ipv4MulticastRoutingTableEntry const &

route

)

Copy Constructor.

Parameters

route

The route to copy

Definition at line 267 of file ipv4-routing-table-entry.cc.

References NS_LOG_FUNCTION.

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry

(

Ipv4MulticastRoutingTableEntry const *

route

)

Copy Constructor.

Parameters

route

The route to copy

Definition at line 277 of file ipv4-routing-table-entry.cc.

References NS_LOG_FUNCTION.

ns3::Ipv4MulticastRoutingTableEntry::Ipv4MulticastRoutingTableEntry ( Ipv4Address  origin, Ipv4Address  group, uint32_t  inputInterface, std::vector< uint32_t >  outputInterfaces  )

private

Constructor.

Parameters

origin	source address
group	destination address
inputInterface	input interface
outputInterfaces	output interfaces

Definition at line 287 of file ipv4-routing-table-entry.cc.

References visualizer.higcontainer::group, m_group, m_inputInterface, m_origin, m_outputInterfaces, and NS_LOG_FUNCTION.

Member Function Documentation

Ipv4MulticastRoutingTableEntry ns3::Ipv4MulticastRoutingTableEntry::CreateMulticastRoute ( Ipv4Address  origin, Ipv4Address  group, uint32_t  inputInterface, std::vector< uint32_t >  outputInterfaces  )

static

Returns

Ipv4MulticastRoutingTableEntry corresponding to the input parameters.

Parameters

origin	Source address for the multicast route
group	Group destination address for the multicast route
inputInterface	Input interface that multicast datagram must be received on
outputInterfaces	vector of output interfaces to copy and forward the datagram to

Definition at line 346 of file ipv4-routing-table-entry.cc.

References Ipv4MulticastRoutingTableEntry(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4StaticRouting::AddMulticastRoute().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4MulticastRoutingTableEntry::GetGroup

(

void

)

const

Returns

The IPv4 address of the multicast group of this route

Definition at line 308 of file ipv4-routing-table-entry.cc.

References m_group, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::LookupStatic(), ns3::operator<<(), and ns3::Ipv4StaticRouting::RemoveMulticastRoute().

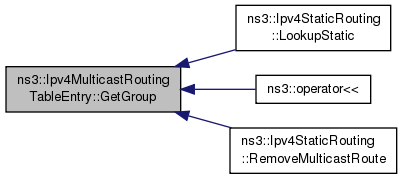

Here is the caller graph for this function:

uint32_t ns3::Ipv4MulticastRoutingTableEntry::GetInputInterface

(

void

)

const

Returns

The IPv4 address of the input interface of this route

Definition at line 315 of file ipv4-routing-table-entry.cc.

References m_inputInterface, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::LookupStatic(), ns3::operator<<(), and ns3::Ipv4StaticRouting::RemoveMulticastRoute().

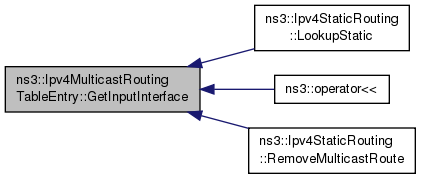

Here is the caller graph for this function:

uint32_t ns3::Ipv4MulticastRoutingTableEntry::GetNOutputInterfaces

(

void

)

const

Returns

The number of output interfaces of this route

Definition at line 322 of file ipv4-routing-table-entry.cc.

References m_outputInterfaces, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::LookupStatic(), and ns3::operator<<().

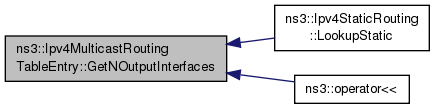

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4MulticastRoutingTableEntry::GetOrigin

(

void

)

const

Returns

The IPv4 address of the source of this route

Definition at line 301 of file ipv4-routing-table-entry.cc.

References m_origin, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::LookupStatic(), ns3::operator<<(), and ns3::Ipv4StaticRouting::RemoveMulticastRoute().

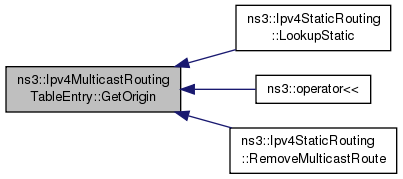

Here is the caller graph for this function:

uint32_t ns3::Ipv4MulticastRoutingTableEntry::GetOutputInterface

(

uint32_t

n

)

const

Parameters

n	interface index

Returns

A specified output interface.

Definition at line 329 of file ipv4-routing-table-entry.cc.

References m_outputInterfaces, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::LookupStatic(), and ns3::operator<<().

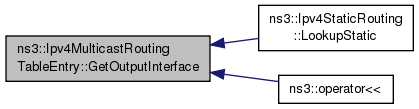

Here is the caller graph for this function:

std::vector< uint32_t > ns3::Ipv4MulticastRoutingTableEntry::GetOutputInterfaces

(

void

)

const

Returns

A vector of all of the output interfaces of this route.

Definition at line 339 of file ipv4-routing-table-entry.cc.

References m_outputInterfaces, and NS_LOG_FUNCTION.

Member Data Documentation

Ipv4Address ns3::Ipv4MulticastRoutingTableEntry::m_group

private

destination address

Definition at line 260 of file ipv4-routing-table-entry.h.

Referenced by GetGroup(), and Ipv4MulticastRoutingTableEntry().

uint32_t ns3::Ipv4MulticastRoutingTableEntry::m_inputInterface

private

input interface

Definition at line 261 of file ipv4-routing-table-entry.h.

Referenced by GetInputInterface(), and Ipv4MulticastRoutingTableEntry().

Ipv4Address ns3::Ipv4MulticastRoutingTableEntry::m_origin

private

source address

Definition at line 259 of file ipv4-routing-table-entry.h.

Referenced by GetOrigin(), and Ipv4MulticastRoutingTableEntry().

std::vector<uint32_t> ns3::Ipv4MulticastRoutingTableEntry::m_outputInterfaces

private

output interfaces

Definition at line 262 of file ipv4-routing-table-entry.h.

Referenced by GetNOutputInterfaces(), GetOutputInterface(), GetOutputInterfaces(), and Ipv4MulticastRoutingTableEntry().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv4-routing-table-entry.h
• src/internet/model/ipv4-routing-table-entry.cc
