ns3::Ipv6MulticastRoute Class Reference

IPv6 multicast route entry. More...

#include <ipv6-route.h>

Inheritance diagram for ns3::Ipv6MulticastRoute:

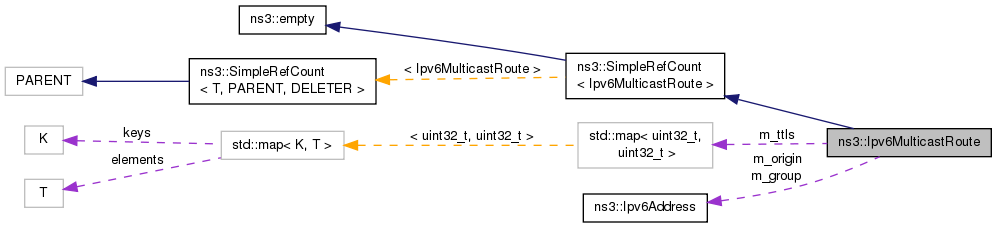

Collaboration diagram for ns3::Ipv6MulticastRoute:

Public Member Functions
	Ipv6MulticastRoute ()
	Constructor. More...
virtual	~Ipv6MulticastRoute ()
	Destructor. More...
Ipv6Address	GetGroup (void) const
	Get IPv6 group. More...
Ipv6Address	GetOrigin (void) const
	Get source address. More...
std::map< uint32_t, uint32_t >	GetOutputTtlMap () const
uint32_t	GetParent (void) const
	Get parent for this route. More...
void	SetGroup (const Ipv6Address group)
	Set IPv6 group. More...
void	SetOrigin (const Ipv6Address origin)
	Set origin address. More...
void	SetOutputTtl (uint32_t oif, uint32_t ttl)
	set output TTL for this route. More...
void	SetParent (uint32_t iif)
	Set parent for this route. More...
Public Member Functions inherited from ns3::SimpleRefCount< Ipv6MulticastRoute >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Static Public Attributes
static const uint32_t	MAX_INTERFACES = 16
	Maximum number of multicast interfaces on a router. More...
static const uint32_t	MAX_TTL = 255
	Maximum Time-To-Live (TTL). More...

Private Attributes
Ipv6Address	m_group
	IPv6 group. More...
Ipv6Address	m_origin
	IPv6 origin (source). More...
uint32_t	m_parent
	Source interface. More...
std::map< uint32_t, uint32_t >	m_ttls
	TTLs. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Ipv6MulticastRoute >
static void	Cleanup (void)
	Noop. More...

Detailed Description

IPv6 multicast route entry.

Definition at line 139 of file ipv6-route.h.

Constructor & Destructor Documentation

ns3::Ipv6MulticastRoute::Ipv6MulticastRoute

(

)

Constructor.

Definition at line 83 of file ipv6-route.cc.

References m_ttls.

ns3::Ipv6MulticastRoute::~Ipv6MulticastRoute ( )

virtual

Destructor.

Definition at line 88 of file ipv6-route.cc.

Member Function Documentation

Ipv6Address ns3::Ipv6MulticastRoute::GetGroup

(

void

)

const

Get IPv6 group.

Returns

Ipv6Address of the multicast group

Definition at line 97 of file ipv6-route.cc.

References m_group.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6MulticastRoute::GetOrigin

(

void

)

const

Get source address.

Returns

Ipv6Address of the origin address

Definition at line 107 of file ipv6-route.cc.

References m_origin.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

std::map< uint32_t, uint32_t > ns3::Ipv6MulticastRoute::GetOutputTtlMap

(

)

const

Returns

map of output interface Ids and TTLs for this route

Definition at line 140 of file ipv6-route.cc.

References m_ttls.

uint32_t ns3::Ipv6MulticastRoute::GetParent

(

void

)

const

Get parent for this route.

Returns

Parent (input interface) for this route

Definition at line 117 of file ipv6-route.cc.

References m_parent.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

void ns3::Ipv6MulticastRoute::SetGroup

(

const Ipv6Address

group

)

Set IPv6 group.

Parameters

group

Ipv6Address of the multicast group

Definition at line 92 of file ipv6-route.cc.

References visualizer.higcontainer::group, and m_group.

void ns3::Ipv6MulticastRoute::SetOrigin

(

const Ipv6Address

origin

)

Set origin address.

Parameters

origin

Ipv6Address of the origin address

Definition at line 102 of file ipv6-route.cc.

References m_origin.

void ns3::Ipv6MulticastRoute::SetOutputTtl	(	uint32_t	oif,
		uint32_t	ttl
	)

set output TTL for this route.

Parameters

oif	Outgoing interface index
ttl	time-to-live for this route

Definition at line 122 of file ipv6-route.cc.

References m_ttls, and MAX_TTL.

void ns3::Ipv6MulticastRoute::SetParent

(

uint32_t

iif

)

Set parent for this route.

Parameters

iif	Parent (input interface) for this route

Definition at line 112 of file ipv6-route.cc.

References m_parent.

Member Data Documentation

Ipv6Address ns3::Ipv6MulticastRoute::m_group

private

IPv6 group.

Definition at line 214 of file ipv6-route.h.

Referenced by GetGroup(), and SetGroup().

Ipv6Address ns3::Ipv6MulticastRoute::m_origin

private

IPv6 origin (source).

Definition at line 219 of file ipv6-route.h.

Referenced by GetOrigin(), and SetOrigin().

uint32_t ns3::Ipv6MulticastRoute::m_parent

private

Source interface.

Definition at line 224 of file ipv6-route.h.

Referenced by GetParent(), and SetParent().

std::map<uint32_t, uint32_t> ns3::Ipv6MulticastRoute::m_ttls

private

TTLs.

Definition at line 229 of file ipv6-route.h.

Referenced by GetOutputTtlMap(), Ipv6MulticastRoute(), and SetOutputTtl().

const uint32_t ns3::Ipv6MulticastRoute::MAX_INTERFACES = 16

static

Maximum number of multicast interfaces on a router.

Definition at line 145 of file ipv6-route.h.

const uint32_t ns3::Ipv6MulticastRoute::MAX_TTL = 255

static

Maximum Time-To-Live (TTL).

Definition at line 150 of file ipv6-route.h.

Referenced by ns3::Ipv6StaticRouting::LookupStatic(), and SetOutputTtl().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-route.h
• src/internet/model/ipv6-route.cc
