ns3::Ipv6MulticastRoutingTableEntry Class Reference

A record of an IPv6 multicast route. More...

#include <ipv6-routing-table-entry.h>

Collaboration diagram for ns3::Ipv6MulticastRoutingTableEntry:

Public Member Functions
	Ipv6MulticastRoutingTableEntry ()
	Constructor. More...
	Ipv6MulticastRoutingTableEntry (Ipv6MulticastRoutingTableEntry const &route)
	Copy constructor. More...
	Ipv6MulticastRoutingTableEntry (Ipv6MulticastRoutingTableEntry const *route)
	Copy constructor. More...
Ipv6Address	GetGroup () const
	Get the group. More...
uint32_t	GetInputInterface () const
	Get the input interface address. More...
uint32_t	GetNOutputInterfaces () const
	Get the number of output interfaces of this route. More...
Ipv6Address	GetOrigin () const
	Get the source of this route. More...
uint32_t	GetOutputInterface (uint32_t n) const
	Get a specified output interface. More...
std::vector< uint32_t >	GetOutputInterfaces () const
	Get all of the output interfaces of this route. More...

Static Public Member Functions
static Ipv6MulticastRoutingTableEntry	CreateMulticastRoute (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
	Create a multicast route. More...

Private Member Functions
	Ipv6MulticastRoutingTableEntry (Ipv6Address origin, Ipv6Address group, uint32_t inputInterface, std::vector< uint32_t > outputInterfaces)
	Constructor. More...

Private Attributes
Ipv6Address	m_group
	The IPv6 address of the group. More...
uint32_t	m_inputInterface
	The input interface. More...
Ipv6Address	m_origin
	The IPv6 address of the source. More...
std::vector< uint32_t >	m_outputInterfaces
	The output interfaces. More...

Detailed Description

A record of an IPv6 multicast route.

Definition at line 276 of file ipv6-routing-table-entry.h.

Constructor & Destructor Documentation

ns3::Ipv6MulticastRoutingTableEntry::Ipv6MulticastRoutingTableEntry

(

)

Constructor.

Definition at line 250 of file ipv6-routing-table-entry.cc.

Referenced by CreateMulticastRoute().

Here is the caller graph for this function:

ns3::Ipv6MulticastRoutingTableEntry::Ipv6MulticastRoutingTableEntry

(

Ipv6MulticastRoutingTableEntry const &

route

)

Copy constructor.

Parameters

route

the route to copy

Definition at line 254 of file ipv6-routing-table-entry.cc.

ns3::Ipv6MulticastRoutingTableEntry::Ipv6MulticastRoutingTableEntry

(

Ipv6MulticastRoutingTableEntry const *

route

)

Copy constructor.

Parameters

route

the route to copy

Definition at line 262 of file ipv6-routing-table-entry.cc.

ns3::Ipv6MulticastRoutingTableEntry::Ipv6MulticastRoutingTableEntry ( Ipv6Address  origin, Ipv6Address  group, uint32_t  inputInterface, std::vector< uint32_t >  outputInterfaces  )

private

Constructor.

Parameters

origin	IPv6 address of the source
group	IPv6 address of the group
inputInterface	interface number
outputInterfaces	list of output interface number

Definition at line 270 of file ipv6-routing-table-entry.cc.

Member Function Documentation

Ipv6MulticastRoutingTableEntry ns3::Ipv6MulticastRoutingTableEntry::CreateMulticastRoute ( Ipv6Address  origin, Ipv6Address  group, uint32_t  inputInterface, std::vector< uint32_t >  outputInterfaces  )

static

Create a multicast route.

Parameters

origin	IPv6 address of the origin source
group	Ipv6Address of the group
inputInterface	interface number
outputInterfaces	list of output interface number

Returns

a multicast route

Definition at line 310 of file ipv6-routing-table-entry.cc.

References Ipv6MulticastRoutingTableEntry().

Referenced by ns3::Ipv6StaticRouting::AddMulticastRoute().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6MulticastRoutingTableEntry::GetGroup

(

void

)

const

Get the group.

Returns

IPv6 address of the multicast group of this route

Definition at line 283 of file ipv6-routing-table-entry.cc.

References m_group.

Referenced by ns3::Ipv6StaticRouting::LookupStatic(), ns3::operator<<(), and ns3::Ipv6StaticRouting::RemoveMulticastRoute().

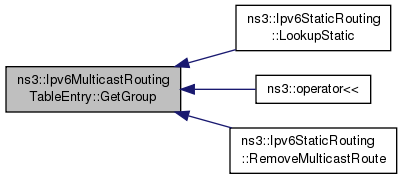

Here is the caller graph for this function:

uint32_t ns3::Ipv6MulticastRoutingTableEntry::GetInputInterface

(

void

)

const

Get the input interface address.

Returns

input interface index

Definition at line 288 of file ipv6-routing-table-entry.cc.

References m_inputInterface.

Referenced by ns3::Ipv6StaticRouting::LookupStatic(), ns3::operator<<(), and ns3::Ipv6StaticRouting::RemoveMulticastRoute().

Here is the caller graph for this function:

uint32_t ns3::Ipv6MulticastRoutingTableEntry::GetNOutputInterfaces

(

void

)

const

Get the number of output interfaces of this route.

Returns

number of output interfaces of this route.

Definition at line 293 of file ipv6-routing-table-entry.cc.

References m_outputInterfaces.

Referenced by ns3::Ipv6StaticRouting::LookupStatic(), and ns3::operator<<().

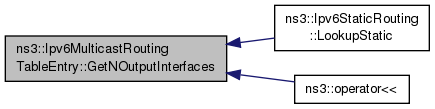

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6MulticastRoutingTableEntry::GetOrigin

(

void

)

const

Get the source of this route.

Returns

IPv6 address of the source of this route

Definition at line 278 of file ipv6-routing-table-entry.cc.

References m_origin.

Referenced by ns3::Ipv6StaticRouting::LookupStatic(), ns3::operator<<(), and ns3::Ipv6StaticRouting::RemoveMulticastRoute().

Here is the caller graph for this function:

uint32_t ns3::Ipv6MulticastRoutingTableEntry::GetOutputInterface

(

uint32_t

n

)

const

Get a specified output interface.

Parameters

n

index

Returns

a specified output interface

Definition at line 298 of file ipv6-routing-table-entry.cc.

References m_outputInterfaces, and NS_ASSERT_MSG.

Referenced by ns3::Ipv6StaticRouting::LookupStatic(), and ns3::operator<<().

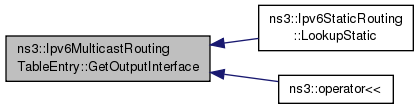

Here is the caller graph for this function:

std::vector< uint32_t > ns3::Ipv6MulticastRoutingTableEntry::GetOutputInterfaces

(

void

)

const

Get all of the output interfaces of this route.

Returns

a vector of all output interfaces of this route

Definition at line 305 of file ipv6-routing-table-entry.cc.

References m_outputInterfaces.

Member Data Documentation

Ipv6Address ns3::Ipv6MulticastRoutingTableEntry::m_group

private

The IPv6 address of the group.

Definition at line 361 of file ipv6-routing-table-entry.h.

Referenced by GetGroup().

uint32_t ns3::Ipv6MulticastRoutingTableEntry::m_inputInterface

private

The input interface.

Definition at line 366 of file ipv6-routing-table-entry.h.

Referenced by GetInputInterface().

Ipv6Address ns3::Ipv6MulticastRoutingTableEntry::m_origin

private

The IPv6 address of the source.

Definition at line 356 of file ipv6-routing-table-entry.h.

Referenced by GetOrigin().

std::vector<uint32_t> ns3::Ipv6MulticastRoutingTableEntry::m_outputInterfaces

private

The output interfaces.

Definition at line 371 of file ipv6-routing-table-entry.h.

Referenced by GetNOutputInterfaces(), GetOutputInterface(), and GetOutputInterfaces().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-routing-table-entry.h
• src/internet/model/ipv6-routing-table-entry.cc
