ns3::Ipv6Route Class Reference

IPv6 route cache entry. More...

#include <ipv6-route.h>

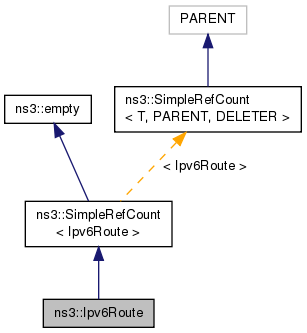

Inheritance diagram for ns3::Ipv6Route:

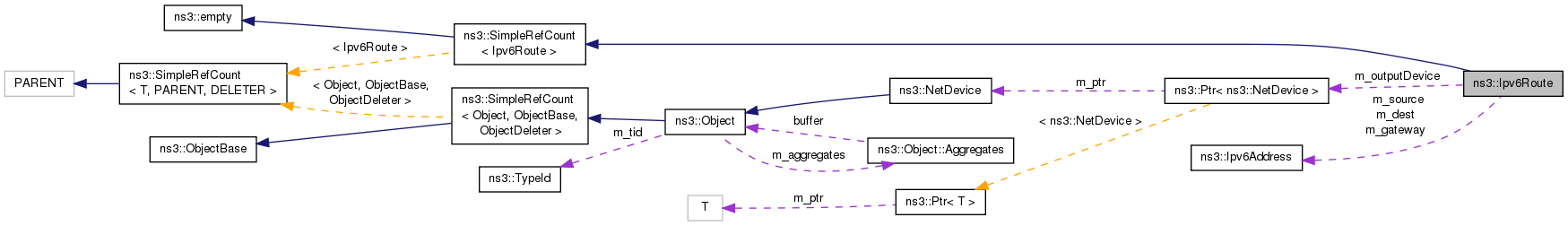

Collaboration diagram for ns3::Ipv6Route:

Public Member Functions
	Ipv6Route ()
	Constructor. More...
virtual	~Ipv6Route ()
	Destructor. More...
Ipv6Address	GetDestination () const
	Get destination address. More...
Ipv6Address	GetGateway () const
	Get gateway address. More...
Ptr< NetDevice >	GetOutputDevice () const
	Get output device. More...
Ipv6Address	GetSource () const
	Get source address. More...
void	SetDestination (Ipv6Address dest)
	Set destination address. More...
void	SetGateway (Ipv6Address gw)
	Set gateway address. More...
void	SetOutputDevice (Ptr< NetDevice > outputDevice)
	Set output device for outgoing packets. More...
void	SetSource (Ipv6Address src)
	Set source address. More...
Public Member Functions inherited from ns3::SimpleRefCount< Ipv6Route >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Ipv6Address	m_dest
	Destination address. More...
Ipv6Address	m_gateway
	Gateway address. More...
Ptr< NetDevice >	m_outputDevice
	Output device. More...
Ipv6Address	m_source
	source address. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Ipv6Route >
static void	Cleanup (void)
	Noop. More...

Detailed Description

IPv6 route cache entry.

Definition at line 42 of file ipv6-route.h.

Constructor & Destructor Documentation

ns3::Ipv6Route::Ipv6Route

(

)

Constructor.

Definition at line 29 of file ipv6-route.cc.

ns3::Ipv6Route::~Ipv6Route ( )

virtual

Destructor.

Definition at line 33 of file ipv6-route.cc.

Member Function Documentation

Ipv6Address ns3::Ipv6Route::GetDestination

(

void

)

const

Get destination address.

Returns

destination address

Definition at line 42 of file ipv6-route.cc.

References m_dest.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6Route::GetGateway

(

void

)

const

Get gateway address.

Returns

gateway address

Definition at line 62 of file ipv6-route.cc.

References m_gateway.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::Ipv6Route::GetOutputDevice

(

void

)

const

Get output device.

Returns

output device

Definition at line 72 of file ipv6-route.cc.

References m_outputDevice.

Ipv6Address ns3::Ipv6Route::GetSource

(

void

)

const

Get source address.

Returns

source address

Definition at line 52 of file ipv6-route.cc.

References m_source.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

void ns3::Ipv6Route::SetDestination

(

Ipv6Address

dest

)

Set destination address.

Parameters

dest	IPv6 destination address

Definition at line 37 of file ipv6-route.cc.

References m_dest.

void ns3::Ipv6Route::SetGateway

(

Ipv6Address

gw

)

Set gateway address.

Parameters

gw	IPv6 gateway address

Definition at line 57 of file ipv6-route.cc.

References m_gateway.

void ns3::Ipv6Route::SetOutputDevice

(

Ptr< NetDevice >

outputDevice

)

Set output device for outgoing packets.

Parameters

outputDevice

output device

Definition at line 67 of file ipv6-route.cc.

References m_outputDevice.

void ns3::Ipv6Route::SetSource

(

Ipv6Address

src

)

Set source address.

Parameters

src	IPv6 source address

Definition at line 47 of file ipv6-route.cc.

References m_source.

Member Data Documentation

Ipv6Address ns3::Ipv6Route::m_dest

private

Destination address.

Definition at line 107 of file ipv6-route.h.

Referenced by GetDestination(), and SetDestination().

Ipv6Address ns3::Ipv6Route::m_gateway

private

Gateway address.

Definition at line 117 of file ipv6-route.h.

Referenced by GetGateway(), and SetGateway().

Ptr<NetDevice> ns3::Ipv6Route::m_outputDevice

private

Output device.

Definition at line 122 of file ipv6-route.h.

Referenced by GetOutputDevice(), and SetOutputDevice().

Ipv6Address ns3::Ipv6Route::m_source

private

source address.

Definition at line 112 of file ipv6-route.h.

Referenced by GetSource(), and SetSource().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-route.h
• src/internet/model/ipv6-route.cc
