A record of an IPv6 route. More...

#include <ipv6-routing-table-entry.h>

Inheritance diagram for ns3::Ipv6RoutingTableEntry:

Collaboration diagram for ns3::Ipv6RoutingTableEntry:

Public Member Functions
	Ipv6RoutingTableEntry ()
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6RoutingTableEntry const &route)
	Copy constructor. More...

	Ipv6RoutingTableEntry (Ipv6RoutingTableEntry const *route)
	Copy constructor. More...

virtual	~Ipv6RoutingTableEntry ()
	Destructor. More...

Ipv6Address	GetDest () const
	Get the destination. More...

Ipv6Address	GetDestNetwork () const
	Get the destination network. More...

Ipv6Prefix	GetDestNetworkPrefix () const
	Get the destination prefix. More...

Ipv6Address	GetGateway () const
	Get the gateway. More...

uint32_t	GetInterface () const
	Get the interface index. More...

Ipv6Address	GetPrefixToUse () const
	Get the prefix to use (for multihomed link). More...

bool	IsDefault () const
	Is it the default route ? More...

bool	IsGateway () const
	Is it the gateway ? More...

bool	IsHost () const
	Is the route entry correspond to a host ? More...

bool	IsNetwork () const
	Is the route entry correspond to a network ? More...

void	SetPrefixToUse (Ipv6Address prefix)
	Set the prefix to use. More...

Static Public Member Functions
static Ipv6RoutingTableEntry	CreateDefaultRoute (Ipv6Address nextHop, uint32_t interface)
	Create a default route. More...

static Ipv6RoutingTableEntry	CreateHostRouteTo (Ipv6Address dest, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address())
	Create a route to a host. More...

static Ipv6RoutingTableEntry	CreateHostRouteTo (Ipv6Address dest, uint32_t interface)
	Create a route to a host. More...

static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface)
	Create a route to a network. More...

static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse)
	Create a route to a network. More...

static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface)
	Create a route to a network. More...

Private Member Functions
	Ipv6RoutingTableEntry (Ipv6Address network, Ipv6Prefix prefix, Ipv6Address gateway, uint32_t interface)
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6Address network, Ipv6Prefix prefix, uint32_t interface, Ipv6Address prefixToUse)
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6Address network, Ipv6Prefix prefix, Ipv6Address gateway, uint32_t interface, Ipv6Address prefixToUse)
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6Address dest, Ipv6Prefix prefix, uint32_t interface)
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6Address dest, Ipv6Address gateway, uint32_t interface)
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6Address dest, uint32_t interface)
	Constructor. More...

Private Attributes
Ipv6Address	m_dest
	IPv6 address of the destination. More...

Ipv6Prefix	m_destNetworkPrefix
	IPv6 prefix of the destination. More...

Ipv6Address	m_gateway
	IPv6 address of the gateway. More...

uint32_t	m_interface
	The interface index. More...

Ipv6Address	m_prefixToUse
	Prefix to use. More...

Detailed Description

A record of an IPv6 route.

Definition at line 37 of file ipv6-routing-table-entry.h.

Constructor & Destructor Documentation

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry ( )

Constructor.

Definition at line 28 of file ipv6-routing-table-entry.cc.

Referenced by CreateDefaultRoute(), CreateHostRouteTo(), and CreateNetworkRouteTo().

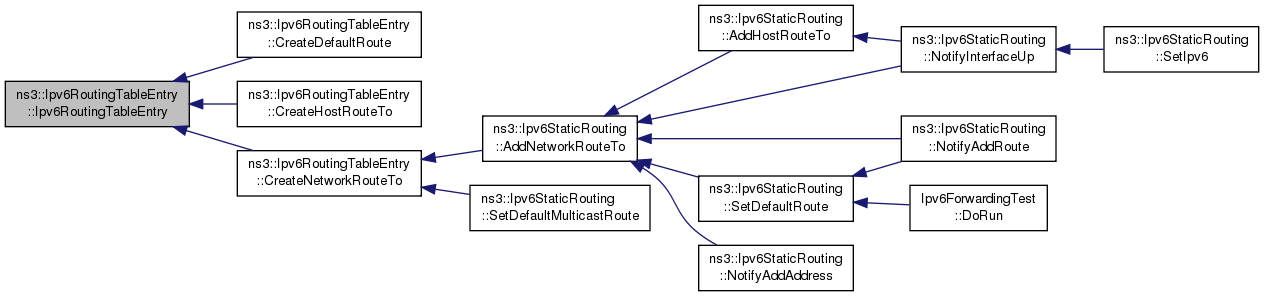

Here is the caller graph for this function:

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry ( Ipv6RoutingTableEntry const & route )

Copy constructor.

Parameters

route the route to copy

Definition at line 32 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry ( Ipv6RoutingTableEntry const * route )

Copy constructor.

Parameters

route the route to copy

Definition at line 41 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::~Ipv6RoutingTableEntry ( )

virtual

Destructor.

Definition at line 105 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		Ipv6Address	gateway,
		uint32_t	interface
	)

private

Constructor.

Parameters

network	network address
prefix	network prefix
gateway	the gateway
interface	the interface index

Definition at line 77 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)

private

Constructor.

Parameters

network	network address
prefix	network prefix
interface	the interface index
prefixToUse	prefix to use

Definition at line 87 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		Ipv6Address	gateway,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)

private

Constructor.

Parameters

network	network address
prefix	network prefix
gateway	the gateway
interface	the interface index
prefixToUse	prefix to use

Definition at line 68 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	dest,
		Ipv6Prefix	prefix,
		uint32_t	interface
	)

private

Constructor.

Parameters

dest	destination address
prefix	destination prefix
interface	interface index

Definition at line 96 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	dest,
		Ipv6Address	gateway,
		uint32_t	interface
	)

private

Constructor.

Parameters

dest	destination address
gateway	the gateway
interface	interface index

Definition at line 50 of file ipv6-routing-table-entry.cc.

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	dest,
		uint32_t	interface
	)

private

Constructor.

Parameters

dest	destination address
interface	interface index

Definition at line 59 of file ipv6-routing-table-entry.cc.

Member Function Documentation

Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateDefaultRoute	(	Ipv6Address	nextHop,
		uint32_t	interface
	)

static

Create a default route.

Parameters

nextHop	next hop address to route the packet
interface	interface index

Returns: IPv6Route object

Definition at line 196 of file ipv6-routing-table-entry.cc.

References ns3::Ipv6Address::GetZero(), and Ipv6RoutingTableEntry().

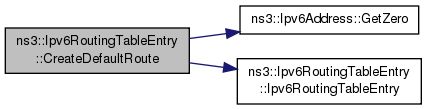

Here is the call graph for this function:

Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateHostRouteTo	(	Ipv6Address	dest,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address ()`
	)

static

Create a route to a host.

Parameters

dest	destination address
nextHop	next hop address to route the packet
interface	interface index
prefixToUse	prefix that should be used for source address for this destination

Returns: IPv6Route object

Definition at line 171 of file ipv6-routing-table-entry.cc.

References ns3::Ipv6Prefix::GetOnes(), and Ipv6RoutingTableEntry().

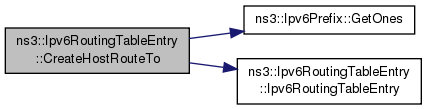

Here is the call graph for this function:

Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateHostRouteTo	(	Ipv6Address	dest,
		uint32_t	interface
	)

static

Create a route to a host.

Parameters

dest	destination address
interface	interface index

Returns: IPv6Route object

Definition at line 176 of file ipv6-routing-table-entry.cc.

References Ipv6RoutingTableEntry().

Here is the call graph for this function:

Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface
	)

static

Create a route to a network.

Parameters

network	network address
networkPrefix	network prefix
nextHop	next hop address to route the packet
interface	interface index

Returns: IPv6Route object

Definition at line 181 of file ipv6-routing-table-entry.cc.

References Ipv6RoutingTableEntry().

Referenced by ns3::Ipv6StaticRouting::AddNetworkRouteTo(), and ns3::Ipv6StaticRouting::SetDefaultMulticastRoute().

Here is the call graph for this function:

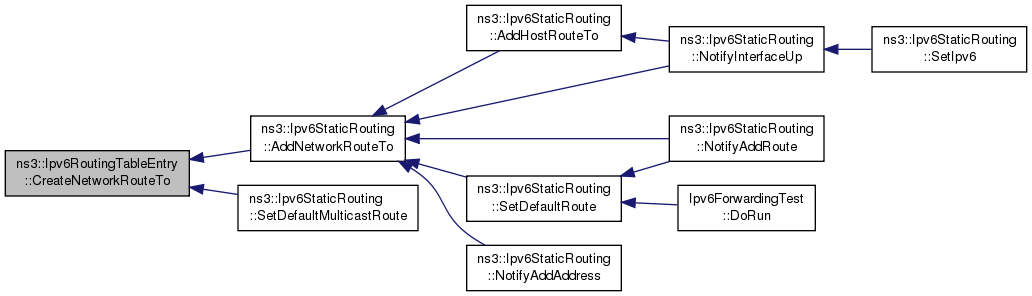

Here is the caller graph for this function:

Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)

static

Create a route to a network.

Parameters

network	network address
networkPrefix	network prefix
nextHop	next hop address to route the packet
interface	interface index
prefixToUse	prefix that should be used for source address for this destination

Returns: IPv6Route object

Definition at line 186 of file ipv6-routing-table-entry.cc.

References Ipv6RoutingTableEntry().

Here is the call graph for this function:

Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		uint32_t	interface
	)

static

Create a route to a network.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index

Returns: IPv6Route object

Definition at line 191 of file ipv6-routing-table-entry.cc.

References Ipv6RoutingTableEntry().

Here is the call graph for this function:

Ipv6Address ns3::Ipv6RoutingTableEntry::GetDest ( void ) const

Get the destination.

Returns: the IPv6 address of the destination of this route

Definition at line 118 of file ipv6-routing-table-entry.cc.

References m_dest.

Referenced by ns3::RipNg::Lookup(), ns3::Ipv6StaticRouting::LookupStatic(), ns3::operator<<(), StackHelper::PrintRoutingTable(), ns3::RipNg::PrintRoutingTable(), ns3::Ipv6StaticRouting::PrintRoutingTable(), and ns3::Ipv6StaticRouting::RemoveRoute().

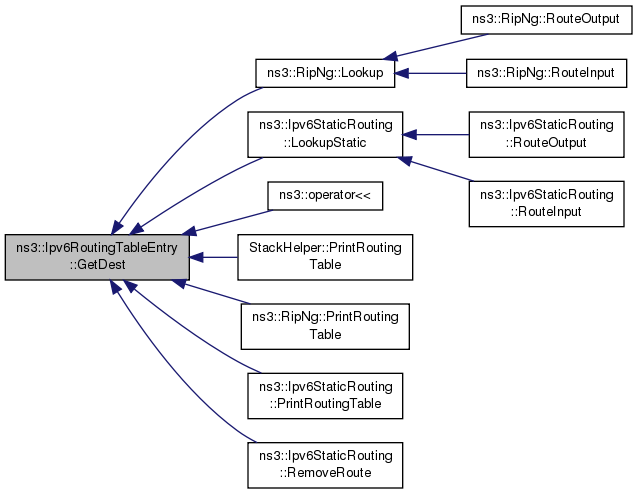

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6RoutingTableEntry::GetDestNetwork ( void ) const

Get the destination network.

Returns: the destination network

Definition at line 147 of file ipv6-routing-table-entry.cc.

References m_dest.

Referenced by ns3::Ipv6StaticRouting::GetDefaultRoute(), ns3::Ipv6StaticRouting::HasNetworkDest(), ns3::RipNg::Lookup(), ns3::Ipv6StaticRouting::LookupStatic(), ns3::Ipv6StaticRouting::NotifyRemoveRoute(), and ns3::operator<<().

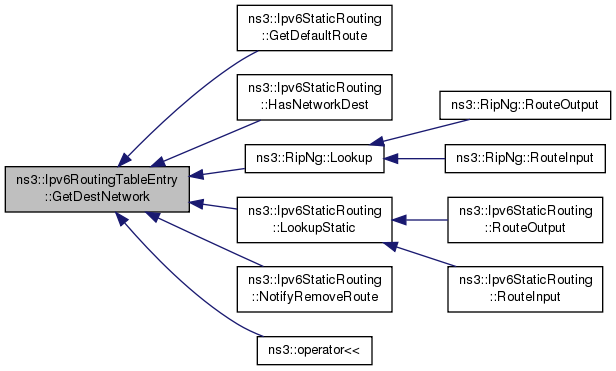

Here is the caller graph for this function:

Ipv6Prefix ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix ( ) const

Get the destination prefix.

Returns: the destination prefix

Definition at line 152 of file ipv6-routing-table-entry.cc.

References m_destNetworkPrefix.

Referenced by ns3::Ipv6StaticRouting::GetDefaultRoute(), ns3::Ipv6StaticRouting::HasNetworkDest(), ns3::RipNg::Lookup(), ns3::Ipv6StaticRouting::LookupStatic(), ns3::Ipv6StaticRouting::NotifyRemoveRoute(), ns3::operator<<(), ns3::RipNg::PrintRoutingTable(), and ns3::Ipv6StaticRouting::PrintRoutingTable().

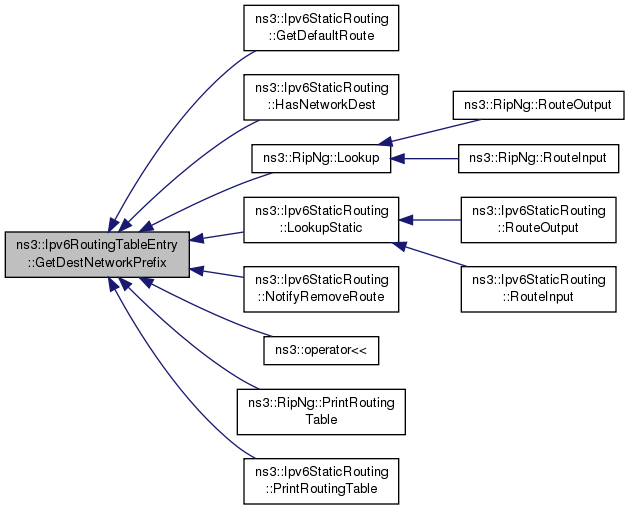

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6RoutingTableEntry::GetGateway ( void ) const

Get the gateway.

Returns: the IPv6 address of the gateway

Definition at line 166 of file ipv6-routing-table-entry.cc.

References m_gateway.

Referenced by ns3::RipNg::Lookup(), ns3::Ipv6StaticRouting::LookupStatic(), ns3::operator<<(), StackHelper::PrintRoutingTable(), ns3::RipNg::PrintRoutingTable(), and ns3::Ipv6StaticRouting::PrintRoutingTable().

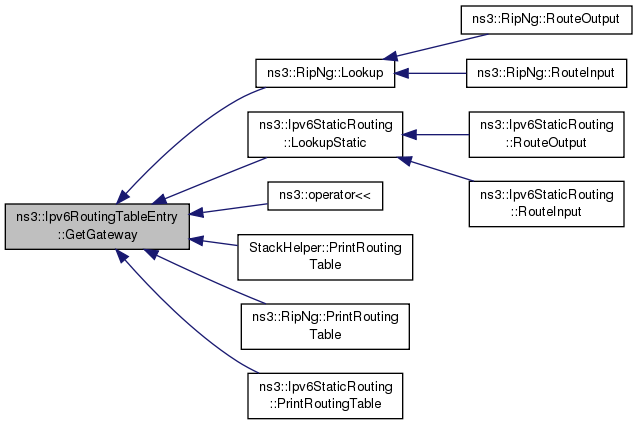

Here is the caller graph for this function:

uint32_t ns3::Ipv6RoutingTableEntry::GetInterface ( void ) const

Get the interface index.

Returns: the index of the interface

Definition at line 201 of file ipv6-routing-table-entry.cc.

References m_interface.

Referenced by ns3::Ipv6StaticRouting::HasNetworkDest(), ns3::RipNg::Lookup(), ns3::Ipv6StaticRouting::LookupStatic(), ns3::Ipv6StaticRouting::NotifyRemoveRoute(), ns3::operator<<(), StackHelper::PrintRoutingTable(), ns3::RipNg::PrintRoutingTable(), ns3::Ipv6StaticRouting::PrintRoutingTable(), and ns3::Ipv6StaticRouting::RemoveRoute().

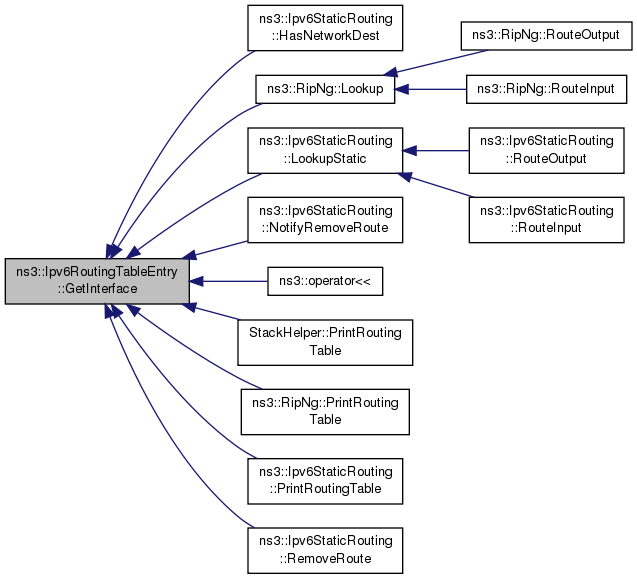

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6RoutingTableEntry::GetPrefixToUse ( ) const

Get the prefix to use (for multihomed link).

Returns: prefix address to use

Definition at line 123 of file ipv6-routing-table-entry.cc.

References m_prefixToUse.

Referenced by ns3::RipNg::Lookup(), ns3::Ipv6StaticRouting::LookupStatic(), StackHelper::PrintRoutingTable(), and ns3::Ipv6StaticRouting::RemoveRoute().

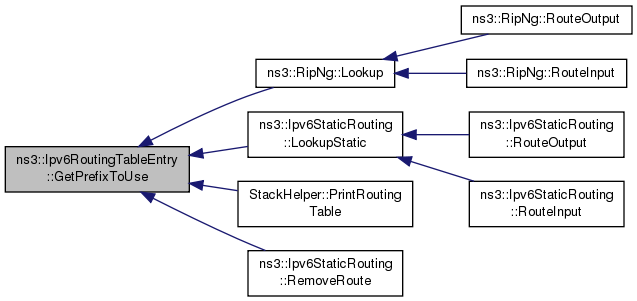

Here is the caller graph for this function:

bool ns3::Ipv6RoutingTableEntry::IsDefault ( void ) const

Is it the default route ?

Returns: true if this route is a default route, false otherwise

Definition at line 138 of file ipv6-routing-table-entry.cc.

References ns3::Ipv6Address::GetZero(), ns3::Ipv6Address::IsEqual(), and m_dest.

Referenced by ns3::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

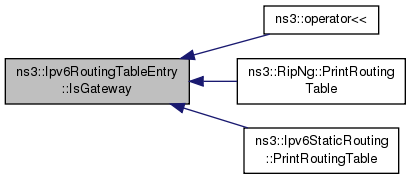

bool ns3::Ipv6RoutingTableEntry::IsGateway ( void ) const

Is it the gateway ?

Returns: true if this route is a gateway, false otherwise

Definition at line 157 of file ipv6-routing-table-entry.cc.

References ns3::Ipv6Address::GetZero(), ns3::Ipv6Address::IsEqual(), and m_gateway.

Referenced by ns3::operator<<(), ns3::RipNg::PrintRoutingTable(), and ns3::Ipv6StaticRouting::PrintRoutingTable().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv6RoutingTableEntry::IsHost ( void ) const

Is the route entry correspond to a host ?

Returns: true if the route is a host, false otherwise

Definition at line 109 of file ipv6-routing-table-entry.cc.

References ns3::Ipv6Prefix::GetOnes(), ns3::Ipv6Prefix::IsEqual(), and m_destNetworkPrefix.

Referenced by IsNetwork(), ns3::operator<<(), ns3::RipNg::PrintRoutingTable(), and ns3::Ipv6StaticRouting::PrintRoutingTable().

Here is the call graph for this function:

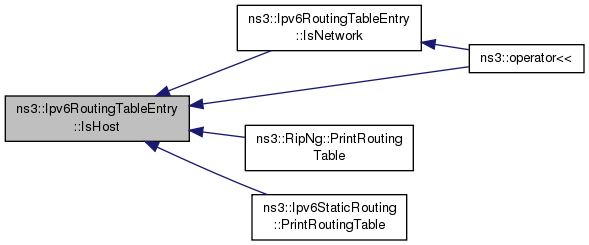

Here is the caller graph for this function:

bool ns3::Ipv6RoutingTableEntry::IsNetwork ( void ) const

Is the route entry correspond to a network ?

Returns: true if the route is a network, false otherwise

Definition at line 133 of file ipv6-routing-table-entry.cc.

References IsHost().

Referenced by ns3::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6RoutingTableEntry::SetPrefixToUse ( Ipv6Address prefix )

Set the prefix to use.

Parameters

prefix prefix to use

Definition at line 128 of file ipv6-routing-table-entry.cc.

References m_prefixToUse.

Member Data Documentation

Ipv6Address ns3::Ipv6RoutingTableEntry::m_dest

private

IPv6 address of the destination.

Definition at line 239 of file ipv6-routing-table-entry.h.

Referenced by GetDest(), GetDestNetwork(), and IsDefault().

Ipv6Prefix ns3::Ipv6RoutingTableEntry::m_destNetworkPrefix

private

IPv6 prefix of the destination.

Definition at line 244 of file ipv6-routing-table-entry.h.

Referenced by GetDestNetworkPrefix(), and IsHost().

Ipv6Address ns3::Ipv6RoutingTableEntry::m_gateway

private

IPv6 address of the gateway.

Definition at line 249 of file ipv6-routing-table-entry.h.

Referenced by GetGateway(), and IsGateway().

uint32_t ns3::Ipv6RoutingTableEntry::m_interface

private

The interface index.

Definition at line 254 of file ipv6-routing-table-entry.h.

Referenced by GetInterface().

Ipv6Address ns3::Ipv6RoutingTableEntry::m_prefixToUse

private

Prefix to use.

Definition at line 259 of file ipv6-routing-table-entry.h.

Referenced by GetPrefixToUse(), and SetPrefixToUse().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-routing-table-entry.h
src/internet/model/ipv6-routing-table-entry.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
