ns3::LteEnbCmacSapProvider Class Reference

Service Access Point (SAP) offered by the eNB MAC to the eNB RRC See Femto Forum MAC Scheduler Interface Specification v 1.11, Figure 1. More...

#include <lte-enb-cmac-sap.h>

Inheritance diagram for ns3::LteEnbCmacSapProvider:

Classes
struct	AllocateNcRaPreambleReturnValue
struct	LcInfo
	Logical Channel information to be passed to CmacSapProvider::ConfigureLc. More...
struct	RachConfig
	struct defining the RACH configuration of the MAC More...
struct	UeConfig
	Parameters for [re]configuring the UE. More...

Public Member Functions
virtual	~LteEnbCmacSapProvider ()
virtual void	AddLc (LcInfo lcinfo, LteMacSapUser *msu)=0
	Add a new logical channel. More...
virtual void	AddUe (uint16_t rnti)=0
virtual AllocateNcRaPreambleReturnValue	AllocateNcRaPreamble (uint16_t rnti)=0
	Allocate a random access preamble for non-contention based random access (e.g., for handover). More...
virtual void	ConfigureMac (uint8_t ulBandwidth, uint8_t dlBandwidth)=0
virtual RachConfig	GetRachConfig ()=0
virtual void	ReconfigureLc (LcInfo lcinfo)=0
	Reconfigure an existing logical channel. More...
virtual void	ReleaseLc (uint16_t rnti, uint8_t lcid)=0
	release an existing logical channel More...
virtual void	RemoveUe (uint16_t rnti)=0
	remove the UE, e.g., after handover or termination of the RRC connection More...
virtual void	UeUpdateConfigurationReq (UeConfig params)=0
	update the configuration of the UE More...

Detailed Description

Service Access Point (SAP) offered by the eNB MAC to the eNB RRC See Femto Forum MAC Scheduler Interface Specification v 1.11, Figure 1.

This is the MAC SAP Provider, i.e., the part of the SAP that contains the MAC methods called by the RRC

Definition at line 41 of file lte-enb-cmac-sap.h.

Constructor & Destructor Documentation

ns3::LteEnbCmacSapProvider::~LteEnbCmacSapProvider ( )

virtual

Definition at line 28 of file lte-enb-cmac-sap.cc.

Member Function Documentation

virtual void ns3::LteEnbCmacSapProvider::AddLc ( LcInfo  lcinfo, LteMacSapUser *  msu  )

pure virtual

Add a new logical channel.

Parameters

lcinfo
msu

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

virtual void ns3::LteEnbCmacSapProvider::AddUe ( uint16_t  rnti )

pure virtual

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

virtual AllocateNcRaPreambleReturnValue ns3::LteEnbCmacSapProvider::AllocateNcRaPreamble ( uint16_t  rnti )

pure virtual

Allocate a random access preamble for non-contention based random access (e.g., for handover).

Parameters

rnti	the RNTI of the UE who will perform non-contention based random access

Returns

the newly allocated random access preamble

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the caller graph for this function:

virtual void ns3::LteEnbCmacSapProvider::ConfigureMac ( uint8_t  ulBandwidth, uint8_t  dlBandwidth  )

pure virtual

Parameters

ulBandwidth
dlBandwidth

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

Referenced by ns3::LteEnbRrc::ConfigureCell().

Here is the caller graph for this function:

virtual RachConfig ns3::LteEnbCmacSapProvider::GetRachConfig ( )

pure virtual

Returns

the current RACH configuration of the MAC

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest(), and ns3::LteEnbRrc::SendSystemInformation().

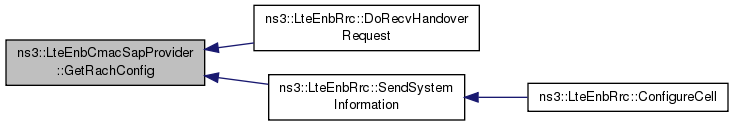

Here is the caller graph for this function:

virtual void ns3::LteEnbCmacSapProvider::ReconfigureLc ( LcInfo  lcinfo )

pure virtual

Reconfigure an existing logical channel.

Parameters

lcinfo

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

virtual void ns3::LteEnbCmacSapProvider::ReleaseLc ( uint16_t  rnti, uint8_t  lcid  )

pure virtual

release an existing logical channel

Parameters

rnti
lcid

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

virtual void ns3::LteEnbCmacSapProvider::RemoveUe ( uint16_t  rnti )

pure virtual

remove the UE, e.g., after handover or termination of the RRC connection

Parameters

rnti

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

Referenced by ns3::LteEnbRrc::RemoveUe().

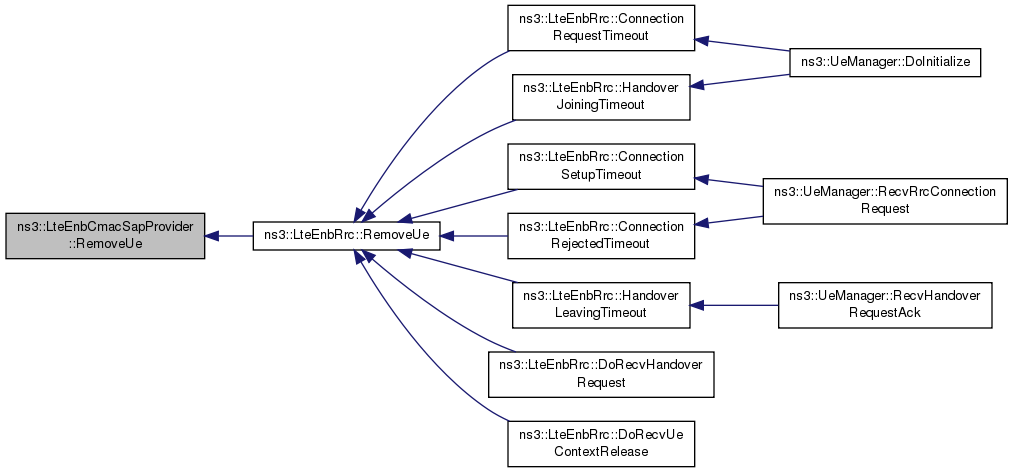

Here is the caller graph for this function:

virtual void ns3::LteEnbCmacSapProvider::UeUpdateConfigurationReq ( UeConfig  params )

pure virtual

update the configuration of the UE

Parameters

params

Implemented in ns3::EnbMacMemberLteEnbCmacSapProvider.

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-enb-cmac-sap.h
• src/lte/model/lte-enb-cmac-sap.cc
