ns3::LteRrcSap Class Reference

Class holding definition common to all UE/eNodeB SAP Users/Providers. More...

#include <lte-rrc-sap.h>

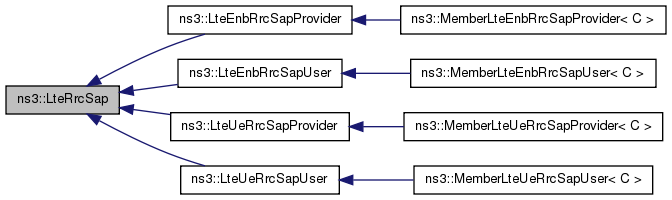

Inheritance diagram for ns3::LteRrcSap:

Classes
struct	AntennaInfoDedicated
struct	AsConfig
struct	BlackCellsToAddMod
struct	CarrierBandwidthEutra
struct	CarrierFreqEutra
struct	CellAccessRelatedInfo
struct	CellSelectionInfo
struct	CellsToAddMod
struct	CgiInfo
struct	DrbToAddMod
struct	FreqInfo
struct	HandoverPreparationInfo
struct	LogicalChannelConfig
struct	MasterInformationBlock
struct	MeasConfig
struct	MeasGapConfig
struct	MeasIdToAddMod
struct	MeasObjectEutra
struct	MeasObjectToAddMod
struct	MeasResultEutra
struct	MeasResults
struct	MeasurementReport
struct	MobilityControlInfo
struct	MobilityStateParameters
struct	PdschConfigCommon
struct	PdschConfigDedicated
struct	PhysCellIdRange
struct	PhysicalConfigDedicated
struct	PlmnIdentityInfo
struct	PreambleInfo
struct	QuantityConfig
struct	RachConfigCommon
struct	RachConfigDedicated
struct	RadioResourceConfigCommon
struct	RadioResourceConfigCommonSib
struct	RadioResourceConfigDedicated
struct	RaSupervisionInfo
struct	ReestabUeIdentity
struct	ReportConfigEutra
	Specifies criteria for triggering of an E-UTRA measurement reporting event. More...
struct	ReportConfigToAddMod
struct	RlcConfig
struct	RrcConnectionReconfiguration
struct	RrcConnectionReconfigurationCompleted
struct	RrcConnectionReestablishment
struct	RrcConnectionReestablishmentComplete
struct	RrcConnectionReestablishmentReject
struct	RrcConnectionReestablishmentRequest
struct	RrcConnectionReject
struct	RrcConnectionRelease
struct	RrcConnectionRequest
struct	RrcConnectionSetup
struct	RrcConnectionSetupCompleted
struct	SoundingRsUlConfigCommon
struct	SoundingRsUlConfigDedicated
struct	SpeedStatePars
struct	SpeedStateScaleFactors
struct	SrbToAddMod
struct	SystemInformation
struct	SystemInformationBlockType1
struct	SystemInformationBlockType2
struct	ThresholdEutra
	Threshold for event evaluation. More...

Public Types
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }

Public Member Functions
virtual	~LteRrcSap ()

Static Public Member Functions
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)

Static Public Attributes
static const uint8_t	MaxReportCells = 255

Detailed Description

Class holding definition common to all UE/eNodeB SAP Users/Providers.

See 3GPP TS 36.331 for reference.

Note that only those values that are (expected to be) used by the ns-3 model are mentioned here. The naming of the variables that are defined here is the same of 36.331, except for removal of "-" and conversion to CamelCase or ALL_CAPS where needed in order to follow the ns-3 coding style. Due to the 1-to-1 mapping with TS 36.331, detailed doxygen documentation is omitted, so please refer to 36.331 for the meaning of these data structures / fields.

Definition at line 56 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

ns3::LteRrcSap::~LteRrcSap ( )

virtual

Definition at line 25 of file lte-rrc-sap.cc.

Member Function Documentation

static double ns3::LteRrcSap::ConvertPdschConfigDedicated2Double ( PdschConfigDedicated  pdschConfigDedicated )

inlinestatic

Definition at line 162 of file lte-rrc-sap.h.

References ns3::LteRrcSap::PdschConfigDedicated::dB0, ns3::LteRrcSap::PdschConfigDedicated::dB1, ns3::LteRrcSap::PdschConfigDedicated::dB2, ns3::LteRrcSap::PdschConfigDedicated::dB3, ns3::LteRrcSap::PdschConfigDedicated::dB_1dot77, ns3::LteRrcSap::PdschConfigDedicated::dB_3, ns3::LteRrcSap::PdschConfigDedicated::dB_4dot77, ns3::LteRrcSap::PdschConfigDedicated::dB_6, and ns3::LteRrcSap::PdschConfigDedicated::pa.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), and ns3::UeManager::RecvRrcConnectionReconfigurationCompleted().

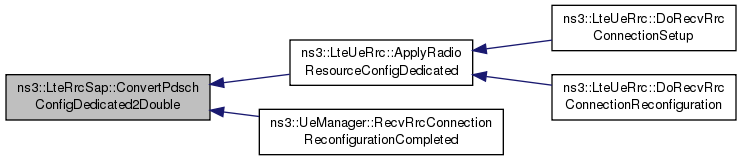

Here is the caller graph for this function:

Member Data Documentation

const uint8_t ns3::LteRrcSap::MaxReportCells = 255

static

Definition at line 63 of file lte-rrc-sap.h.

Referenced by ns3::LteRrcSap::ReportConfigEutra::ReportConfigEutra().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rrc-sap.h
• src/lte/model/lte-rrc-sap.cc
