Helper class which can read ns-2 movement files and configure nodes mobility. More...

#include <ns2-mobility-helper.h>

Collaboration diagram for ns3::Ns2MobilityHelper:

Classes
class	ObjectStore
	a class to hold input objects internally More...

Public Member Functions
	Ns2MobilityHelper (std::string filename)

void	Install (void) const
	Read the ns2 trace file and configure the movement patterns of all nodes contained in the global ns3::NodeList whose nodeId is matches the nodeId of the nodes in the trace file. More...

template<typename T >
void	Install (T begin, T end) const

Private Member Functions
void	ConfigNodesMovements (const ObjectStore &store) const
	Parses ns-2 mobility file to create ns-3 mobility events. More...

Ptr< ConstantVelocityMobilityModel >	GetMobilityModel (std::string idString, const ObjectStore &store) const
	Get or create a ConstantVelocityMobilityModel corresponding to idString. More...

Private Attributes
std::string	m_filename
	filename of file containing ns-2 mobility trace More...

Detailed Description

Helper class which can read ns-2 movement files and configure nodes mobility.

This implementation is based on the ns2 movement documentation of ns2 as described in http://www.isi.edu/nsnam/ns/doc/node172.html

Valid trace files use the following ns2 statements:

  $node set X_ x1
  $node set Y_ y1
  $node set Z_ z1
  $ns at $time $node setdest x2 y2 speed
  $ns at $time $node set X_ x1
  $ns at $time $node set Y_ Y1
  $ns at $time $node set Z_ Z1

Note that initial position statements may also appear at the end of the mobility file like this:

  $ns at $time $node setdest x2 y2 speed
  $ns at $time $node set X_ x1
  $ns at $time $node set Y_ Y1
  $ns at $time $node set Z_ Z1
  $node set X_ x1
  $node set Y_ y1
  $node set Z_ z1

The following tools are known to support this format:

BonnMotion http://net.cs.uni-bonn.de/wg/cs/applications/bonnmotion/
SUMO http://sourceforge.net/apps/mediawiki/sumo/index.php?title=Main_Page
TraNS http://trans.epfl.ch/

See usage example in examples/mobility/ns2-mobility-trace.cc

Bug:: Rounding errors may cause movement to diverge from the mobility pattern in ns-2 (using the same trace). See https://www.nsnam.org/bugzilla/show_bug.cgi?id=1316

Definition at line 76 of file ns2-mobility-helper.h.

Constructor & Destructor Documentation

ns3::Ns2MobilityHelper::Ns2MobilityHelper ( std::string filename )

Parameters

filename filename of file which contains the ns2 movement trace.

Definition at line 185 of file ns2-mobility-helper.cc.

References m_filename, and NS_FATAL_ERROR.

Member Function Documentation

void ns3::Ns2MobilityHelper::ConfigNodesMovements ( const ObjectStore & store ) const

private

Parses ns-2 mobility file to create ns-3 mobility events.

Parameters

store Object store containing ns-3 mobility models

Definition at line 215 of file ns2-mobility-helper.cc.

References ns3::ParseResult::dvals, GetMobilityModel(), ns3::GetNodeIdInt(), ns3::GetNodeIdString(), ns3::IsNumber(), ns3::IsSchedMobilityPos(), ns3::IsSchedSetPos(), ns3::IsSetInitialPos(), m_filename, ns3::DestinationPoint::m_finalPosition, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_LOGIC, NS_LOG_WARN, ns3::ParseNs2Line(), ns3::SetInitialPosition(), ns3::SetMovement(), ns3::SetSchedPosition(), and ns3::ParseResult::tokens.

Referenced by Install().

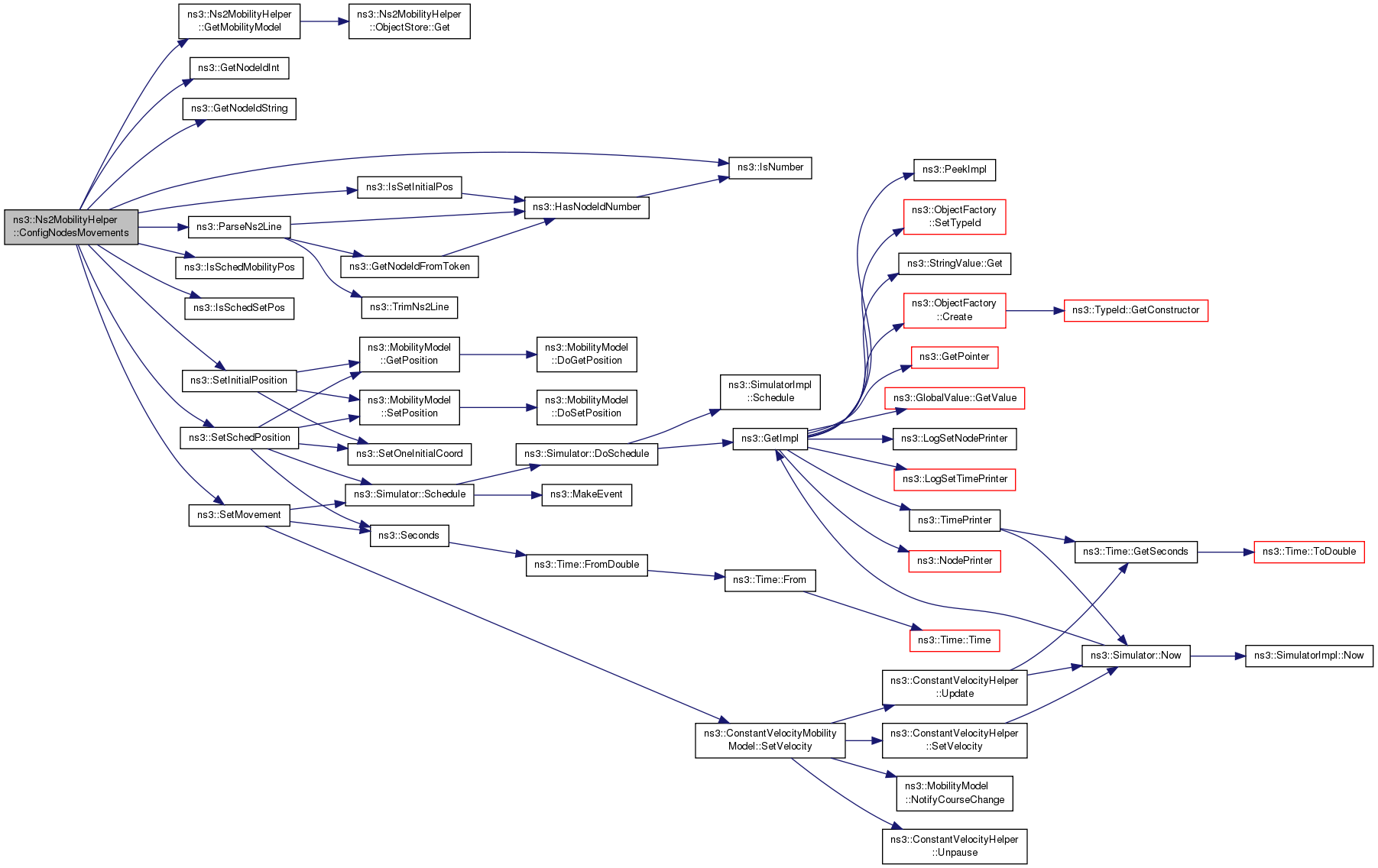

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< ConstantVelocityMobilityModel > ns3::Ns2MobilityHelper::GetMobilityModel	(	std::string	idString,
		const ObjectStore &	store
	)		const

private

Get or create a ConstantVelocityMobilityModel corresponding to idString.

Parameters

idString	string name for a node
store	Object store containing ns-3 mobility models

Returns: pointer to a ConstantVelocityMobilityModel

Definition at line 193 of file ns2-mobility-helper.cc.

References ns3::Ns2MobilityHelper::ObjectStore::Get().

Referenced by ConfigNodesMovements().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ns2MobilityHelper::Install ( void ) const

Read the ns2 trace file and configure the movement patterns of all nodes contained in the global ns3::NodeList whose nodeId is matches the nodeId of the nodes in the trace file.

Definition at line 811 of file ns2-mobility-helper.cc.

References ns3::NodeList::Begin(), and ns3::NodeList::End().

Referenced by Ns2MobilityHelperTest::DoRun(), and VanetRoutingExperiment::SetupAdhocMobilityNodes().

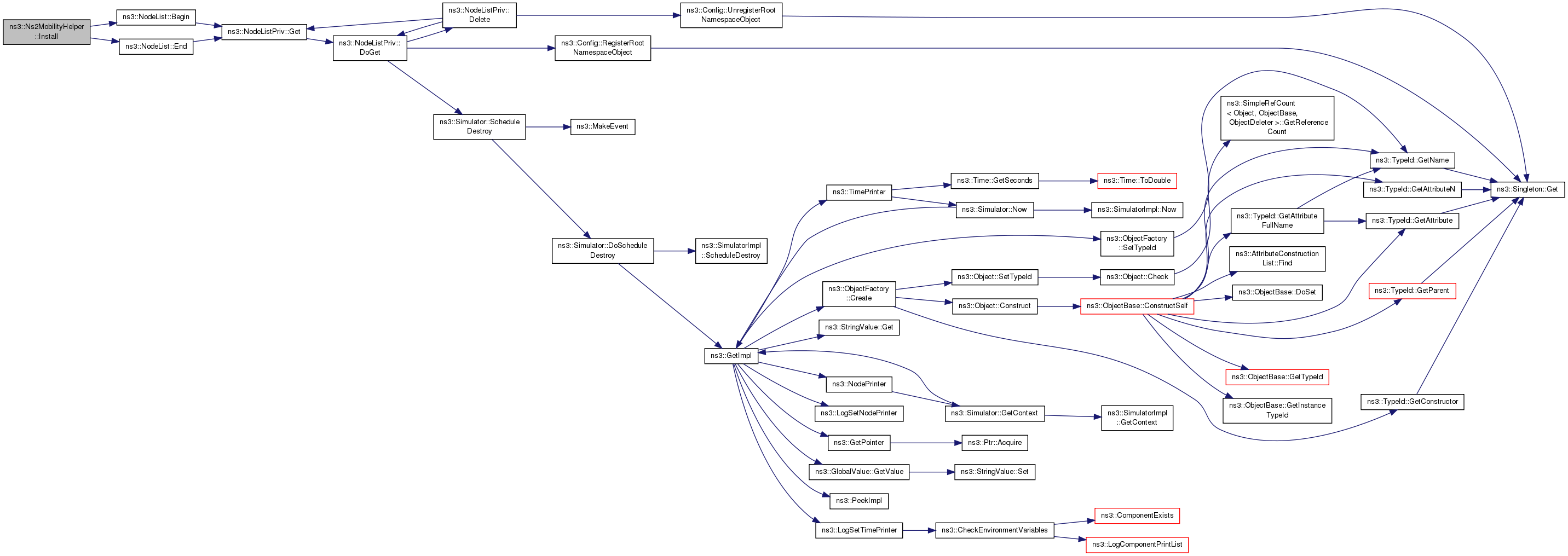

Here is the call graph for this function:

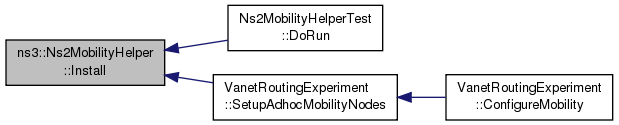

Here is the caller graph for this function:

template<typename T >

void ns3::Ns2MobilityHelper::Install	(	T	begin,
		T	end
	)		const

Parameters

begin	an iterator which points to the start of the input object array.
end	an iterator which points to the end of the input object array.

Read the ns2 trace file and configure the movement patterns of all input objects. Each input object is identified by a unique node id which reflects the index of the object in the input array.

Definition at line 142 of file ns2-mobility-helper.h.

References ConfigNodesMovements().

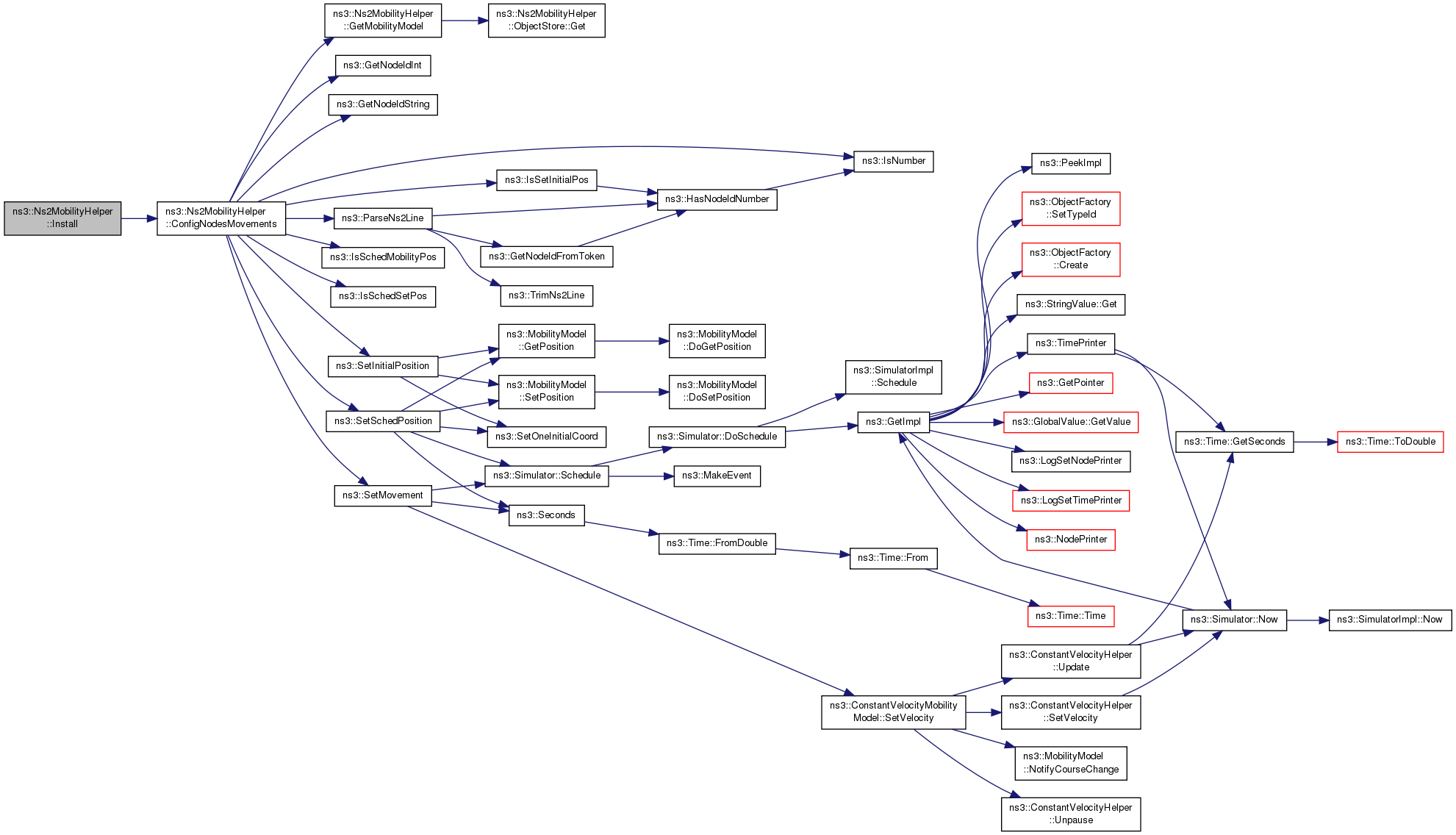

Here is the call graph for this function:
