Ping6 application helper. More...

#include <ping6-helper.h>

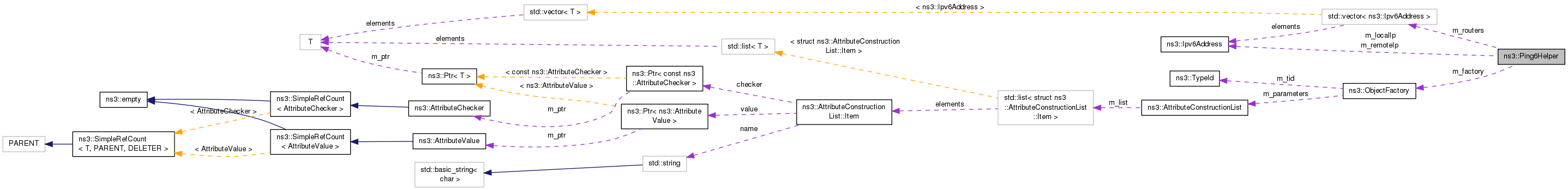

Collaboration diagram for ns3::Ping6Helper:

Public Member Functions
	Ping6Helper ()
	Constructor. More...

ApplicationContainer	Install (NodeContainer c)
	Install the application in Nodes. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set some attributes. More...

void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. More...

void	SetLocal (Ipv6Address ip)
	Set the local IPv6 address. More...

void	SetRemote (Ipv6Address ip)
	Set the remote IPv6 address. More...

void	SetRoutersAddress (std::vector< Ipv6Address > routers)
	Set routers addresses for routing type 0. More...

Private Attributes
ObjectFactory	m_factory
	An object factory. More...

uint32_t	m_ifIndex
	Out interface index. More...

Ipv6Address	m_localIp
	The local IPv6 address. More...

Ipv6Address	m_remoteIp
	The remote IPv6 address. More...

std::vector< Ipv6Address >	m_routers
	Routers addresses. More...

Detailed Description

Ping6 application helper.

Definition at line 39 of file ping6-helper.h.

Constructor & Destructor Documentation

ns3::Ping6Helper::Ping6Helper ( )

Constructor.

Definition at line 29 of file ping6-helper.cc.

References ns3::Ping6::GetTypeId(), m_factory, and ns3::ObjectFactory::SetTypeId().

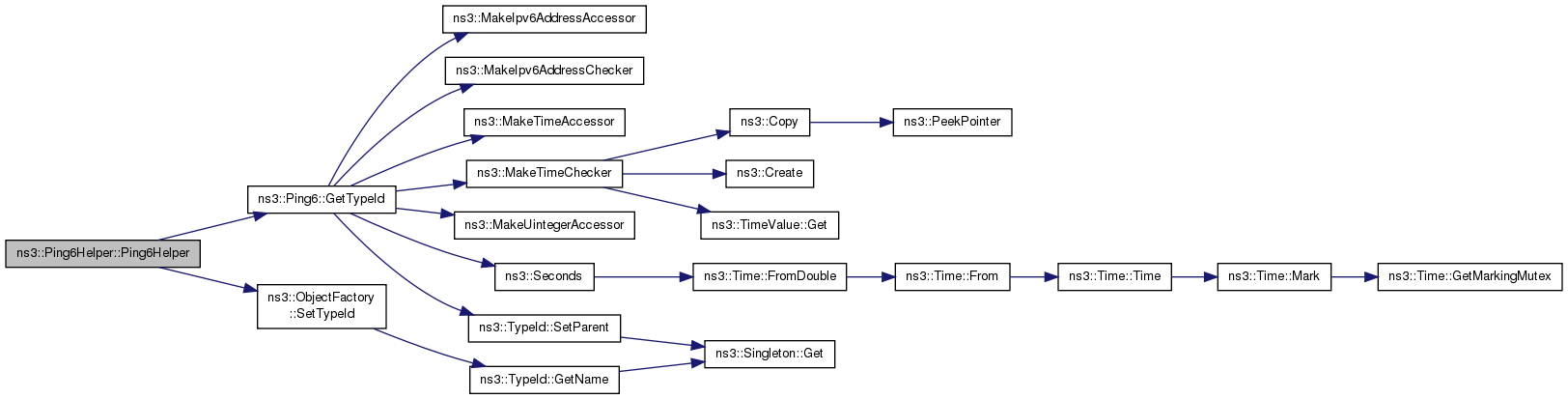

Here is the call graph for this function:

Member Function Documentation

ApplicationContainer ns3::Ping6Helper::Install ( NodeContainer c )

Install the application in Nodes.

Parameters

c	list of Nodes

Returns: application container

Definition at line 50 of file ping6-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::Node::AddApplication(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), ns3::NodeContainer::End(), m_factory, m_ifIndex, m_localIp, m_remoteIp, and m_routers.

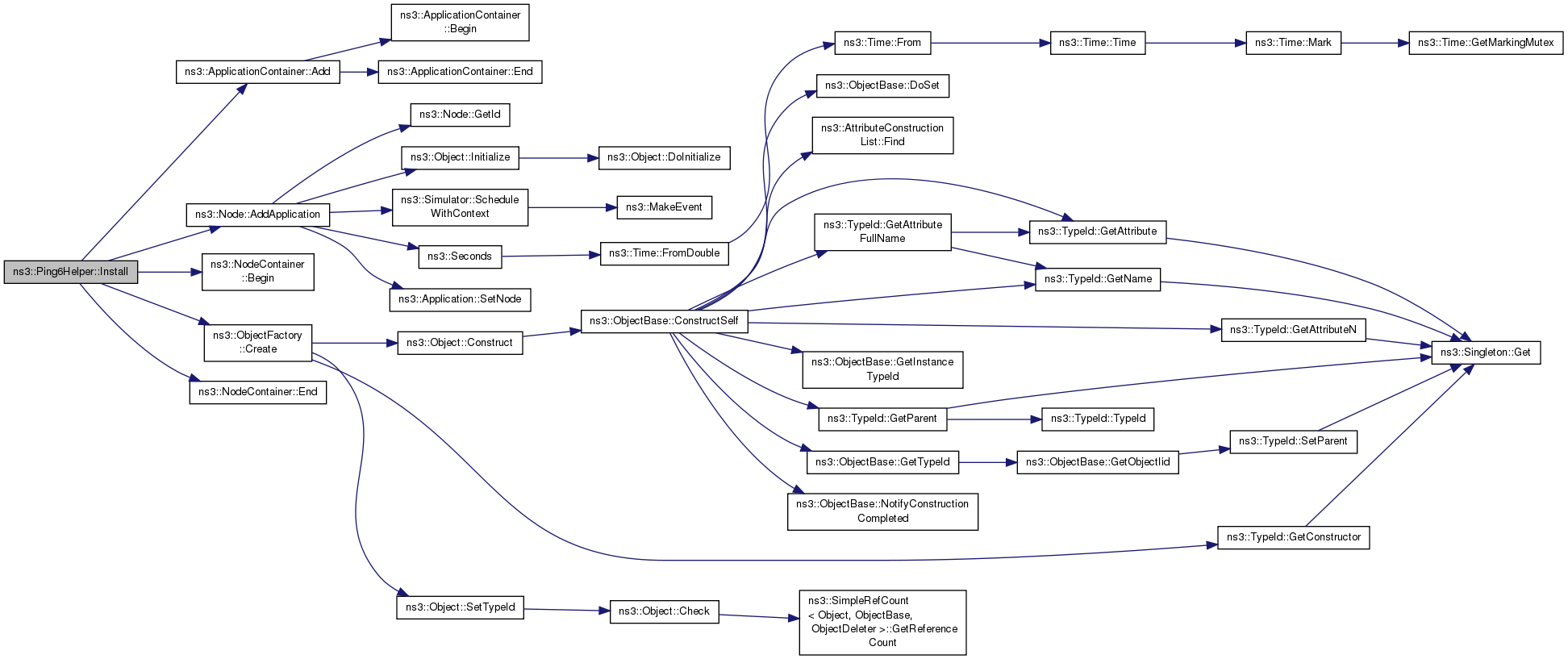

Here is the call graph for this function:

void ns3::Ping6Helper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set some attributes.

Parameters

name	attribute name
value	attribute value

Definition at line 45 of file ping6-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

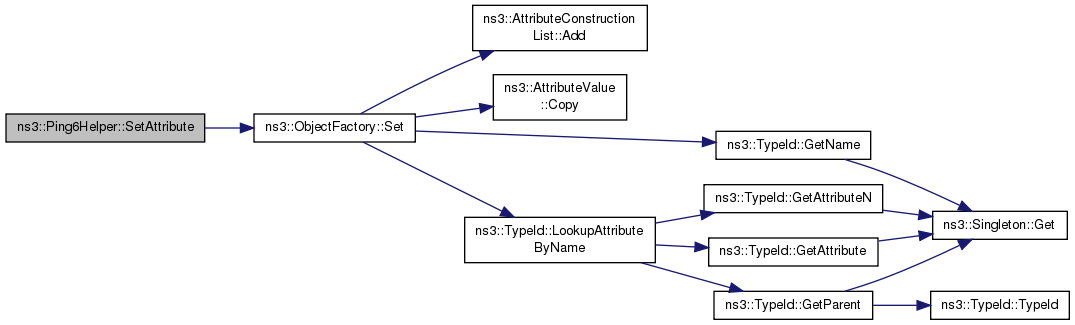

Here is the call graph for this function:

void ns3::Ping6Helper::SetIfIndex ( uint32_t ifIndex )

Set the out interface index.

This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters

ifIndex interface index

Definition at line 67 of file ping6-helper.cc.

References m_ifIndex.

void ns3::Ping6Helper::SetLocal ( Ipv6Address ip )

Set the local IPv6 address.

Parameters

ip	local IPv6 address

Definition at line 35 of file ping6-helper.cc.

References m_localIp.

void ns3::Ping6Helper::SetRemote ( Ipv6Address ip )

Set the remote IPv6 address.

Parameters

ip	remote IPv6 address

Definition at line 40 of file ping6-helper.cc.

References m_remoteIp.

void ns3::Ping6Helper::SetRoutersAddress ( std::vector< Ipv6Address > routers )

Set routers addresses for routing type 0.

Parameters

routers routers addresses

Definition at line 72 of file ping6-helper.cc.

References m_routers.

Member Data Documentation

ObjectFactory ns3::Ping6Helper::m_factory

private

An object factory.

Definition at line 92 of file ping6-helper.h.

Referenced by Install(), Ping6Helper(), and SetAttribute().

uint32_t ns3::Ping6Helper::m_ifIndex

private

Out interface index.

Definition at line 107 of file ping6-helper.h.

Referenced by Install(), and SetIfIndex().

Ipv6Address ns3::Ping6Helper::m_localIp

private

The local IPv6 address.

Definition at line 97 of file ping6-helper.h.

Referenced by Install(), and SetLocal().

Ipv6Address ns3::Ping6Helper::m_remoteIp

private

The remote IPv6 address.

Definition at line 102 of file ping6-helper.h.

Referenced by Install(), and SetRemote().

std::vector<Ipv6Address> ns3::Ping6Helper::m_routers

private

Routers addresses.

Definition at line 112 of file ping6-helper.h.

Referenced by Install(), and SetRoutersAddress().

The documentation for this class was generated from the following files:

src/applications/helper/ping6-helper.h
src/applications/helper/ping6-helper.cc
