ns3::PropagationCache< T > Class Template Reference

Constructs a cache of objects, where each object is responsible for a single propagation path loss calculations. More...

#include <propagation-cache.h>

Inheritance diagram for ns3::PropagationCache< T >:

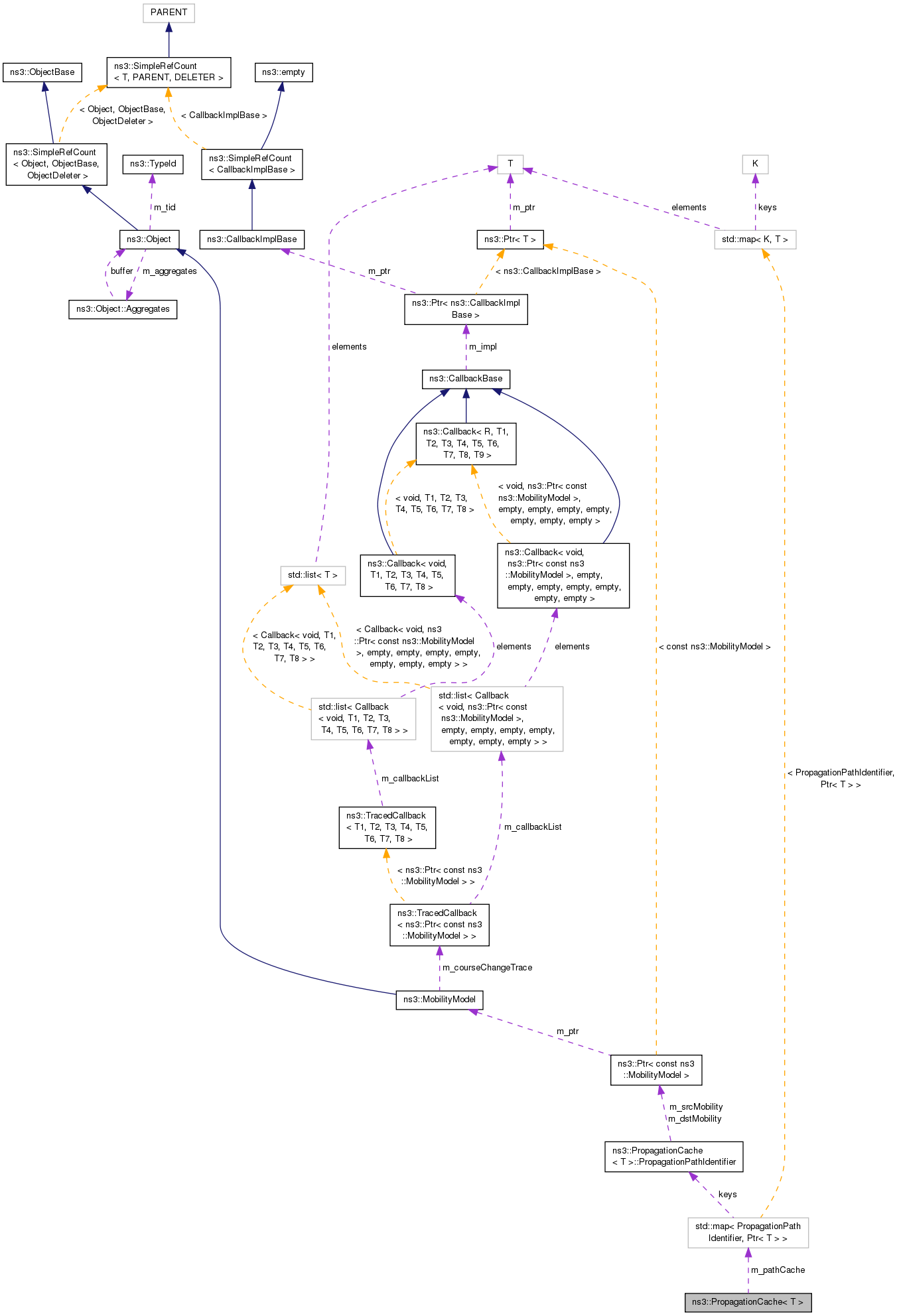

Collaboration diagram for ns3::PropagationCache< T >:

Classes
struct	PropagationPathIdentifier
	Each path is identified by. More...

Public Member Functions
	PropagationCache ()
	~PropagationCache ()
void	AddPathData (Ptr< T > data, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b, uint32_t modelUid)
	Add a model to the path. More...
Ptr< T >	GetPathData (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b, uint32_t modelUid)
	Get the model associated with the path. More...

Private Types
typedef std::map< PropagationPathIdentifier, Ptr< T > >	PathCache
	Typedef: PropagationPathIdentifier, Ptr<T> More...

Private Attributes
PathCache	m_pathCache
	Path cache. More...

Detailed Description

template<class T>
class ns3::PropagationCache< T >

Constructs a cache of objects, where each object is responsible for a single propagation path loss calculations.

Propagation path a–>b and b–>a is the same thing. Propagation path is identified by a couple of MobilityModels and a spectrum model UID

Definition at line 35 of file propagation-cache.h.

Member Typedef Documentation

template<class T>

typedef std::map<PropagationPathIdentifier, Ptr<T> > ns3::PropagationCache< T >::PathCache

private

Typedef: PropagationPathIdentifier, Ptr<T>

Definition at line 108 of file propagation-cache.h.

Constructor & Destructor Documentation

template<class T>

ns3::PropagationCache< T >::PropagationCache ( )

inline

Definition at line 38 of file propagation-cache.h.

template<class T>

ns3::PropagationCache< T >::~PropagationCache ( )

inline

Definition at line 39 of file propagation-cache.h.

Member Function Documentation

template<class T>

void ns3::PropagationCache< T >::AddPathData ( Ptr< T >  data, Ptr< const MobilityModel >  a, Ptr< const MobilityModel >  b, uint32_t  modelUid  )

inline

Add a model to the path.

Parameters

data	the model to associate to the path
a	1st node mobility model
b	2nd node mobility model
modelUid	model UID

Definition at line 66 of file propagation-cache.h.

template<class T>

Ptr<T> ns3::PropagationCache< T >::GetPathData ( Ptr< const MobilityModel >  a, Ptr< const MobilityModel >  b, uint32_t  modelUid  )

inline

Get the model associated with the path.

Parameters

a	1st node mobility model
b	2nd node mobility model
modelUid	model UID

Returns

the model

Definition at line 48 of file propagation-cache.h.

Member Data Documentation

template<class T>

PathCache ns3::PropagationCache< T >::m_pathCache

private

Path cache.

Definition at line 110 of file propagation-cache.h.

Referenced by ns3::PropagationCache< ns3::JakesProcess >::AddPathData(), and ns3::PropagationCache< ns3::JakesProcess >::GetPathData().

---

The documentation for this class was generated from the following file:

• src/propagation/model/propagation-cache.h
