This class is very useful when user needs to collect statistics from PDCD and RLC. More...

#include <radio-bearer-stats-connector.h>

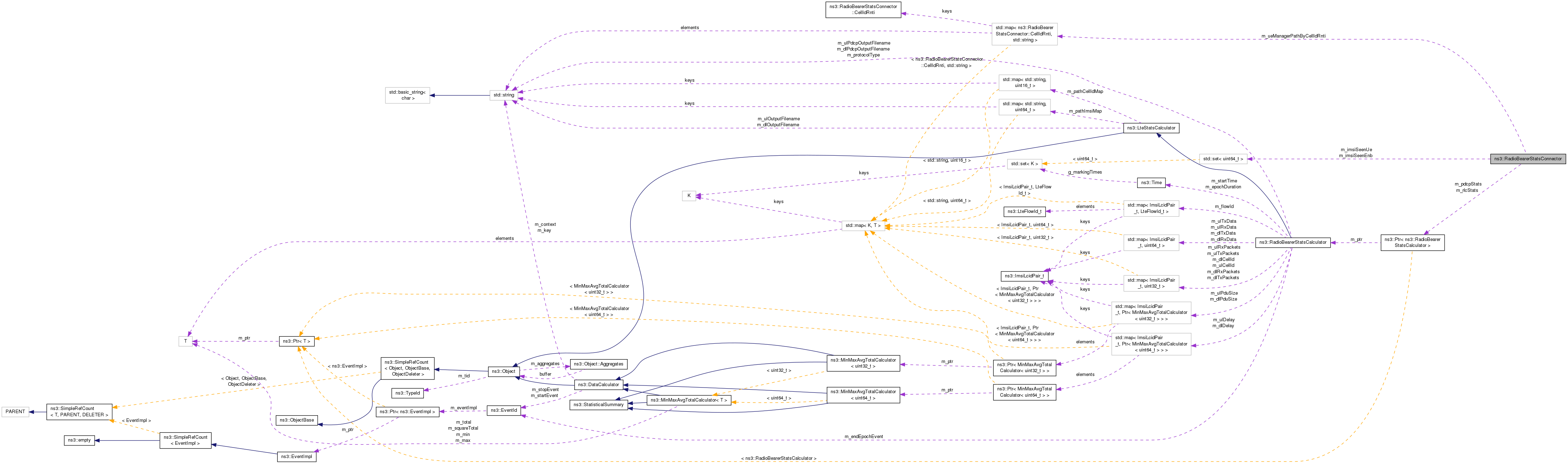

Collaboration diagram for ns3::RadioBearerStatsConnector:

Classes
struct	CellIdRnti
	Struct used as key in m_ueManagerPathByCellIdRnti map. More...

Public Member Functions
	RadioBearerStatsConnector ()
	Constructor. More...

void	EnablePdcpStats (Ptr< RadioBearerStatsCalculator > pdcpStats)
	Enables trace sinks for PDCP layer. More...

void	EnableRlcStats (Ptr< RadioBearerStatsCalculator > rlcStats)
	Enables trace sinks for RLC layer. More...

void	EnsureConnected ()
	Connects trace sinks to appropriate trace sources. More...

Static Public Member Functions
static void	NotifyConnectionReconfigurationEnb (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Function hooked to ConnectionReconfiguration trace source at eNB RRC, which is fired upon RRC connection reconfiguration. More...

static void	NotifyConnectionReconfigurationUe (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Function hooked to ConnectionReconfiguration trace source at UE RRC, which is fired upon RRC connection reconfiguration. More...

static void	NotifyConnectionSetupUe (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Sink connected source of UE Connection Setup trace. More...

static void	NotifyHandoverEndOkEnb (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Function hooked to HandoverEndOk trace source at eNB RRC, which is fired upon successful termination of a handover procedure. More...

static void	NotifyHandoverEndOkUe (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Function hooked to HandoverStart trace source at UE RRC, which is fired upon successful termination of a handover procedure. More...

static void	NotifyHandoverStartEnb (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti, uint16_t targetCellId)
	Function hooked to HandoverStart trace source at eNB RRC, which is fired upon start of a handover procedure. More...

static void	NotifyHandoverStartUe (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti, uint16_t targetCellId)
	Function hooked to HandoverStart trace source at UE RRC, which is fired upon start of a handover procedure. More...

static void	NotifyNewUeContextEnb (RadioBearerStatsConnector *c, std::string context, uint16_t cellid, uint16_t rnti)
	Function hooked to NewUeContext trace source at eNB RRC, which is fired upon creation of a new UE context. More...

static void	NotifyRandomAccessSuccessfulUe (RadioBearerStatsConnector *c, std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Function hooked to RandomAccessSuccessful trace source at UE RRC, which is fired upon successful completion of the random access procedure. More...

Private Member Functions
void	ConnectSrb0Traces (std::string ueRrcPath, uint64_t imsi, uint16_t cellId, uint16_t rnti)
	Connects Srb0 trace sources at UE and eNB to RLC and PDCP calculators, and Srb1 trace sources at eNB to RLC and PDCP calculators,. More...

void	ConnectSrb1TracesUe (std::string ueRrcPath, uint64_t imsi, uint16_t cellId, uint16_t rnti)
	Connects Srb1 trace sources at UE to RLC and PDCP calculators. More...

void	ConnectTracesEnb (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Connects all trace sources at eNB to RLC and PDCP calculators. More...

void	ConnectTracesEnbIfFirstTime (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Connects all trace sources at eNB to RLC and PDCP calculators. More...

void	ConnectTracesUe (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Connects all trace sources at UE to RLC and PDCP calculators. More...

void	ConnectTracesUeIfFirstTime (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Connects all trace sources at UE to RLC and PDCP calculators. More...

void	DisconnectTracesEnb (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Disconnects all trace sources at eNB to RLC and PDCP calculators. More...

void	DisconnectTracesUe (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	Disconnects all trace sources at UE to RLC and PDCP calculators. More...

void	StoreUeManagerPath (std::string ueManagerPath, uint16_t cellId, uint16_t rnti)
	Creates UE Manager path and stores it in m_ueManagerPathByCellIdRnti. More...

Private Attributes
bool	m_connected
	true if traces are connected to sinks, initially set to false More...

std::set< uint64_t >	m_imsiSeenEnb
	stores all eNBs for which RLC and PDCP traces were connected More...

std::set< uint64_t >	m_imsiSeenUe
	stores all UEs for which RLC and PDCP traces were connected More...

Ptr< RadioBearerStatsCalculator >	m_pdcpStats
	Calculator for PDCP Statistics. More...

Ptr< RadioBearerStatsCalculator >	m_rlcStats
	Calculator for RLC Statistics. More...

std::map< CellIdRnti, std::string >	m_ueManagerPathByCellIdRnti
	List UE Manager Paths by CellIdRnti. More...

Friends
bool	operator< (const CellIdRnti &a, const CellIdRnti &b)
	Less than operator for CellIdRnti, because it is used as key in map. More...

Detailed Description

This class is very useful when user needs to collect statistics from PDCD and RLC.

It automatically connects RadioBearerStatsCalculator to appropriate trace sinks. Usually user do not use this class. All he/she needs to to do is to call: LteHelper::EnablePdcpTraces() and/or LteHelper::EnableRlcTraces().

Definition at line 50 of file radio-bearer-stats-connector.h.

Constructor & Destructor Documentation

ns3::RadioBearerStatsConnector::RadioBearerStatsConnector ( )

Constructor.

Definition at line 129 of file radio-bearer-stats-connector.cc.

Member Function Documentation

void ns3::RadioBearerStatsConnector::ConnectSrb0Traces	(	std::string	ueRrcPath,
		uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti
	)

private

Connects Srb0 trace sources at UE and eNB to RLC and PDCP calculators, and Srb1 trace sources at eNB to RLC and PDCP calculators,.

Parameters

ueRrcPath
imsi
cellId
rnti

Definition at line 241 of file radio-bearer-stats-connector.cc.

References ns3::RadioBearerStatsConnector::CellIdRnti::cellId, ns3::Config::Connect(), ns3::Config::Disconnect(), ns3::DlRxPduCallback(), ns3::DlTxPduCallback(), m_pdcpStats, m_rlcStats, m_ueManagerPathByCellIdRnti, ns3::MakeBoundCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::RadioBearerStatsConnector::CellIdRnti::rnti, ns3::UlRxPduCallback(), and ns3::UlTxPduCallback().

Referenced by NotifyRandomAccessSuccessfulUe().

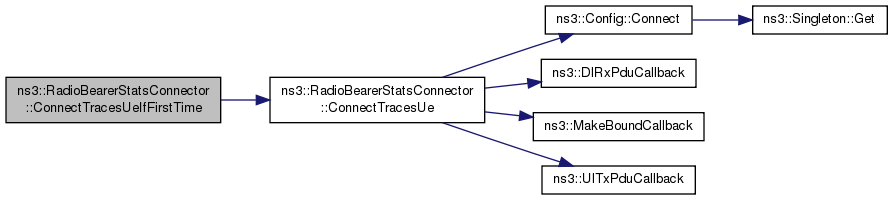

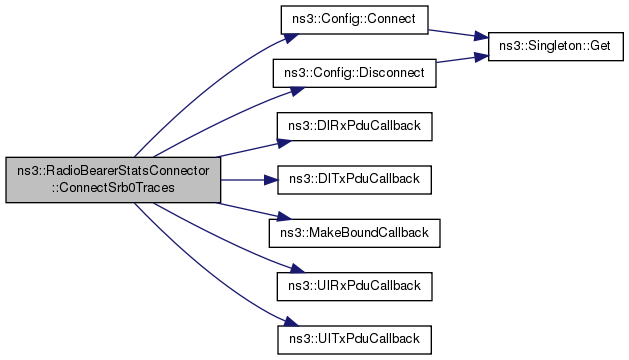

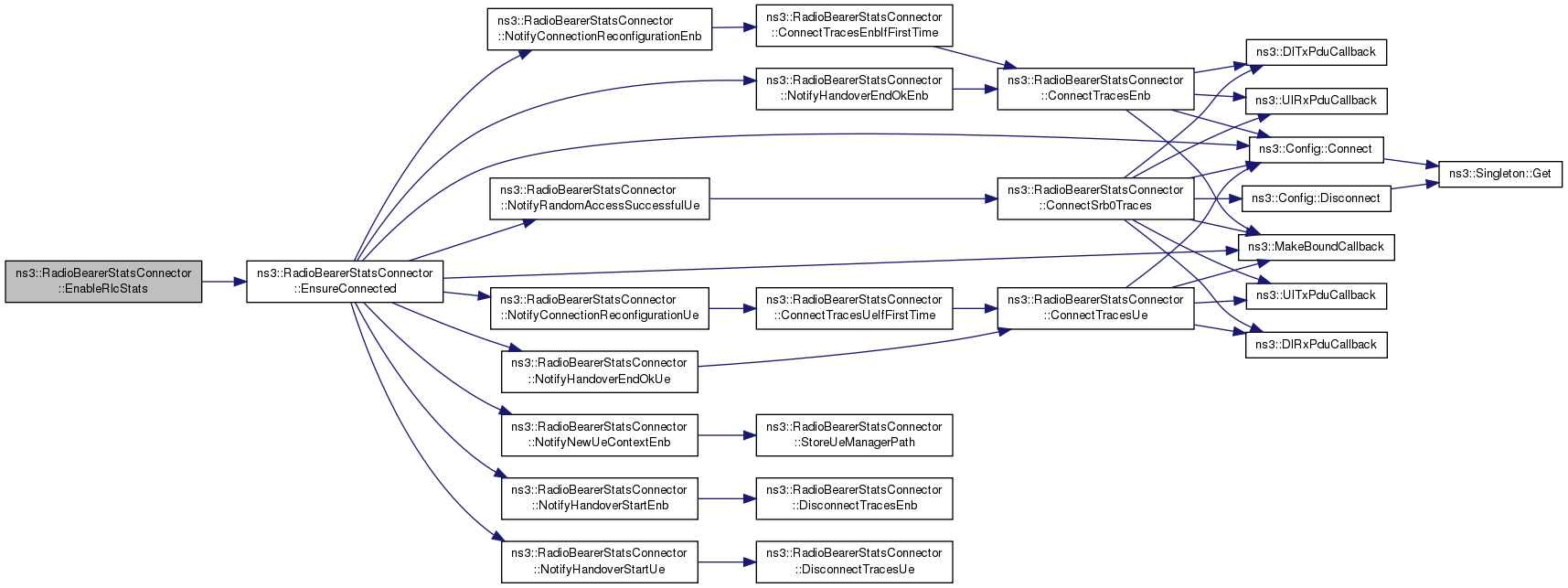

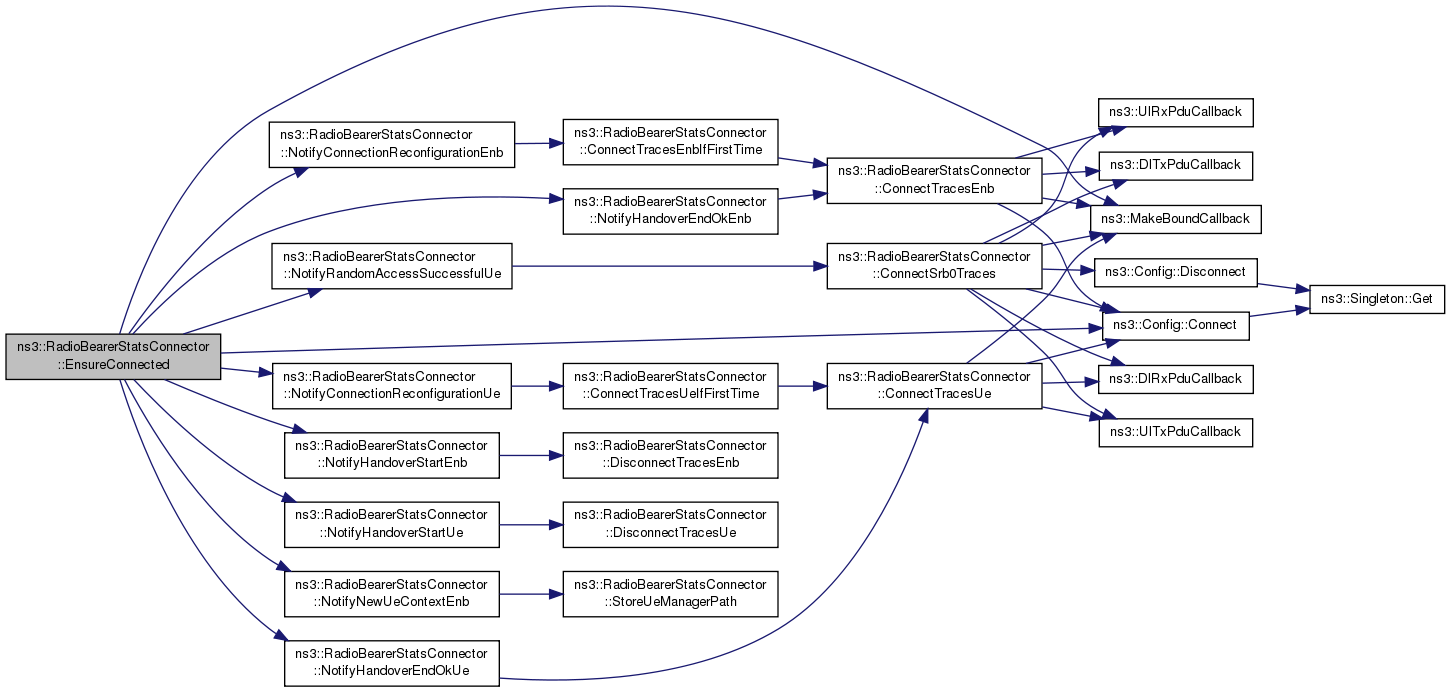

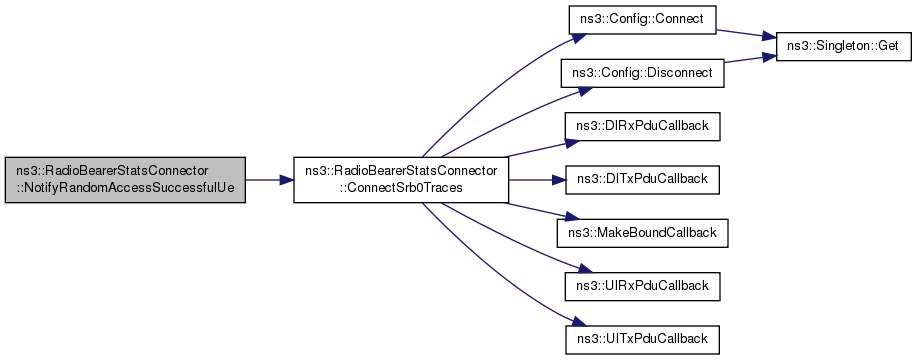

Here is the call graph for this function:

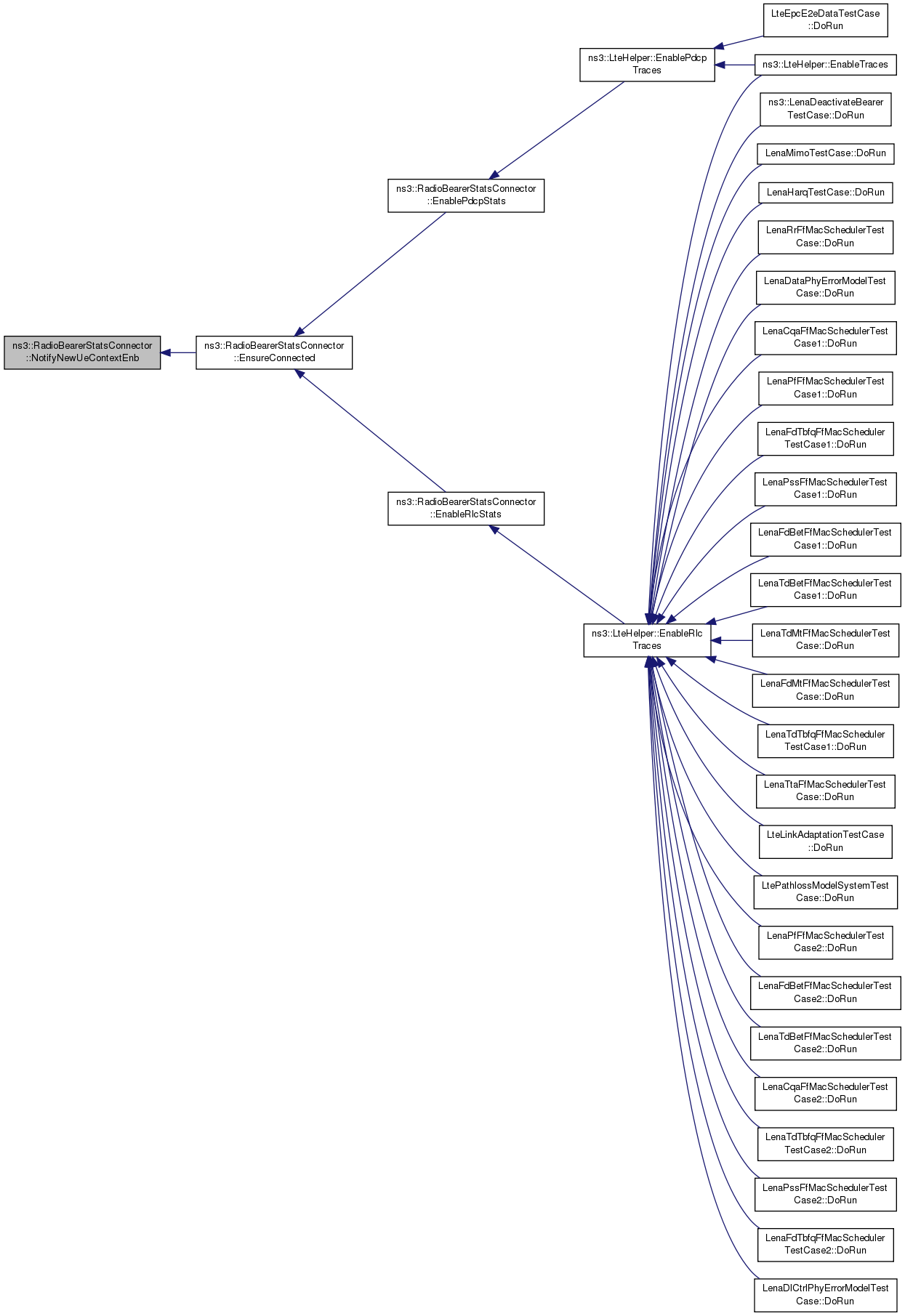

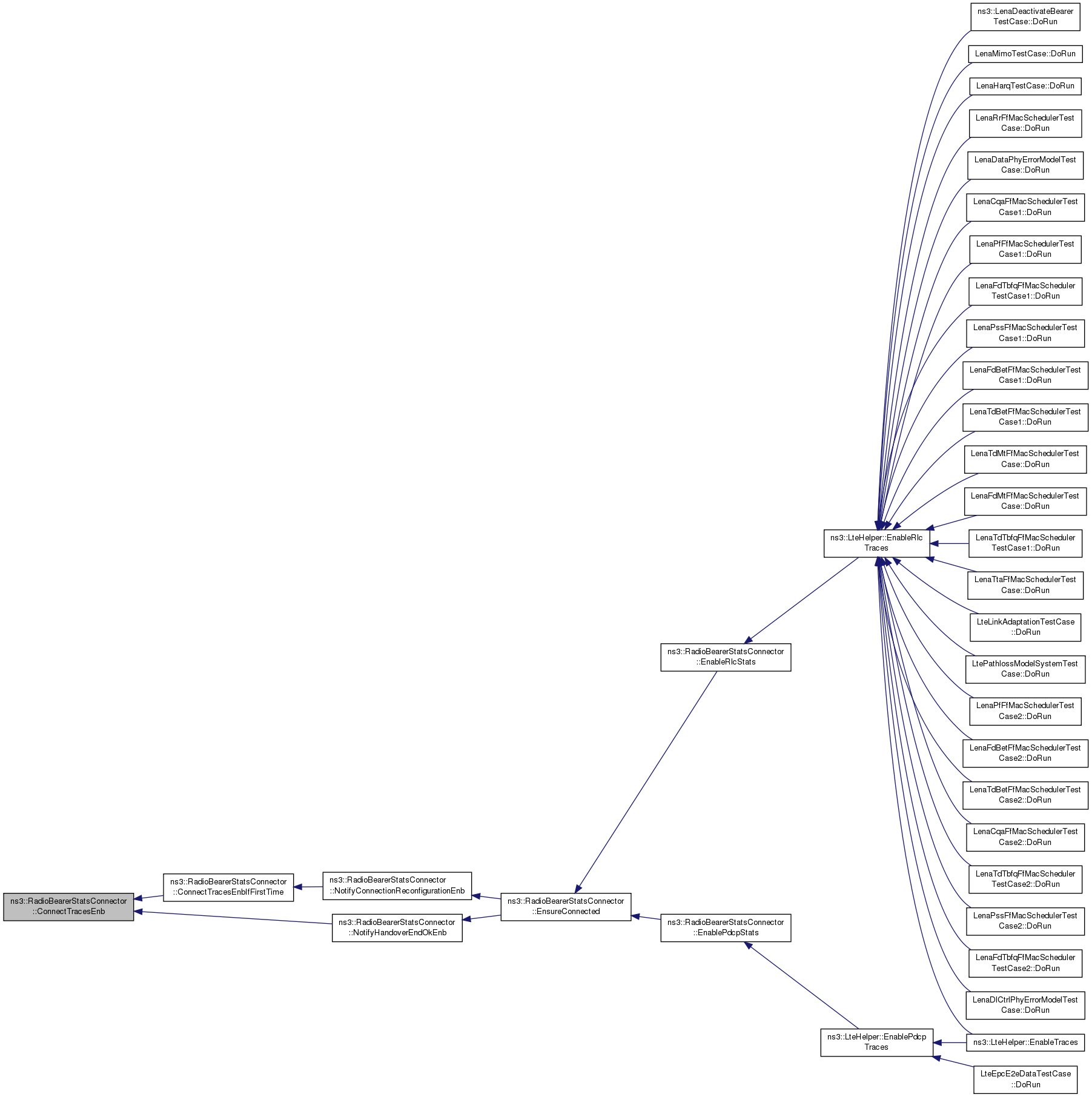

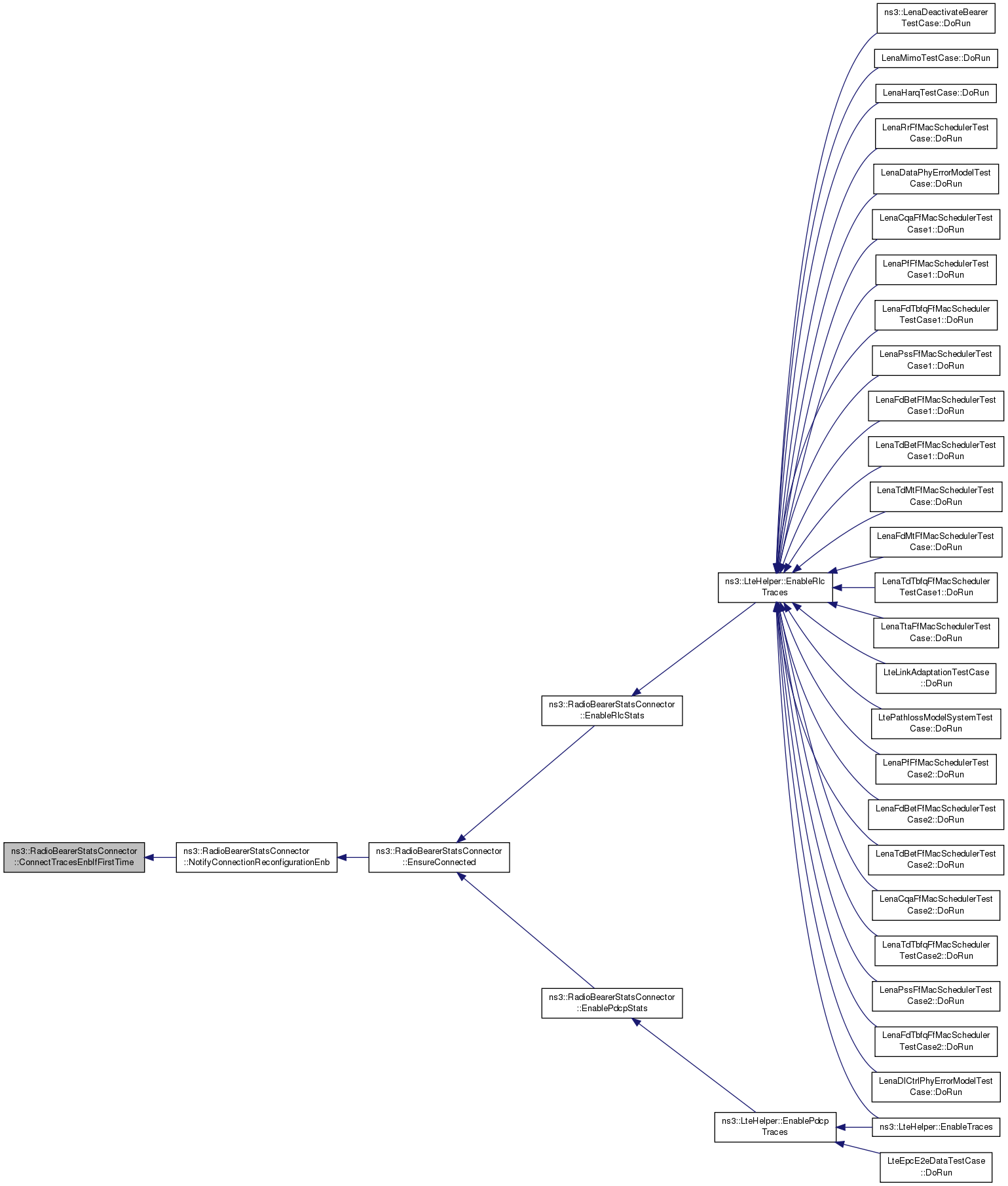

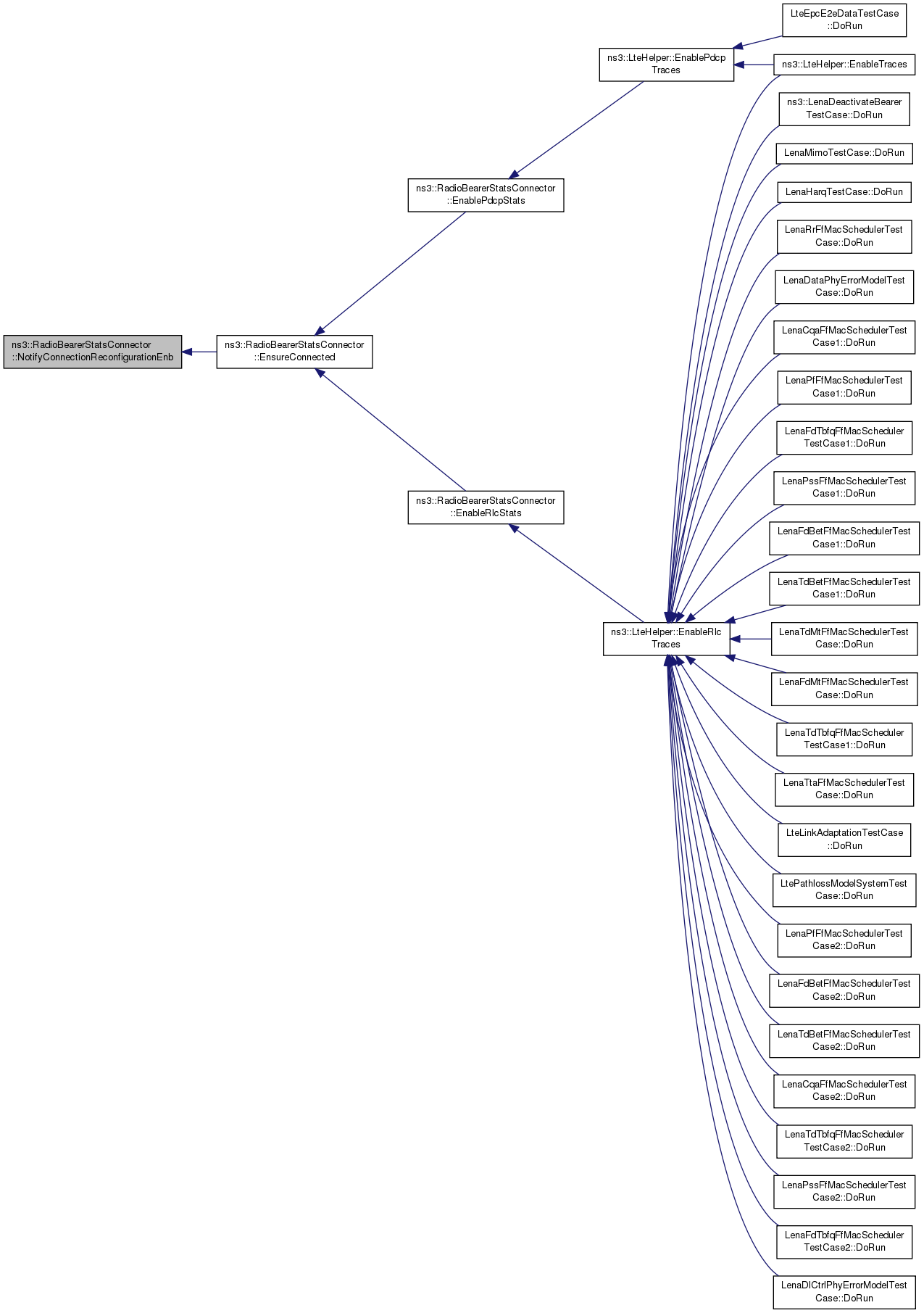

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::ConnectSrb1TracesUe	(	std::string	ueRrcPath,
		uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti
	)

private

Connects Srb1 trace sources at UE to RLC and PDCP calculators.

Parameters

ueRrcPath
imsi
cellId
rnti

Definition at line 303 of file radio-bearer-stats-connector.cc.

References ns3::Config::Connect(), ns3::DlRxPduCallback(), m_pdcpStats, m_rlcStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION, and ns3::UlTxPduCallback().

Referenced by NotifyConnectionSetupUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::ConnectTracesEnb	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

private

Connects all trace sources at eNB to RLC and PDCP calculators.

Parameters

context
imsi
cellid
rnti

Definition at line 392 of file radio-bearer-stats-connector.cc.

References ns3::Config::Connect(), ns3::DlTxPduCallback(), m_pdcpStats, m_rlcStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::UlRxPduCallback().

Referenced by ConnectTracesEnbIfFirstTime(), and NotifyHandoverEndOkEnb().

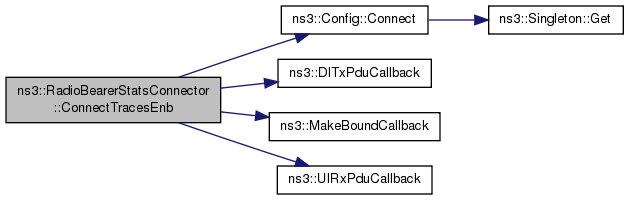

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::ConnectTracesEnbIfFirstTime	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

private

Connects all trace sources at eNB to RLC and PDCP calculators.

This function can connect traces only once for eNB.

Parameters

context
imsi
cellid
rnti

Definition at line 342 of file radio-bearer-stats-connector.cc.

References ConnectTracesEnb(), m_imsiSeenEnb, and NS_LOG_FUNCTION.

Referenced by NotifyConnectionReconfigurationEnb().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::ConnectTracesUe	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

private

Connects all trace sources at UE to RLC and PDCP calculators.

Parameters

context
imsi
cellid
rnti

Definition at line 353 of file radio-bearer-stats-connector.cc.

References ns3::Config::Connect(), ns3::DlRxPduCallback(), m_pdcpStats, m_rlcStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::UlTxPduCallback().

Referenced by ConnectTracesUeIfFirstTime(), and NotifyHandoverEndOkUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::ConnectTracesUeIfFirstTime	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

private

Connects all trace sources at UE to RLC and PDCP calculators.

This function can connect traces only once for UE.

Parameters

context
imsi
cellid
rnti

Definition at line 331 of file radio-bearer-stats-connector.cc.

References ConnectTracesUe(), m_imsiSeenUe, and NS_LOG_FUNCTION.

Referenced by NotifyConnectionReconfigurationUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::DisconnectTracesEnb	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

private

Disconnects all trace sources at eNB to RLC and PDCP calculators.

Function is not implemented.

Parameters

context
imsi
cellid
rnti

Definition at line 442 of file radio-bearer-stats-connector.cc.

References NS_LOG_FUNCTION.

Referenced by NotifyHandoverStartEnb().

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::DisconnectTracesUe	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

private

Disconnects all trace sources at UE to RLC and PDCP calculators.

Function is not implemented.

Parameters

context
imsi
cellid
rnti

Definition at line 435 of file radio-bearer-stats-connector.cc.

References NS_LOG_FUNCTION.

Referenced by NotifyHandoverStartUe().

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::EnablePdcpStats ( Ptr< RadioBearerStatsCalculator > pdcpStats )

Enables trace sinks for PDCP layer.

Usually, this function is called by LteHelper::EnablePdcpTraces().

Parameters

pdcpStats statistics calculator for PDCP layer

Definition at line 142 of file radio-bearer-stats-connector.cc.

References EnsureConnected(), and m_pdcpStats.

Referenced by ns3::LteHelper::EnablePdcpTraces().

Here is the call graph for this function:

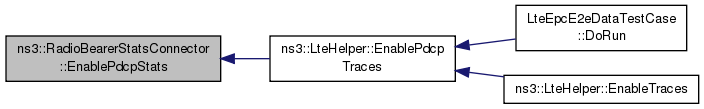

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::EnableRlcStats ( Ptr< RadioBearerStatsCalculator > rlcStats )

Enables trace sinks for RLC layer.

Usually, this function is called by LteHelper::EnableRlcTraces().

Parameters

rlcStats statistics calculator for RLC layer

Definition at line 135 of file radio-bearer-stats-connector.cc.

References EnsureConnected(), and m_rlcStats.

Referenced by ns3::LteHelper::EnableRlcTraces().

Here is the call graph for this function:

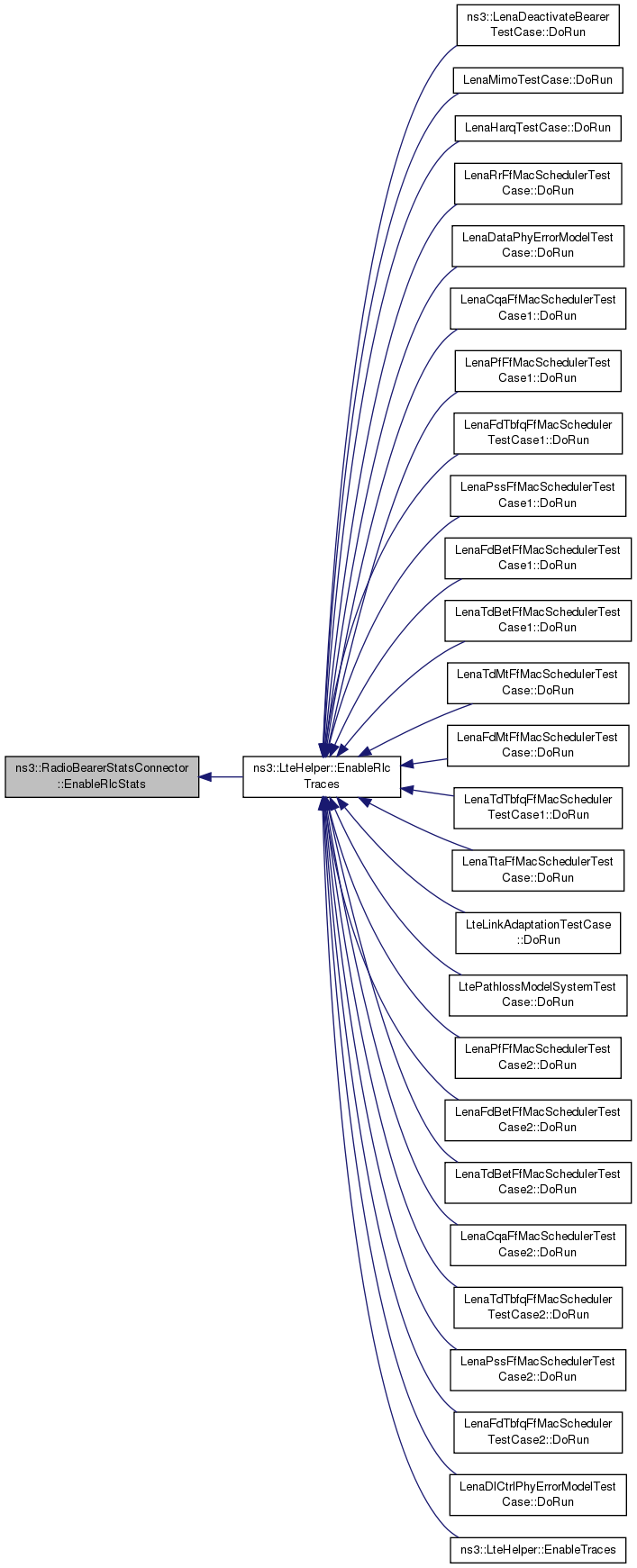

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::EnsureConnected ( )

Connects trace sinks to appropriate trace sources.

Definition at line 149 of file radio-bearer-stats-connector.cc.

References ns3::Config::Connect(), m_connected, ns3::MakeBoundCallback(), NotifyConnectionReconfigurationEnb(), NotifyConnectionReconfigurationUe(), NotifyHandoverEndOkEnb(), NotifyHandoverEndOkUe(), NotifyHandoverStartEnb(), NotifyHandoverStartUe(), NotifyNewUeContextEnb(), NotifyRandomAccessSuccessfulUe(), and NS_LOG_FUNCTION.

Referenced by EnablePdcpStats(), and EnableRlcStats().

Here is the call graph for this function:

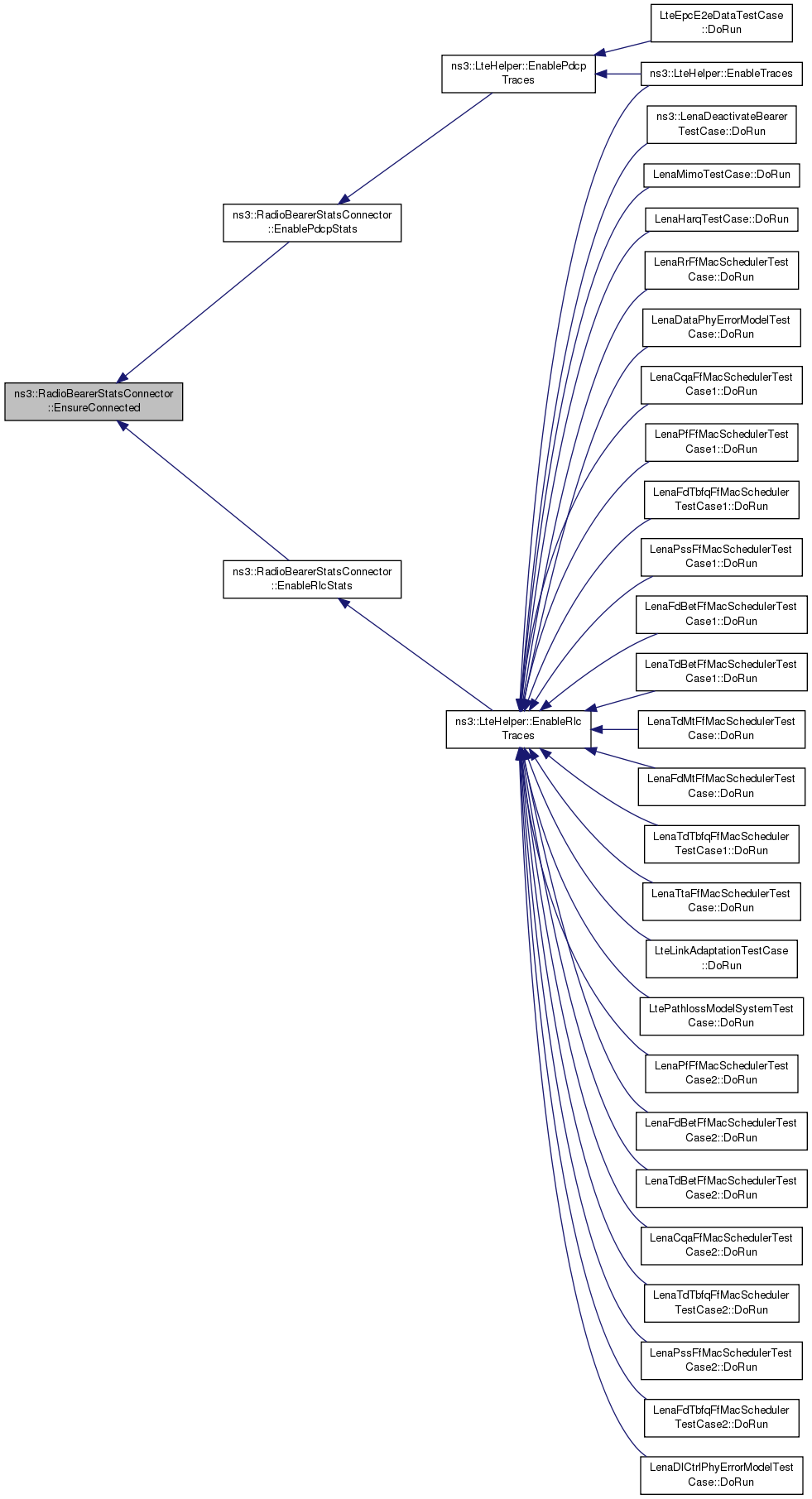

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyConnectionReconfigurationEnb	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

static

Function hooked to ConnectionReconfiguration trace source at eNB RRC, which is fired upon RRC connection reconfiguration.

Parameters

c
context
imsi
cellid
rnti

Definition at line 211 of file radio-bearer-stats-connector.cc.

References ConnectTracesEnbIfFirstTime().

Referenced by EnsureConnected().

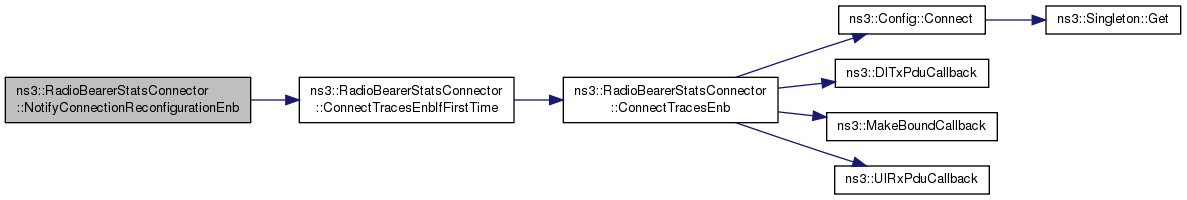

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyConnectionReconfigurationUe	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

static

Function hooked to ConnectionReconfiguration trace source at UE RRC, which is fired upon RRC connection reconfiguration.

Parameters

c
context
imsi
cellid
rnti

Definition at line 187 of file radio-bearer-stats-connector.cc.

References ConnectTracesUeIfFirstTime().

Referenced by EnsureConnected().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyConnectionSetupUe	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

static

Sink connected source of UE Connection Setup trace.

Not used.

Parameters

c
context
imsi
cellid
rnti

Definition at line 181 of file radio-bearer-stats-connector.cc.

References ConnectSrb1TracesUe().

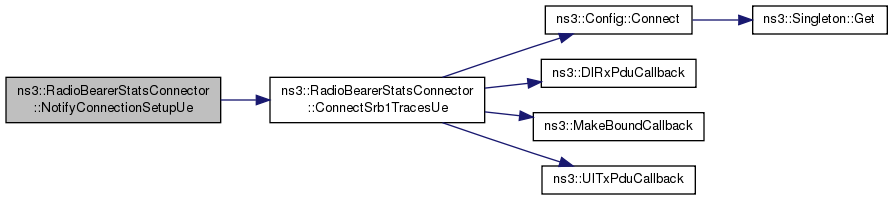

Here is the call graph for this function:

void ns3::RadioBearerStatsConnector::NotifyHandoverEndOkEnb	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

static

Function hooked to HandoverEndOk trace source at eNB RRC, which is fired upon successful termination of a handover procedure.

Parameters

c
context
imsi
cellid
rnti

Definition at line 223 of file radio-bearer-stats-connector.cc.

References ConnectTracesEnb().

Referenced by EnsureConnected().

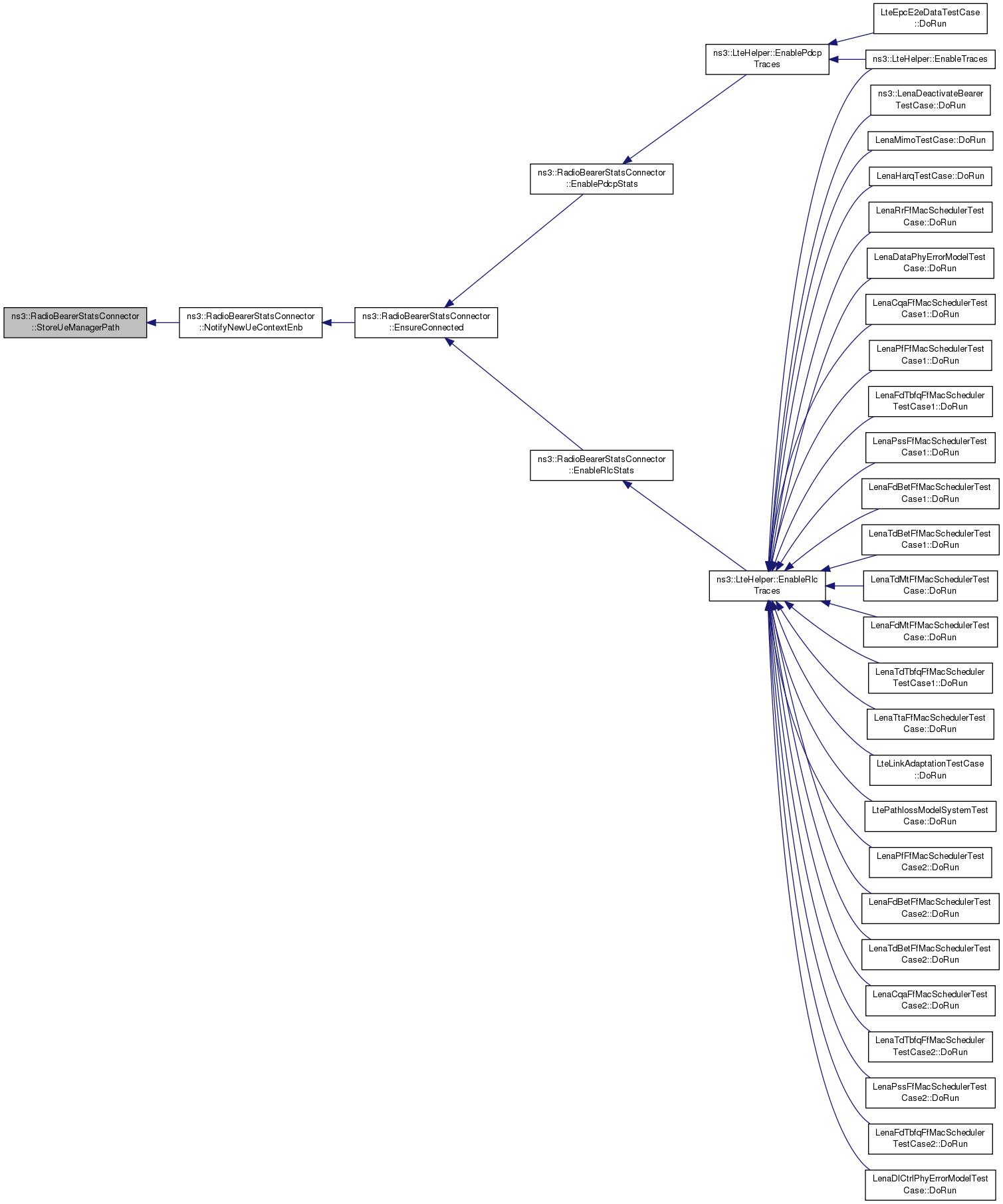

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyHandoverEndOkUe	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)

static

Function hooked to HandoverStart trace source at UE RRC, which is fired upon successful termination of a handover procedure.

Parameters

c
context
imsi
cellid
rnti

Definition at line 199 of file radio-bearer-stats-connector.cc.

References ConnectTracesUe().

Referenced by EnsureConnected().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyHandoverStartEnb	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti,
		uint16_t	targetCellId
	)

static

Function hooked to HandoverStart trace source at eNB RRC, which is fired upon start of a handover procedure.

Parameters

c
context
imsi
cellid
rnti
targetCellId

Definition at line 217 of file radio-bearer-stats-connector.cc.

References DisconnectTracesEnb().

Referenced by EnsureConnected().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyHandoverStartUe	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti,
		uint16_t	targetCellId
	)

static

Function hooked to HandoverStart trace source at UE RRC, which is fired upon start of a handover procedure.

Parameters

c
context
imsi
cellid
rnti
targetCellId

Definition at line 193 of file radio-bearer-stats-connector.cc.

References DisconnectTracesUe().

Referenced by EnsureConnected().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyNewUeContextEnb	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint16_t	cellid,
		uint16_t	rnti
	)

static

Function hooked to NewUeContext trace source at eNB RRC, which is fired upon creation of a new UE context.

Parameters

c
context
cellid
rnti

Definition at line 205 of file radio-bearer-stats-connector.cc.

References StoreUeManagerPath().

Referenced by EnsureConnected().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsConnector::NotifyRandomAccessSuccessfulUe	(	RadioBearerStatsConnector *	c,
		std::string	context,
		uint64_t	imsi,
		uint16_t	cellid,
		uint16_t	rnti
	)
