Radvd interface configuration. More...

#include <radvd-interface.h>

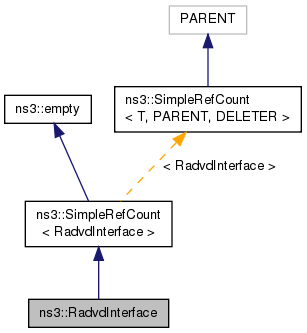

Inheritance diagram for ns3::RadvdInterface:

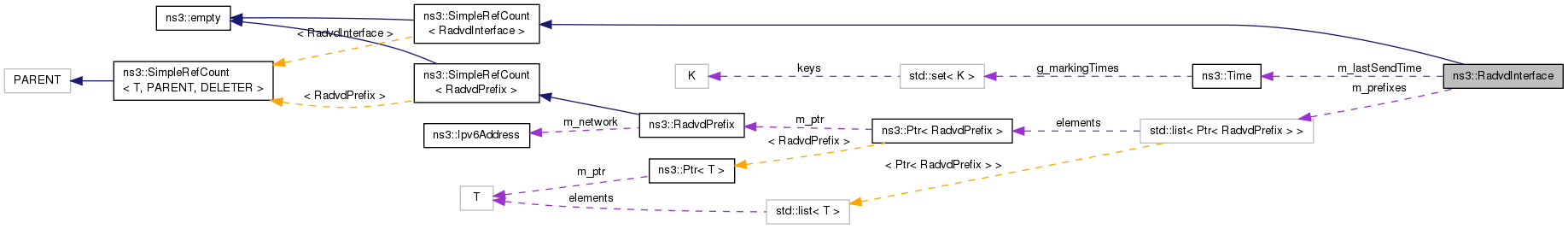

Collaboration diagram for ns3::RadvdInterface:

Public Types
typedef std::list< Ptr< RadvdPrefix > >	RadvdPrefixList
	Container: Ptr to RadvdPrefix. More...

typedef std::list< Ptr< RadvdPrefix > >::const_iterator	RadvdPrefixListCI
	Container Const Iterator: Ptr to RadvdPrefix. More...

typedef std::list< Ptr< RadvdPrefix > >::iterator	RadvdPrefixListI
	Container Iterator: Ptr to RadvdPrefix. More...

Public Member Functions
	RadvdInterface (uint32_t interface)
	Constructor. More...

	RadvdInterface (uint32_t interface, uint32_t maxRtrAdvInterval, uint32_t minRtrAdvInterval)
	Constructor. More...

	~RadvdInterface ()
	Destructor. More...

void	AddPrefix (Ptr< RadvdPrefix > routerPrefix)
	Add a prefix to advertise on interface. More...

uint8_t	GetCurHopLimit () const
	Get current hop limit. More...

uint32_t	GetDefaultLifeTime () const
	Get default lifetime. More...

uint8_t	GetDefaultPreference () const
	Get default preference. More...

uint32_t	GetHomeAgentLifeTime () const
	Get home agent lifetime. More...

uint32_t	GetHomeAgentPreference () const
	Get home agent preference. More...

uint32_t	GetInterface () const
	Get interface index for this configuration. More...

Time	GetLastRaTxTime ()
	Get the last time a RA has been sent. More...

uint32_t	GetLinkMtu () const
	Get link MTU. More...

uint32_t	GetMaxRtrAdvInterval () const
	Get maximum RA interval. More...

uint32_t	GetMinDelayBetweenRAs () const
	Get minimum delay between RAs. More...

uint32_t	GetMinRtrAdvInterval () const
	Get minimum RA interval. More...

RadvdPrefixList	GetPrefixes () const
	Get list of prefixes advertised for this interface. More...

uint32_t	GetReachableTime () const
	Get reachable time. More...

uint32_t	GetRetransTimer () const
	Get retransmission timer. More...

bool	IsHomeAgentFlag () const
	Is "home agent" flag enabled ? More...

bool	IsHomeAgentInfo () const
	Is Home Agent Information option should be included in RA ? More...

bool	IsInitialRtrAdv ()
	Checks if the interface is subject to the initial Rtr Advertisements rule. More...

bool	IsIntervalOpt () const
	Is advertisement interval option should be included in RA ? More...

bool	IsManagedFlag () const
	Is managed flag enabled ? More...

bool	IsMobRtrSupportFlag () const
	Is "mobile router support" flag enabled ? More...

bool	IsOtherConfigFlag () const
	Is "other config" flag enabled ? More...

bool	IsSendAdvert () const
	Is send advert enabled (periodic RA and reply to RS) ? More...

bool	IsSourceLLAddress () const
	Is source LLA option should be included in RA ? More...

void	SetCurHopLimit (uint8_t curHopLimit)
	Set current hop limit. More...

void	SetDefaultLifeTime (uint32_t defaultLifeTime)
	Set default lifetime. More...

void	SetDefaultPreference (uint8_t defaultPreference)
	Set default preference. More...

void	SetHomeAgentFlag (bool homeAgentFlag)
	Set "home agent" flag. More...

void	SetHomeAgentInfo (bool homeAgentFlag)
	Set flag to add or not HA information option to RA. More...

void	SetHomeAgentLifeTime (uint32_t homeAgentLifeTime)
	Set home agent lifetime. More...

void	SetHomeAgentPreference (uint32_t homeAgentPreference)
	Set home agent preference. More...

void	SetIntervalOpt (bool intervalOpt)
	Set flag to add or not advertisement interval to RA. More...

void	SetLastRaTxTime (Time now)
	Set the last RA send time. More...

void	SetLinkMtu (uint32_t linkMtu)
	Set link MTU. More...

void	SetManagedFlag (bool managedFlag)
	Set managed flag. More...

void	SetMaxRtrAdvInterval (uint32_t maxRtrAdvInterval)
	Get maximum RA interval. More...

void	SetMinDelayBetweenRAs (uint32_t minDelayBetweenRAs)
	Set minimum delay between RAs. More...

void	SetMinRtrAdvInterval (uint32_t minRtrAdvInterval)
	Get minimum RA interval. More...

void	SetMobRtrSupportFlag (bool mobRtrSupportFlag)
	Set "mobile router support" flag. More...

void	SetOtherConfigFlag (bool otherConfigFlag)
	Set "other config" flag. More...

void	SetReachableTime (uint32_t reachableTime)
	Set reachable time. More...

void	SetRetransTimer (uint32_t retransTimer)
	Set retransmission timer. More...

void	SetSendAdvert (bool sendAdvert)
	Set send advert flag. More...

void	SetSourceLLAddress (bool sourceLLAddress)
	Set flag to add or not LLA to RA. More...

Public Member Functions inherited from ns3::SimpleRefCount< RadvdInterface >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint32_t	m_curHopLimit
	Current hop limit (TTL). More...

uint32_t	m_defaultLifeTime
	Default life time in seconds. More...

uint8_t	m_defaultPreference
	Preference associated with default router. More...

bool	m_homeAgentFlag
	Flag to add HA (home agent) flag in RA. More...

bool	m_homeAgentInfo
	Flag to add Home Agent Information option (Mobile IPv6). More...

uint32_t	m_homeAgentLifeTime
	Home agent lifetime in seconds. More...

uint32_t	m_homeAgentPreference
	Home agent preference. More...

uint8_t	m_initialRtrAdvertisementsLeft
	Number of fast announcement to do. More...

uint32_t	m_interface
	Interface to advertise RA. More...

bool	m_intervalOpt
	Flag to add Advertisement Interval option in RA. More...

Time	m_lastSendTime
	Last RA send time. More...

uint32_t	m_linkMtu
	Link MTU to use. More...

bool	m_managedFlag
	Managed flag. More...

uint32_t	m_maxRtrAdvInterval
	Maximum RA interval in milliseconds. More...

uint32_t	m_minDelayBetweenRAs
	Minimum delay between RA in milliseconds. More...

uint32_t	m_minRtrAdvInterval
	Minimum RA interval in milliseconds. More...

bool	m_mobRtrSupportFlag
	Flag for HA to signals it supports Mobile Router registrations (NEMO Basic). More...

bool	m_otherConfigFlag
	Other configuration flag. More...

RadvdPrefixList	m_prefixes
	List of prefixes to advertise. More...

uint32_t	m_reachableTime
	Reachable time in milliseconds. More...

uint32_t	m_retransTimer
	Retransmission timer in milliseconds. More...

bool	m_sendAdvert
	Flag whether or not router sends periodic RA and respond to RS. More...

bool	m_sourceLLAddress
	Flag to add link-layer address in RA. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< RadvdInterface >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Radvd interface configuration.

Definition at line 37 of file radvd-interface.h.

Member Typedef Documentation

typedef std::list<Ptr<RadvdPrefix> > ns3::RadvdInterface::RadvdPrefixList

Container: Ptr to RadvdPrefix.

Definition at line 41 of file radvd-interface.h.

typedef std::list<Ptr<RadvdPrefix> >::const_iterator ns3::RadvdInterface::RadvdPrefixListCI

Container Const Iterator: Ptr to RadvdPrefix.

Definition at line 45 of file radvd-interface.h.

typedef std::list<Ptr<RadvdPrefix> >::iterator ns3::RadvdInterface::RadvdPrefixListI

Container Iterator: Ptr to RadvdPrefix.

Definition at line 43 of file radvd-interface.h.

Constructor & Destructor Documentation

ns3::RadvdInterface::RadvdInterface ( uint32_t interface )

Constructor.

Parameters

interface interface index

Definition at line 29 of file radvd-interface.cc.

References m_curHopLimit, m_defaultLifeTime, m_defaultPreference, m_homeAgentFlag, m_homeAgentInfo, m_homeAgentLifeTime, m_homeAgentPreference, m_initialRtrAdvertisementsLeft, m_intervalOpt, m_linkMtu, m_managedFlag, m_maxRtrAdvInterval, m_minDelayBetweenRAs, m_minRtrAdvInterval, m_mobRtrSupportFlag, m_otherConfigFlag, m_reachableTime, m_retransTimer, m_sendAdvert, m_sourceLLAddress, and NS_LOG_FUNCTION.

ns3::RadvdInterface::RadvdInterface	(	uint32_t	interface,
		uint32_t	maxRtrAdvInterval,
		uint32_t	minRtrAdvInterval
	)

Constructor.

Parameters

interface	interface index
maxRtrAdvInterval	maximum RA interval (ms)
minRtrAdvInterval	minimum RA interval (ms)

Definition at line 56 of file radvd-interface.cc.

References m_curHopLimit, m_defaultLifeTime, m_defaultPreference, m_homeAgentFlag, m_homeAgentInfo, m_homeAgentLifeTime, m_homeAgentPreference, m_initialRtrAdvertisementsLeft, m_intervalOpt, m_linkMtu, m_managedFlag, m_maxRtrAdvInterval, m_minDelayBetweenRAs, m_minRtrAdvInterval, m_mobRtrSupportFlag, m_otherConfigFlag, m_reachableTime, m_retransTimer, m_sendAdvert, m_sourceLLAddress, NS_ASSERT, and NS_LOG_FUNCTION.

ns3::RadvdInterface::~RadvdInterface ( )

Destructor.

Definition at line 83 of file radvd-interface.cc.

References m_prefixes, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RadvdInterface::AddPrefix ( Ptr< RadvdPrefix > routerPrefix )

Add a prefix to advertise on interface.

Parameters

routerPrefix prefix to advertise

Definition at line 94 of file radvd-interface.cc.

References m_prefixes, and NS_LOG_FUNCTION.

uint8_t ns3::RadvdInterface::GetCurHopLimit ( ) const

Get current hop limit.

Returns: current hop limit for the link

Definition at line 233 of file radvd-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetDefaultLifeTime ( ) const

Get default lifetime.

Returns: default lifetime

Definition at line 209 of file radvd-interface.cc.

References m_defaultLifeTime, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint8_t ns3::RadvdInterface::GetDefaultPreference ( ) const

Get default preference.

Returns: default preference

Definition at line 245 of file radvd-interface.cc.

References m_defaultPreference, and NS_LOG_FUNCTION.

uint32_t ns3::RadvdInterface::GetHomeAgentLifeTime ( ) const

Get home agent lifetime.

Returns: home agent lifetime

Definition at line 293 of file radvd-interface.cc.

References m_homeAgentLifeTime, and NS_LOG_FUNCTION.

uint32_t ns3::RadvdInterface::GetHomeAgentPreference ( ) const

Get home agent preference.

Returns: home agent preference

Definition at line 305 of file radvd-interface.cc.

References m_homeAgentPreference, and NS_LOG_FUNCTION.

uint32_t ns3::RadvdInterface::GetInterface ( ) const

Get interface index for this configuration.

Returns: interface index

Definition at line 101 of file radvd-interface.cc.

References m_interface, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

Time ns3::RadvdInterface::GetLastRaTxTime ( )

Get the last time a RA has been sent.

Returns: the last RA send time

Definition at line 341 of file radvd-interface.cc.

References m_lastSendTime.

uint32_t ns3::RadvdInterface::GetLinkMtu ( ) const

Get link MTU.

Returns: link MTU

Definition at line 185 of file radvd-interface.cc.

References m_linkMtu, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetMaxRtrAdvInterval ( ) const

Get maximum RA interval.

Returns: RA interval (ms)

Definition at line 125 of file radvd-interface.cc.

References m_maxRtrAdvInterval, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetMinDelayBetweenRAs ( ) const

Get minimum delay between RAs.

Returns: minimum delay (ms)

Definition at line 149 of file radvd-interface.cc.

References m_minDelayBetweenRAs, and NS_LOG_FUNCTION.

uint32_t ns3::RadvdInterface::GetMinRtrAdvInterval ( ) const

Get minimum RA interval.

Returns: RA interval (ms)

Definition at line 137 of file radvd-interface.cc.

References m_minRtrAdvInterval, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

std::list< Ptr< RadvdPrefix > > ns3::RadvdInterface::GetPrefixes ( ) const

Get list of prefixes advertised for this interface.

Returns: list of IPv6 prefixes

Definition at line 107 of file radvd-interface.cc.

References m_prefixes, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetReachableTime ( ) const

Get reachable time.

Returns: reachable time

Definition at line 197 of file radvd-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetRetransTimer ( ) const

Get retransmission timer.

Returns: retransmission timer

Definition at line 221 of file radvd-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsHomeAgentFlag ( ) const

Is "home agent" flag enabled ?

Returns: "home agent" flag

Definition at line 269 of file radvd-interface.cc.

References m_homeAgentFlag, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsHomeAgentInfo ( ) const

Is Home Agent Information option should be included in RA ?

Returns: true if HA information option is added in RA, false otherwise

Definition at line 281 of file radvd-interface.cc.

References m_homeAgentInfo, and NS_LOG_FUNCTION.

bool ns3::RadvdInterface::IsInitialRtrAdv ( )

Checks if the interface is subject to the initial Rtr Advertisements rule.

Returns: true if the initial Rtr Advertisements counter is greater than zero.

Definition at line 355 of file radvd-interface.cc.

References m_initialRtrAdvertisementsLeft.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsIntervalOpt ( ) const

Is advertisement interval option should be included in RA ?

Returns: true if advertisement interval option is added in RA, false otherwise

Definition at line 329 of file radvd-interface.cc.

References m_intervalOpt, and NS_LOG_FUNCTION.

bool ns3::RadvdInterface::IsManagedFlag ( ) const

Is managed flag enabled ?

Returns: managed flag

Definition at line 161 of file radvd-interface.cc.

References m_managedFlag, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsMobRtrSupportFlag ( ) const

Is "mobile router support" flag enabled ?

Returns: "mobile router support" flag

Definition at line 317 of file radvd-interface.cc.

References m_mobRtrSupportFlag, and NS_LOG_FUNCTION.

bool ns3::RadvdInterface::IsOtherConfigFlag ( ) const

Is "other config" flag enabled ?

Returns: other config flag

Definition at line 173 of file radvd-interface.cc.

References m_otherConfigFlag, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsSendAdvert ( ) const

Is send advert enabled (periodic RA and reply to RS) ?

Returns: send advert flag

Definition at line 113 of file radvd-interface.cc.

References m_sendAdvert, and NS_LOG_FUNCTION.

bool ns3::RadvdInterface::IsSourceLLAddress ( ) const

Is source LLA option should be included in RA ?

Returns: true if source address is added in RA, false otherwise

Definition at line 257 of file radvd-interface.cc.

References m_sourceLLAddress, and NS_LOG_FUNCTION.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

void ns3::RadvdInterface::SetCurHopLimit ( uint8_t curHopLimit )

Set current hop limit.

Parameters

curHopLimit current hop limit for the link

Definition at line 239 of file radvd-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetDefaultLifeTime ( uint32_t defaultLifeTime )

Set default lifetime.

Parameters

defaultLifeTime default lifetime

Definition at line 215 of file radvd-interface.cc.

References m_defaultLifeTime, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetDefaultPreference ( uint8_t defaultPreference )

Set default preference.

Parameters

defaultPreference default preference

Definition at line 251 of file radvd-interface.cc.

References m_defaultPreference, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetHomeAgentFlag ( bool homeAgentFlag )

Set "home agent" flag.

Parameters

homeAgentFlag value

Definition at line 275 of file radvd-interface.cc.

References m_homeAgentFlag, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetHomeAgentInfo ( bool homeAgentFlag )

Set flag to add or not HA information option to RA.

Parameters

homeAgentFlag value

Definition at line 287 of file radvd-interface.cc.

References m_homeAgentInfo, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetHomeAgentLifeTime ( uint32_t homeAgentLifeTime )

Set home agent lifetime.

Parameters

homeAgentLifeTime home agent lifetime

Definition at line 299 of file radvd-interface.cc.

References m_homeAgentLifeTime, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetHomeAgentPreference ( uint32_t homeAgentPreference )

Set home agent preference.

Parameters

homeAgentPreference home agent preference

Definition at line 311 of file radvd-interface.cc.

References m_homeAgentPreference, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetIntervalOpt ( bool intervalOpt )

Set flag to add or not advertisement interval to RA.

Parameters

intervalOpt value

Definition at line 335 of file radvd-interface.cc.

References m_intervalOpt, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetLastRaTxTime ( Time now )

Set the last RA send time.

It also decrements the initial Rtr Advertisements counter.

Parameters

the	last RA send time

Definition at line 346 of file radvd-interface.cc.

References m_initialRtrAdvertisementsLeft, and m_lastSendTime.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

void ns3::RadvdInterface::SetLinkMtu ( uint32_t linkMtu )

Set link MTU.

Parameters

linkMtu link MTU

Definition at line 191 of file radvd-interface.cc.

References m_linkMtu, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetManagedFlag ( bool managedFlag )

Set managed flag.

Parameters

managedFlag value

Definition at line 167 of file radvd-interface.cc.

References m_managedFlag, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetMaxRtrAdvInterval ( uint32_t maxRtrAdvInterval )

Get maximum RA interval.

Parameters

maxRtrAdvInterval RA interval (ms)

Definition at line 131 of file radvd-interface.cc.

References m_maxRtrAdvInterval, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetMinDelayBetweenRAs ( uint32_t minDelayBetweenRAs )

Set minimum delay between RAs.

Parameters

minDelayBetweenRAs minimum delay (ms)

Definition at line 155 of file radvd-interface.cc.

References m_minDelayBetweenRAs, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetMinRtrAdvInterval ( uint32_t minRtrAdvInterval )

Get minimum RA interval.

Parameters

minRtrAdvInterval RA interval (ms).

Definition at line 143 of file radvd-interface.cc.

References m_minRtrAdvInterval, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetMobRtrSupportFlag ( bool mobRtrSupportFlag )

Set "mobile router support" flag.

Parameters

mobRtrSupportFlag value

Definition at line 323 of file radvd-interface.cc.

References m_mobRtrSupportFlag, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetOtherConfigFlag ( bool otherConfigFlag )

Set "other config" flag.

Parameters

otherConfigFlag value

Definition at line 179 of file radvd-interface.cc.

References m_otherConfigFlag, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetReachableTime ( uint32_t reachableTime )

Set reachable time.

Parameters

reachableTime reachable time

Definition at line 203 of file radvd-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetRetransTimer ( uint32_t retransTimer )

Set retransmission timer.

Parameters

retransTimer retransmission timer

Definition at line 227 of file radvd-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetSendAdvert ( bool sendAdvert )

Set send advert flag.

Parameters

sendAdvert value

Definition at line 119 of file radvd-interface.cc.

References m_sendAdvert, and NS_LOG_FUNCTION.

void ns3::RadvdInterface::SetSourceLLAddress ( bool sourceLLAddress )

Set flag to add or not LLA to RA.

Parameters

sourceLLAddress value

Definition at line 263 of file radvd-interface.cc.

References m_sourceLLAddress, and NS_LOG_FUNCTION.

Member Data Documentation

uint32_t ns3::RadvdInterface::m_curHopLimit

private

Current hop limit (TTL).

Definition at line 390 of file radvd-interface.h.

Referenced by GetCurHopLimit(), RadvdInterface(), and SetCurHopLimit().

uint32_t ns3::RadvdInterface::m_defaultLifeTime

private

Default life time in seconds.

Definition at line 395 of file radvd-interface.h.

Referenced by GetDefaultLifeTime(), RadvdInterface(), and SetDefaultLifeTime().

uint8_t ns3::RadvdInterface::m_defaultPreference

private

Preference associated with default router.

0 = low 1 = medium 2 = high

Definition at line 403 of file radvd-interface.h.

Referenced by GetDefaultPreference(), RadvdInterface(), and SetDefaultPreference().

bool ns3::RadvdInterface::m_homeAgentFlag

private

Flag to add HA (home agent) flag in RA.

Definition at line 413 of file radvd-interface.h.

Referenced by IsHomeAgentFlag(), RadvdInterface(), and SetHomeAgentFlag().

bool ns3::RadvdInterface::m_homeAgentInfo

private

Flag to add Home Agent Information option (Mobile IPv6).

Currently not implemented.

Definition at line 419 of file radvd-interface.h.

Referenced by IsHomeAgentInfo(), RadvdInterface(), and SetHomeAgentInfo().

uint32_t ns3::RadvdInterface::m_homeAgentLifeTime

private

Home agent lifetime in seconds.

Ignored if home agent info is not set.

Definition at line 424 of file radvd-interface.h.

Referenced by GetHomeAgentLifeTime(), RadvdInterface(), and SetHomeAgentLifeTime().

uint32_t ns3::RadvdInterface::m_homeAgentPreference

private

Home agent preference.

Ignored if home agent info is not set.

Definition at line 429 of file radvd-interface.h.

Referenced by GetHomeAgentPreference(), RadvdInterface(), and SetHomeAgentPreference().

uint8_t ns3::RadvdInterface::m_initialRtrAdvertisementsLeft

private

Number of fast announcement to do.

Definition at line 449 of file radvd-interface.h.

Referenced by IsInitialRtrAdv(), RadvdInterface(), and SetLastRaTxTime().

uint32_t ns3::RadvdInterface::m_interface

private

Interface to advertise RA.

Definition at line 335 of file radvd-interface.h.

Referenced by GetInterface().

bool ns3::RadvdInterface::m_intervalOpt

private

Flag to add Advertisement Interval option in RA.

Definition at line 439 of file radvd-interface.h.

Referenced by IsIntervalOpt(), RadvdInterface(), and SetIntervalOpt().

Time ns3::RadvdInterface::m_lastSendTime

private

Last RA send time.

Definition at line 444 of file radvd-interface.h.

Referenced by GetLastRaTxTime(), and SetLastRaTxTime().

uint32_t ns3::RadvdInterface::m_linkMtu

private

Link MTU to use.

Definition at line 375 of file radvd-interface.h.

Referenced by GetLinkMtu(), RadvdInterface(), and SetLinkMtu().

bool ns3::RadvdInterface::m_managedFlag

private

Managed flag.

If true host use the stateful protocol for address autoconfiguration.

Definition at line 365 of file radvd-interface.h.

Referenced by IsManagedFlag(), RadvdInterface(), and SetManagedFlag().

uint32_t ns3::RadvdInterface::m_maxRtrAdvInterval

private

Maximum RA interval in milliseconds.

Definition at line 350 of file radvd-interface.h.

Referenced by GetMaxRtrAdvInterval(), RadvdInterface(), and SetMaxRtrAdvInterval().

uint32_t ns3::RadvdInterface::m_minDelayBetweenRAs

private

Minimum delay between RA in milliseconds.

Definition at line 360 of file radvd-interface.h.

Referenced by GetMinDelayBetweenRAs(), RadvdInterface(), and SetMinDelayBetweenRAs().

uint32_t ns3::RadvdInterface::m_minRtrAdvInterval

private

Minimum RA interval in milliseconds.

Definition at line 355 of file radvd-interface.h.

Referenced by GetMinRtrAdvInterval(), RadvdInterface(), and SetMinRtrAdvInterval().

bool ns3::RadvdInterface::m_mobRtrSupportFlag

private

Flag for HA to signals it supports Mobile Router registrations (NEMO Basic).

Definition at line 434 of file radvd-interface.h.

Referenced by IsMobRtrSupportFlag(), RadvdInterface(), and SetMobRtrSupportFlag().

bool ns3::RadvdInterface::m_otherConfigFlag

private

Other configuration flag.

If true host use stateful protocol for other (non-address) information.

Definition at line 370 of file radvd-interface.h.

Referenced by IsOtherConfigFlag(), RadvdInterface(), and SetOtherConfigFlag().

RadvdPrefixList ns3::RadvdInterface::m_prefixes

private

List of prefixes to advertise.

Definition at line 340 of file radvd-interface.h.

Referenced by AddPrefix(), GetPrefixes(), and ~RadvdInterface().

uint32_t ns3::RadvdInterface::m_reachableTime

private

Reachable time in milliseconds.

Definition at line 380 of file radvd-interface.h.

Referenced by GetReachableTime(), RadvdInterface(), and SetReachableTime().

uint32_t ns3::RadvdInterface::m_retransTimer

private

Retransmission timer in milliseconds.

Definition at line 385 of file radvd-interface.h.

Referenced by GetRetransTimer(), RadvdInterface(), and SetRetransTimer().

bool ns3::RadvdInterface::m_sendAdvert

private

Flag whether or not router sends periodic RA and respond to RS.

Definition at line 345 of file radvd-interface.h.

Referenced by IsSendAdvert(), RadvdInterface(), and SetSendAdvert().

bool ns3::RadvdInterface::m_sourceLLAddress

private

Flag to add link-layer address in RA.

Definition at line 408 of file radvd-interface.h.

Referenced by IsSourceLLAddress(), RadvdInterface(), and SetSourceLLAddress().

The documentation for this class was generated from the following files:

src/applications/model/radvd-interface.h
src/applications/model/radvd-interface.cc

Public Types

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
