ns3::Rectangle Class Reference

a 2d rectangle More...

#include <rectangle.h>

Public Types
enum	Side { RIGHT, LEFT, TOP, BOTTOM }
	enum for naming sides More...

Public Member Functions
	Rectangle (double _xMin, double _xMax, double _yMin, double _yMax)
	Rectangle ()
	Create a zero-sized rectangle located at coordinates (0.0,0.0) More...
Vector	CalculateIntersection (const Vector &current, const Vector &speed) const
Side	GetClosestSide (const Vector &position) const
bool	IsInside (const Vector &position) const

Public Attributes
double	xMax
	The x coordinate of the right bound of the rectangle. More...
double	xMin
	The x coordinate of the left bound of the rectangle. More...
double	yMax
	The y coordinate of the top bound of the rectangle. More...
double	yMin
	The y coordinate of the bottom bound of the rectangle. More...

Detailed Description

a 2d rectangle

See also

Rectangle Attribute

Definition at line 34 of file rectangle.h.

Constructor & Destructor Documentation

ns3::Rectangle::Rectangle	(	double	_xMin,
		double	_xMax,
		double	_yMin,
		double	_yMax
	)

Parameters

_xMin	x coordinates of left boundary.
_xMax	x coordinates of right boundary.
_yMin	y coordinates of bottom boundary.
_yMax	y coordinates of top boundary.

Create a rectangle.

Definition at line 30 of file rectangle.cc.

ns3::Rectangle::Rectangle

(

)

Create a zero-sized rectangle located at coordinates (0.0,0.0)

Definition at line 39 of file rectangle.cc.

Member Function Documentation

Vector ns3::Rectangle::CalculateIntersection	(	const Vector &	current,
		const Vector &	speed
	)		const

Parameters

current	the current position
speed	the current speed

Returns

the intersection point between the rectangle and the current+speed vector.

This method assumes that the current position is located inside the rectangle and checks for this with an assert. This method compares only the x and y coordinates of the input position and speed. It ignores the z coordinate.

Definition at line 89 of file rectangle.cc.

References IsInside(), NS_ASSERT, xMax, xMin, yMax, and yMin.

Referenced by ns3::RandomWalk2dMobilityModel::DoWalk(), and ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed().

Here is the call graph for this function:

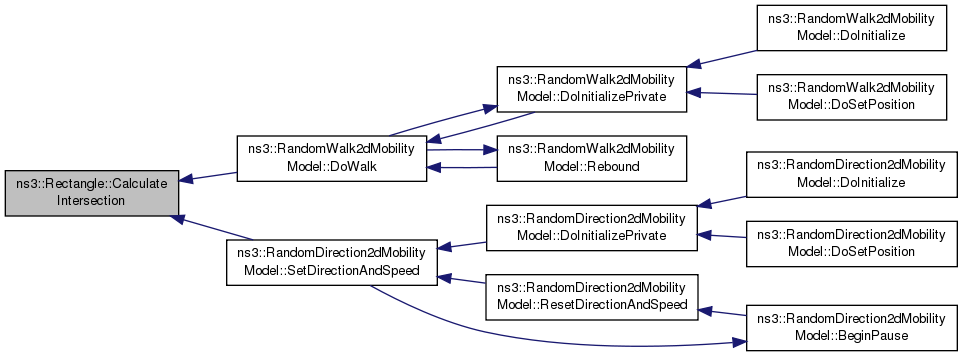

Here is the caller graph for this function:

Rectangle::Side ns3::Rectangle::GetClosestSide

(

const Vector &

position

)

const

Parameters

position

the position to test.

Returns

the side of the rectangle the input position is closest to.

This method compares only the x and y coordinates of the input position. It ignores the z coordinate.

Definition at line 56 of file rectangle.cc.

References BOTTOM, LEFT, RIGHT, TOP, xMax, and yMax.

Referenced by ns3::RandomWalk2dMobilityModel::Rebound(), and ns3::RandomDirection2dMobilityModel::ResetDirectionAndSpeed().

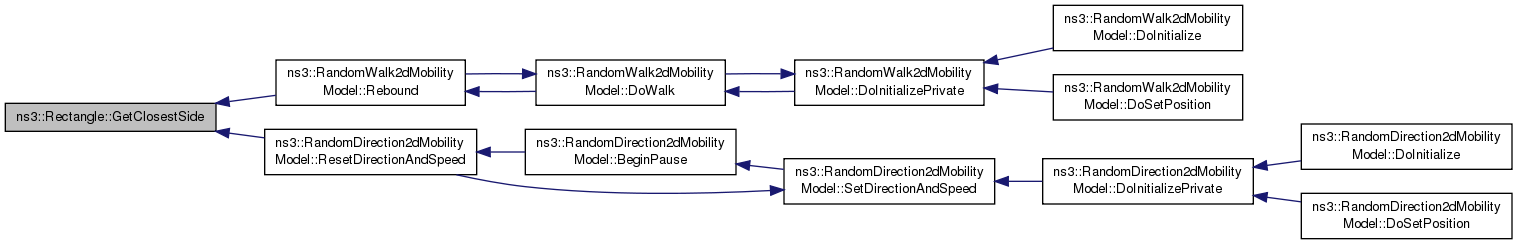

Here is the caller graph for this function:

bool ns3::Rectangle::IsInside

(

const Vector &

position

)

const

Parameters

position

the position to test.

Returns

true if the input position is located within the rectangle, false otherwise.

This method compares only the x and y coordinates of the input position. It ignores the z coordinate.

Definition at line 48 of file rectangle.cc.

References xMax, xMin, yMax, and yMin.

Referenced by CalculateIntersection(), ns3::RandomWalk2dMobilityModel::DoSetPosition(), and ns3::RandomWalk2dMobilityModel::DoWalk().

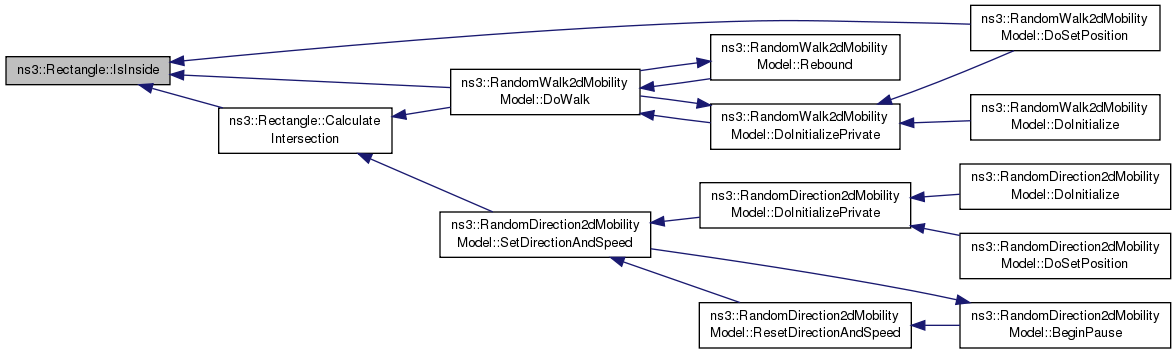

Here is the caller graph for this function:

Member Data Documentation

double ns3::Rectangle::xMax

The x coordinate of the right bound of the rectangle.

Definition at line 89 of file rectangle.h.

Referenced by CalculateIntersection(), GetClosestSide(), IsInside(), ns3::operator<<(), ns3::operator>>(), and ns3::ConstantVelocityHelper::UpdateWithBounds().

double ns3::Rectangle::xMin

The x coordinate of the left bound of the rectangle.

Definition at line 88 of file rectangle.h.

Referenced by CalculateIntersection(), IsInside(), ns3::operator<<(), ns3::operator>>(), and ns3::ConstantVelocityHelper::UpdateWithBounds().

double ns3::Rectangle::yMax

The y coordinate of the top bound of the rectangle.

Definition at line 91 of file rectangle.h.

Referenced by CalculateIntersection(), GetClosestSide(), IsInside(), ns3::operator<<(), ns3::operator>>(), and ns3::ConstantVelocityHelper::UpdateWithBounds().

double ns3::Rectangle::yMin

The y coordinate of the bottom bound of the rectangle.

Definition at line 90 of file rectangle.h.

Referenced by CalculateIntersection(), IsInside(), ns3::operator<<(), ns3::operator>>(), and ns3::ConstantVelocityHelper::UpdateWithBounds().

---

The documentation for this class was generated from the following files:

• src/mobility/model/rectangle.h
• src/mobility/model/rectangle.cc
