ns3::SpectrumPhyHelper Class Reference

create and configure several SpectrumPhy instances and connect them to a channel. More...

#include <spectrum-helper.h>

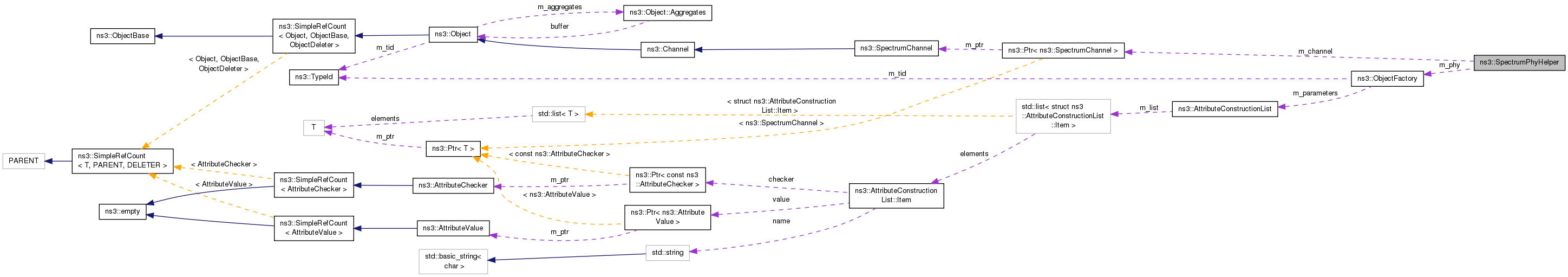

Collaboration diagram for ns3::SpectrumPhyHelper:

Public Member Functions
Ptr< SpectrumPhy >	Create (Ptr< Node > node, Ptr< NetDevice > device) const
void	SetChannel (Ptr< SpectrumChannel > channel)
	set the channel that will be used by SpectrumPhy instances created by this helper More...
void	SetChannel (std::string channelName)
	set the channel that will be used by SpectrumPhy instances created by this helper More...
void	SetPhy (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
void	SetPhyAttribute (std::string name, const AttributeValue &v)

Private Attributes
Ptr< SpectrumChannel >	m_channel
ObjectFactory	m_phy

Detailed Description

create and configure several SpectrumPhy instances and connect them to a channel.

Definition at line 206 of file spectrum-helper.h.

Member Function Documentation

Ptr< SpectrumPhy > ns3::SpectrumPhyHelper::Create	(	Ptr< Node >	node,
		Ptr< NetDevice >	device
	)		const

Parameters

node
device

Returns

a newly created SpectrumPhy instance

Definition at line 213 of file spectrum-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_channel, m_phy, NS_ASSERT, ns3::SpectrumPhy::SetChannel(), ns3::SpectrumPhy::SetDevice(), and ns3::SpectrumPhy::SetMobility().

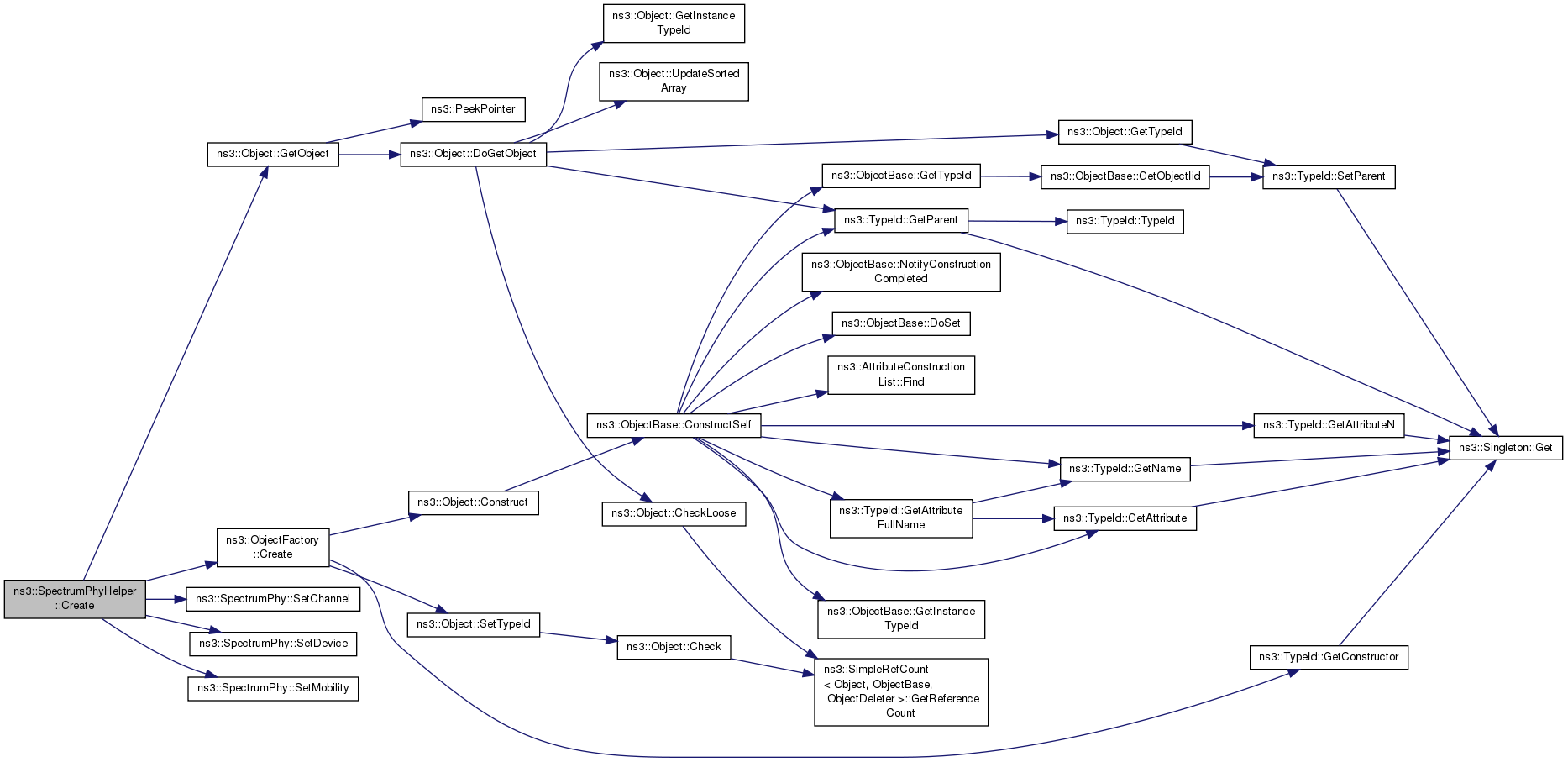

Here is the call graph for this function:

void ns3::SpectrumPhyHelper::SetChannel

(

Ptr< SpectrumChannel >

channel

)

set the channel that will be used by SpectrumPhy instances created by this helper

Parameters

channel

Definition at line 193 of file spectrum-helper.cc.

References m_channel.

void ns3::SpectrumPhyHelper::SetChannel

(

std::string

channelName

)

set the channel that will be used by SpectrumPhy instances created by this helper

Parameters

channelName

Definition at line 199 of file spectrum-helper.cc.

References m_channel.

void ns3::SpectrumPhyHelper::SetPhy	(	std::string	name,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

name	the type of SpectrumPhy to use
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Definition at line 169 of file spectrum-helper.cc.

References m_phy, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

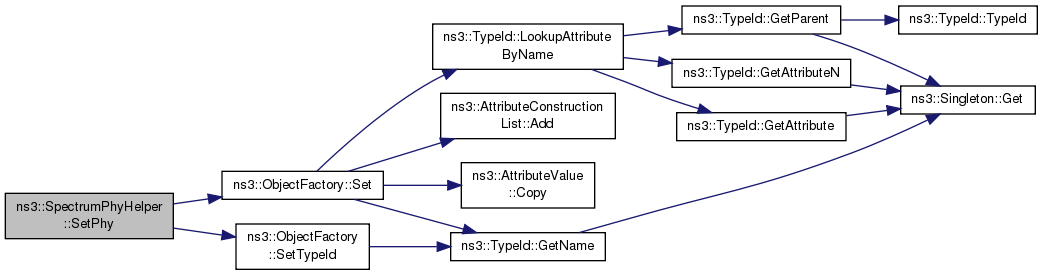

Here is the call graph for this function:

void ns3::SpectrumPhyHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set an attribute of the SpectrumPhy instances to be created

Definition at line 206 of file spectrum-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

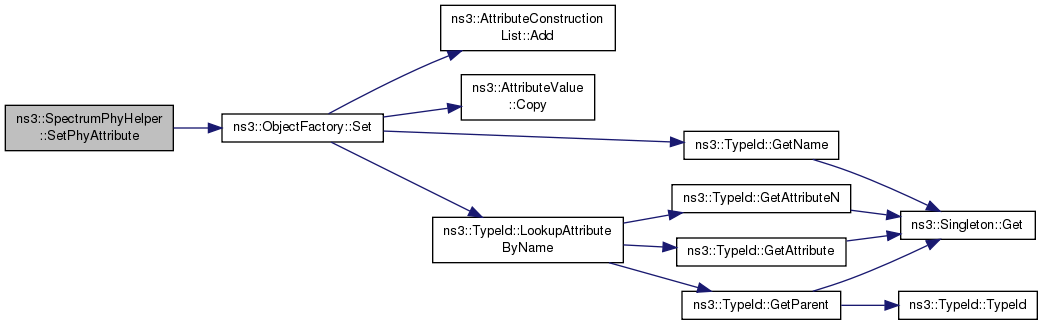

Here is the call graph for this function:

Member Data Documentation

Ptr<SpectrumChannel> ns3::SpectrumPhyHelper::m_channel

private

Definition at line 273 of file spectrum-helper.h.

Referenced by Create(), and SetChannel().

ObjectFactory ns3::SpectrumPhyHelper::m_phy

private

Definition at line 272 of file spectrum-helper.h.

Referenced by Create(), SetPhy(), and SetPhyAttribute().

---

The documentation for this class was generated from the following files:

• src/spectrum/helper/spectrum-helper.h
• src/spectrum/helper/spectrum-helper.cc
