The IEEE 802.11 SSID Information Element. More...
#include <ssid.h>

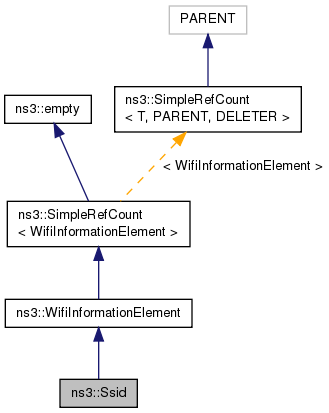

Inheritance diagram for ns3::Ssid: Collaboration diagram for ns3::Ssid:Public Member Functions | |
| Ssid () | |
| Ssid (std::string s) | |
| Create SSID from a given string. More... | |
| Ssid (char const ssid[32], uint8_t length) | |
| Create SSID from a given array of char and given length. More... | |
| uint8_t | DeserializeInformationField (Buffer::Iterator start, uint8_t length) |
| Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
| WifiInformationElementId | ElementId () const |
| Own unique Element ID. More... | |
| uint8_t | GetInformationFieldSize () const |
| Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More... | |
| bool | IsBroadcast (void) const |
| Check if the SSID is broadcast. More... | |
| bool | IsEqual (const Ssid &o) const |
| Check if the two SSIDs are equal. More... | |
| char * | PeekString (void) const |
| Peek the SSID. More... | |
| void | SerializeInformationField (Buffer::Iterator start) const |
| Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
| Public Member Functions inherited from ns3::WifiInformationElement | |
| virtual | ~WifiInformationElement () |
| Buffer::Iterator | Deserialize (Buffer::Iterator i) |
| Deserialize entire IE, which must be present. More... | |
| Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
| Deserialize entire IE if it is present. More... | |
| uint16_t | GetSerializedSize () const |
| Get the size of the serialized IE including Element ID and length fields. More... | |
| virtual bool | operator< (WifiInformationElement const &a) const |
| Compare information elements using Element ID. More... | |
| virtual bool | operator== (WifiInformationElement const &a) const |
| Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More... | |
| virtual void | Print (std::ostream &os) const |
| Generate human-readable form of IE. More... | |
| Buffer::Iterator | Serialize (Buffer::Iterator i) const |
| Serialize entire IE including Element ID and length fields. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
Private Attributes | |
| uint8_t | m_length |
| Length of the SSID. More... | |
| uint8_t | m_ssid [33] |
| Raw SSID value. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
| static void | Cleanup (void) |
| Noop. More... | |
The IEEE 802.11 SSID Information Element.
| ns3::Ssid::Ssid | ( | std::string | s | ) |
| ns3::Ssid::Ssid | ( | char const | ssid[32], |
| uint8_t | length | ||
| ) |
|
virtual |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
| length |
Implements ns3::WifiInformationElement.
Definition at line 121 of file ssid.cc.
References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Read().
Here is the call graph for this function:
|
virtual |
Own unique Element ID.
Implements ns3::WifiInformationElement.
Definition at line 103 of file ssid.cc.
References IE_SSID.
|
virtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field)
Implements ns3::WifiInformationElement.
Definition at line 109 of file ssid.cc.
References m_length.
| bool ns3::Ssid::IsBroadcast | ( | void | ) | const |
| bool ns3::Ssid::IsEqual | ( | const Ssid & | o | ) | const |
Check if the two SSIDs are equal.
| o | SSID to compare to |
Definition at line 69 of file ssid.cc.
References m_ssid.
Referenced by ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

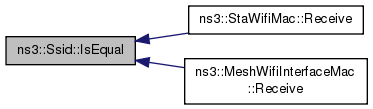

Here is the caller graph for this function:| char * ns3::Ssid::PeekString | ( | void | ) | const |
Peek the SSID.
Definition at line 95 of file ssid.cc.
References m_ssid.
Referenced by ns3::operator<<().
Here is the caller graph for this function:
|
virtual |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 115 of file ssid.cc.
References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Write().
Here is the call graph for this function:
|
private |
Length of the SSID.
Definition at line 87 of file ssid.h.
Referenced by DeserializeInformationField(), GetInformationFieldSize(), SerializeInformationField(), and Ssid().
|
private |
Raw SSID value.
Definition at line 86 of file ssid.h.
Referenced by DeserializeInformationField(), IsBroadcast(), IsEqual(), PeekString(), SerializeInformationField(), and Ssid().
