#include <timer.h>

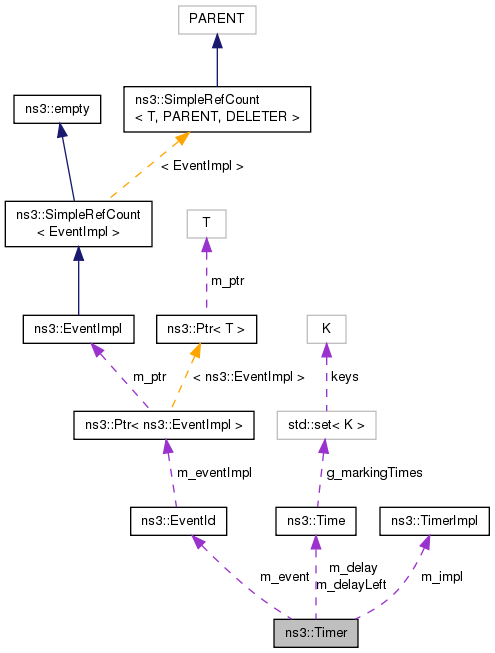

Collaboration diagram for ns3::Timer:

Public Types
enum	DestroyPolicy { CANCEL_ON_DESTROY = (1 << 3), REMOVE_ON_DESTROY = (1 << 4), CHECK_ON_DESTROY = (1 << 5) }
	The policy to use to manager the internal timer when an instance of the Timer class is destroyed. More...

enum	State { RUNNING, EXPIRED, SUSPENDED }
	The possible states of the Timer. More...

Public Member Functions
	Timer ()
	Create a timer with a default event lifetime management policy: More...

	Timer (enum DestroyPolicy destroyPolicy)

	~Timer ()

void	Cancel (void)
	Cancel the currently-running event if there is one. More...

Time	GetDelay (void) const

Time	GetDelayLeft (void) const

enum Timer::State	GetState (void) const

bool	IsExpired (void) const

bool	IsRunning (void) const

bool	IsSuspended (void) const

void	Remove (void)
	Remove from the simulation event-list the currently-running event if there is one. More...

void	Resume (void)
	Restart the timer to expire within the amount of time left saved during Suspend. More...

void	Schedule (void)
	Schedule a new event using the currently-configured delay, function, and arguments. More...

void	Schedule (Time delay)

template<typename T1 >
void	SetArguments (T1 a1)

template<typename T1 , typename T2 >
void	SetArguments (T1 a1, T2 a2)

template<typename T1 , typename T2 , typename T3 >
void	SetArguments (T1 a1, T2 a2, T3 a3)

template<typename T1 , typename T2 , typename T3 , typename T4 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4)

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

void	SetDelay (const Time &delay)

template<typename FN >
void	SetFunction (FN fn)

template<typename MEM_PTR , typename OBJ_PTR >
void	SetFunction (MEM_PTR memPtr, OBJ_PTR objPtr)

void	Suspend (void)
	Cancel the timer and save the amount of time left until it was set to expire. More...

Private Types
enum	InternalSuspended { TIMER_SUSPENDED = (1 << 7) }
	Internal bit marking the suspended state. More...

Private Attributes
Time	m_delay
	The delay configured for this Timer. More...

Time	m_delayLeft
	The amount of time left on the Timer while it is suspended. More...

EventId	m_event
	The future event scheduled to expire the timer. More...

int	m_flags
	Bitfield for Timer State, DestroyPolicy and InternalSuspended. More...

TimerImpl *	m_impl
	The timer implementation, which contains the bound callback function and arguments. More...

Detailed Description

A simple Timer class.

A timer is used to hold together a delay, a function to invoke when the delay expires, and a set of arguments to pass to the function when the delay expires.

A Timer can be suspended, resumed, cancelled and queried for the time left, but it can't be extended (except by suspending and resuming.)

A timer can also be used to enforce a set of predefined event lifetime management policies. These policies are specified at construction time and cannot be changed after.

See also: Watchdog for a simpler interface for a watchdog Virtual Time Timer and Watchdog.

Definition at line 73 of file timer.h.

Constructor & Destructor Documentation

ns3::Timer::Timer ( )

Create a timer with a default event lifetime management policy:

CHECK_ON_DESTROY

Definition at line 35 of file timer.cc.

References NS_LOG_FUNCTION.

ns3::Timer::Timer ( enum DestroyPolicy destroyPolicy )

Parameters

destroyPolicy the event lifetime management policies to use for destroy events

Definition at line 44 of file timer.cc.

References NS_LOG_FUNCTION.

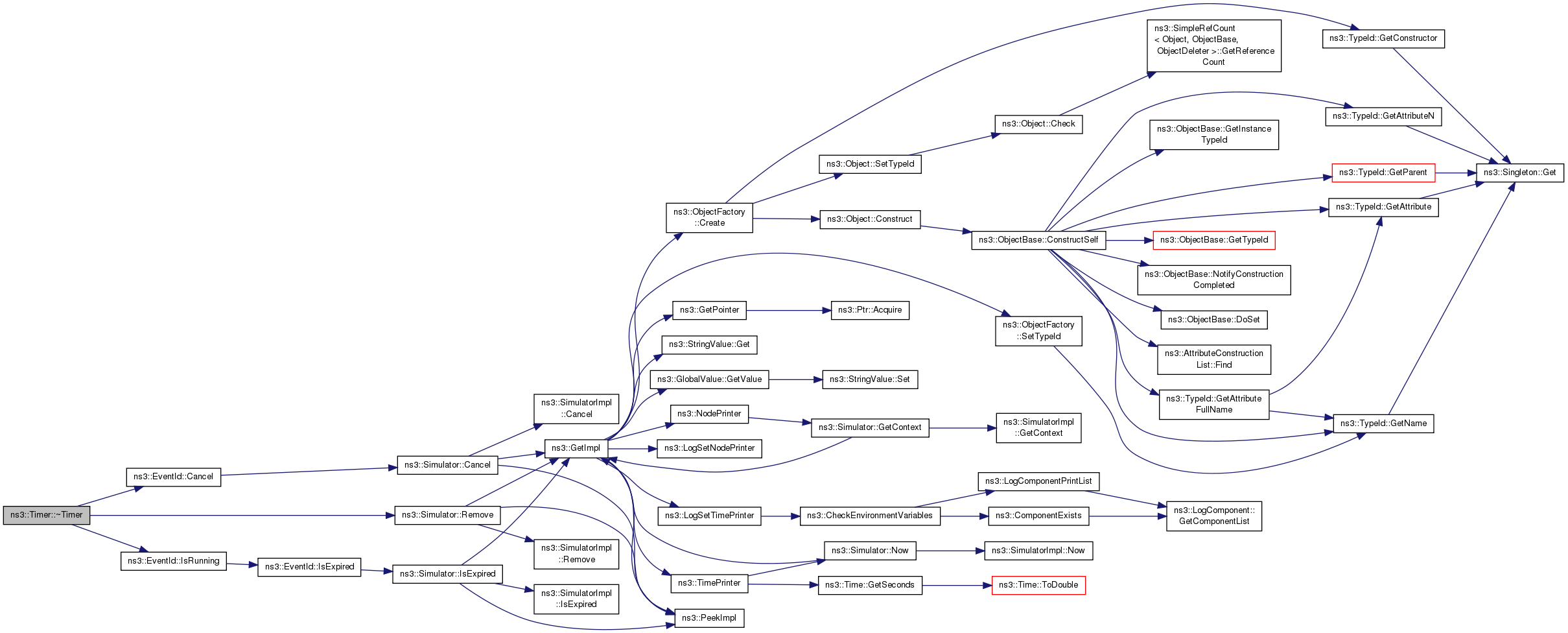

ns3::Timer::~Timer ( )

Definition at line 53 of file timer.cc.

References ns3::EventId::Cancel(), CANCEL_ON_DESTROY, CHECK_ON_DESTROY, ns3::EventId::IsRunning(), m_event, m_flags, m_impl, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Remove(), and REMOVE_ON_DESTROY.

Here is the call graph for this function:

Member Function Documentation

void ns3::Timer::Cancel ( void )

Cancel the currently-running event if there is one.

Do nothing otherwise.

Definition at line 109 of file timer.cc.

References ns3::Simulator::Cancel(), m_event, and NS_LOG_FUNCTION.

Referenced by TimerStateTestCase::DoRun(), ns3::aodv::RoutingProtocol::HelloTimerExpire(), ns3::aodv::RoutingProtocol::NotifyInterfaceDown(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::aodv::Neighbors::Purge(), ns3::dsr::RouteCache::PurgeMac(), ns3::aodv::RoutingProtocol::RecvReplyAck(), ns3::aodv::Neighbors::ScheduleTimer(), ns3::dsr::RouteCache::ScheduleTimer(), ns3::dsr::DsrRouting::SendBuffTimerExpire(), ns3::Ipv6AutoconfiguredPrefix::StopPreferredTimer(), and ns3::Ipv6AutoconfiguredPrefix::StopValidTimer().

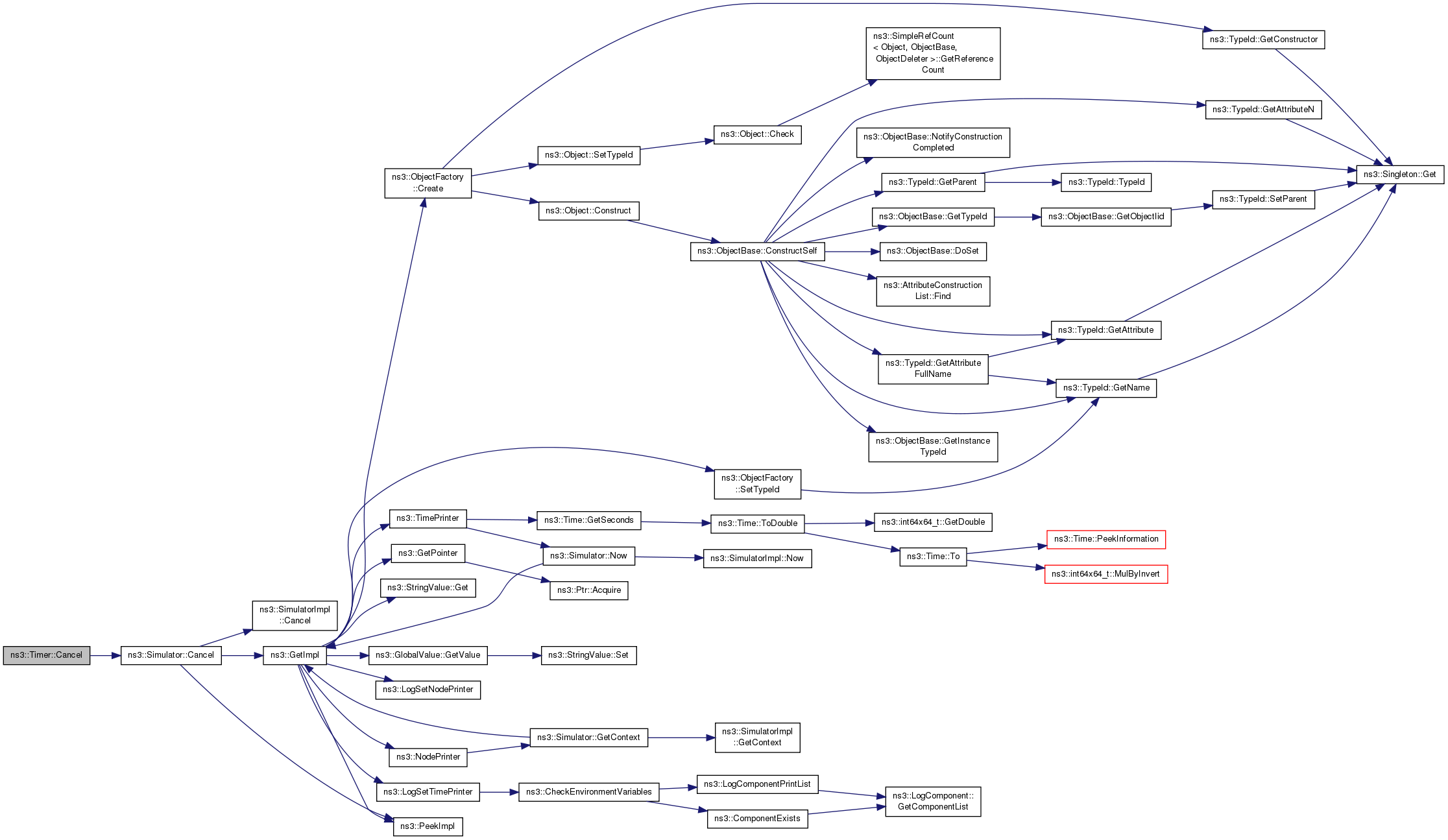

Here is the call graph for this function:

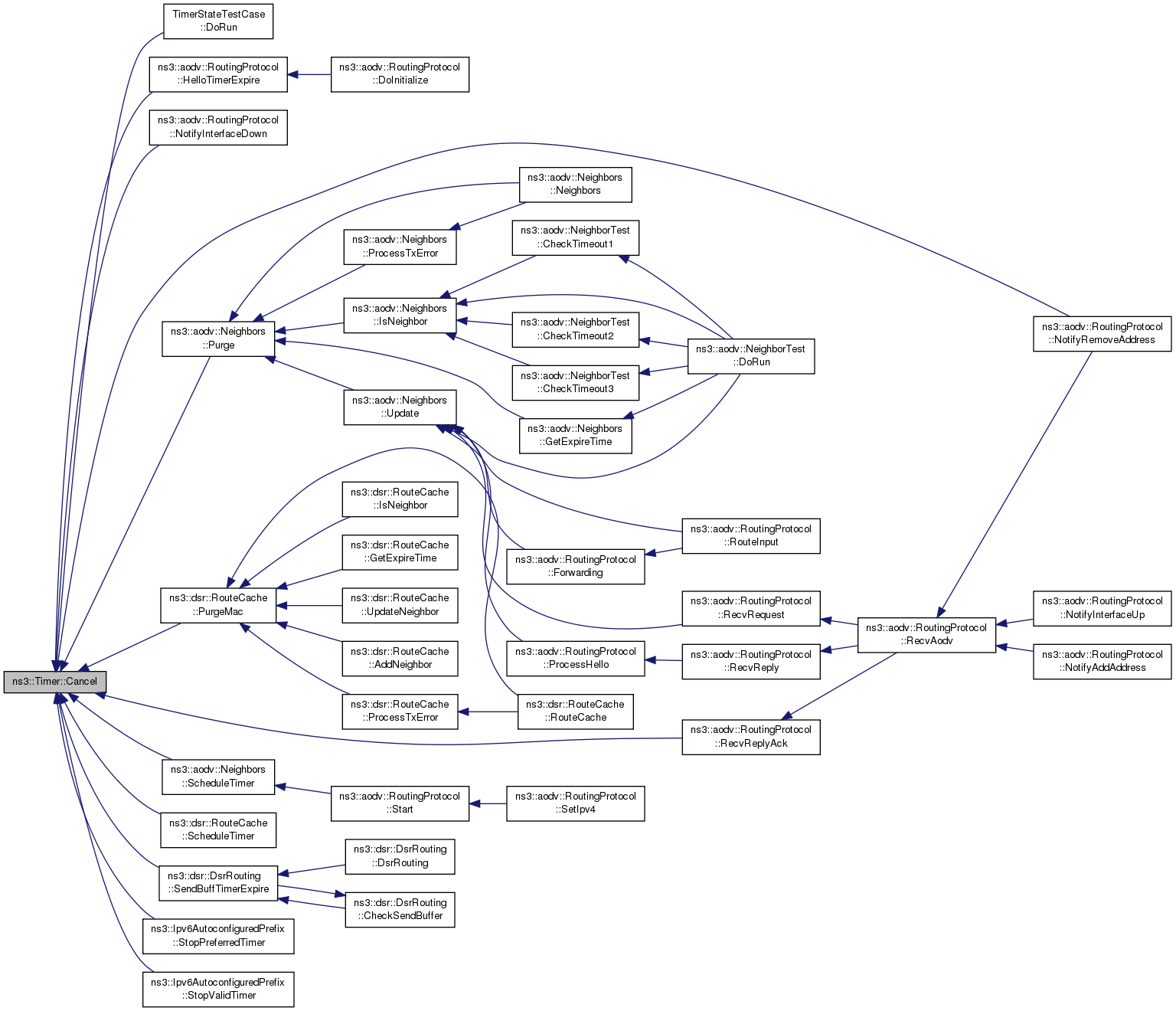

Here is the caller graph for this function:

Time ns3::Timer::GetDelay ( void ) const

Returns: the currently-configured delay for the next Schedule.

Definition at line 81 of file timer.cc.

References m_delay, and NS_LOG_FUNCTION.

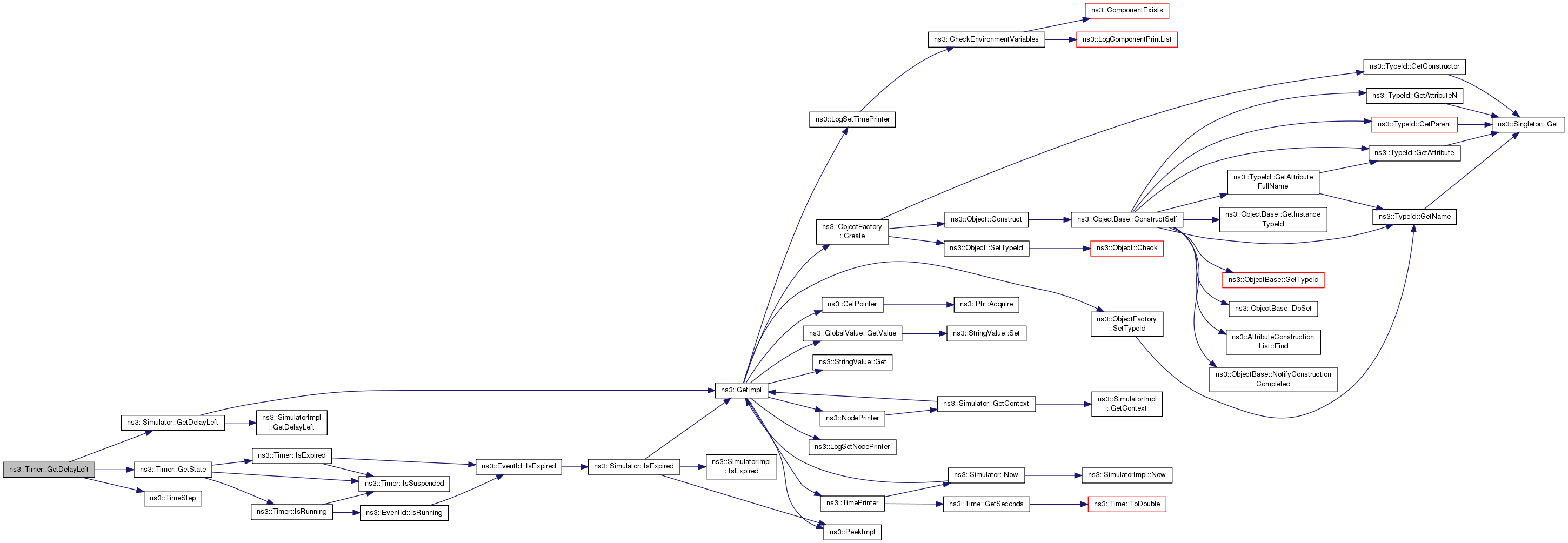

Time ns3::Timer::GetDelayLeft ( void ) const

Returns: the amount of time left until this timer expires.

This method returns zero if the timer is in EXPIRED state.

Definition at line 87 of file timer.cc.

References EXPIRED, ns3::Simulator::GetDelayLeft(), GetState(), m_delayLeft, m_event, NS_ASSERT, NS_LOG_FUNCTION, RUNNING, SUSPENDED, and ns3::TimeStep().

Referenced by ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), and ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward().

Here is the call graph for this function:

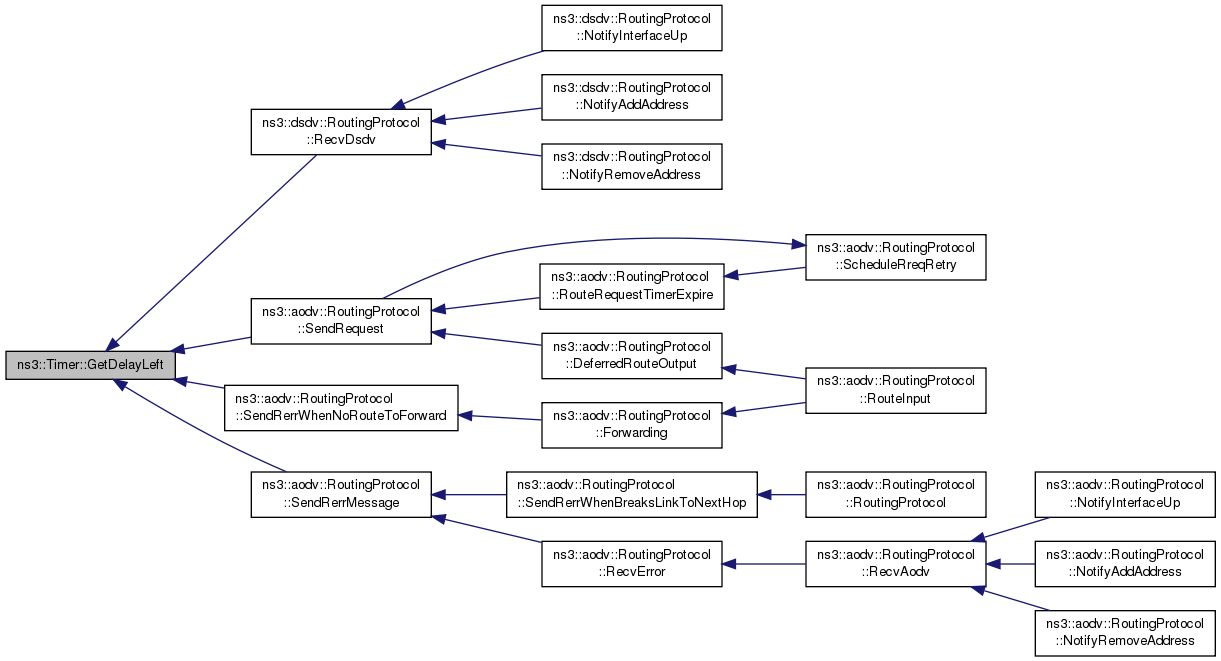

Here is the caller graph for this function:

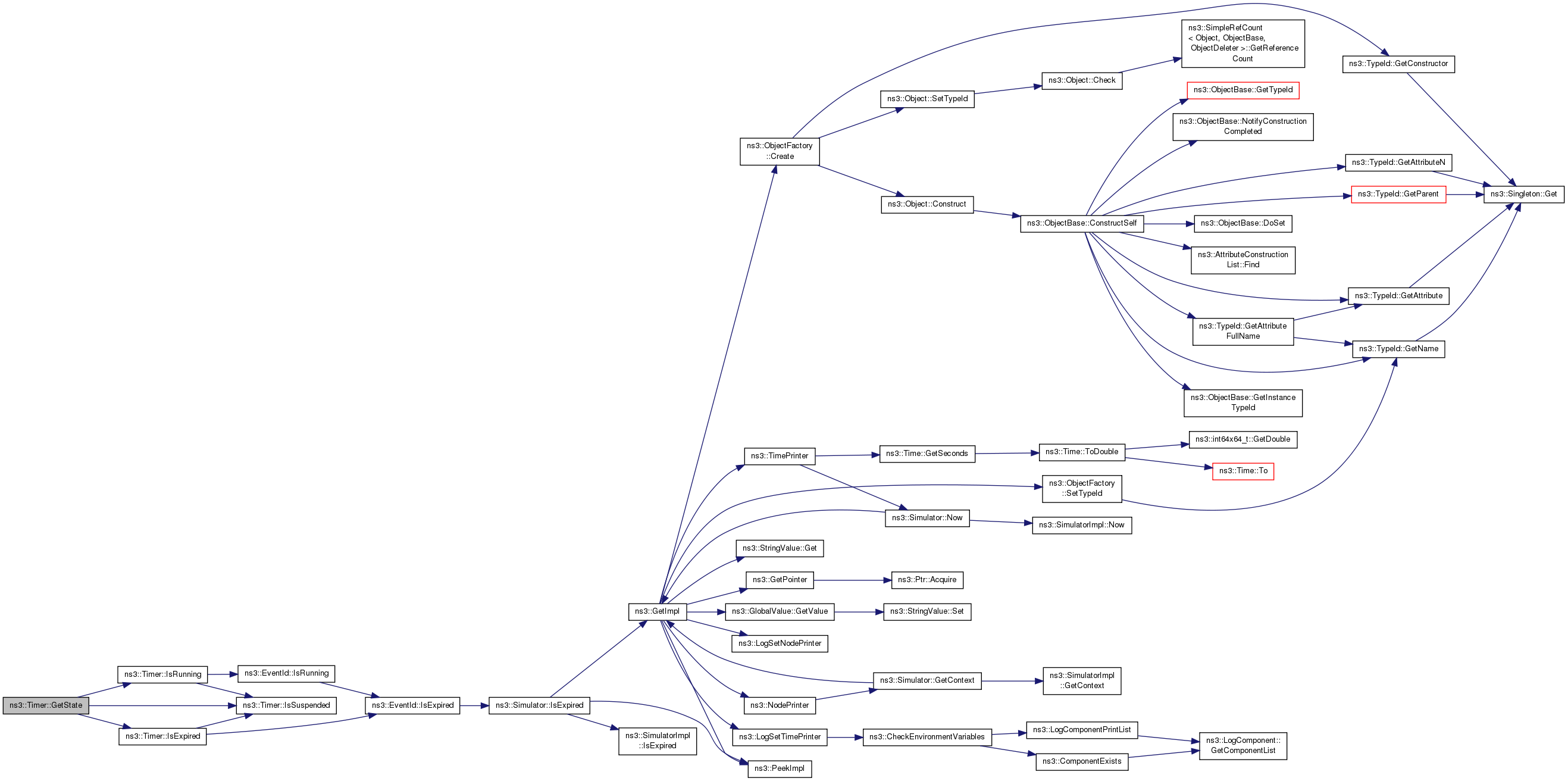

enum Timer::State ns3::Timer::GetState ( void ) const

Returns: the current state of the timer.

Definition at line 139 of file timer.cc.

References EXPIRED, IsExpired(), IsRunning(), IsSuspended(), NS_ASSERT, NS_LOG_FUNCTION, RUNNING, and SUSPENDED.

Referenced by TimerStateTestCase::DoRun(), and GetDelayLeft().

Here is the call graph for this function:

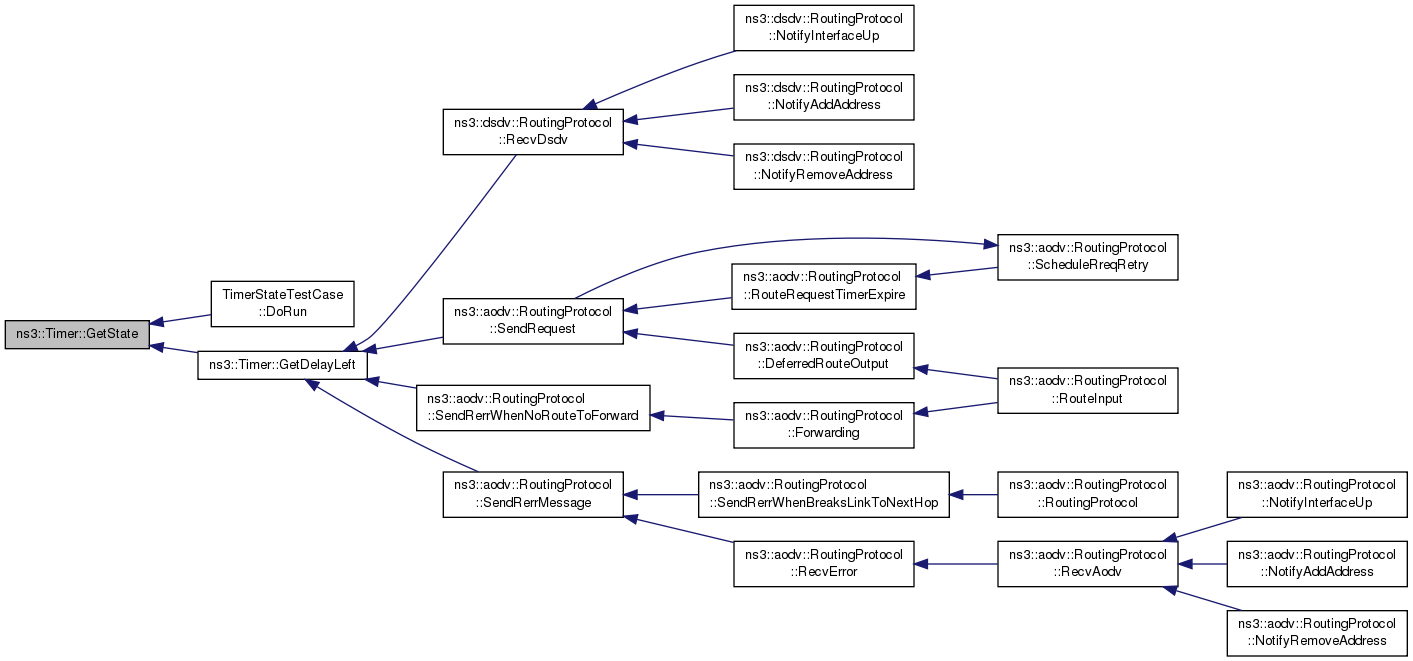

Here is the caller graph for this function:

bool ns3::Timer::IsExpired ( void ) const

Returns: true if there is no currently-running event, false otherwise.

Definition at line 121 of file timer.cc.

References ns3::EventId::IsExpired(), IsSuspended(), m_event, and NS_LOG_FUNCTION.

Referenced by TimerStateTestCase::DoRun(), and GetState().

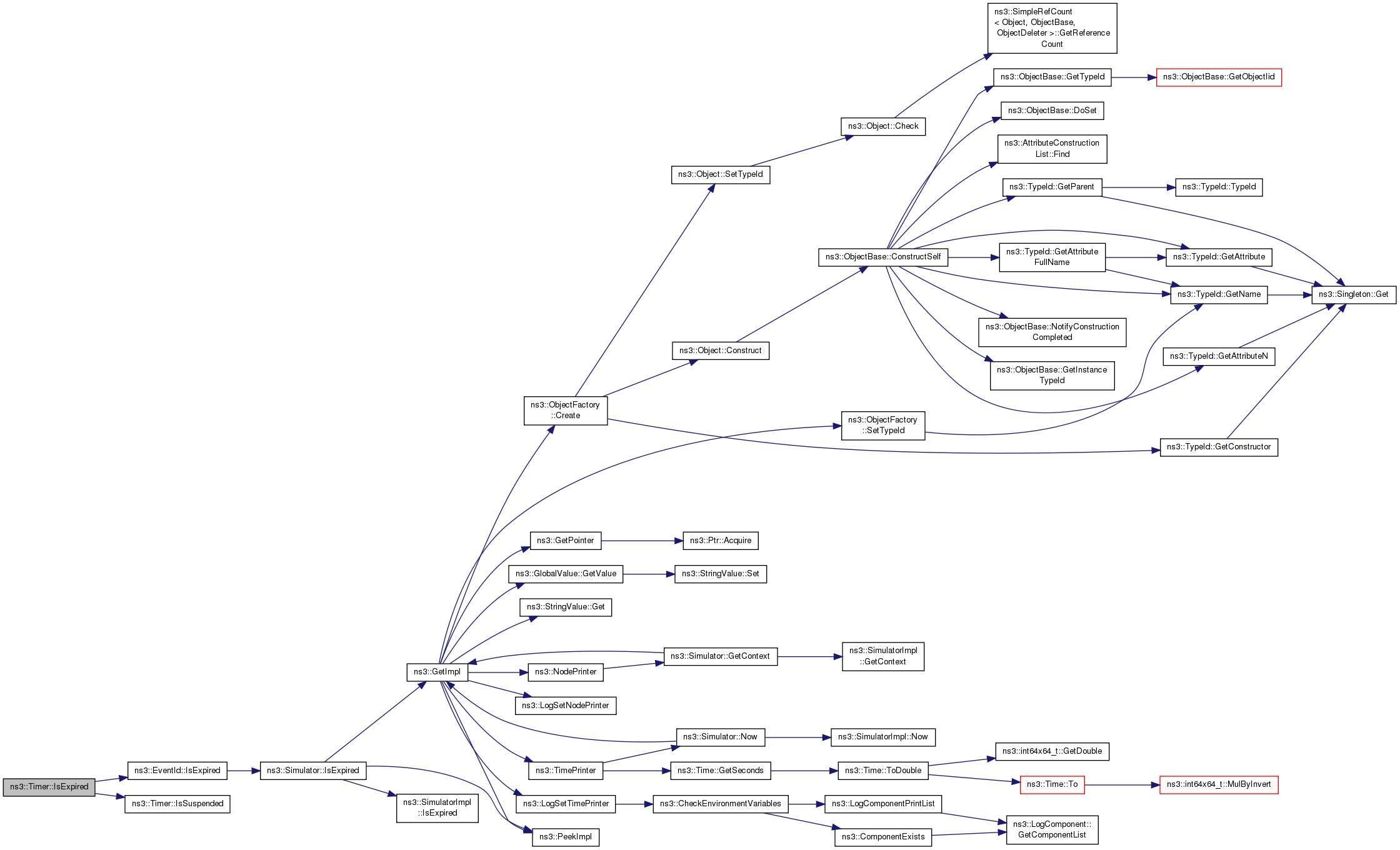

Here is the call graph for this function:

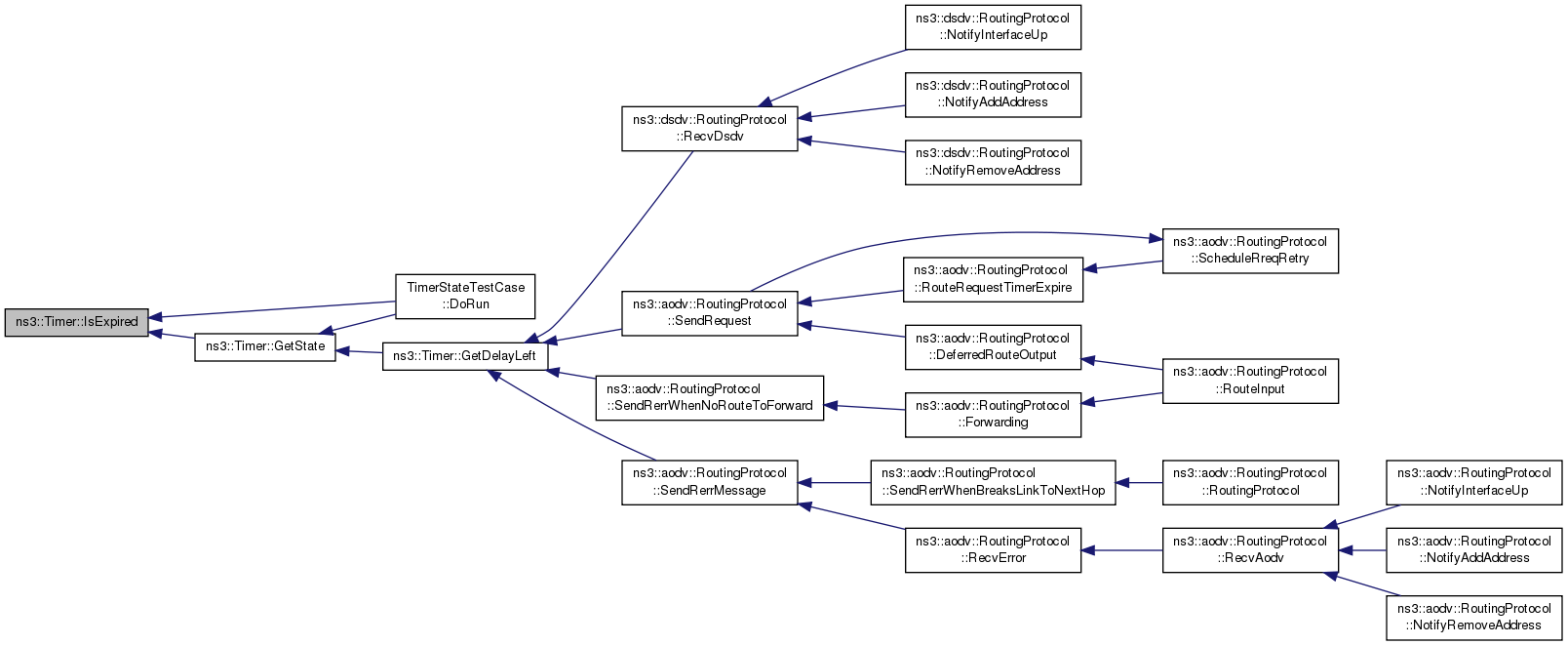

Here is the caller graph for this function:

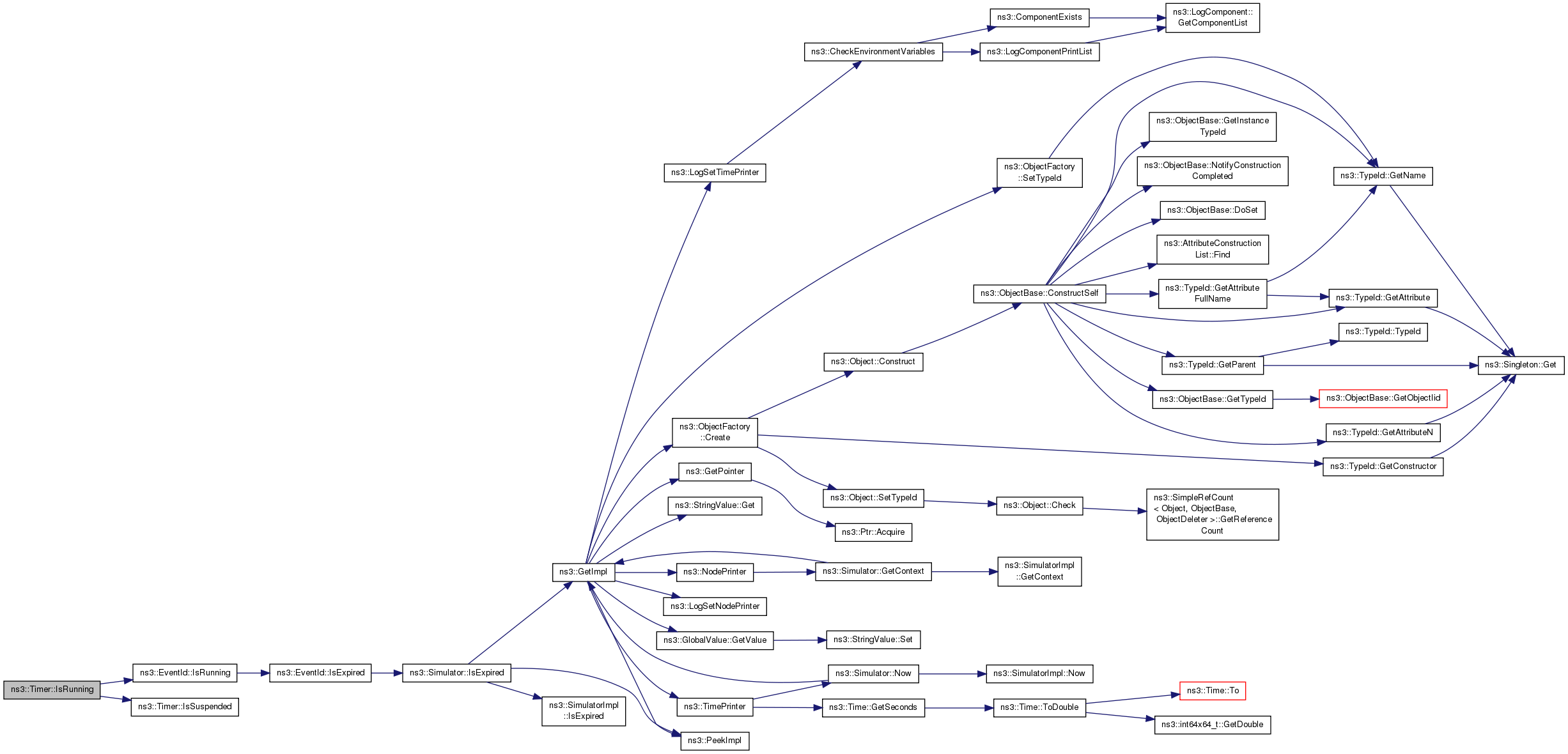

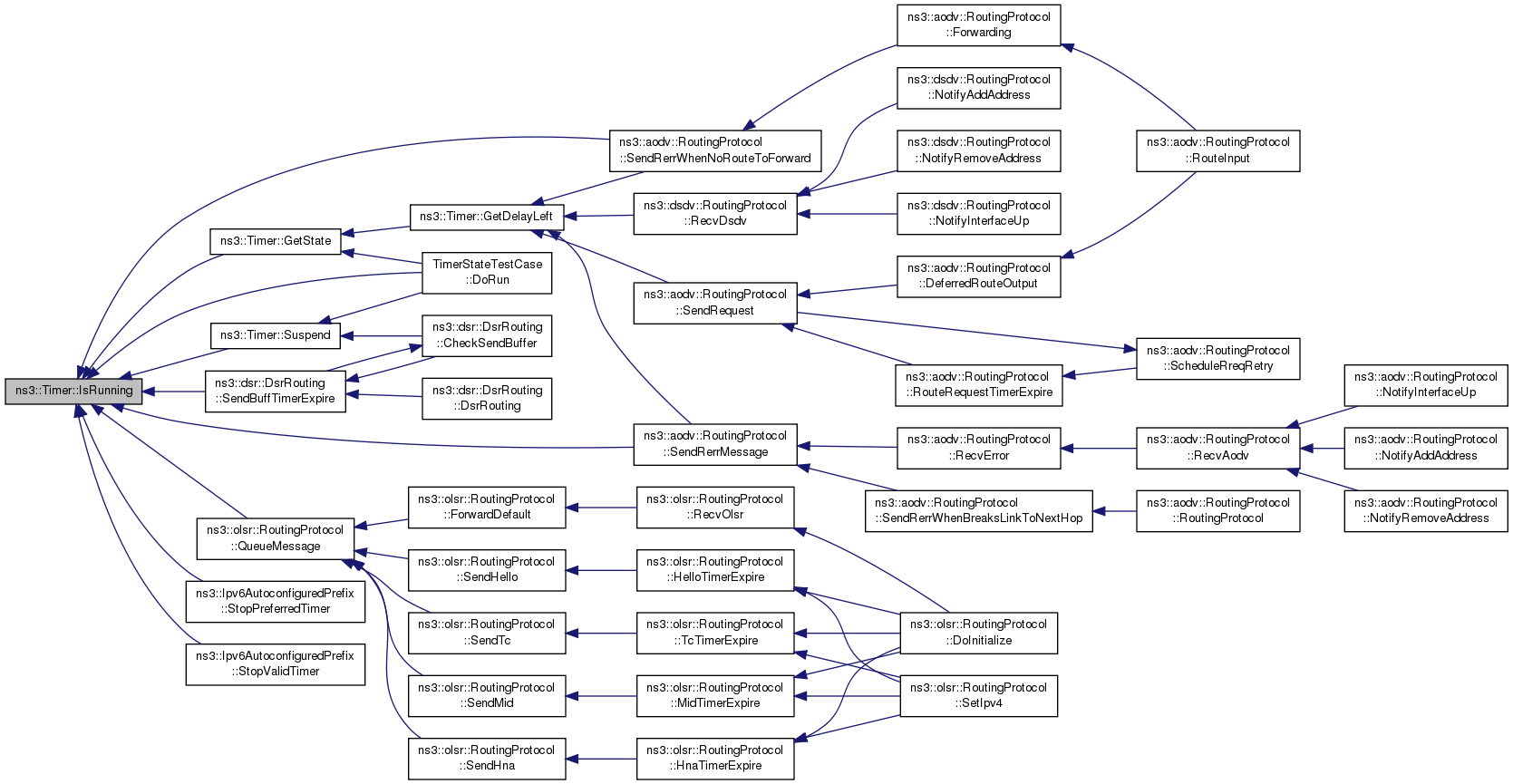

bool ns3::Timer::IsRunning ( void ) const

Returns: true if there is a currently-running event, false otherwise.

Definition at line 127 of file timer.cc.

References ns3::EventId::IsRunning(), IsSuspended(), m_event, and NS_LOG_FUNCTION.

Referenced by TimerStateTestCase::DoRun(), GetState(), ns3::olsr::RoutingProtocol::QueueMessage(), ns3::dsr::DsrRouting::SendBuffTimerExpire(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward(), ns3::Ipv6AutoconfiguredPrefix::StopPreferredTimer(), ns3::Ipv6AutoconfiguredPrefix::StopValidTimer(), and Suspend().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Timer::IsSuspended ( void ) const

Returns: true if this timer was suspended and not yet resumed, false otherwise.

Definition at line 133 of file timer.cc.

References m_flags, NS_LOG_FUNCTION, and TIMER_SUSPENDED.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), TimerStateTestCase::DoRun(), GetState(), IsExpired(), and IsRunning().

Here is the caller graph for this function:

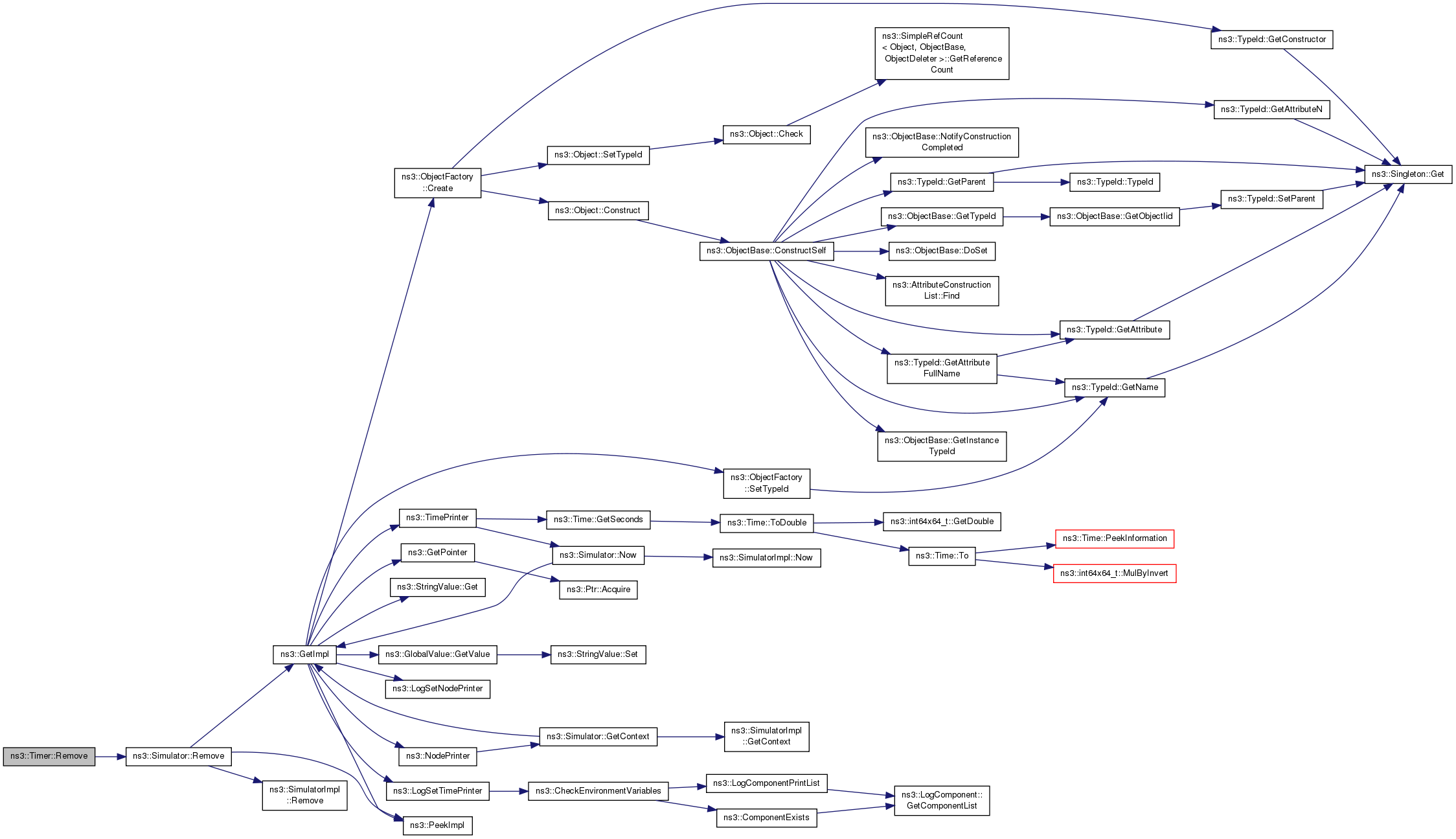

void ns3::Timer::Remove ( void )

Remove from the simulation event-list the currently-running event if there is one.

Do nothing otherwise.

Definition at line 115 of file timer.cc.

References m_event, NS_LOG_FUNCTION, and ns3::Simulator::Remove().

Here is the call graph for this function:

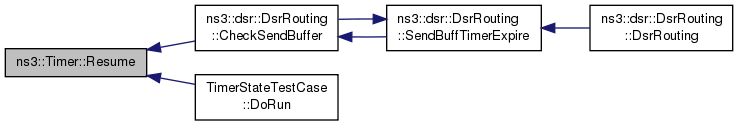

void ns3::Timer::Resume ( void )

Restart the timer to expire within the amount of time left saved during Suspend.

Calling Resume without a prior call to Suspend is an error.

Definition at line 187 of file timer.cc.

References m_delayLeft, m_event, m_flags, m_impl, NS_ASSERT, NS_LOG_FUNCTION, ns3::TimerImpl::Schedule(), and TIMER_SUSPENDED.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), and TimerStateTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

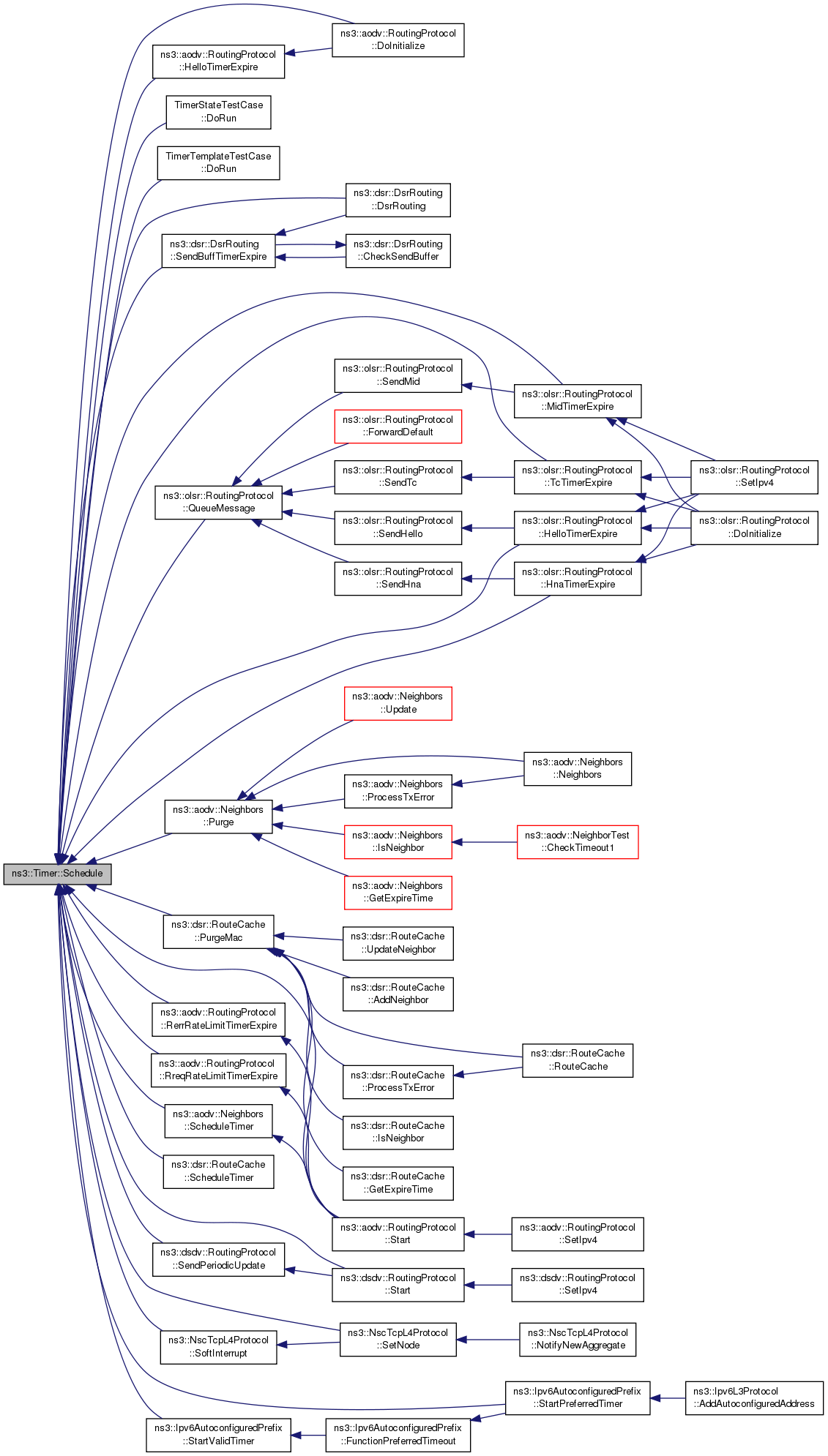

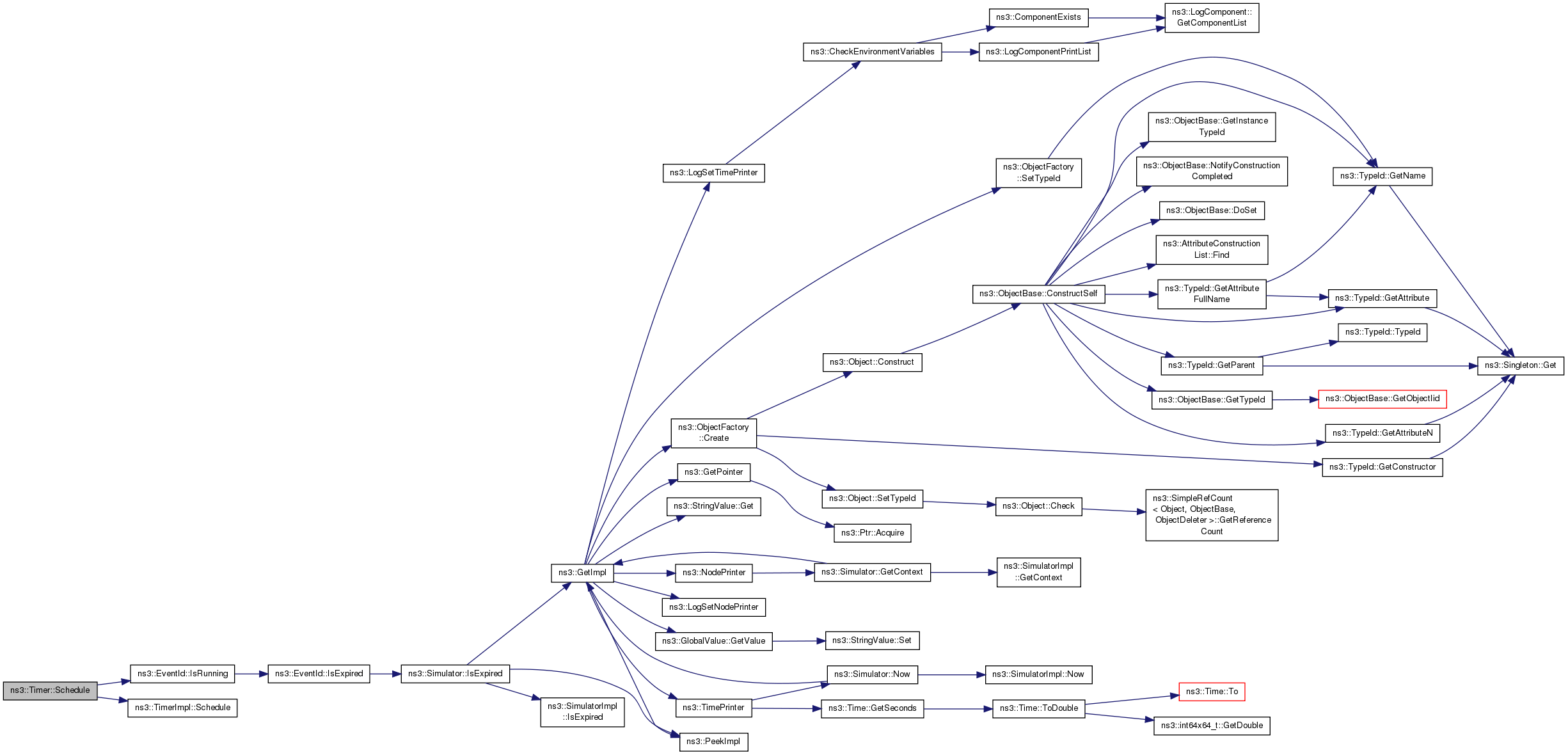

void ns3::Timer::Schedule ( void )

Schedule a new event using the currently-configured delay, function, and arguments.

Definition at line 158 of file timer.cc.

References m_delay, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::RoutingProtocol::DoInitialize(), TimerStateTestCase::DoRun(), TimerTemplateTestCase::DoRun(), ns3::dsr::DsrRouting::DsrRouting(), ns3::olsr::RoutingProtocol::HelloTimerExpire(), ns3::aodv::RoutingProtocol::HelloTimerExpire(), ns3::olsr::RoutingProtocol::HnaTimerExpire(), ns3::olsr::RoutingProtocol::MidTimerExpire(), ns3::aodv::Neighbors::Purge(), ns3::dsr::RouteCache::PurgeMac(), ns3::olsr::RoutingProtocol::QueueMessage(), ns3::aodv::RoutingProtocol::RerrRateLimitTimerExpire(), ns3::aodv::RoutingProtocol::RreqRateLimitTimerExpire(), ns3::aodv::Neighbors::ScheduleTimer(), ns3::dsr::RouteCache::ScheduleTimer(), ns3::dsr::DsrRouting::SendBuffTimerExpire(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), ns3::NscTcpL4Protocol::SetNode(), ns3::NscTcpL4Protocol::SoftInterrupt(), ns3::dsdv::RoutingProtocol::Start(), ns3::aodv::RoutingProtocol::Start(), ns3::Ipv6AutoconfiguredPrefix::StartPreferredTimer(), ns3::Ipv6AutoconfiguredPrefix::StartValidTimer(), and ns3::olsr::RoutingProtocol::TcTimerExpire().

Here is the caller graph for this function:

void ns3::Timer::Schedule ( Time delay )

Parameters

delay the delay to use

Schedule a new event using the specified delay (ignore the delay set by Timer::SetDelay), function, and arguments.

Definition at line 165 of file timer.cc.

References ns3::EventId::IsRunning(), m_event, m_impl, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::TimerImpl::Schedule().

Here is the call graph for this function:

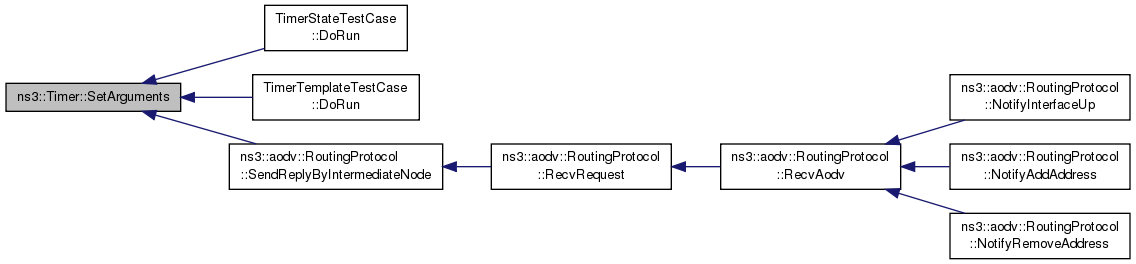

template<typename T1 >

void ns3::Timer::SetArguments ( T1 a1 )

Parameters

a1	the first argument

Store this argument in this Timer for later use by Timer::Schedule.

Definition at line 320 of file timer.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Referenced by TimerStateTestCase::DoRun(), TimerTemplateTestCase::DoRun(), and ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T1 , typename T2 >

void ns3::Timer::SetArguments	(	T1	a1,
		T2	a2
	)

Parameters

a1	the first argument
a2	the second argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 331 of file timer.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 >

void ns3::Timer::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 343 of file timer.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Timer::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 355 of file timer.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Timer::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument
a5	the fifth argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 367 of file timer.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::Timer::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument
a5	the fifth argument
a6	the sixth argument

Store these arguments in this Timer for later use by Timer::Schedule.

Definition at line 379 of file timer.h.

References m_impl, NS_FATAL_ERROR, and ns3::TimerImpl::SetArgs().

Here is the call graph for this function:

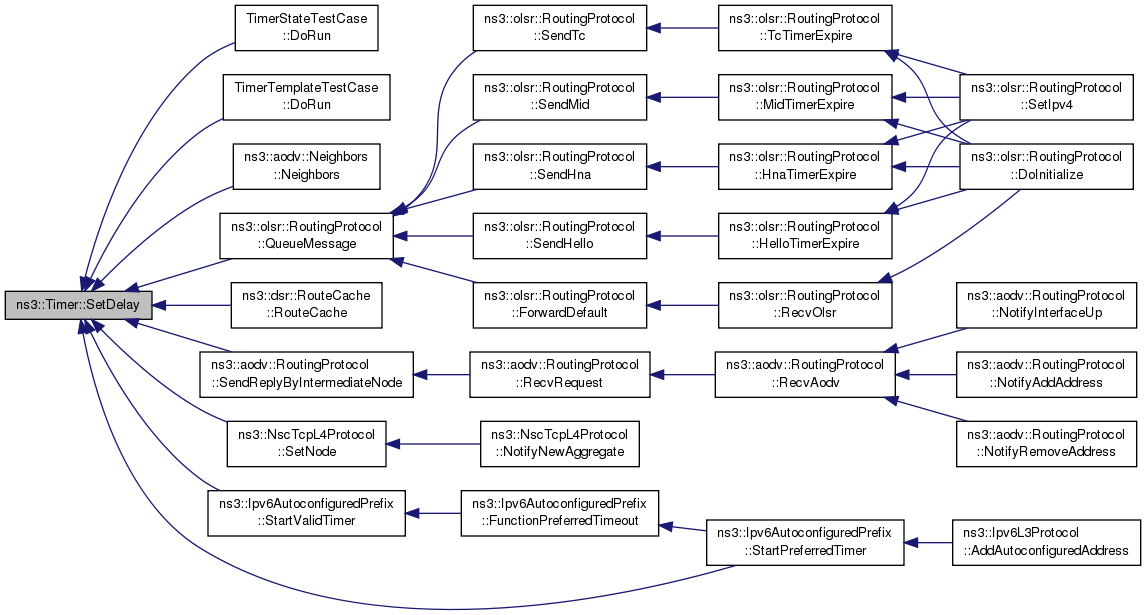

void ns3::Timer::SetDelay ( const Time & delay )

Parameters

delay the delay

The next call to Schedule will schedule the timer with this delay.

Definition at line 75 of file timer.cc.

References m_delay, and NS_LOG_FUNCTION.

Referenced by TimerStateTestCase::DoRun(), TimerTemplateTestCase::DoRun(), ns3::aodv::Neighbors::Neighbors(), ns3::olsr::RoutingProtocol::QueueMessage(), ns3::dsr::RouteCache::RouteCache(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::NscTcpL4Protocol::SetNode(), ns3::Ipv6AutoconfiguredPrefix::StartPreferredTimer(), and ns3::Ipv6AutoconfiguredPrefix::StartValidTimer().

Here is the caller graph for this function:

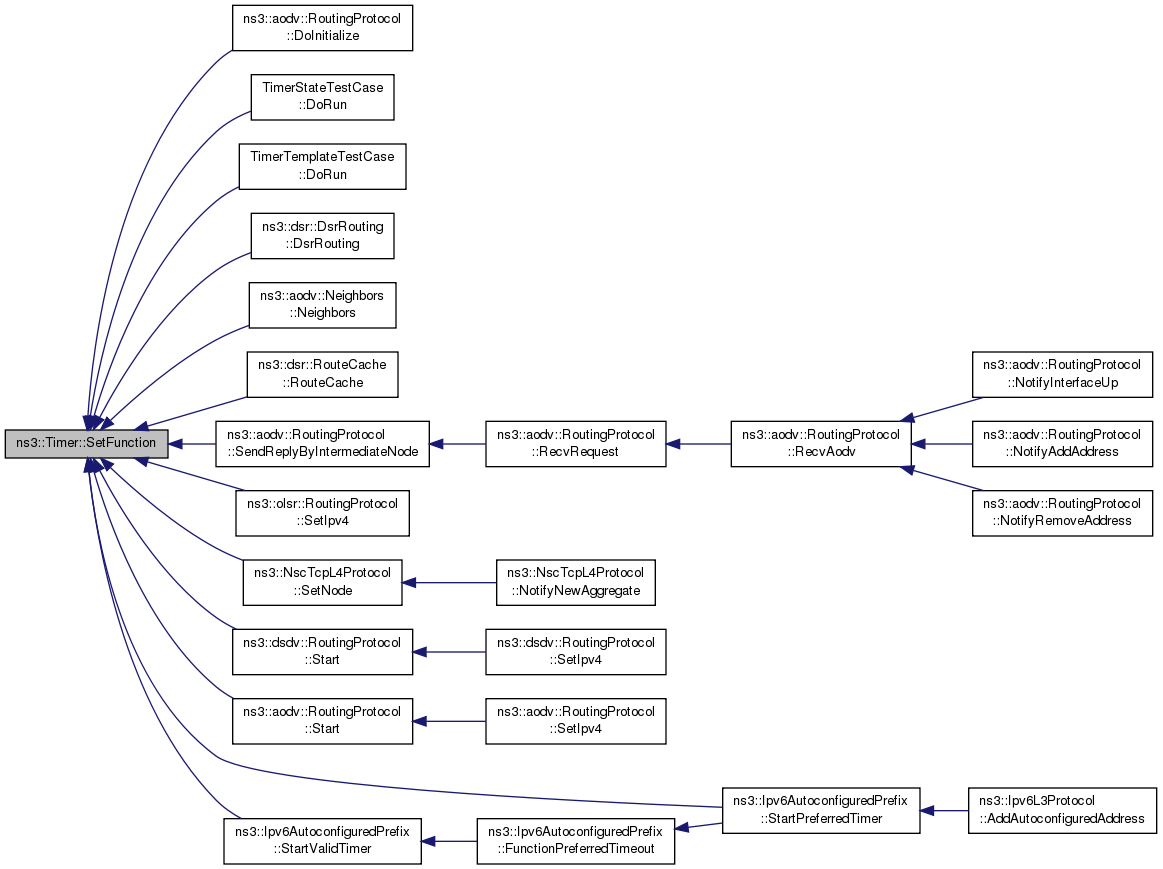

template<typename FN >

void ns3::Timer::SetFunction ( FN fn )

Parameters

fn	the function

Store this function in this Timer for later use by Timer::Schedule.

Definition at line 305 of file timer.h.

References m_impl, and ns3::MakeTimerImpl().

Referenced by ns3::aodv::RoutingProtocol::DoInitialize(), TimerStateTestCase::DoRun(), TimerTemplateTestCase::DoRun(), ns3::dsr::DsrRouting::DsrRouting(), ns3::aodv::Neighbors::Neighbors(), ns3::dsr::RouteCache::RouteCache(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::olsr::RoutingProtocol::SetIpv4(), ns3::NscTcpL4Protocol::SetNode(), ns3::dsdv::RoutingProtocol::Start(), ns3::aodv::RoutingProtocol::Start(), ns3::Ipv6AutoconfiguredPrefix::StartPreferredTimer(), and ns3::Ipv6AutoconfiguredPrefix::StartValidTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

void ns3::Timer::SetFunction	(	MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Parameters

memPtr	the member function pointer
objPtr	the pointer to object

Store this function and object in this Timer for later use by Timer::Schedule.

Definition at line 312 of file timer.h.

References m_impl, and ns3::MakeTimerImpl().

Here is the call graph for this function:

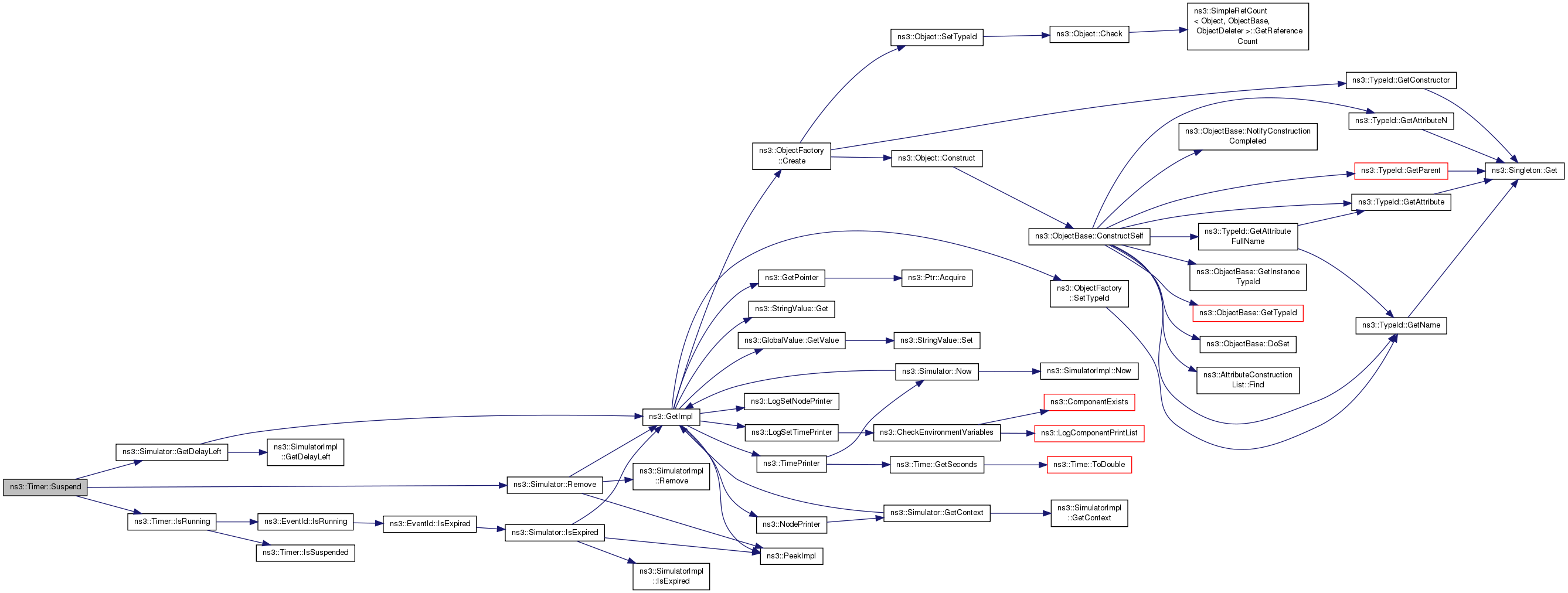

void ns3::Timer::Suspend ( void )

Cancel the timer and save the amount of time left until it was set to expire.

Calling Suspend on a non-running timer is an error.

Definition at line 177 of file timer.cc.

References ns3::Simulator::GetDelayLeft(), IsRunning(), m_delayLeft, m_event, m_flags, NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Remove(), and TIMER_SUSPENDED.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), and TimerStateTestCase::DoRun().

Here is the call graph for this function:

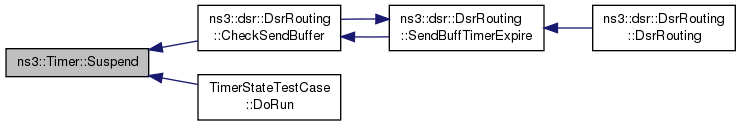

Here is the caller graph for this function:

Member Data Documentation

Time ns3::Timer::m_delay

private

The delay configured for this Timer.

Definition at line 279 of file timer.h.

Referenced by GetDelay(), Schedule(), and SetDelay().

Time ns3::Timer::m_delayLeft

private

The amount of time left on the Timer while it is suspended.

Definition at line 288 of file timer.h.

Referenced by GetDelayLeft(), Resume(), and Suspend().

EventId ns3::Timer::m_event

private

The future event scheduled to expire the timer.

Definition at line 281 of file timer.h.

Referenced by Cancel(), GetDelayLeft(), IsExpired(), IsRunning(), Remove(), Resume(), Schedule(), Suspend(), and ~Timer().

int ns3::Timer::m_flags

private

Bitfield for Timer State, DestroyPolicy and InternalSuspended.

Internal:: The DestroyPolicy, State and InternalSuspended state are stored in this single bitfield. The State uses the low-order bits, so the other users of the bitfield have to be careful in defining their bits to avoid the State.

Definition at line 277 of file timer.h.

Referenced by IsSuspended(), Resume(), Suspend(), and ~Timer().

TimerImpl* ns3::Timer::m_impl

private

The timer implementation, which contains the bound callback function and arguments.

Definition at line 286 of file timer.h.

Referenced by Resume(), Schedule(), SetArguments(), SetFunction(), and ~Timer().

The documentation for this class was generated from the following files:

src/core/model/timer.h
src/core/model/timer.cc

Public Types

Public Member Functions

Private Types

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
