ns3::UdpClientHelper Class Reference

Create a client application which sends UDP packets carrying a 32bit sequence number and a 64 bit time stamp. More...

#include <udp-client-server-helper.h>

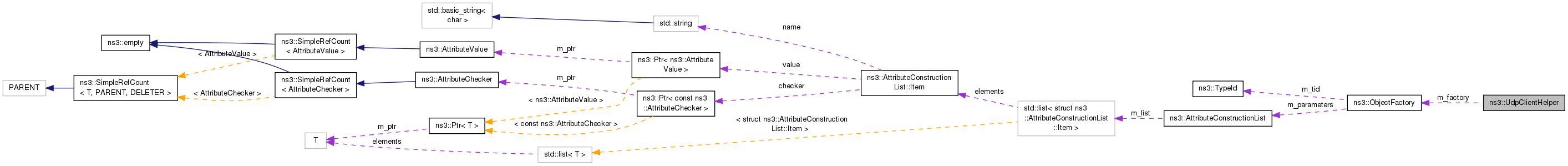

Collaboration diagram for ns3::UdpClientHelper:

Public Member Functions
	UdpClientHelper ()
	Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
	UdpClientHelper (Ipv4Address ip, uint16_t port)
	Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
	UdpClientHelper (Ipv6Address ip, uint16_t port)
	Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
	UdpClientHelper (Address ip, uint16_t port)
	Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
ApplicationContainer	Install (NodeContainer c)
void	SetAttribute (std::string name, const AttributeValue &value)
	Record an attribute to be set in each Application after it is is created. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...

Detailed Description

Create a client application which sends UDP packets carrying a 32bit sequence number and a 64 bit time stamp.

Definition at line 93 of file udp-client-server-helper.h.

Constructor & Destructor Documentation

ns3::UdpClientHelper::UdpClientHelper

(

)

Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Definition at line 67 of file udp-client-server-helper.cc.

ns3::UdpClientHelper::UdpClientHelper	(	Ipv4Address	ip,
		uint16_t	port
	)

Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Parameters

ip	The IPv4 address of the remote UDP server
port	The port number of the remote UDP server

Definition at line 78 of file udp-client-server-helper.cc.

References ns3::UdpClient::GetTypeId(), m_factory, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

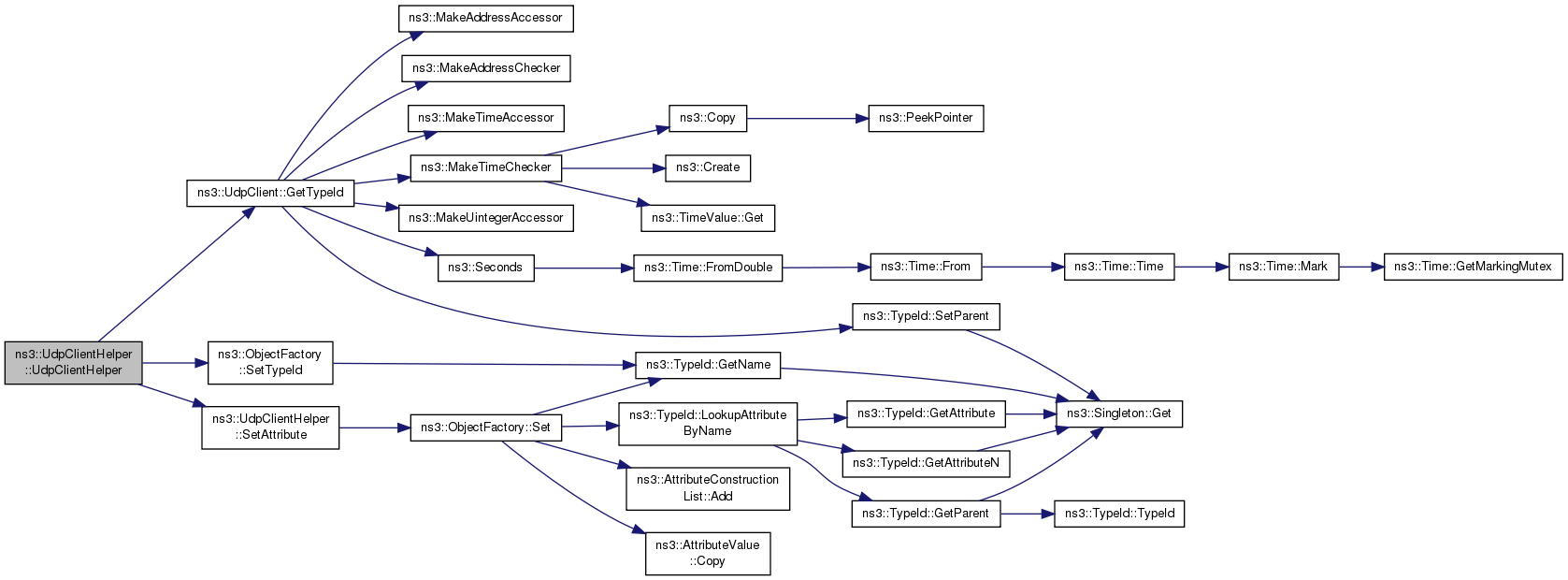

Here is the call graph for this function:

ns3::UdpClientHelper::UdpClientHelper	(	Ipv6Address	ip,
		uint16_t	port
	)

Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Parameters

ip	The IPv6 address of the remote UDP server
port	The port number of the remote UDP server

Definition at line 85 of file udp-client-server-helper.cc.

References ns3::UdpClient::GetTypeId(), m_factory, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::UdpClientHelper::UdpClientHelper	(	Address	ip,
		uint16_t	port
	)

Create UdpClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Parameters

ip	The IP address of the remote UDP server
port	The port number of the remote UDP server

Definition at line 71 of file udp-client-server-helper.cc.

References ns3::UdpClient::GetTypeId(), m_factory, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

Member Function Documentation

ApplicationContainer ns3::UdpClientHelper::Install

(

NodeContainer

c

)

Parameters

c

the nodes

Create one UDP client application on each of the input nodes

Returns

the applications created, one application per input node.

Definition at line 99 of file udp-client-server-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::Node::AddApplication(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), ns3::NodeContainer::End(), and m_factory.

Referenced by ns3::LenaDeactivateBearerTestCase::DoRun(), LenaCqaFfMacSchedulerTestCase1::DoRun(), LenaFdTbfqFfMacSchedulerTestCase1::DoRun(), LenaTdTbfqFfMacSchedulerTestCase1::DoRun(), LenaPssFfMacSchedulerTestCase1::DoRun(), LteX2HandoverTestCase::DoRun(), LenaCqaFfMacSchedulerTestCase2::DoRun(), LenaTdTbfqFfMacSchedulerTestCase2::DoRun(), LenaFdTbfqFfMacSchedulerTestCase2::DoRun(), LenaPssFfMacSchedulerTestCase2::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

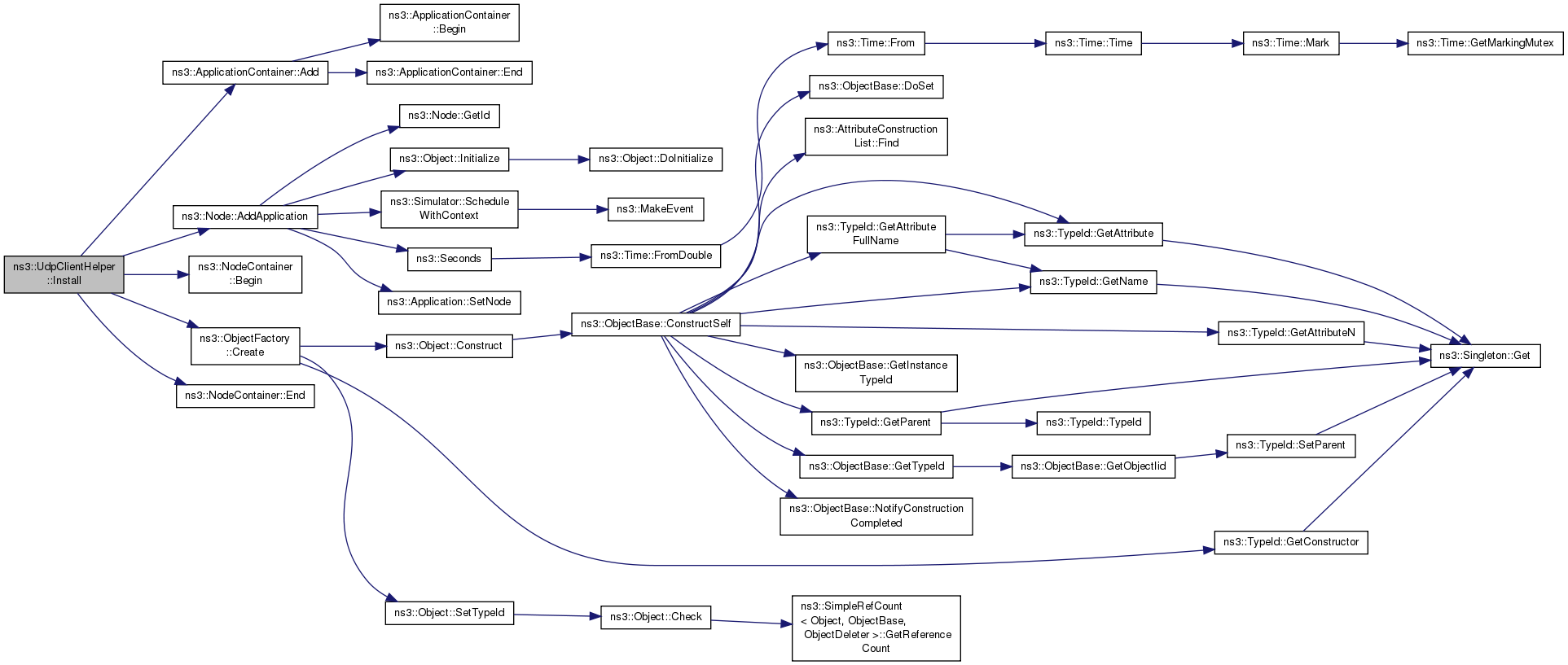

Here is the call graph for this function:

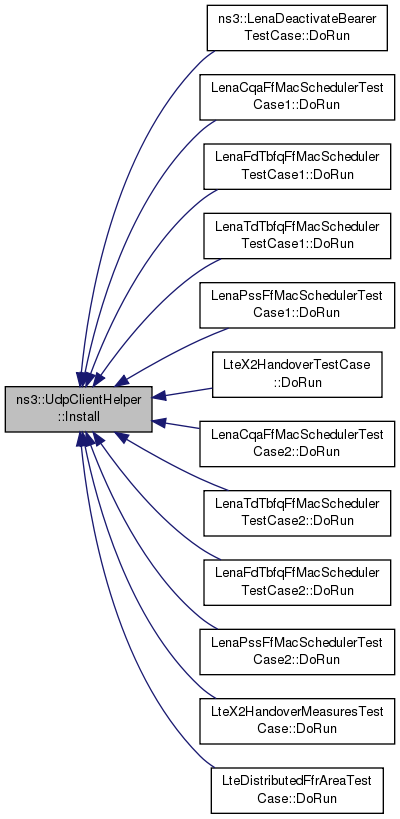

Here is the caller graph for this function:

void ns3::UdpClientHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Record an attribute to be set in each Application after it is is created.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Definition at line 93 of file udp-client-server-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by ns3::LenaDeactivateBearerTestCase::DoRun(), LenaCqaFfMacSchedulerTestCase1::DoRun(), LenaPssFfMacSchedulerTestCase1::DoRun(), LenaTdTbfqFfMacSchedulerTestCase1::DoRun(), LenaFdTbfqFfMacSchedulerTestCase1::DoRun(), UdpClientServerTestCase::DoRun(), LenaCqaFfMacSchedulerTestCase2::DoRun(), LenaTdTbfqFfMacSchedulerTestCase2::DoRun(), LenaPssFfMacSchedulerTestCase2::DoRun(), LenaFdTbfqFfMacSchedulerTestCase2::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), and UdpClientHelper().

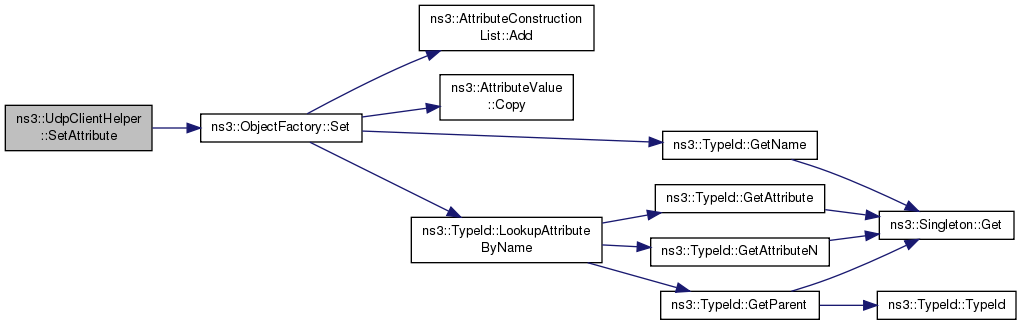

Here is the call graph for this function:

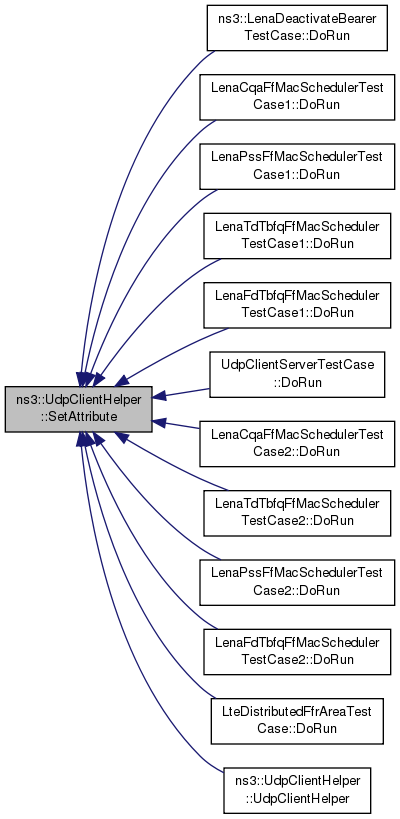

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::UdpClientHelper::m_factory

private

Object factory.

Definition at line 150 of file udp-client-server-helper.h.

Referenced by Install(), SetAttribute(), and UdpClientHelper().

---

The documentation for this class was generated from the following files:

• src/applications/helper/udp-client-server-helper.h
• src/applications/helper/udp-client-server-helper.cc
