ns3::UdpTraceClientHelper Class Reference

Create UdpTraceClient application which sends UDP packets based on a trace file of an MPEG4 stream. More...

#include <udp-client-server-helper.h>

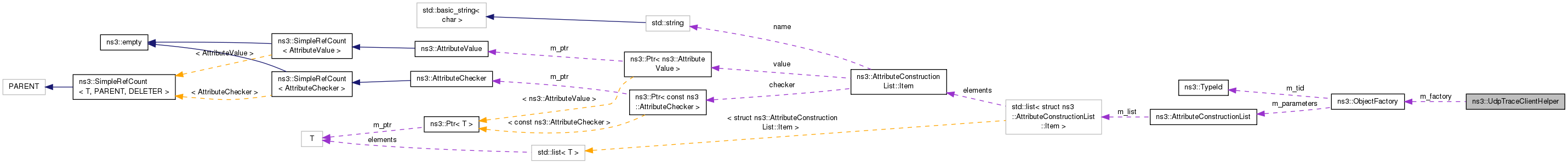

Collaboration diagram for ns3::UdpTraceClientHelper:

Public Member Functions
	UdpTraceClientHelper ()
	Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
	UdpTraceClientHelper (Address ip, uint16_t port, std::string filename)
	Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
	UdpTraceClientHelper (Ipv4Address ip, uint16_t port, std::string filename)
	Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
	UdpTraceClientHelper (Ipv6Address ip, uint16_t port, std::string filename)
	Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server. More...
ApplicationContainer	Install (NodeContainer c)
void	SetAttribute (std::string name, const AttributeValue &value)
	Record an attribute to be set in each Application after it is is created. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...

Detailed Description

Create UdpTraceClient application which sends UDP packets based on a trace file of an MPEG4 stream.

Trace files could be downloaded form : http://www2.tkn.tu-berlin.de/research/trace/ltvt.html (the 2 first lines of the file should be removed) A valid trace file is a file with 4 columns:

• -1- the first one represents the frame index
• -2- the second one indicates the type of the frame: I, P or B
• -3- the third one indicates the time on which the frame was generated by the encoder
• -4- the fourth one indicates the frame size in byte

Definition at line 164 of file udp-client-server-helper.h.

Constructor & Destructor Documentation

ns3::UdpTraceClientHelper::UdpTraceClientHelper

(

)

Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Definition at line 112 of file udp-client-server-helper.cc.

ns3::UdpTraceClientHelper::UdpTraceClientHelper	(	Address	ip,
		uint16_t	port,
		std::string	filename
	)

Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Parameters

ip	The IP address of the remote UDP server
port	The port number of the remote UDP server
filename	the file from which packet traces will be loaded

Definition at line 116 of file udp-client-server-helper.cc.

References ns3::UdpTraceClient::GetTypeId(), m_factory, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

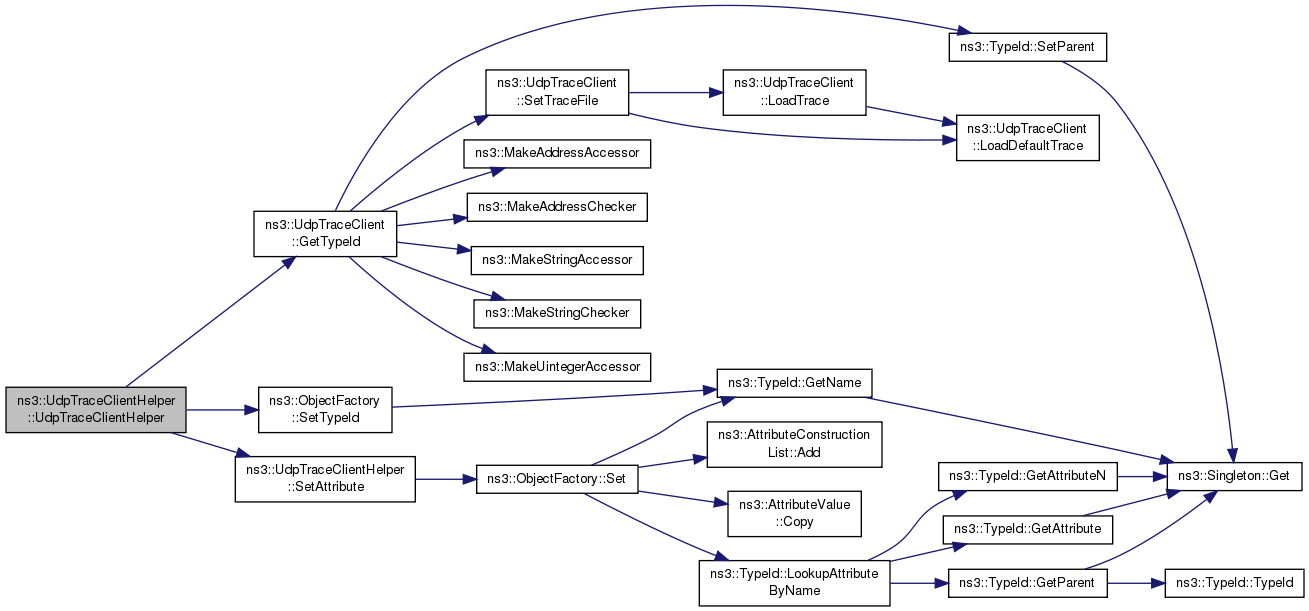

Here is the call graph for this function:

ns3::UdpTraceClientHelper::UdpTraceClientHelper	(	Ipv4Address	ip,
		uint16_t	port,
		std::string	filename
	)

Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Parameters

ip	The IPv4 address of the remote UDP server
port	The port number of the remote UDP server
filename	the file from which packet traces will be loaded

Definition at line 124 of file udp-client-server-helper.cc.

References ns3::UdpTraceClient::GetTypeId(), m_factory, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::UdpTraceClientHelper::UdpTraceClientHelper	(	Ipv6Address	ip,
		uint16_t	port,
		std::string	filename
	)

Create UdpTraceClientHelper which will make life easier for people trying to set up simulations with udp-client-server.

Parameters

ip	The IPv6 address of the remote UDP server
port	The port number of the remote UDP server
filename	the file from which packet traces will be loaded

Definition at line 132 of file udp-client-server-helper.cc.

References ns3::UdpTraceClient::GetTypeId(), m_factory, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

Member Function Documentation

ApplicationContainer ns3::UdpTraceClientHelper::Install

(

NodeContainer

c

)

Parameters

c

the nodes

Create one UDP trace client application on each of the input nodes

Returns

the applications created, one application per input node.

Definition at line 147 of file udp-client-server-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::Node::AddApplication(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), ns3::NodeContainer::End(), and m_factory.

Here is the call graph for this function:

void ns3::UdpTraceClientHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Record an attribute to be set in each Application after it is is created.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Definition at line 141 of file udp-client-server-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by UdpTraceClientServerTestCase::DoRun(), and UdpTraceClientHelper().

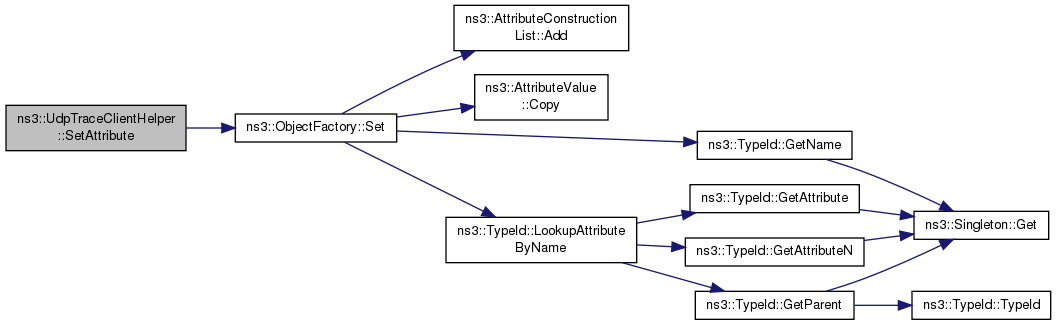

Here is the call graph for this function:

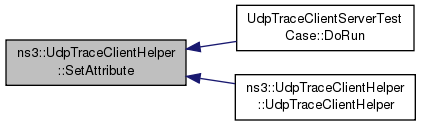

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::UdpTraceClientHelper::m_factory

private

Object factory.

Definition at line 220 of file udp-client-server-helper.h.

Referenced by Install(), SetAttribute(), and UdpTraceClientHelper().

---

The documentation for this class was generated from the following files:

• src/applications/helper/udp-client-server-helper.h
• src/applications/helper/udp-client-server-helper.cc
