ns3::X2IfaceInfo Class Reference

#include <epc-x2.h>

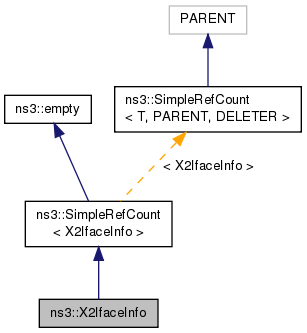

Inheritance diagram for ns3::X2IfaceInfo:

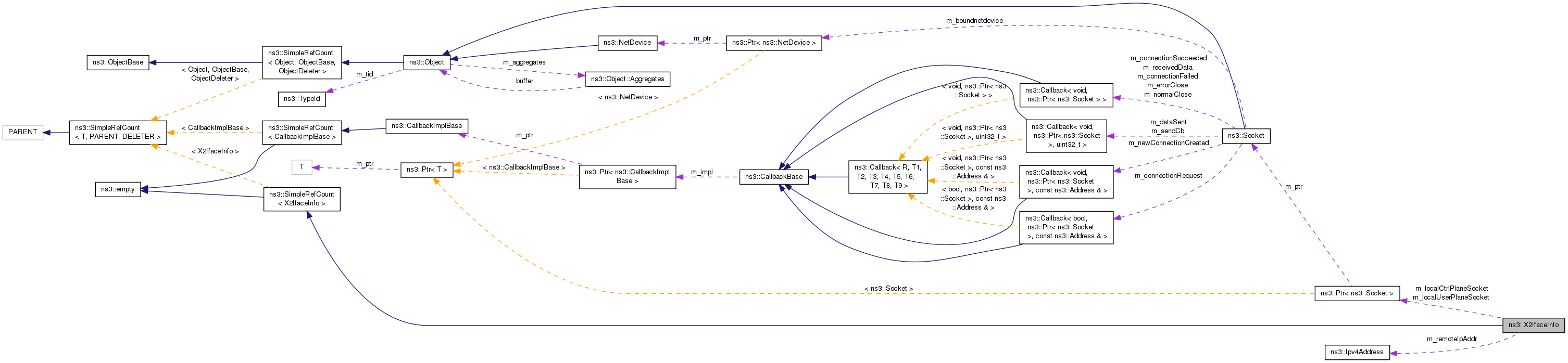

Collaboration diagram for ns3::X2IfaceInfo:

Public Member Functions
	X2IfaceInfo (Ipv4Address remoteIpAddr, Ptr< Socket > localCtrlPlaneSocket, Ptr< Socket > localUserPlaneSocket)
virtual	~X2IfaceInfo (void)
X2IfaceInfo &	operator= (const X2IfaceInfo &)
Public Member Functions inherited from ns3::SimpleRefCount< X2IfaceInfo >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Public Attributes
Ptr< Socket >	m_localCtrlPlaneSocket
Ptr< Socket >	m_localUserPlaneSocket
Ipv4Address	m_remoteIpAddr

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< X2IfaceInfo >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Definition at line 36 of file epc-x2.h.

Constructor & Destructor Documentation

ns3::X2IfaceInfo::X2IfaceInfo	(	Ipv4Address	remoteIpAddr,
		Ptr< Socket >	localCtrlPlaneSocket,
		Ptr< Socket >	localUserPlaneSocket
	)

Definition at line 34 of file epc-x2.cc.

References m_localCtrlPlaneSocket, m_localUserPlaneSocket, and m_remoteIpAddr.

ns3::X2IfaceInfo::~X2IfaceInfo ( void  )

virtual

Definition at line 41 of file epc-x2.cc.

References m_localCtrlPlaneSocket, and m_localUserPlaneSocket.

Member Function Documentation

X2IfaceInfo & ns3::X2IfaceInfo::operator=

(

const X2IfaceInfo &

value

)

Definition at line 48 of file epc-x2.cc.

References m_localCtrlPlaneSocket, m_localUserPlaneSocket, m_remoteIpAddr, and NS_LOG_FUNCTION.

Member Data Documentation

Ptr<Socket> ns3::X2IfaceInfo::m_localCtrlPlaneSocket

Definition at line 46 of file epc-x2.h.

Referenced by operator=(), X2IfaceInfo(), and ~X2IfaceInfo().

Ptr<Socket> ns3::X2IfaceInfo::m_localUserPlaneSocket

Definition at line 47 of file epc-x2.h.

Referenced by operator=(), X2IfaceInfo(), and ~X2IfaceInfo().

Ipv4Address ns3::X2IfaceInfo::m_remoteIpAddr

Definition at line 45 of file epc-x2.h.

Referenced by operator=(), and X2IfaceInfo().

---

The documentation for this class was generated from the following files:

• src/lte/model/epc-x2.h
• src/lte/model/epc-x2.cc
