ns3::dot11s::Dot11sMeshCapability Class Reference

See 7.3.2.86.7 in 802.11s draft 3.0. More...

#include <ie-dot11s-configuration.h>

Public Member Functions
	Dot11sMeshCapability ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
uint8_t	GetSerializedSize () const
uint8_t	GetUint8 () const
bool	Is (uint8_t cap, uint8_t n) const
Buffer::Iterator	Serialize (Buffer::Iterator i) const

Public Attributes
bool	acceptPeerLinks
bool	beaconTimingReport
bool	forwarding
bool	MCCAEnabled
bool	MCCASupported
bool	powerSaveLevel
bool	TBTTAdjustment

Friends
bool	operator== (const Dot11sMeshCapability &a, const Dot11sMeshCapability &b)

Detailed Description

See 7.3.2.86.7 in 802.11s draft 3.0.

Definition at line 70 of file ie-dot11s-configuration.h.

Constructor & Destructor Documentation

ns3::dot11s::Dot11sMeshCapability::Dot11sMeshCapability

(

)

Definition at line 27 of file ie-dot11s-configuration.cc.

Member Function Documentation

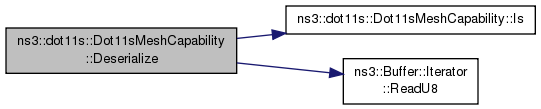

Buffer::Iterator ns3::dot11s::Dot11sMeshCapability::Deserialize

(

Buffer::Iterator

i

)

Definition at line 78 of file ie-dot11s-configuration.cc.

References acceptPeerLinks, beaconTimingReport, forwarding, Is(), MCCAEnabled, MCCASupported, powerSaveLevel, ns3::Buffer::Iterator::ReadU8(), and TBTTAdjustment.

Referenced by ns3::dot11s::IeConfiguration::DeserializeInformationField().

Here is the call graph for this function:

Here is the caller graph for this function:

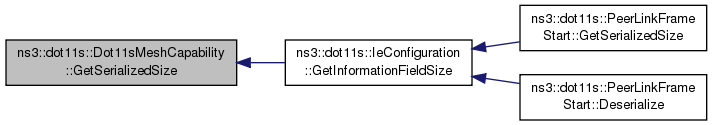

uint8_t ns3::dot11s::Dot11sMeshCapability::GetSerializedSize

(

void

)

const

Definition at line 33 of file ie-dot11s-configuration.cc.

Referenced by ns3::dot11s::IeConfiguration::GetInformationFieldSize().

Here is the caller graph for this function:

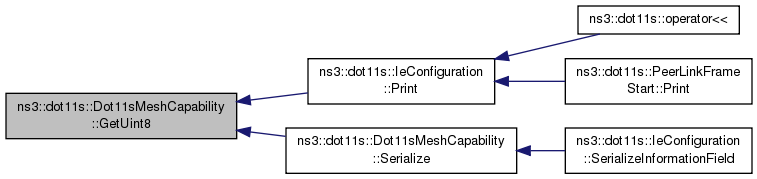

uint8_t ns3::dot11s::Dot11sMeshCapability::GetUint8

(

)

const

Definition at line 38 of file ie-dot11s-configuration.cc.

References acceptPeerLinks, beaconTimingReport, forwarding, MCCAEnabled, MCCASupported, powerSaveLevel, and TBTTAdjustment.

Referenced by ns3::dot11s::IeConfiguration::Print(), and Serialize().

Here is the caller graph for this function:

bool ns3::dot11s::Dot11sMeshCapability::Is	(	uint8_t	cap,
		uint8_t	n
	)		const

Definition at line 91 of file ie-dot11s-configuration.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

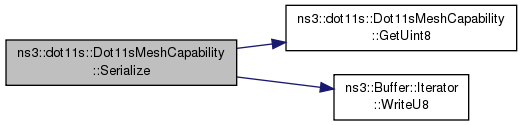

Buffer::Iterator ns3::dot11s::Dot11sMeshCapability::Serialize

(

Buffer::Iterator

i

)

const

Definition at line 72 of file ie-dot11s-configuration.cc.

References GetUint8(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::dot11s::IeConfiguration::SerializeInformationField().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

bool operator== ( const Dot11sMeshCapability &  a, const Dot11sMeshCapability &  b  )

friend

Definition at line 200 of file ie-dot11s-configuration.cc.

Member Data Documentation

bool ns3::dot11s::Dot11sMeshCapability::acceptPeerLinks

Definition at line 78 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

bool ns3::dot11s::Dot11sMeshCapability::beaconTimingReport

Definition at line 82 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

bool ns3::dot11s::Dot11sMeshCapability::forwarding

Definition at line 81 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

bool ns3::dot11s::Dot11sMeshCapability::MCCAEnabled

Definition at line 80 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

bool ns3::dot11s::Dot11sMeshCapability::MCCASupported

Definition at line 79 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

bool ns3::dot11s::Dot11sMeshCapability::powerSaveLevel

Definition at line 84 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

bool ns3::dot11s::Dot11sMeshCapability::TBTTAdjustment

Definition at line 83 of file ie-dot11s-configuration.h.

Referenced by Deserialize(), GetUint8(), and ns3::dot11s::operator==().

---

The documentation for this class was generated from the following files:

• src/mesh/model/dot11s/ie-dot11s-configuration.h
• src/mesh/model/dot11s/ie-dot11s-configuration.cc
