See 7.3.2.89 of 802.11s draft 2.07. More...

#include <ie-dot11s-beacon-timing.h>

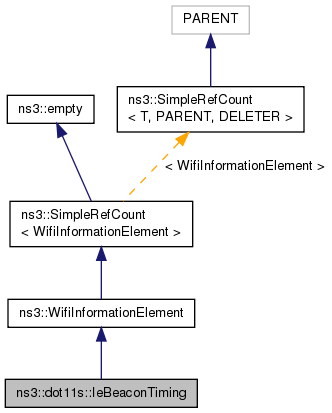

Inheritance diagram for ns3::dot11s::IeBeaconTiming:

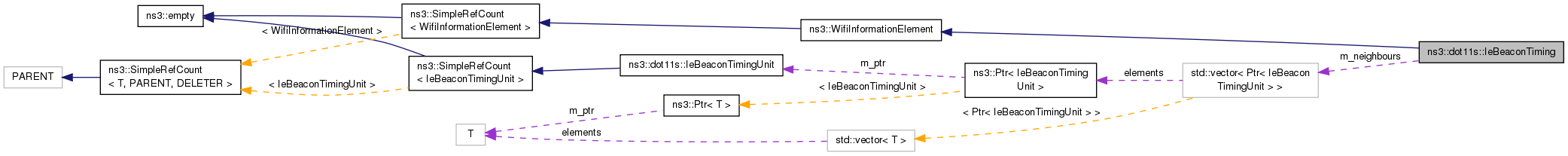

Collaboration diagram for ns3::dot11s::IeBeaconTiming:

Public Types
typedef std::vector< Ptr< IeBeaconTimingUnit > >	NeighboursTimingUnitsList
	This type is a list of timing elements obtained from neighbours with their beacons: More...

Public Member Functions
	IeBeaconTiming ()

void	AddNeighboursTimingElementUnit (uint16_t aid, Time last_beacon, Time beacon_interval)

void	ClearTimingElement ()

void	DelNeighboursTimingElementUnit (uint16_t aid, Time last_beacon, Time beacon_interval)

virtual uint8_t	DeserializeInformationField (Buffer::Iterator i, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual WifiInformationElementId	ElementId () const
	Own unique Element ID. More...

virtual uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

NeighboursTimingUnitsList	GetNeighboursTimingElementsList ()
	This methods are needed for beacon collision avoidance module: More...

bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Static Private Member Functions
static uint8_t	AidToU8 (uint16_t x)

static uint16_t	BeaconIntervalToU16 (Time x)

static uint16_t	TimestampToU16 (Time x)
	Converters: More...

Private Attributes
NeighboursTimingUnitsList	m_neighbours

uint16_t	m_numOfUnits
	Timing element parameters: More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)
	Noop. More...

Detailed Description

See 7.3.2.89 of 802.11s draft 2.07.

Definition at line 60 of file ie-dot11s-beacon-timing.h.

Constructor & Destructor Documentation

ns3::dot11s::IeBeaconTiming::IeBeaconTiming ( )

Definition at line 70 of file ie-dot11s-beacon-timing.cc.

Member Function Documentation

void ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit	(	uint16_t	aid,
		Time	last_beacon,
		Time	beacon_interval
	)

Definition at line 80 of file ie-dot11s-beacon-timing.cc.

References AidToU8(), BeaconIntervalToU16(), m_neighbours, m_numOfUnits, ns3::dot11s::IeBeaconTimingUnit::SetAid(), ns3::dot11s::IeBeaconTimingUnit::SetBeaconInterval(), ns3::dot11s::IeBeaconTimingUnit::SetLastBeacon(), and TimestampToU16().

Referenced by MeshInformationElementVectorBist::DoRun().

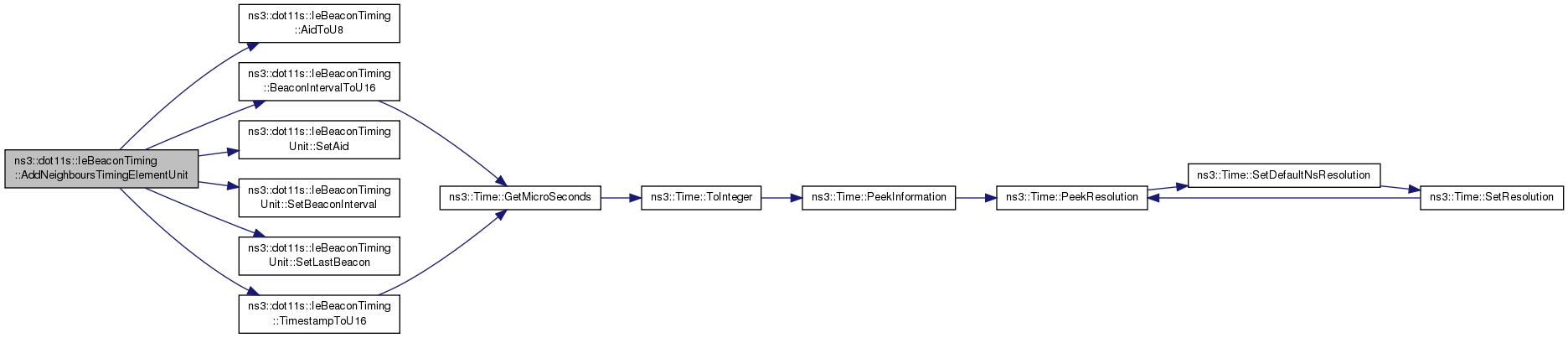

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::dot11s::IeBeaconTiming::AidToU8 ( uint16_t x )

staticprivate

Definition at line 181 of file ie-dot11s-beacon-timing.cc.

Referenced by AddNeighboursTimingElementUnit(), and DelNeighboursTimingElementUnit().

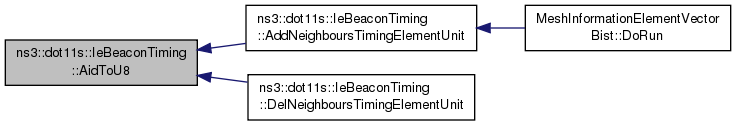

Here is the caller graph for this function:

uint16_t ns3::dot11s::IeBeaconTiming::BeaconIntervalToU16 ( Time x )

staticprivate

Definition at line 176 of file ie-dot11s-beacon-timing.cc.

References ns3::Time::GetMicroSeconds().

Referenced by AddNeighboursTimingElementUnit(), and DelNeighboursTimingElementUnit().

Here is the call graph for this function:

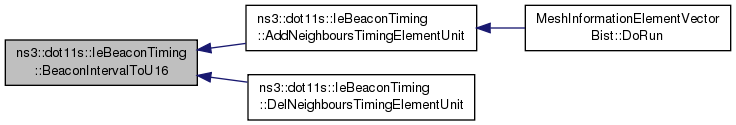

Here is the caller graph for this function:

void ns3::dot11s::IeBeaconTiming::ClearTimingElement ( )

Definition at line 117 of file ie-dot11s-beacon-timing.cc.

References m_neighbours.

Referenced by ns3::dot11s::PeerLink::DoDispose().

Here is the caller graph for this function:

void ns3::dot11s::IeBeaconTiming::DelNeighboursTimingElementUnit	(	uint16_t	aid,
		Time	last_beacon,
		Time	beacon_interval
	)

Definition at line 103 of file ie-dot11s-beacon-timing.cc.

References AidToU8(), BeaconIntervalToU16(), m_neighbours, m_numOfUnits, and TimestampToU16().

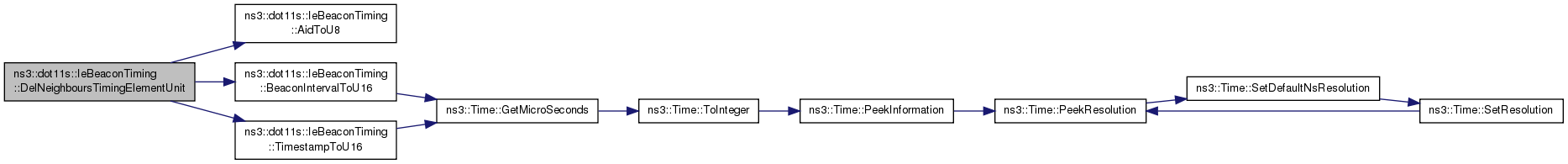

Here is the call graph for this function:

uint8_t ns3::dot11s::IeBeaconTiming::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 153 of file ie-dot11s-beacon-timing.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_neighbours, m_numOfUnits, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dot11s::IeBeaconTimingUnit::SetAid(), ns3::dot11s::IeBeaconTimingUnit::SetBeaconInterval(), ns3::dot11s::IeBeaconTimingUnit::SetLastBeacon(), and visualizer.core::start().

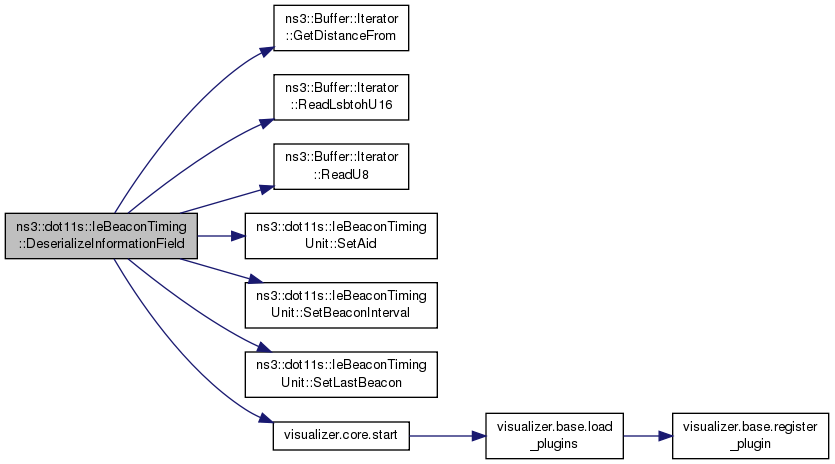

Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IeBeaconTiming::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 66 of file ie-dot11s-beacon-timing.cc.

References IE11S_BEACON_TIMING.

Referenced by Print().

Here is the caller graph for this function:

uint8_t ns3::dot11s::IeBeaconTiming::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 126 of file ie-dot11s-beacon-timing.cc.

References m_numOfUnits.

IeBeaconTiming::NeighboursTimingUnitsList ns3::dot11s::IeBeaconTiming::GetNeighboursTimingElementsList ( )

This methods are needed for beacon collision avoidance module:

Definition at line 75 of file ie-dot11s-beacon-timing.cc.

References m_neighbours.

bool ns3::dot11s::IeBeaconTiming::operator== ( WifiInformationElement const & a ) const

virtual

Compare two IEs for equality by ID & Length, and then through memcmp of serialised version.

Parameters

a	another information element to compare with

Returns: true if the two IEs are equal, false otherwise

Reimplemented from ns3::WifiInformationElement.

Definition at line 192 of file ie-dot11s-beacon-timing.cc.

References m_neighbours, m_numOfUnits, and ns3::PeekPointer().

Here is the call graph for this function:

void ns3::dot11s::IeBeaconTiming::Print ( std::ostream & os ) const

virtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 131 of file ie-dot11s-beacon-timing.cc.

References ElementId(), m_neighbours, and m_numOfUnits.

Referenced by ns3::dot11s::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::IeBeaconTiming::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 143 of file ie-dot11s-beacon-timing.cc.

References m_neighbours, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

uint16_t ns3::dot11s::IeBeaconTiming::TimestampToU16 ( Time x )

staticprivate

Converters:

Definition at line 169 of file ie-dot11s-beacon-timing.cc.

References ns3::Time::GetMicroSeconds().

Referenced by AddNeighboursTimingElementUnit(), and DelNeighboursTimingElementUnit().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

NeighboursTimingUnitsList ns3::dot11s::IeBeaconTiming::m_neighbours

private

Definition at line 103 of file ie-dot11s-beacon-timing.h.

Referenced by AddNeighboursTimingElementUnit(), ClearTimingElement(), DelNeighboursTimingElementUnit(), DeserializeInformationField(), GetNeighboursTimingElementsList(), operator==(), Print(), and SerializeInformationField().

uint16_t ns3::dot11s::IeBeaconTiming::m_numOfUnits

private

Timing element parameters:

Definition at line 107 of file ie-dot11s-beacon-timing.h.

Referenced by AddNeighboursTimingElementUnit(), DelNeighboursTimingElementUnit(), DeserializeInformationField(), GetInformationFieldSize(), operator==(), and Print().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-beacon-timing.h
src/mesh/model/dot11s/ie-dot11s-beacon-timing.cc
