This is plugin to Mesh WiFi MAC, which implements interface to dot11s peer management protocol: it takes proper frames from MAC-layer, extracts peer link management information element and mesh configuration element and passes it to main part of protocol. More...

#include <peer-management-protocol-mac.h>

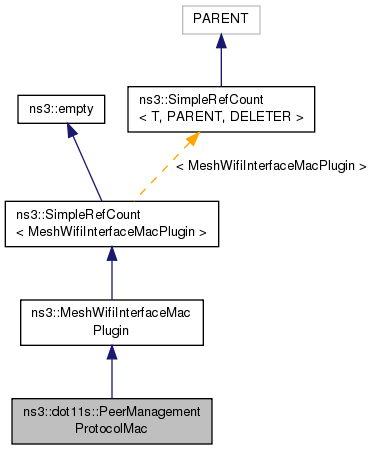

Inheritance diagram for ns3::dot11s::PeerManagementProtocolMac:

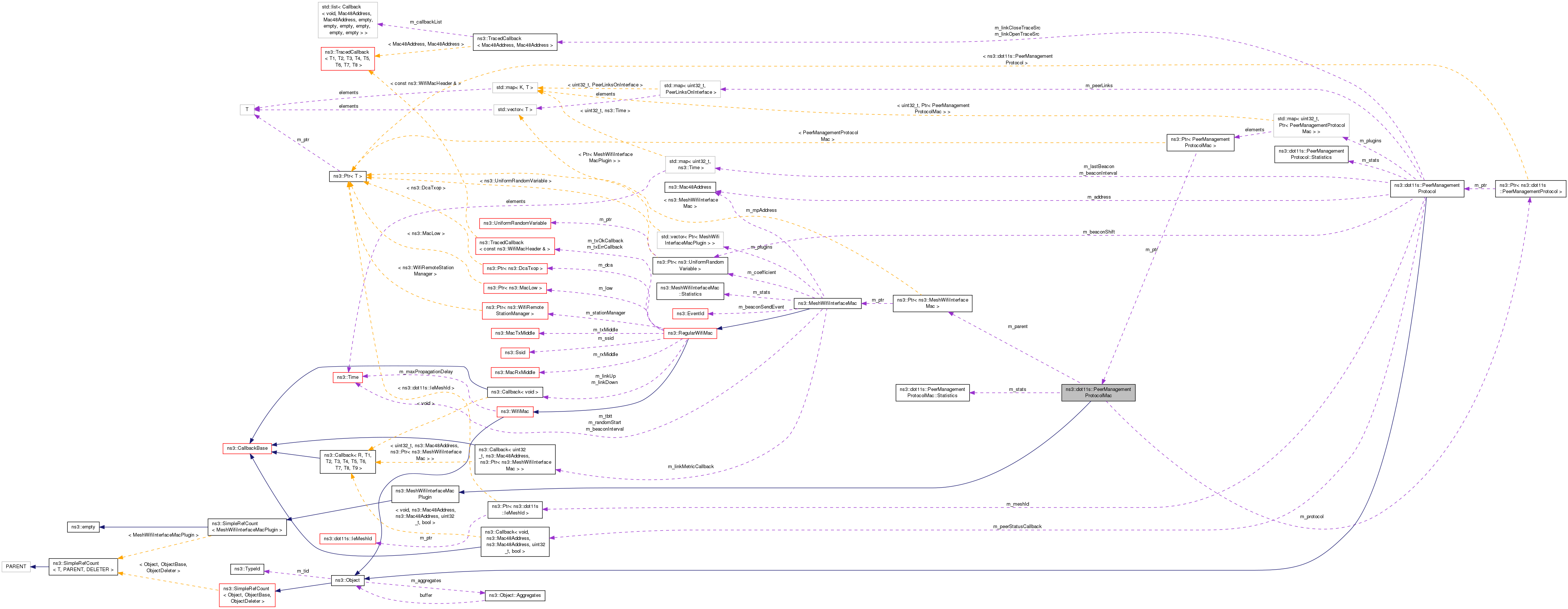

Collaboration diagram for ns3::dot11s::PeerManagementProtocolMac:

Classes
struct	PlinkFrameStart
	This structure keeps all fields in peer link management frame, which are not subclasses of WifiInformationElement. More...

struct	Statistics

Public Member Functions
	PeerManagementProtocolMac (uint32_t interface, Ptr< PeerManagementProtocol > protocol)

	~PeerManagementProtocolMac ()

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)
	Process received frame. More...

void	SetParent (Ptr< MeshWifiInterfaceMac > parent)
	Each plugin must be installed on interface to work. More...

void	UpdateBeacon (MeshWifiBeacon &beacon) const
	Update beacon before it will be formed and sent. More...

bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)
	Update frame before it will be forwarded down. More...

Public Member Functions inherited from ns3::MeshWifiInterfaceMacPlugin
virtual	~MeshWifiInterfaceMacPlugin ()
	This is for subclasses. More...

Public Member Functions inherited from ns3::SimpleRefCount< MeshWifiInterfaceMacPlugin >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
	PeerManagementProtocolMac (const PeerManagementProtocolMac &)

Mac48Address	GetAddress () const
	debug only, used to print established links More...

PeerManagementProtocolMac &	operator= (const PeerManagementProtocolMac &)

void	SendPeerLinkManagementFrame (Mac48Address peerAddress, Mac48Address peerMpAddress, uint16_t aid, IePeerManagement peerElement, IeConfiguration meshConfig)

void	SetBeaconShift (Time shift)
	BCA functionality. More...

void	SetPeerManagerProtcol (Ptr< PeerManagementProtocol > protocol)

void	TxError (WifiMacHeader const &hdr)
	Closes link when a proper number of successive transmissions have failed. More...

void	TxOk (WifiMacHeader const &hdr)

Create peer link management frames
Ptr< Packet >	CreatePeerLinkOpenFrame ()
	Parses the start of the frame, where no WifiInformationElements exist. More...

Ptr< Packet >	CreatePeerLinkConfirmFrame ()
	Parses the start of the frame, where no WifiInformationElements exist. More...

Ptr< Packet >	CreatePeerLinkCloseFrame ()
	Parses the start of the frame, where no WifiInformationElements exist. More...

PlinkFrameStart	ParsePlinkFrame (Ptr< const Packet > packet)
	Parses the start of the frame, where no WifiInformationElements exist. More...

Private Attributes
Information about MAC and protocol:
Ptr< MeshWifiInterfaceMac >	m_parent

uint32_t	m_ifIndex

Ptr< PeerManagementProtocol >	m_protocol

Friends
class	PeerLink

class	PeerManagementProtocol

Statistics
struct Statistics	m_stats

void	Report (std::ostream &) const

void	ResetStats ()

uint32_t	GetLinkMetric (Mac48Address peerAddress)

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< MeshWifiInterfaceMacPlugin >
static void	Cleanup (void)
	Noop. More...

Detailed Description

This is plugin to Mesh WiFi MAC, which implements interface to dot11s peer management protocol: it takes proper frames from MAC-layer, extracts peer link management information element and mesh configuration element and passes it to main part of protocol.

Definition at line 42 of file peer-management-protocol-mac.h.

Constructor & Destructor Documentation

ns3::dot11s::PeerManagementProtocolMac::PeerManagementProtocolMac	(	uint32_t	interface,
		Ptr< PeerManagementProtocol >	protocol
	)

Definition at line 34 of file peer-management-protocol-mac.cc.

References m_ifIndex, and m_protocol.

ns3::dot11s::PeerManagementProtocolMac::~PeerManagementProtocolMac ( )

Definition at line 41 of file peer-management-protocol-mac.cc.

ns3::dot11s::PeerManagementProtocolMac::PeerManagementProtocolMac ( const PeerManagementProtocolMac & )

private

Member Function Documentation

int64_t ns3::dot11s::PeerManagementProtocolMac::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 320 of file peer-management-protocol-mac.cc.

References m_protocol.

Ptr<Packet> ns3::dot11s::PeerManagementProtocolMac::CreatePeerLinkCloseFrame ( )

private

Parses the start of the frame, where no WifiInformationElements exist.

Ptr<Packet> ns3::dot11s::PeerManagementProtocolMac::CreatePeerLinkConfirmFrame ( )

private

Parses the start of the frame, where no WifiInformationElements exist.

Ptr<Packet> ns3::dot11s::PeerManagementProtocolMac::CreatePeerLinkOpenFrame ( )

private

Parses the start of the frame, where no WifiInformationElements exist.

Mac48Address ns3::dot11s::PeerManagementProtocolMac::GetAddress ( void ) const

private

debug only, used to print established links

Definition at line 258 of file peer-management-protocol-mac.cc.

References m_parent.

Referenced by ns3::dot11s::PeerLink::Report().

Here is the caller graph for this function:

uint32_t ns3::dot11s::PeerManagementProtocolMac::GetLinkMetric ( Mac48Address peerAddress )

Definition at line 315 of file peer-management-protocol-mac.cc.

References m_parent.

Referenced by ns3::dot11s::PeerLink::Report().

Here is the caller graph for this function:

PeerManagementProtocolMac& ns3::dot11s::PeerManagementProtocolMac::operator= ( const PeerManagementProtocolMac & )

private

PlinkFrameStart ns3::dot11s::PeerManagementProtocolMac::ParsePlinkFrame ( Ptr< const Packet > packet )

private

Parses the start of the frame, where no WifiInformationElements exist.

bool ns3::dot11s::PeerManagementProtocolMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader &	header
	)

virtual

Process received frame.

Returns: false if (and only if) frame should be dropped

Todo:: define when MAC call this

Implements ns3::MeshWifiInterfaceMacPlugin.

Definition at line 63 of file peer-management-protocol-mac.cc.

References ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::aid, ns3::dot11s::PeerManagementProtocolMac::Statistics::brokenMgt, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::config, ns3::Packet::Copy(), ns3::WifiInformationElementVector::FindFirst(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::MgtProbeResponseHeader::GetBeaconIntervalUs(), ns3::WifiActionHeader::GetCategory(), ns3::dot11s::PeerLinkFrameStart::GetFields(), ns3::Packet::GetSize(), IE11S_BEACON_TIMING, IE11S_MESH_ID, IE11S_PEERING_MANAGEMENT, ns3::WifiMacHeader::IsAction(), ns3::WifiMacHeader::IsBeacon(), ns3::dot11s::IeMeshId::IsEqual(), m_ifIndex, m_parent, m_protocol, m_stats, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::meshId, ns3::MicroSeconds(), NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, ns3::WifiActionHeader::PEER_LINK_CONFIRM, ns3::WifiActionHeader::PEER_LINK_OPEN, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::rates, ns3::Packet::RemoveHeader(), ns3::dot11s::PeerManagementProtocolMac::Statistics::rxClose, ns3::dot11s::PeerManagementProtocolMac::Statistics::rxConfirm, ns3::dot11s::PeerManagementProtocolMac::Statistics::rxMgt, ns3::dot11s::PeerManagementProtocolMac::Statistics::rxMgtBytes, ns3::dot11s::PeerManagementProtocolMac::Statistics::rxOpen, ns3::WifiActionHeader::SELF_PROTECTED, ns3::WifiActionHeader::ActionValue::selfProtectedAction, ns3::dot11s::PeerLinkFrameStart::SetPlinkFrameSubtype(), and ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::subtype.

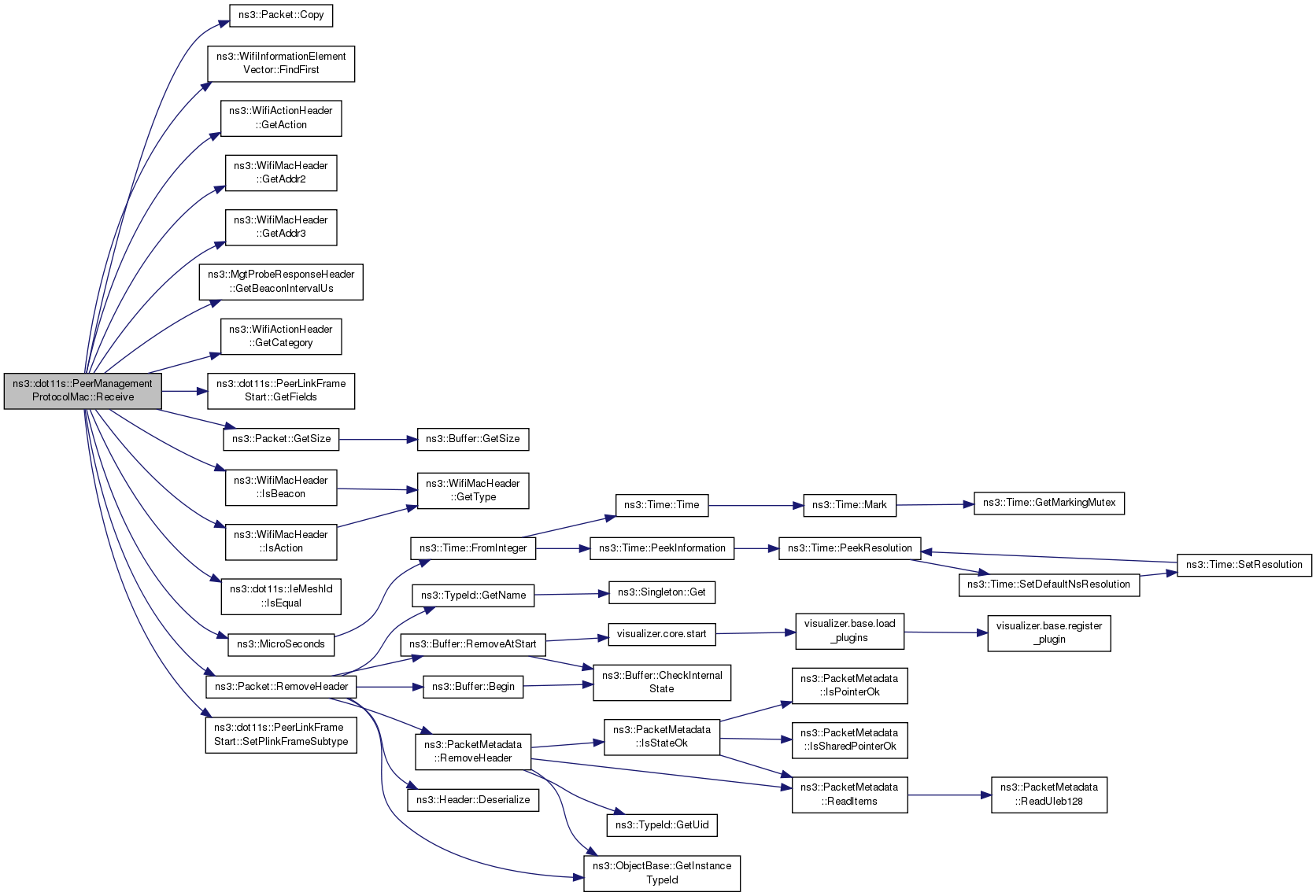

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocolMac::Report ( std::ostream & os ) const

Definition at line 302 of file peer-management-protocol-mac.cc.

References m_parent, m_stats, and ns3::dot11s::PeerManagementProtocolMac::Statistics::Print().

Here is the call graph for this function:

void ns3::dot11s::PeerManagementProtocolMac::ResetStats ( )

Definition at line 310 of file peer-management-protocol-mac.cc.

References m_stats.

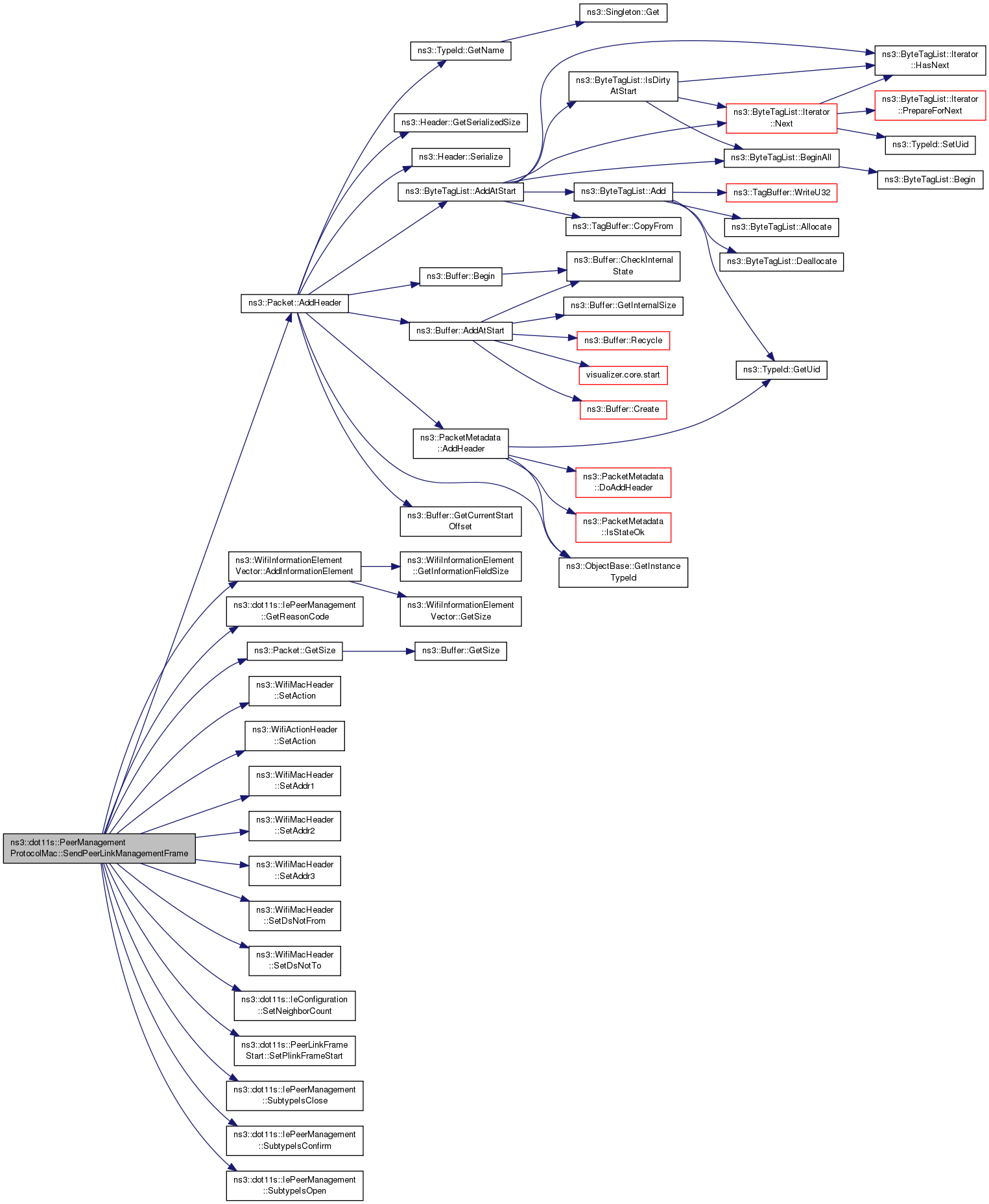

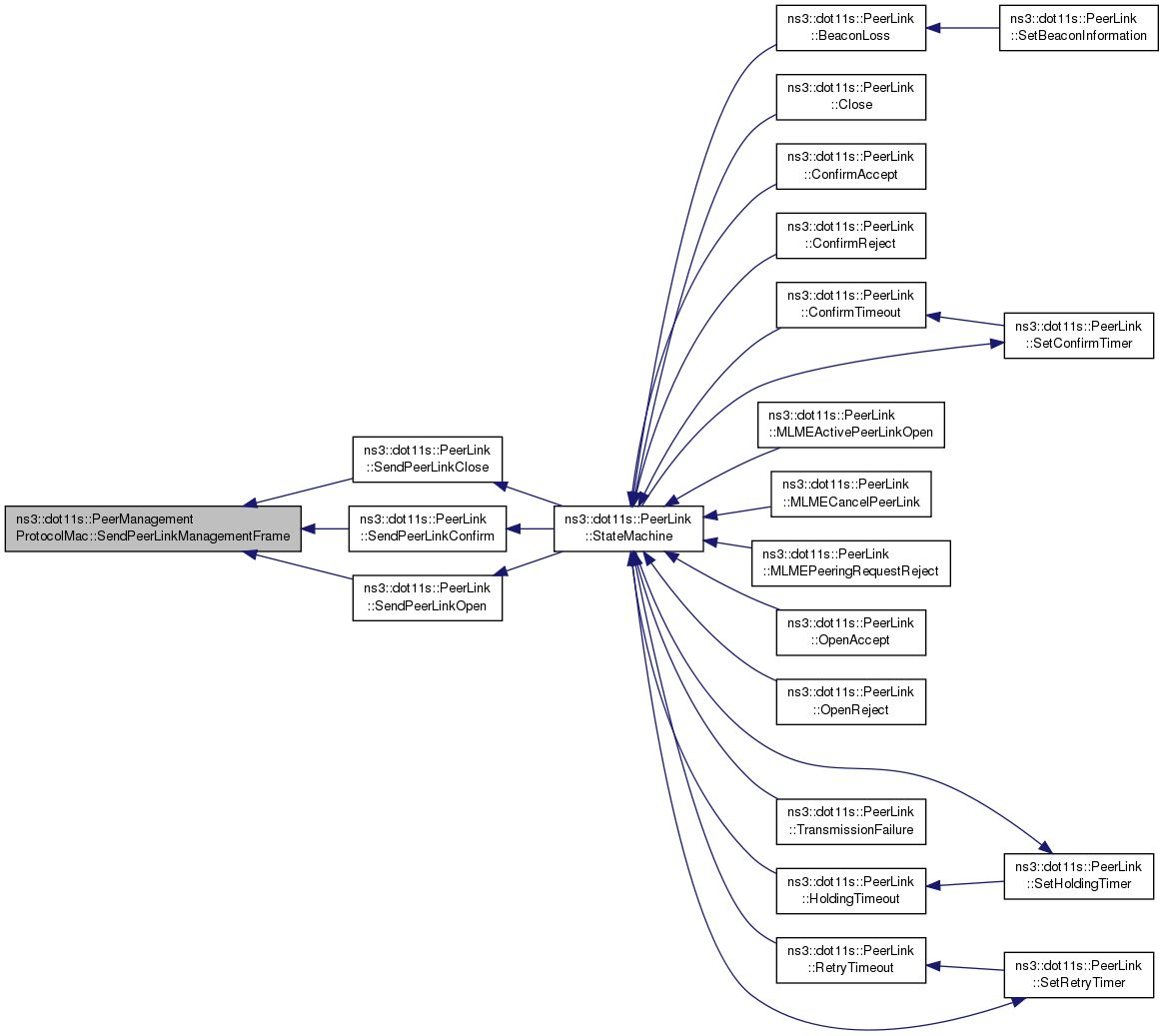

void ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame	(	Mac48Address	peerAddress,
		Mac48Address	peerMpAddress,
		uint16_t	aid,
		IePeerManagement	peerElement,
		IeConfiguration	meshConfig
	)
