ns3::dsr::ErrorBuffEntry Class Reference

DSR Error Buffer Entry. More...

#include <dsr-errorbuff.h>

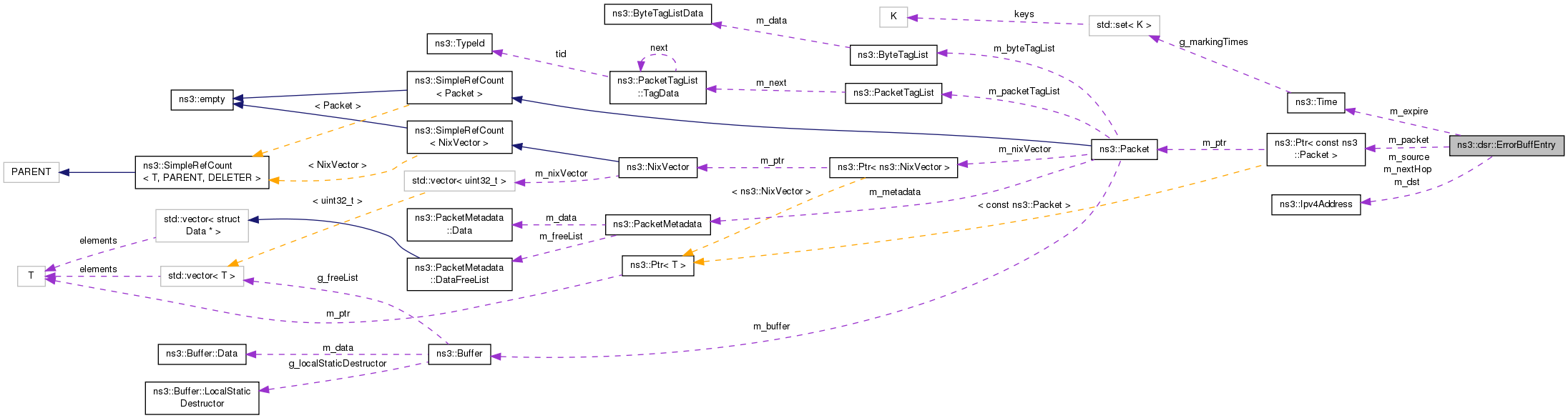

Collaboration diagram for ns3::dsr::ErrorBuffEntry:

Public Member Functions
	ErrorBuffEntry (Ptr< const Packet > pa=0, Ipv4Address d=Ipv4Address(), Ipv4Address s=Ipv4Address(), Ipv4Address n=Ipv4Address(), Time exp=Simulator::Now(), uint8_t p=0)
	Create an ErrorBuffEntry with the given parameters. More...
Ipv4Address	GetDestination () const
Time	GetExpireTime () const
Ipv4Address	GetNextHop () const
Ptr< const Packet >	GetPacket () const
uint8_t	GetProtocol () const
Ipv4Address	GetSource () const
bool	operator== (ErrorBuffEntry const &o) const
	Compare send buffer entries. More...
void	SetDestination (Ipv4Address d)
void	SetExpireTime (Time exp)
void	SetNextHop (Ipv4Address n)
void	SetPacket (Ptr< const Packet > p)
void	SetProtocol (uint8_t p)
void	SetSource (Ipv4Address s)

Private Attributes
Ipv4Address	m_dst
	Destination address. More...
Time	m_expire
	Expire time for queue entry. More...
Ipv4Address	m_nextHop
	Nexthop address. More...
Ptr< const Packet >	m_packet
	Data packet. More...
uint8_t	m_protocol
	The protocol number. More...
Ipv4Address	m_source
	Source address. More...

Detailed Description

DSR Error Buffer Entry.

Definition at line 45 of file dsr-errorbuff.h.

Constructor & Destructor Documentation

ns3::dsr::ErrorBuffEntry::ErrorBuffEntry ( Ptr< const Packet >  pa = 0, Ipv4Address  d = Ipv4Address (), Ipv4Address  s = Ipv4Address (), Ipv4Address  n = Ipv4Address (), Time  exp = Simulator::Now (), uint8_t  p = 0  )

inline

Create an ErrorBuffEntry with the given parameters.

Parameters

pa	packet
d	IPv4 address of the destination
s	IPv4 address of the source
n	IPv4 address of the next hop
exp	expiration time
p	protocol number

Definition at line 58 of file dsr-errorbuff.h.

Member Function Documentation

Ipv4Address ns3::dsr::ErrorBuffEntry::GetDestination ( ) const

inline

Definition at line 87 of file dsr-errorbuff.h.

References m_dst.

Referenced by ns3::dsr::ErrorBuffer::Drop(), and ns3::dsr::ErrorBuffer::Enqueue().

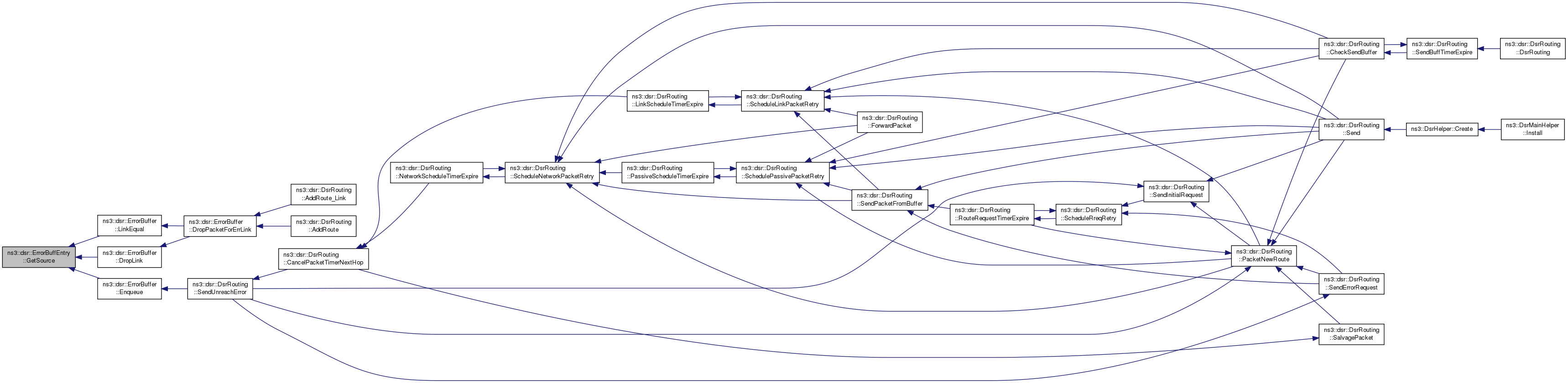

Here is the caller graph for this function:

Time ns3::dsr::ErrorBuffEntry::GetExpireTime ( ) const

inline

Definition at line 115 of file dsr-errorbuff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::IsExpired::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::dsr::ErrorBuffEntry::GetNextHop ( ) const

inline

Definition at line 103 of file dsr-errorbuff.h.

References m_nextHop.

Referenced by ns3::dsr::ErrorBuffer::DropLink(), ns3::dsr::ErrorBuffer::Enqueue(), and ns3::dsr::ErrorBuffer::LinkEqual().

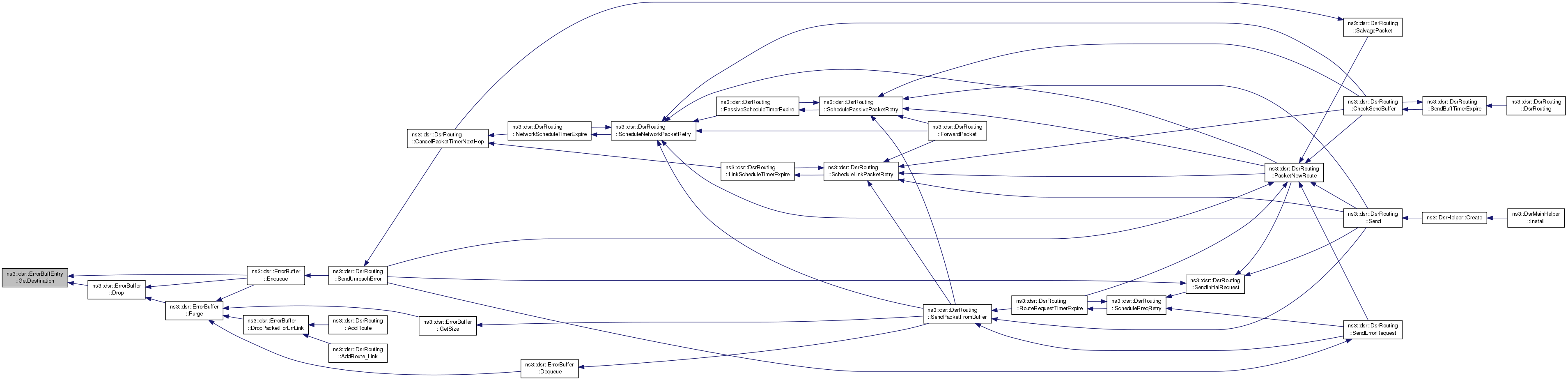

Here is the caller graph for this function:

Ptr<const Packet> ns3::dsr::ErrorBuffEntry::GetPacket ( ) const

inline

Definition at line 79 of file dsr-errorbuff.h.

References m_packet.

Referenced by ns3::dsr::ErrorBuffer::Dequeue(), ns3::dsr::ErrorBuffer::Drop(), ns3::dsr::ErrorBuffer::DropLink(), ns3::dsr::ErrorBuffer::Enqueue(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

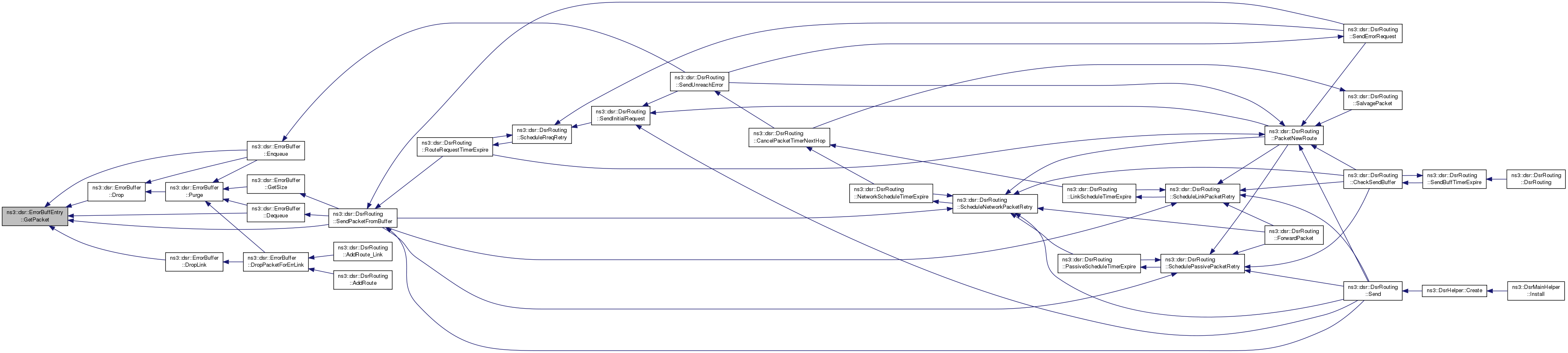

Here is the caller graph for this function:

uint8_t ns3::dsr::ErrorBuffEntry::GetProtocol ( ) const

inline

Definition at line 123 of file dsr-errorbuff.h.

References m_protocol.

Ipv4Address ns3::dsr::ErrorBuffEntry::GetSource ( ) const

inline

Definition at line 95 of file dsr-errorbuff.h.

References m_source.

Referenced by ns3::dsr::ErrorBuffer::DropLink(), ns3::dsr::ErrorBuffer::Enqueue(), and ns3::dsr::ErrorBuffer::LinkEqual().

Here is the caller graph for this function:

bool ns3::dsr::ErrorBuffEntry::operator== ( ErrorBuffEntry const &  o ) const

inline

Compare send buffer entries.

Parameters

o	another ErrorBuffEntry

Returns

true if equal

Definition at line 73 of file dsr-errorbuff.h.

References m_dst, m_expire, m_nextHop, m_packet, and m_source.

void ns3::dsr::ErrorBuffEntry::SetDestination ( Ipv4Address  d )

inline

Definition at line 91 of file dsr-errorbuff.h.

References m_dst.

void ns3::dsr::ErrorBuffEntry::SetExpireTime ( Time  exp )

inline

Definition at line 111 of file dsr-errorbuff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::ErrorBuffer::Enqueue().

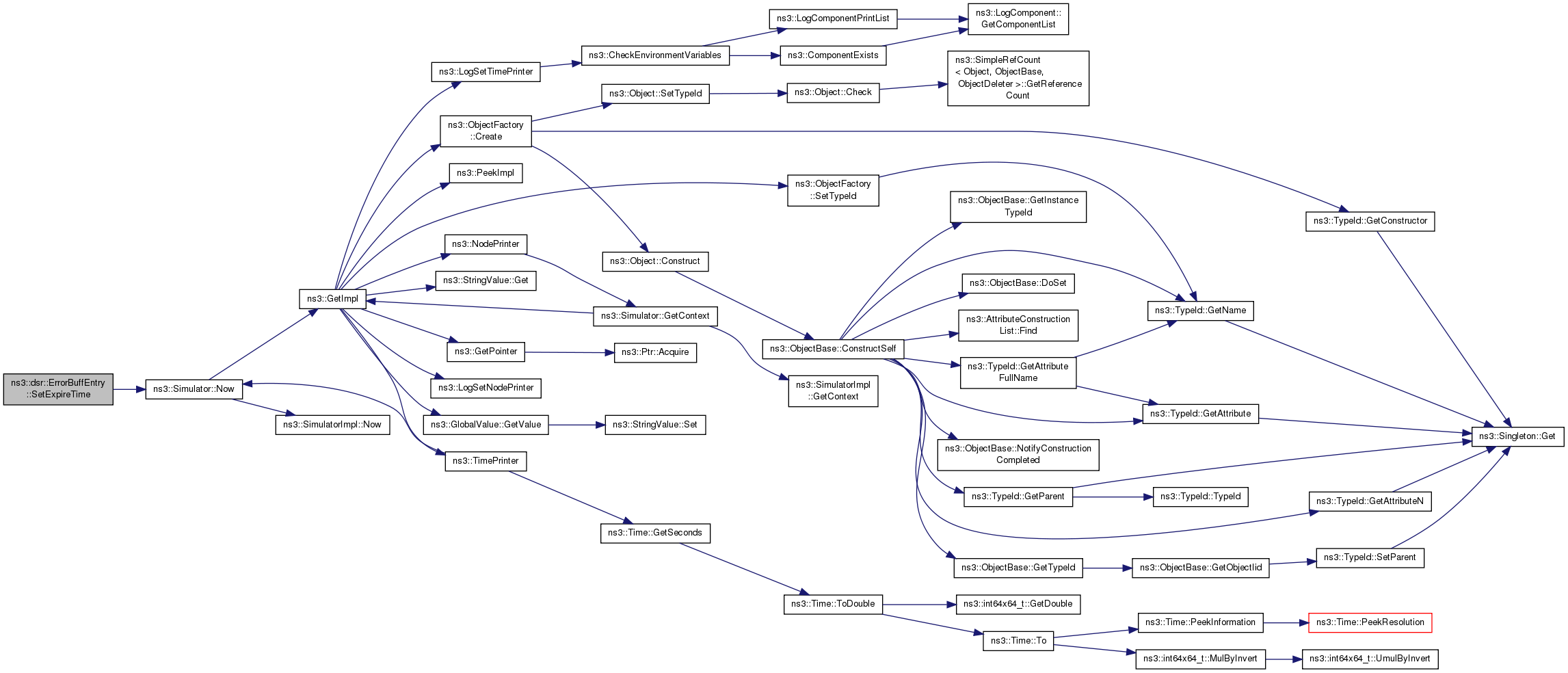

Here is the call graph for this function:

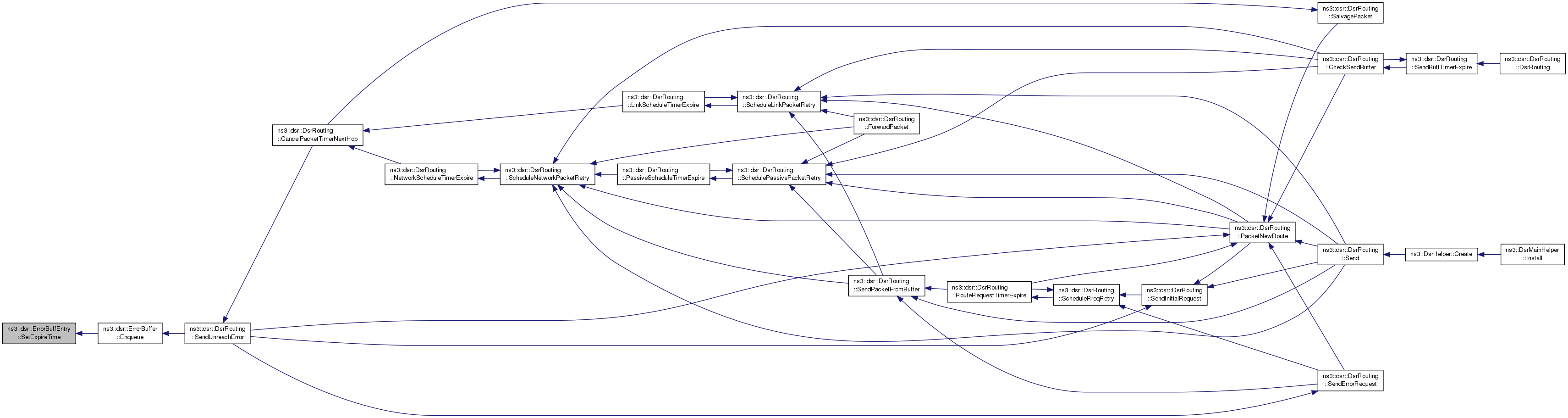

Here is the caller graph for this function:

void ns3::dsr::ErrorBuffEntry::SetNextHop ( Ipv4Address  n )

inline

Definition at line 107 of file dsr-errorbuff.h.

References m_nextHop.

void ns3::dsr::ErrorBuffEntry::SetPacket ( Ptr< const Packet >  p )

inline

Definition at line 83 of file dsr-errorbuff.h.

References m_packet.

void ns3::dsr::ErrorBuffEntry::SetProtocol ( uint8_t  p )

inline

Definition at line 119 of file dsr-errorbuff.h.

References m_protocol.

void ns3::dsr::ErrorBuffEntry::SetSource ( Ipv4Address  s )

inline

Definition at line 99 of file dsr-errorbuff.h.

References m_source.

Member Data Documentation

Ipv4Address ns3::dsr::ErrorBuffEntry::m_dst

private

Destination address.

Definition at line 132 of file dsr-errorbuff.h.

Referenced by GetDestination(), operator==(), and SetDestination().

Time ns3::dsr::ErrorBuffEntry::m_expire

private

Expire time for queue entry.

Definition at line 138 of file dsr-errorbuff.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

Ipv4Address ns3::dsr::ErrorBuffEntry::m_nextHop

private

Nexthop address.

Definition at line 136 of file dsr-errorbuff.h.

Referenced by GetNextHop(), operator==(), and SetNextHop().

Ptr<const Packet> ns3::dsr::ErrorBuffEntry::m_packet

private

Data packet.

Definition at line 130 of file dsr-errorbuff.h.

Referenced by GetPacket(), operator==(), and SetPacket().

uint8_t ns3::dsr::ErrorBuffEntry::m_protocol

private

The protocol number.

Definition at line 140 of file dsr-errorbuff.h.

Referenced by GetProtocol(), and SetProtocol().

Ipv4Address ns3::dsr::ErrorBuffEntry::m_source

private

Source address.

Definition at line 134 of file dsr-errorbuff.h.

Referenced by GetSource(), operator==(), and SetSource().

---

The documentation for this class was generated from the following file:

• src/dsr/model/dsr-errorbuff.h
